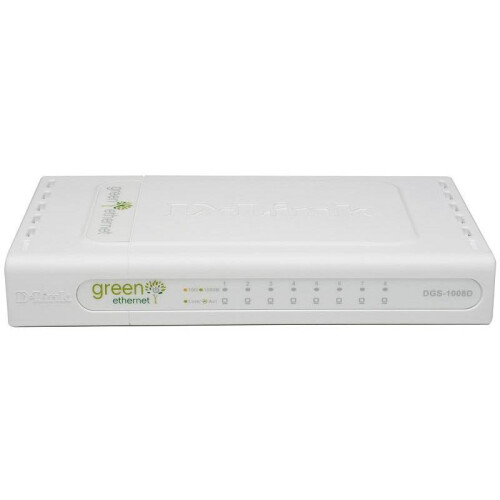

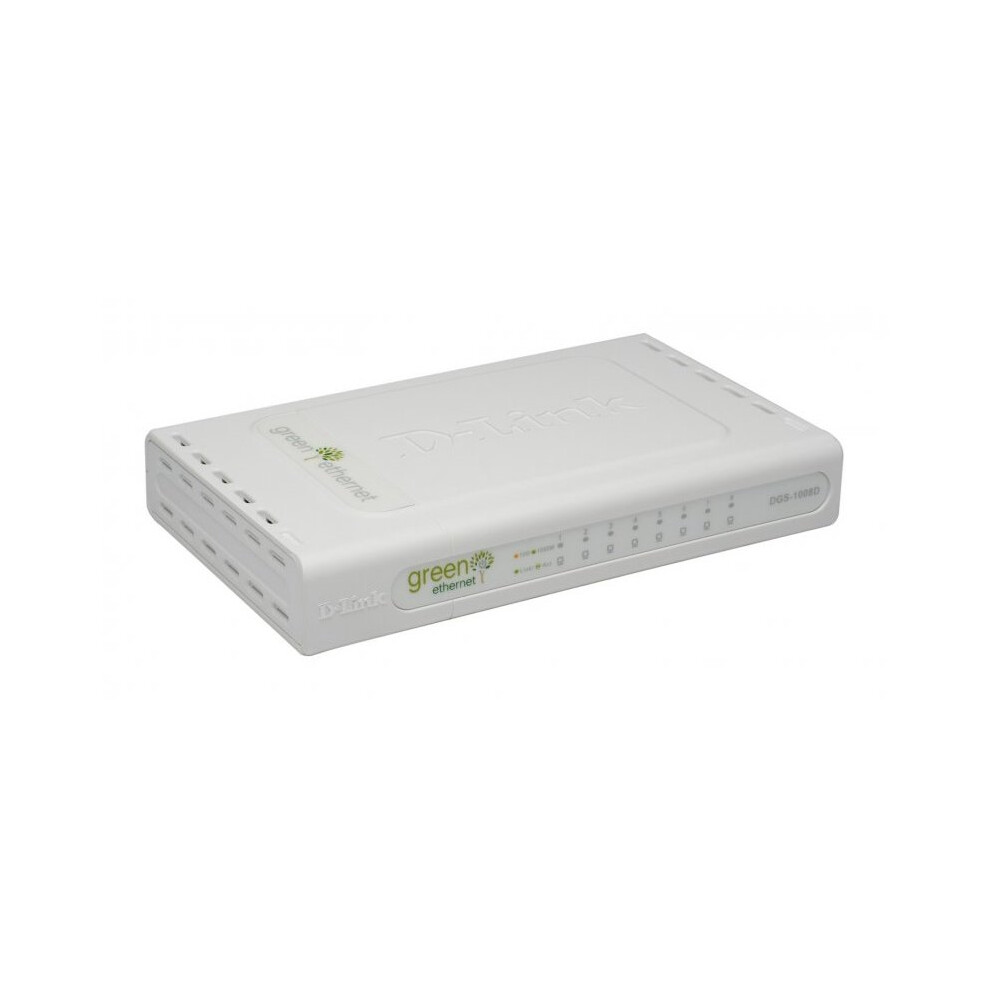

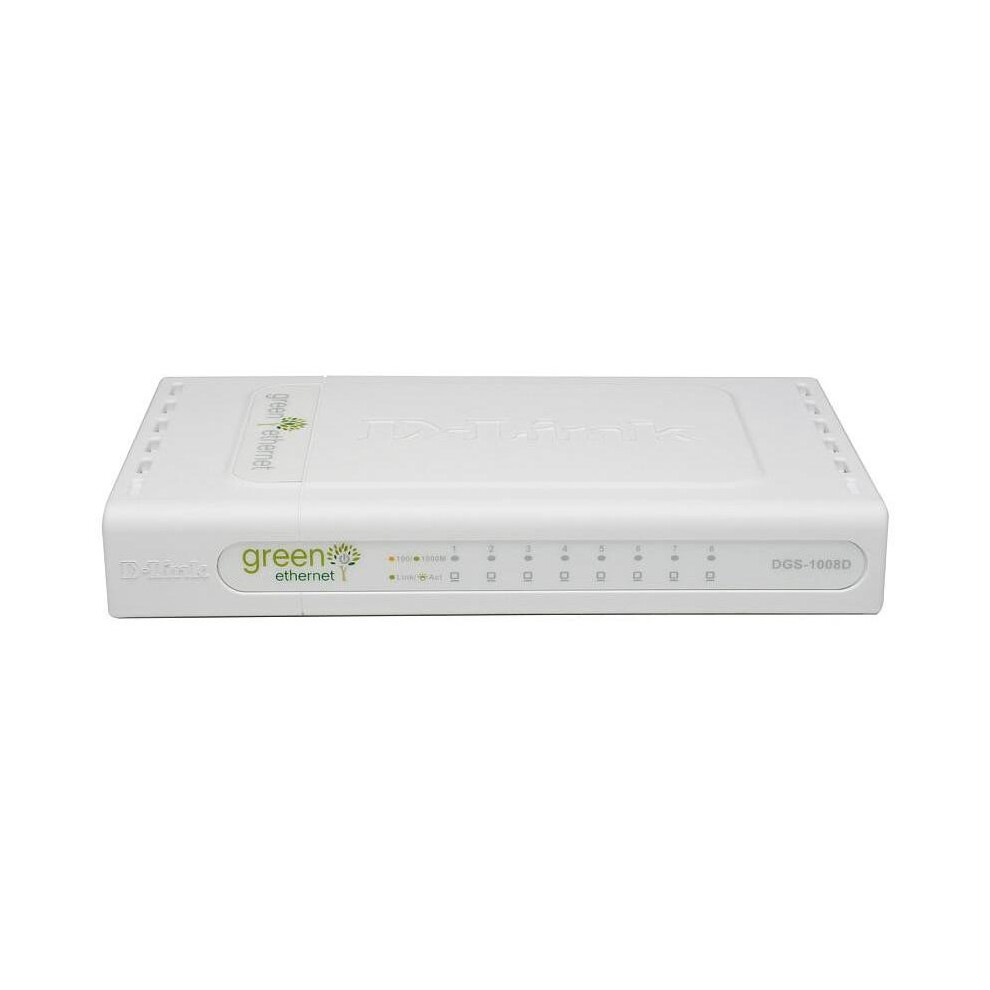

D-Link DGS-1008D/E Unmanaged White network switch

D-Link DGS-1008D/E Unmanaged White network switch Description

The first of the Green Ethernet products the DGS-1008D provides 3 key benefits to end users through its cutting edge innovative eco-friendly technology

Reduces power consumption & creates less heat
Extended product life
Reduces Operating Costs

Power Savings by Number of Connected Ports and Link Status
Computers do not require Internet access all the time; neither do switches utilize all ports at all times. When a computer or network equipment is shutdown, switches often remain on and continue to consume considerable amount of power. With Green Ethernet technology, D-Link switches can automatically detect link status and reduce power usage of ports that are idle. Computers or any connecting parties set to standby mode (not power off), however, will not provide significant power savings.

Power Savings by Cable Length
The Green Ethernet switches have the ability to analyze the length of any Ethernet cable connected to them for adjustment of power usage accordingly. Shorter lengths require less power.

Overall Power Savings Per Day
For a traditional switch, power consumption remains constant even when the ports are not in use. In a standard workday scenario where PCs are used for 10 hours a day and powered off 14 hours a day, and connected to the switch using 20 meter cables, D-Link's Green Ethernet can save up to 40% power used for each system.

Get the blazing speed of Gigabit Ethernet with the D-Link DGS-1008D, an 8-port 10/100/1000Mbps Gigabit Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality.

Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Power-Packed
The D-Link DGS-1008D 10/100/1000 Mbps Gigabit Switch features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8,000 MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. The D-Link DGS-1008D 10/100/1000 Mbps Gigabit Switch protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.

Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

It also features diagnostic LEDs which display status and activity, allowing you to quickly detect and correct problems on the network.

Management features Switch type Unmanaged Quality of Service (QoS) support Yes Ports & interfaces Basic switching RJ-45 Ethernet ports quantity 8 Copper ethernet cabling technology 1000BASE-T,100BASE-T,10BASE-T Networking Networking standards IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x Full duplex Yes Flow control support Yes Auto MDI/MDI-X Yes 10G support No Data transmission MAC address table 4000 entries Supported data transfer rates 10/100/1000 Mbps Switching capacity 16 Gbit/s Store-and-forward Yes Jumbo frames support Yes Maximum data transfer rate 2 Gbit/s Design Safety CSA Colour of product White LED indicators Activity, Link, Power Certification FCC, CE, cUL, RoHS, LVD Rack mounting No Performance Mean time between failures (MTBF) 1150498 h Power AC input voltage 12 V Power consumption (typical) 4.5 W Input current 1.2 Technical details Colour of product White Mean time between failures (MTBF) 1150498 h Rack mounting No Power over Ethernet (PoE) Power over Ethernet (PoE) No Certificates Safety CSA Certification FCC, CE, cUL, RoHS, LVD Indication LED indicators Activity, Link, Power Operational conditions Storage temperature (T-T) -10 - 70 °C Storage relative humidity (H-H) 5 - 95% Operating temperature (T-T) 0 - 40 °C Operating relative humidity (H-H) 10 - 90% Weight & dimensions Width 164.5 mm Depth 112.4 mm Height 35 mm Weight 300 g Other features Connectivity technology Wired Power requirements 7.5V 1A
