DC 5-24V Dual PWM150 Signal Generator Square Wave Pulse Wave

DC 5-24V Dual PWM150 Signal Generator Square Wave Pulse Wave Description

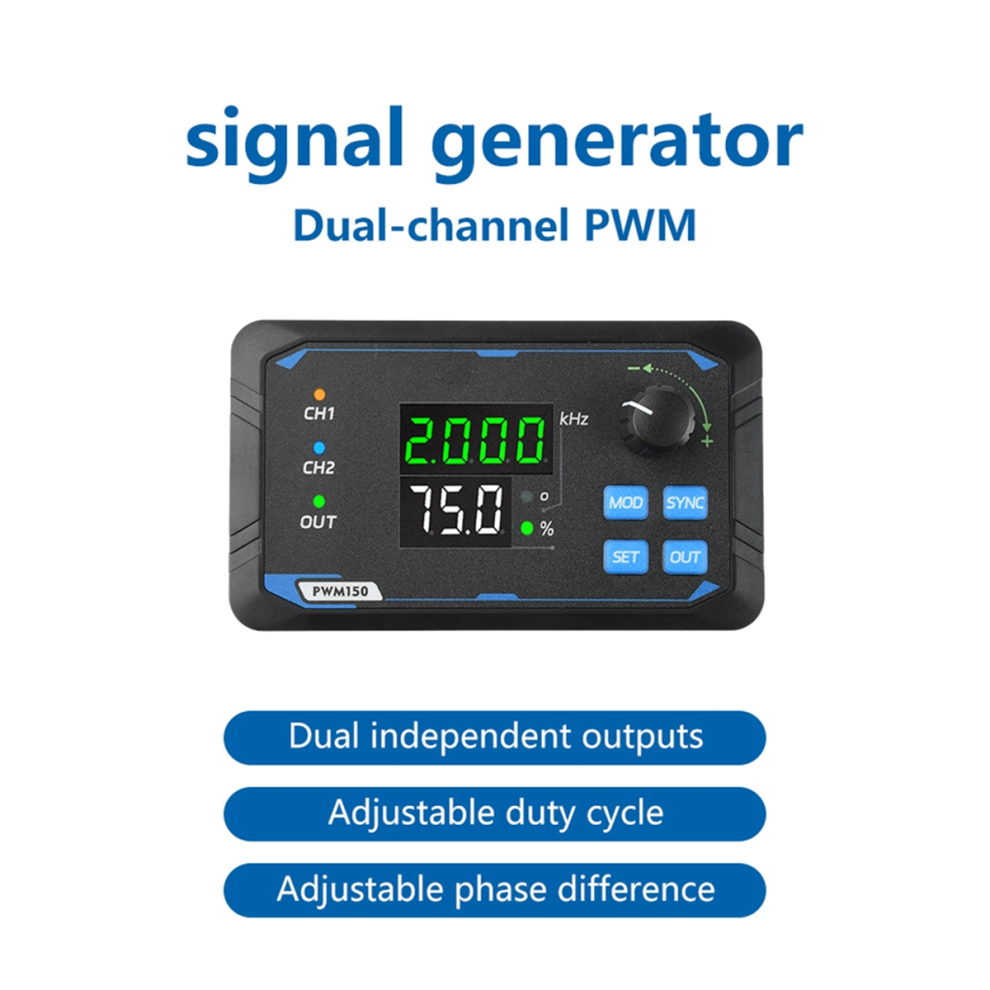

1. Dual-channel PWM signal generator: Features dual outputs, adjustable duty cycle, and adjustable phase difference.
2. Dual-screen dynamic display: 4-digit green (frequency) + 3-digit white (duty cycle/phase) digital tubes, real-time synchronous display of parameters, 120Hz refresh rate.

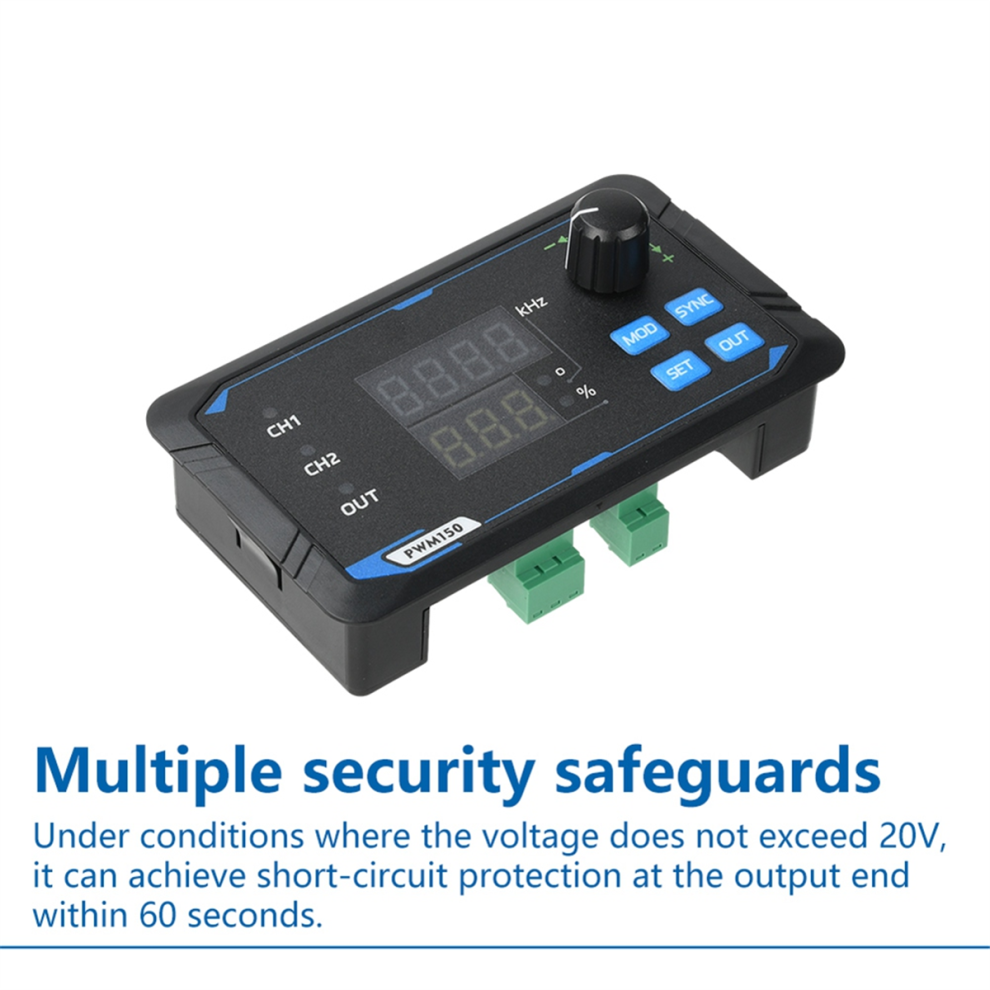

3. Multiple safety features: Output short-circuit protection within 60 seconds, provided the voltage does not exceed 20V.

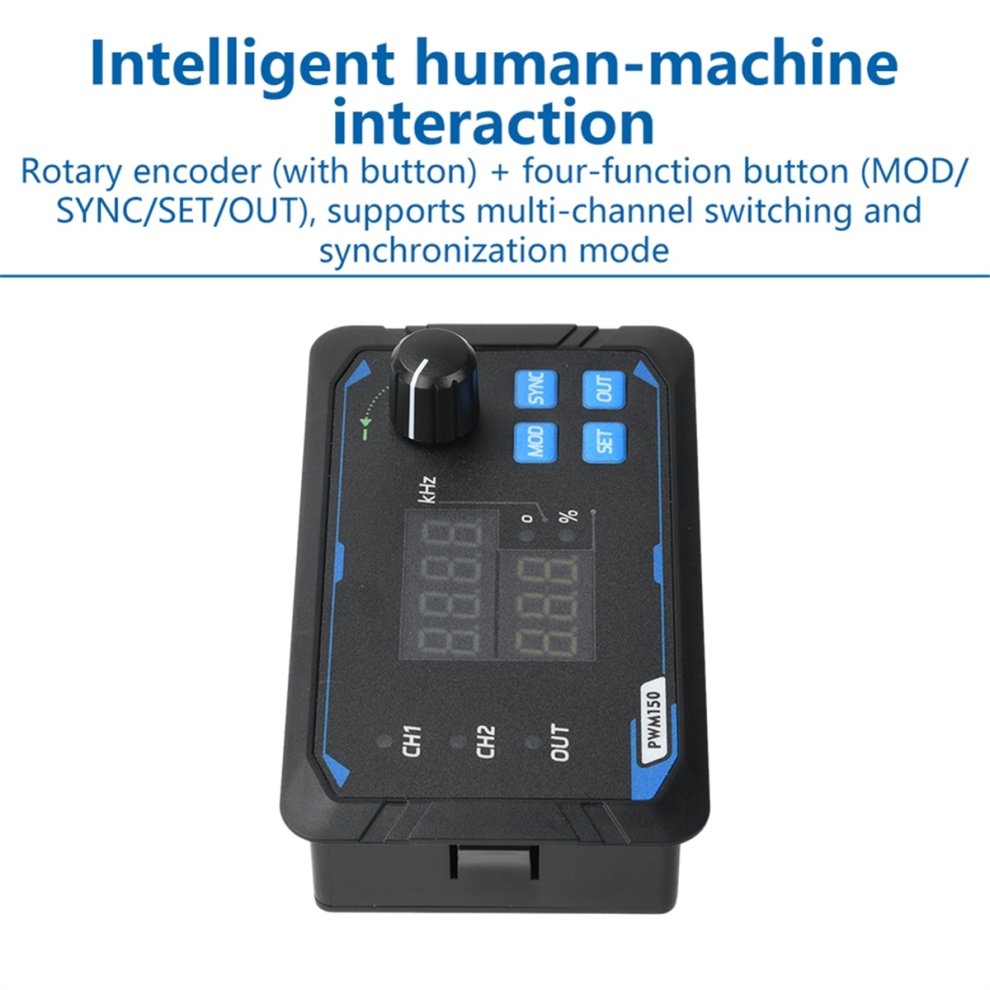

4. Intelligent human-computer interaction: Rotary encoder (with pushbutton) + four-function button (MOD/SYNC/SET/OUT), supporting multi-channel switching and synchronization mode.
5. Wide range of applications: Suitable for electronic laboratories, industrial automation, education and training, DIY, and other fields.

Output frequency: 1Hz-150kHz
Duty cycle accuracy: 0-100%, 0.1% step adjustment
Rise time: 20ns
Phase adjustment: 0-360 (1 step, synchronization mode available)
Output voltage: DC 5-24V, maximum output current 0.2A
Display: 4-digit green + 3-digit white LEDs
Power supply: External power supply (DC 5-24V)
1Hz-10kHz (accuracy: 0.2%)
10Hz-50kHz (accuracy: 0.4%)
50Hz-150kHz (accuracy: 2%)
Color: As Shown
Material: Metal+Plastic

Package Contents:
1 x Signal generator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
