DC 8V-40V to DC 12V 10A 120W Voltage Stabilizer Converter Regulator Step Down Module for LED Lighting

DC 8V-40V to DC 12V 10A 120W Voltage Stabilizer Converter Regulator Step Down Module for LED Lighting Description

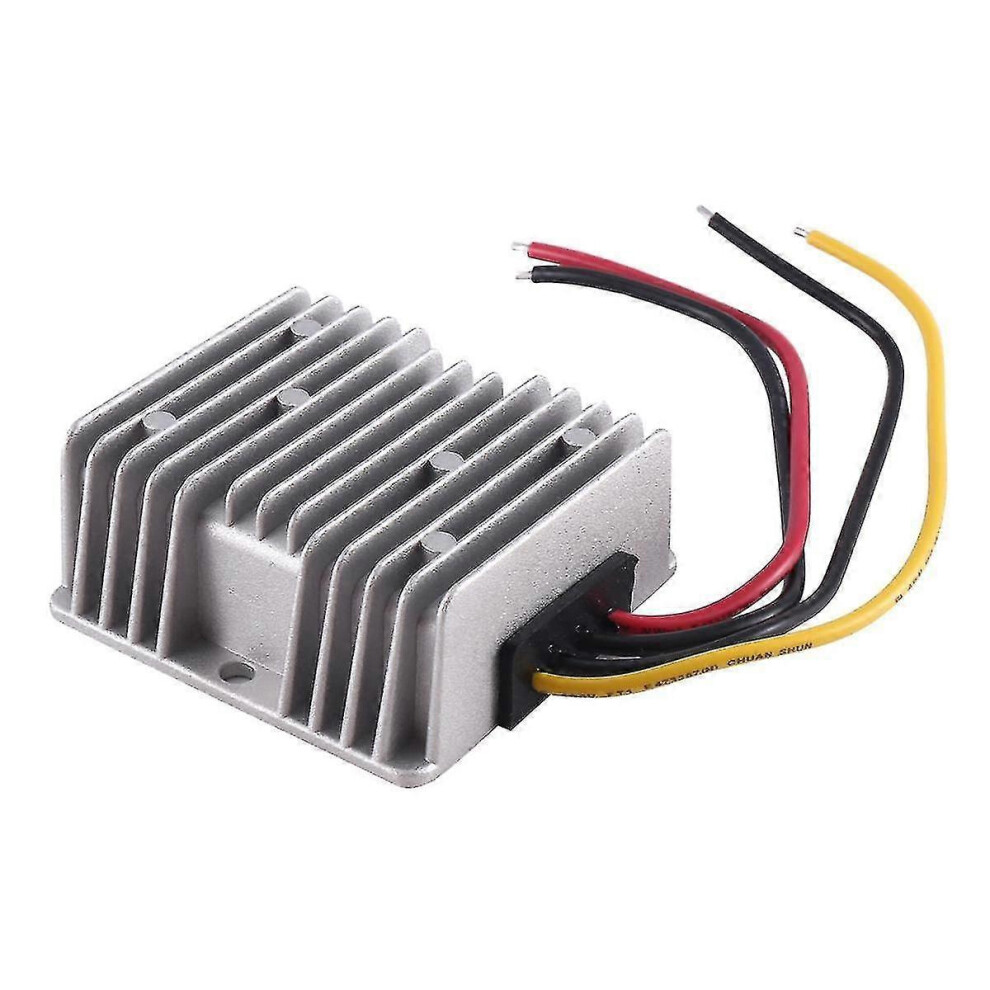

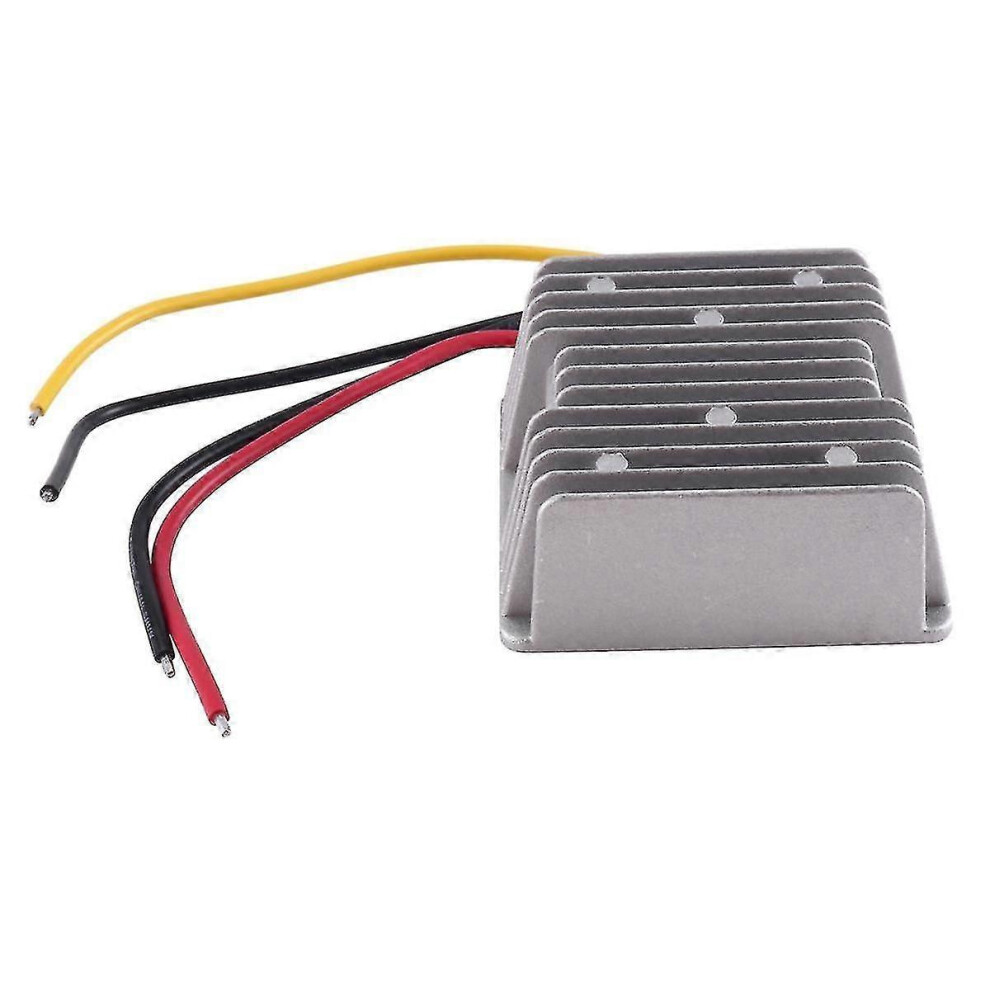

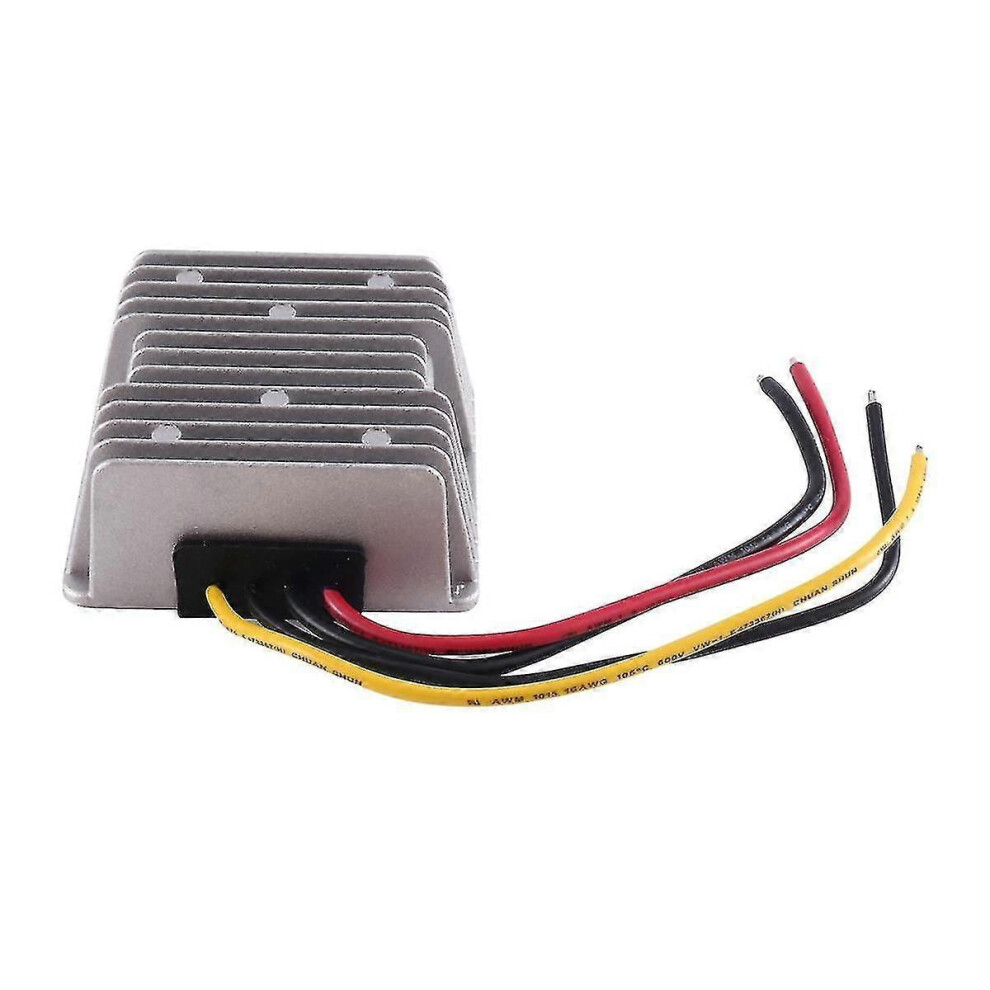

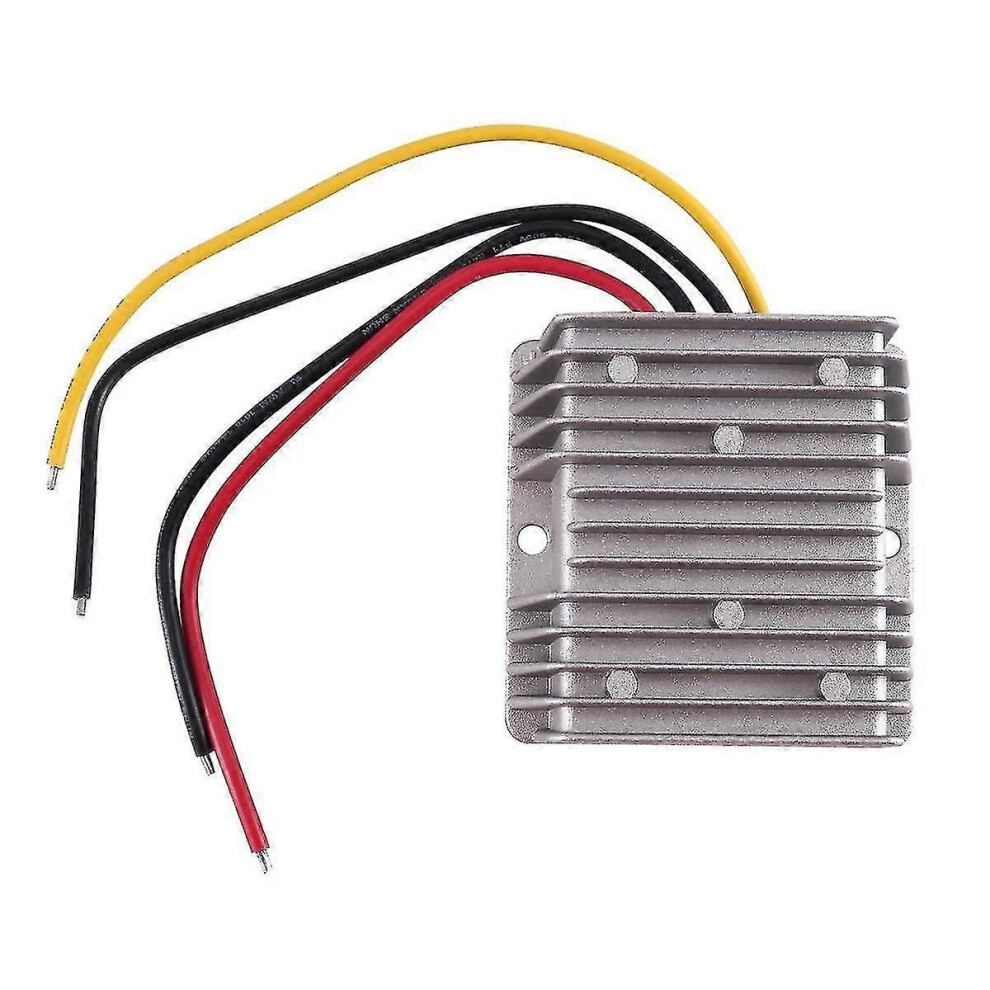

All epoxy-sealed construction with a waterproof die-cast aluminum housing.

Lightweight and convenient to use and carry, with a compact size of 74 mm x 72 mm x 30 mm and a silver metal body for practical everyday installation.

Non-isolated design with high efficiency up to 95%, input range from 8V to 40V, and output voltage of DC 12V 1% for stable power conversion.

Built for reliable performance with overload, over-current, over-voltage, and low-voltage protection, plus operating temperature support from -40 to +85 degrees Celsius, making it suitable for demanding environments.

Ripple is less than 100 mV, no-load current is less than 0.02A, line regulation is 0.02%, load regulation is 0.02%, waterproof rating is IP68, and the package includes 1 x DC-DC converter only. Note: light reflection and different displays may cause the item color to appear slightly different from the actual product. Measurement tolerance is +/- 1-3 cm.
