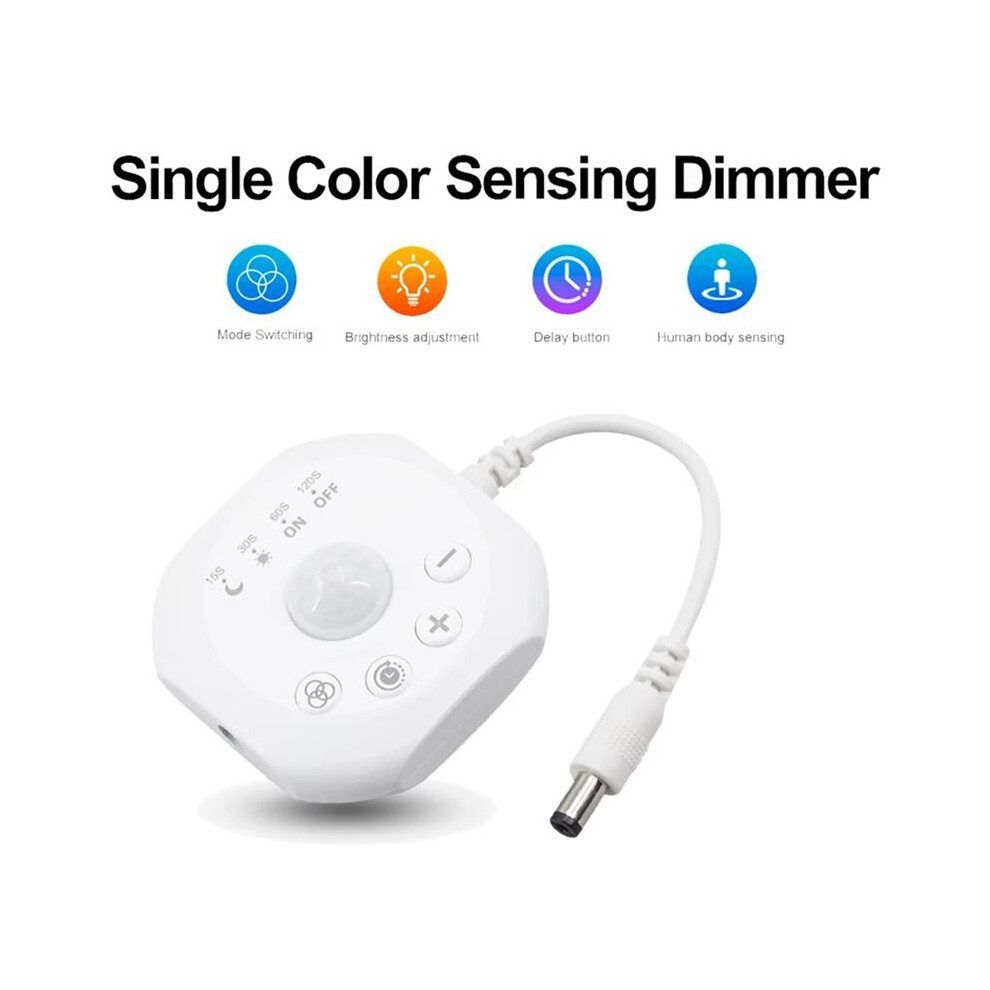

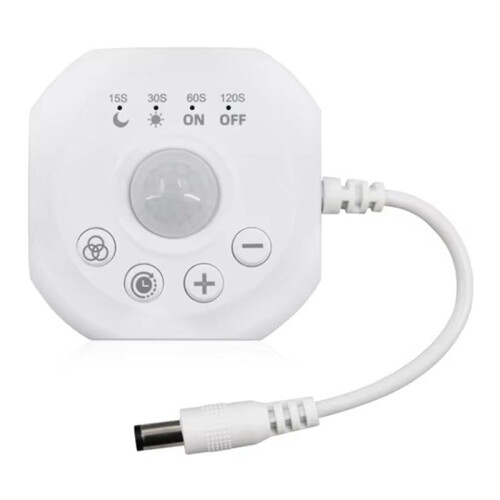

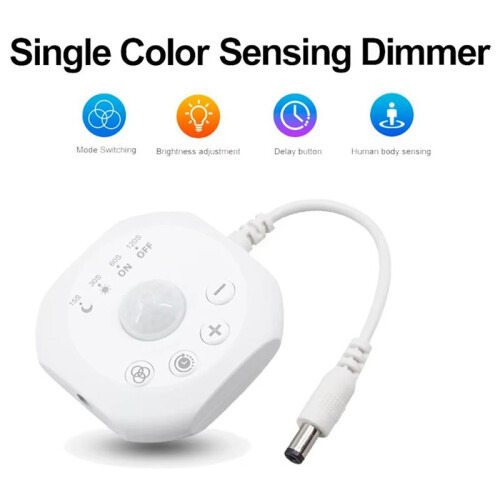

DC5-24V PIR Motion Sensor Light LED Strip Controller Monochrome Dimmer Timer Automatic Movement Detector

DC5-24V PIR Motion Sensor Light LED Strip Controller Monochrome Dimmer Timer Automatic Movement Detector Description

Strong Anti-interference: Utilizes digital serial port pyroelectric sensor for stable performance
Automatic Light Detection: Activates lights based both motion and ambient light conditions
Full Automation: Automatically turns lights /off with human presence detection
Efficient: Ensures lights are only when needed

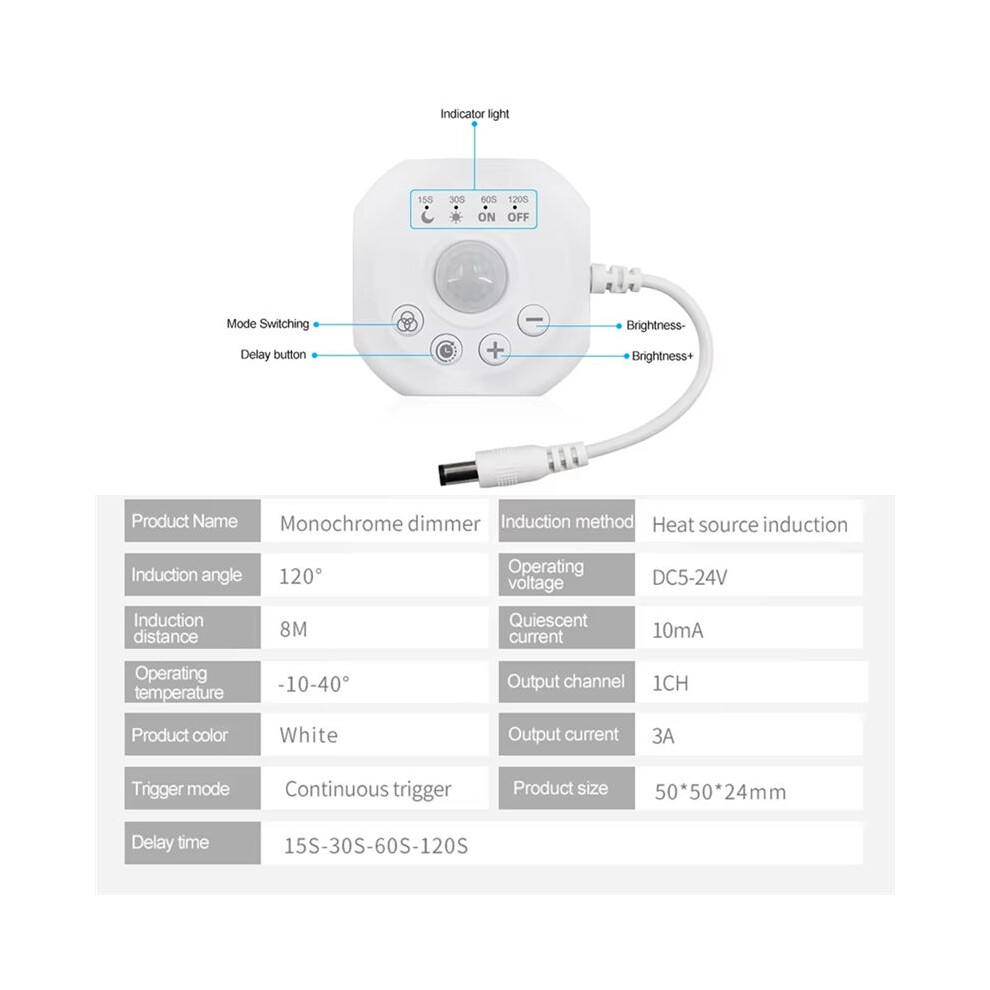

Technical Specifications:
Power Input:5-24V
Standby Current: 10mA
Output: 1 channel, 3A max
Detection Range: 8 meters

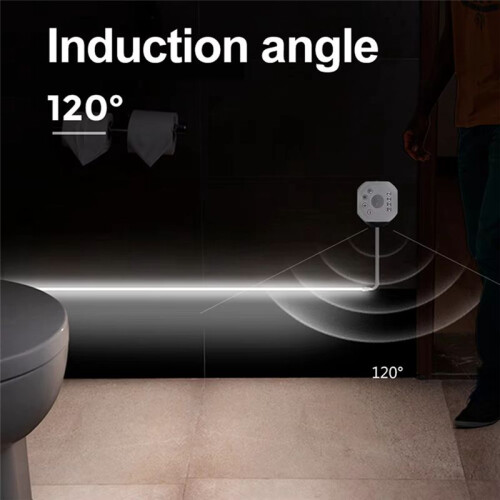

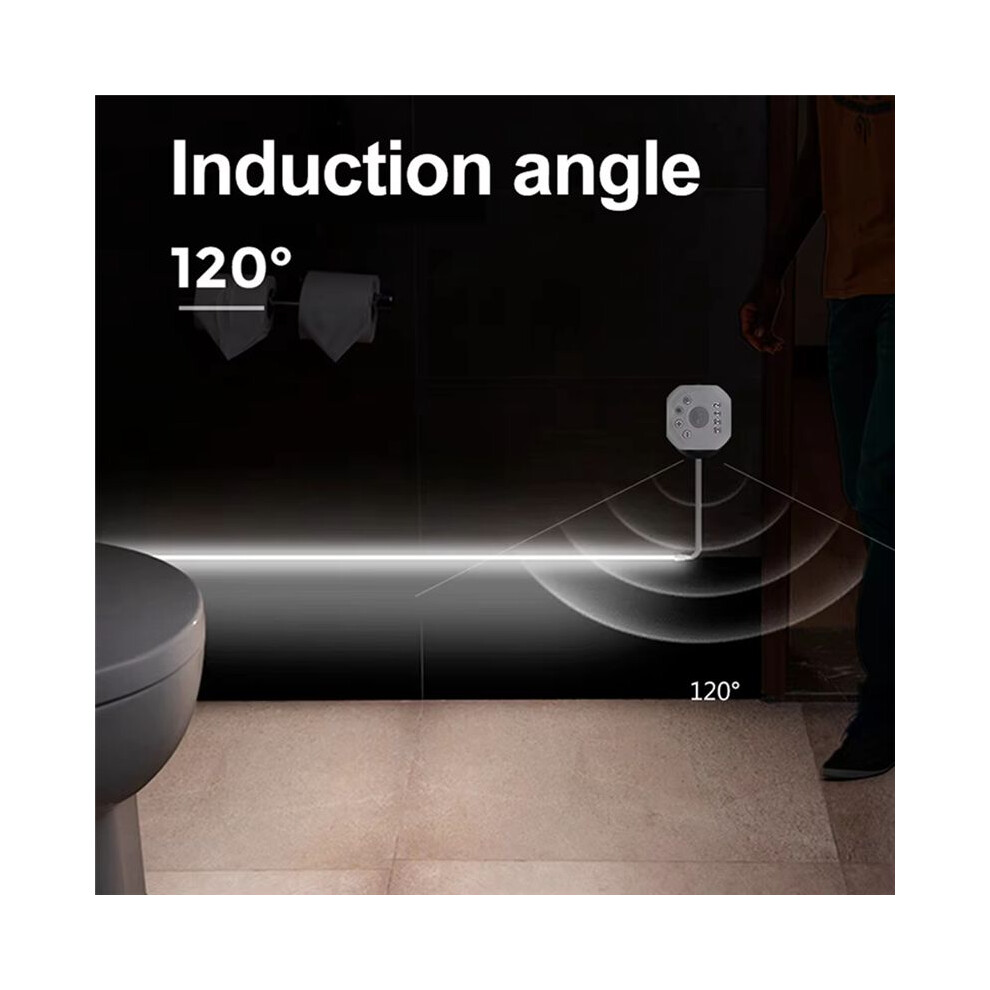

Detection Angle: 120
Delay Settings: 15s/30s/60s/120s (adjustable)
Operating Temp: -10 to 40
Trigger Mode: Continuous (resets timer with movement)
Dimensions: 50x50x24mm

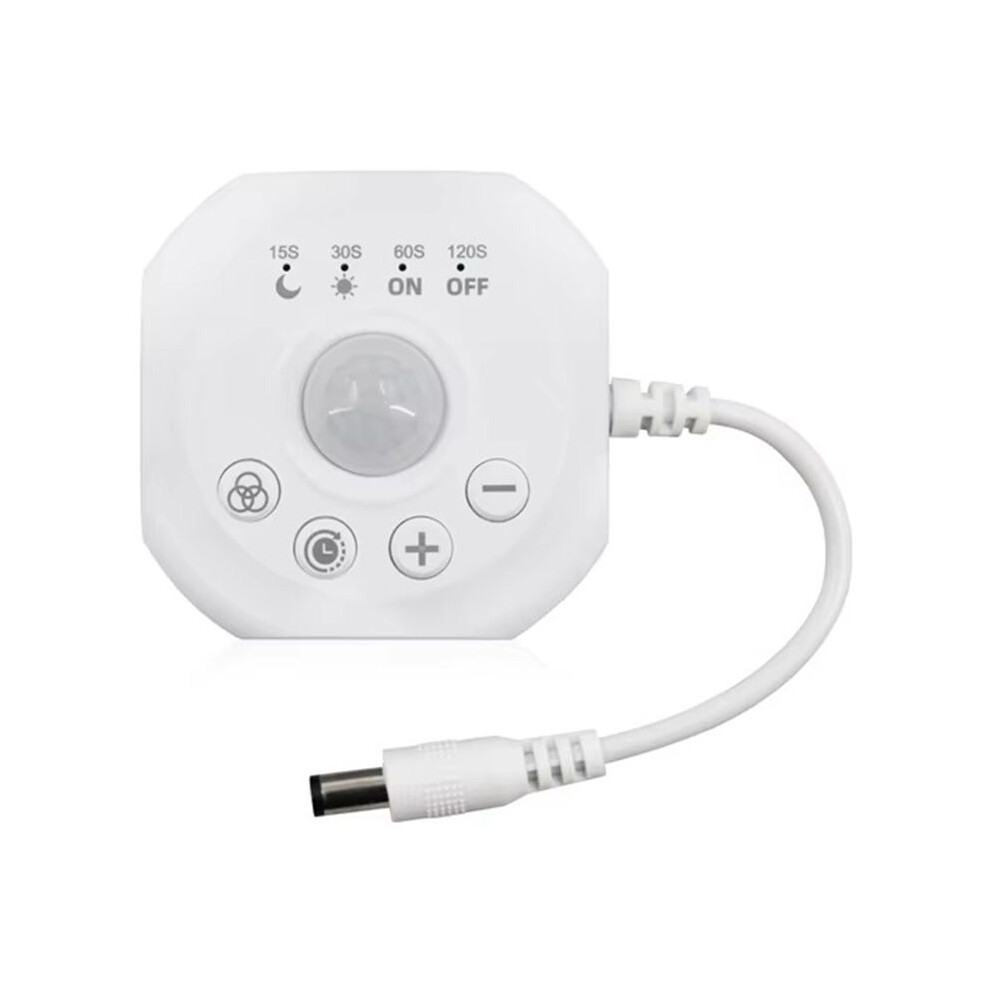

Adjustment Functions:
Mode Selection:

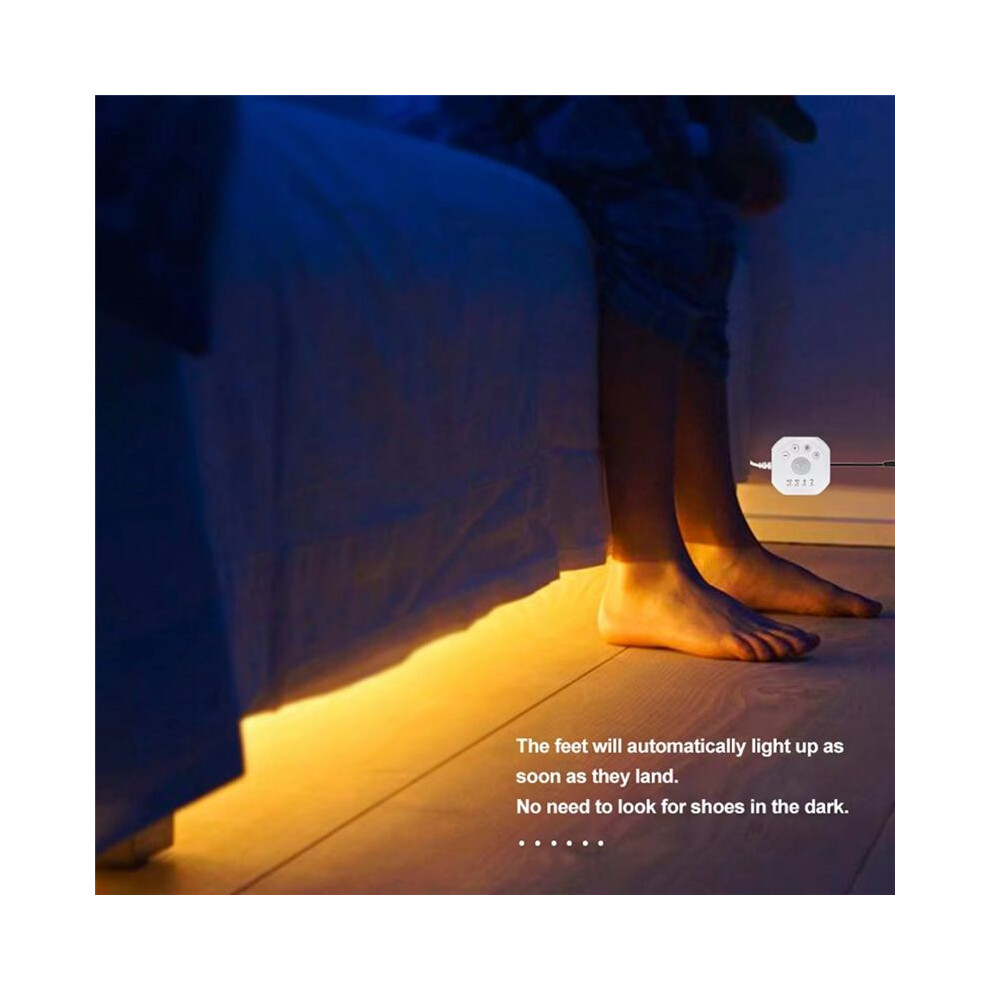

1. Night Mode: Only activates in darkness
2. Day Mode: Works regardless of light conditions
3. : Constant power (disables timer)
4. OFF: Complete shutdown
Delay Adjustment: Easily set shut-off delay (15-120s)
Brightness Control: Adjustable via +/-
Installation Notes:
1. Requires 10-20 second initialization at first use
2. Performance may vary based :
Object size
Movement speed
Environmental factors
3. Features motion memory function (continuously resets timer while movement detected)
4. Not waterproof - for indoor use only
5. Optimal installation considers 120 detection angle
Safety Precautions:
Always disconnect power before installation
Avoid moisture and humidity
Keep away from extreme temperatures
Do not expose to direct sunlight
Specification:
Color:White
Material:ABS

Package Contents:
1 * PIR Motion Sensor
