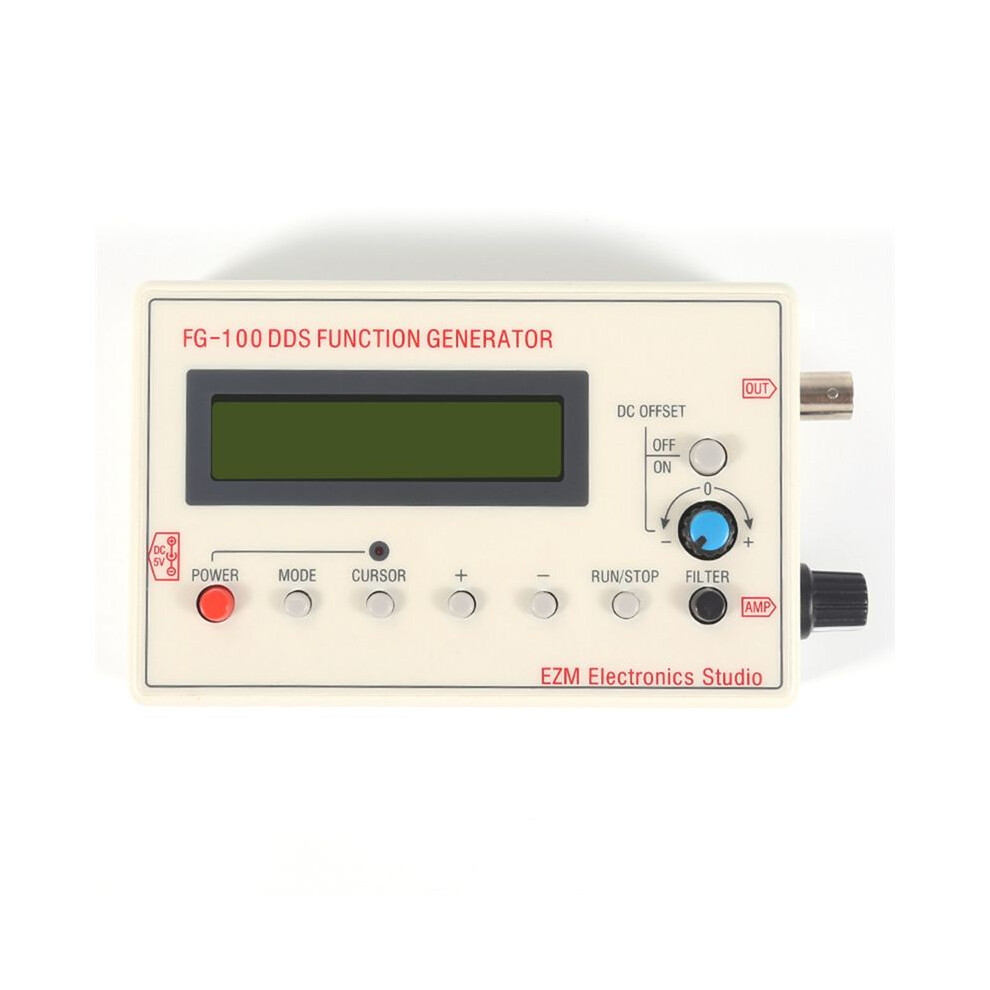

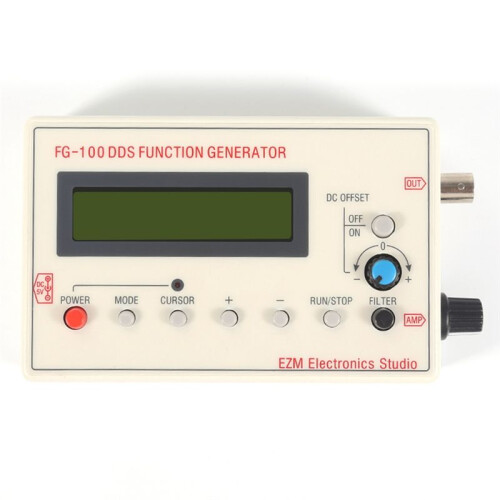

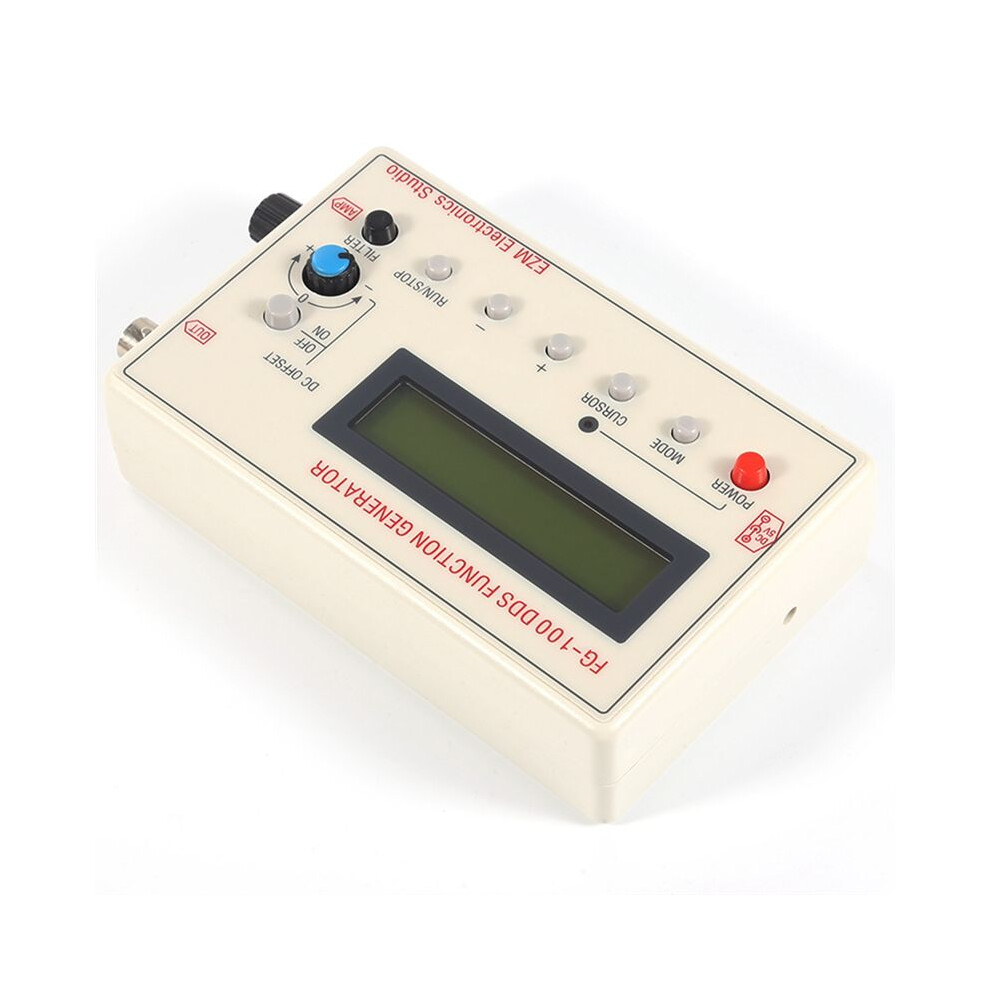

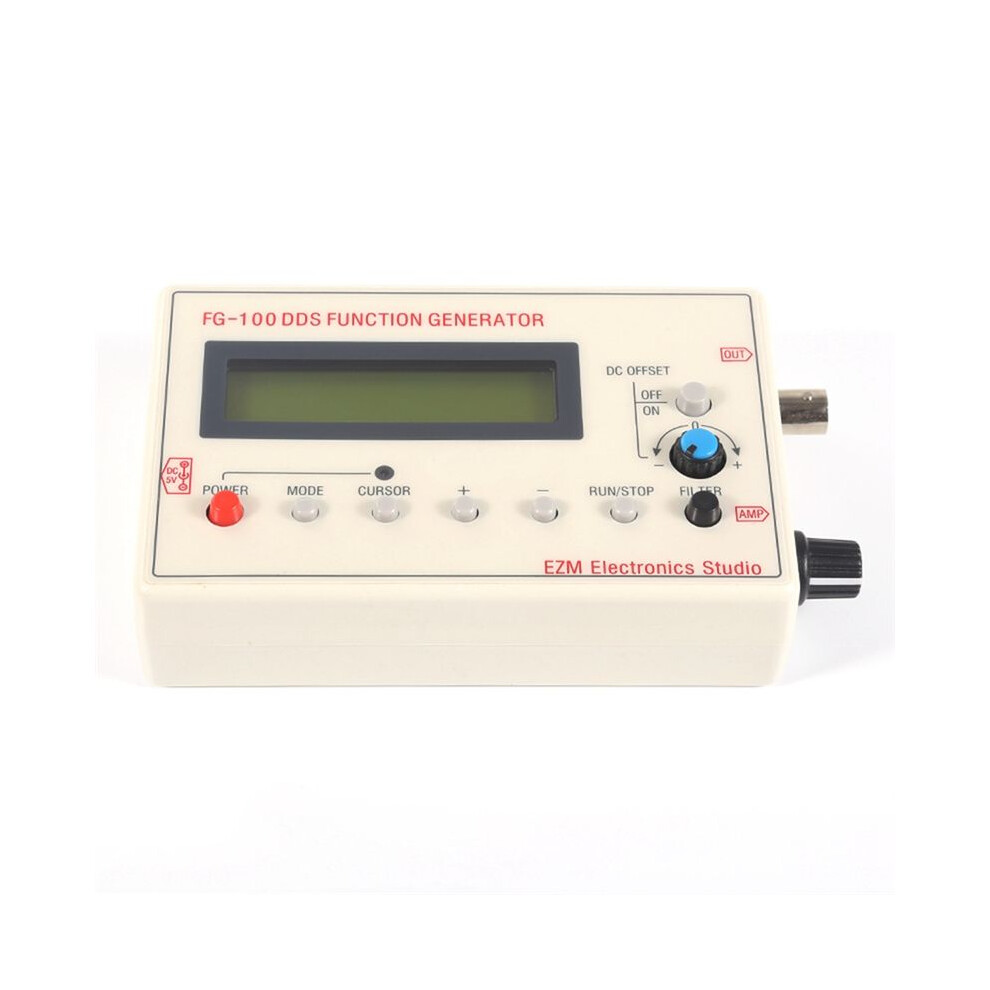

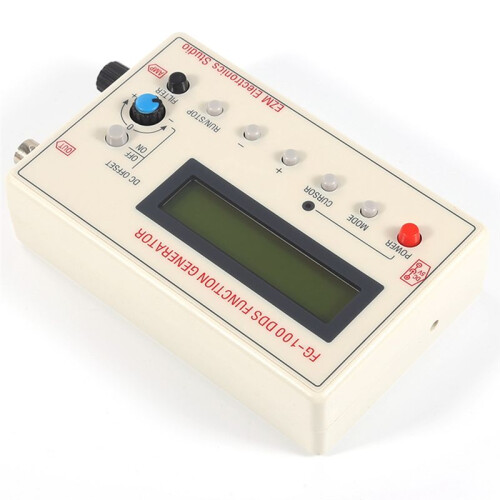

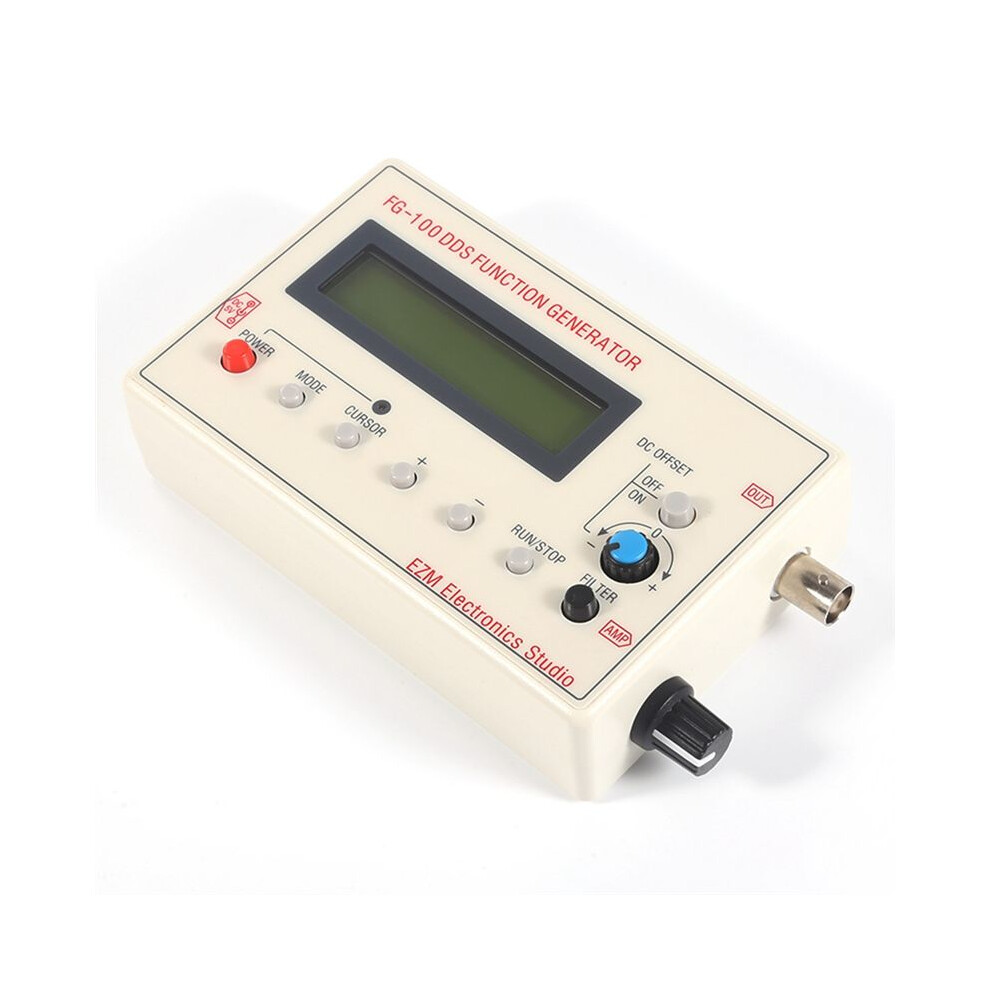

DDS Function Signal Generator Function Signal Generator FG-100 1HZ-500KHZ Multi-Functional Frequency Oscilloscope

DDS Function Signal Generator Function Signal Generator FG-100 1HZ-500KHZ Multi-Functional Frequency Oscilloscope Description

Small Size, Complete Functions, Simple Operation And Easy To Carry. It Can Be Powered By An Adapter Or A Lithium Battery. Together With An Oscilloscope, It Can Be Used For Electronic Circuit Testing And Debugging, Audio Amplifier Frequency Characteristics And Impulse Response Testing And Measurement.
Due To The Good Accuracy And Frequency Stability Of Dds, It Is Also Very Suitable For Oscilloscope Scanning Factor Calibration. Square Wave Output Is Suitable For Oscilloscope Attenuator And Probe Pulse Characteristic Adjustment, Etc.
Although It Is Small, It Has Many Functions And Is Easy To Operate And Carry. It Can Be Used With An Oscilloscope To Test And Debug Electronic Circuits, Frequency Response And Impulse Response Of Audio Amplifiers.
Square Wave Is Suitable For Adjusting The Oscilloscope Attenuator And Probe Impulse Response.
It Can Also Calibrate The Sweep Factor Of The Oscilloscope. There Is A Filter (Which Can Be Turned And Off) To Suit The Output Of Sine And Pulse Waves.

Description:
Instructions: This Functional Signal Generator Can Test A Variety Of Waveforms, Such As Sine Waves, Square Waves, Triangle Waves, Positive And Negative Sawtooth Waves. It Is Specially Designed For Those Professional Workers.
1. Output signal type: sine wave, square wave, triangle wave, positive and negative sawtooth wave.
2. Frequency range: sine wave is 1Hz-500kHz, other waveforms are 1Hz-20kHz.
3. Resolution: 1Hz
4. Sine wave distortion: 1kHz Less than 1% or less, 1kHzLess than 0.5% or more.
5. offset range: 10V (can be turned off)
6. Output range: 10V (PP)
7. Output impedance: 50Ω
8. Power supply voltage: DC3.5-10V
Material: ABS
Color as shown

Package Contents:

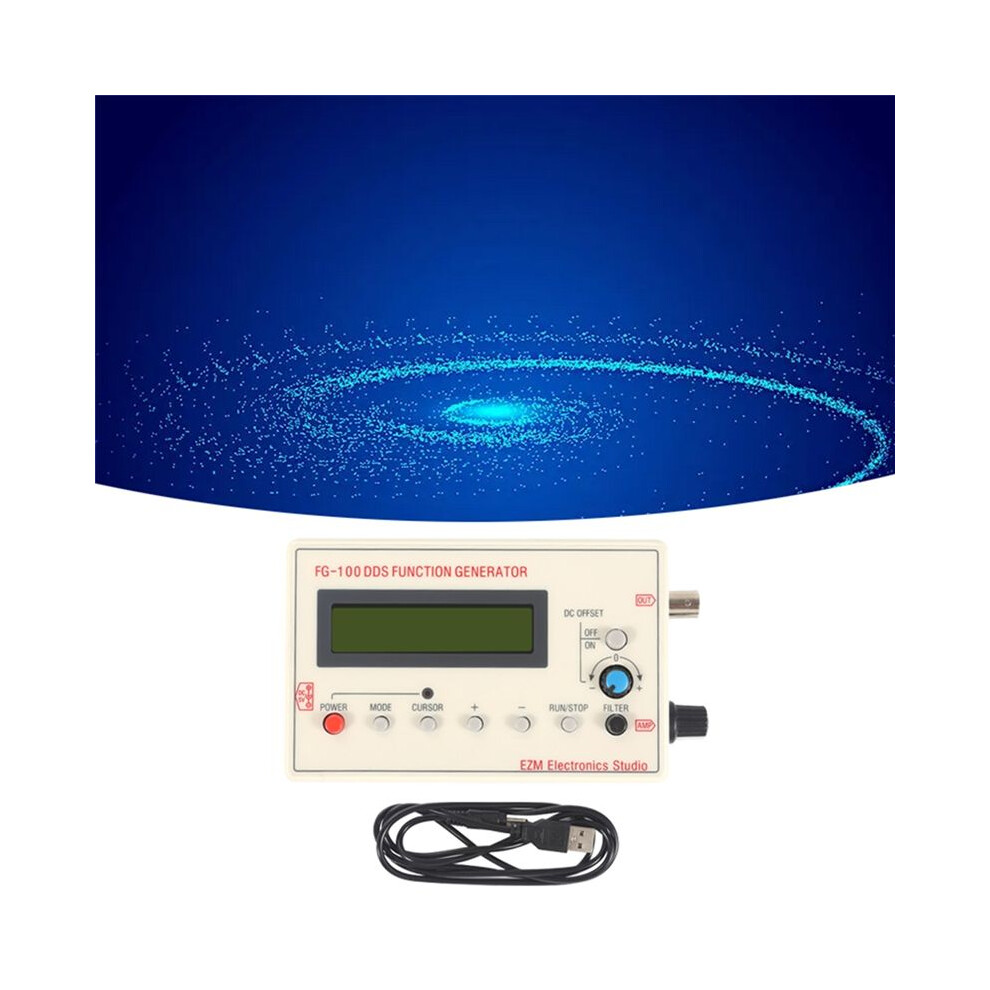

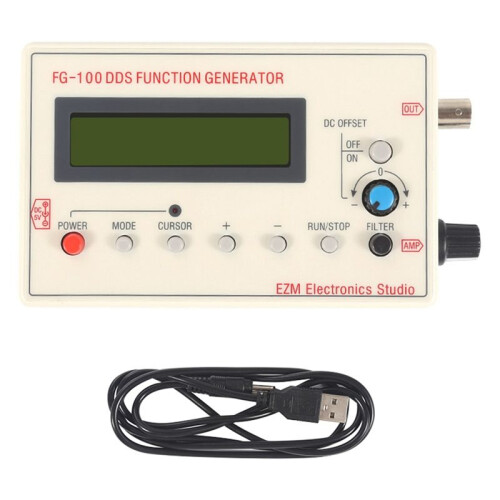

1 x Signal Generator
1 x Connecting Cable
Note:
Different Batches May Have Differe
