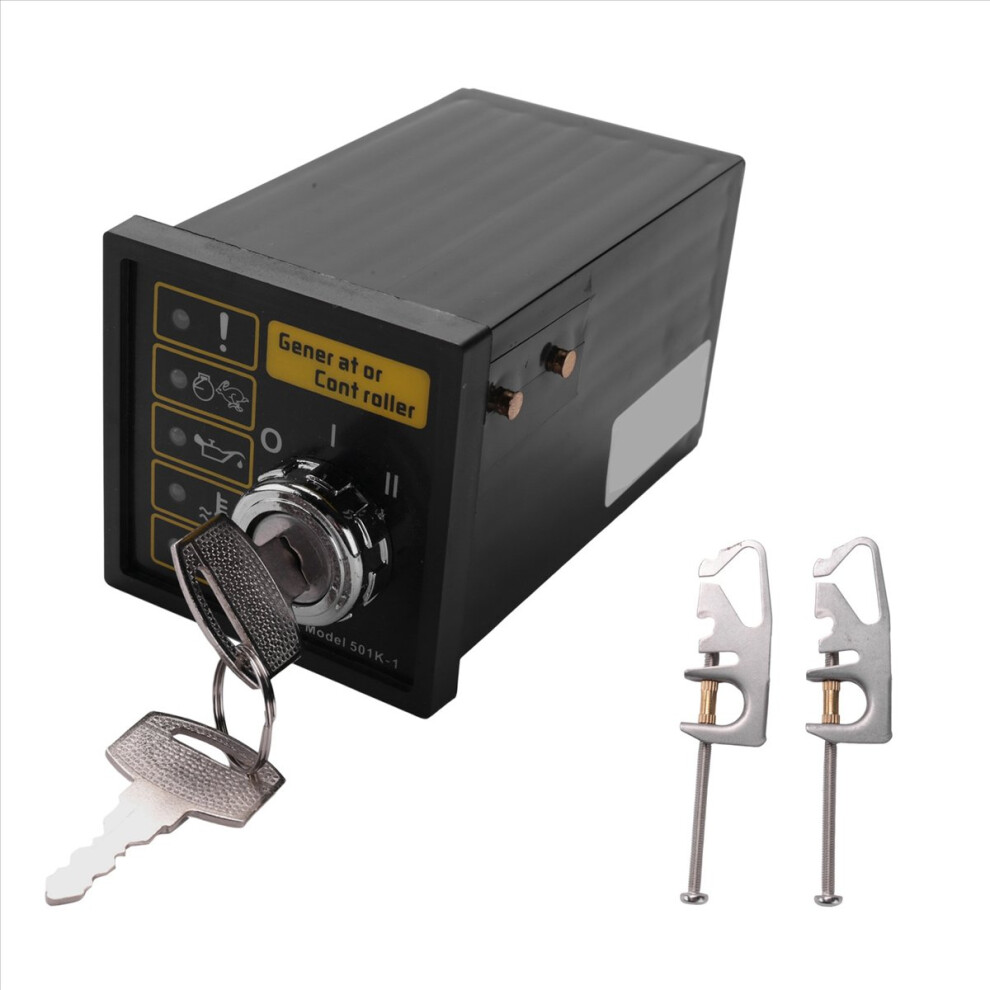

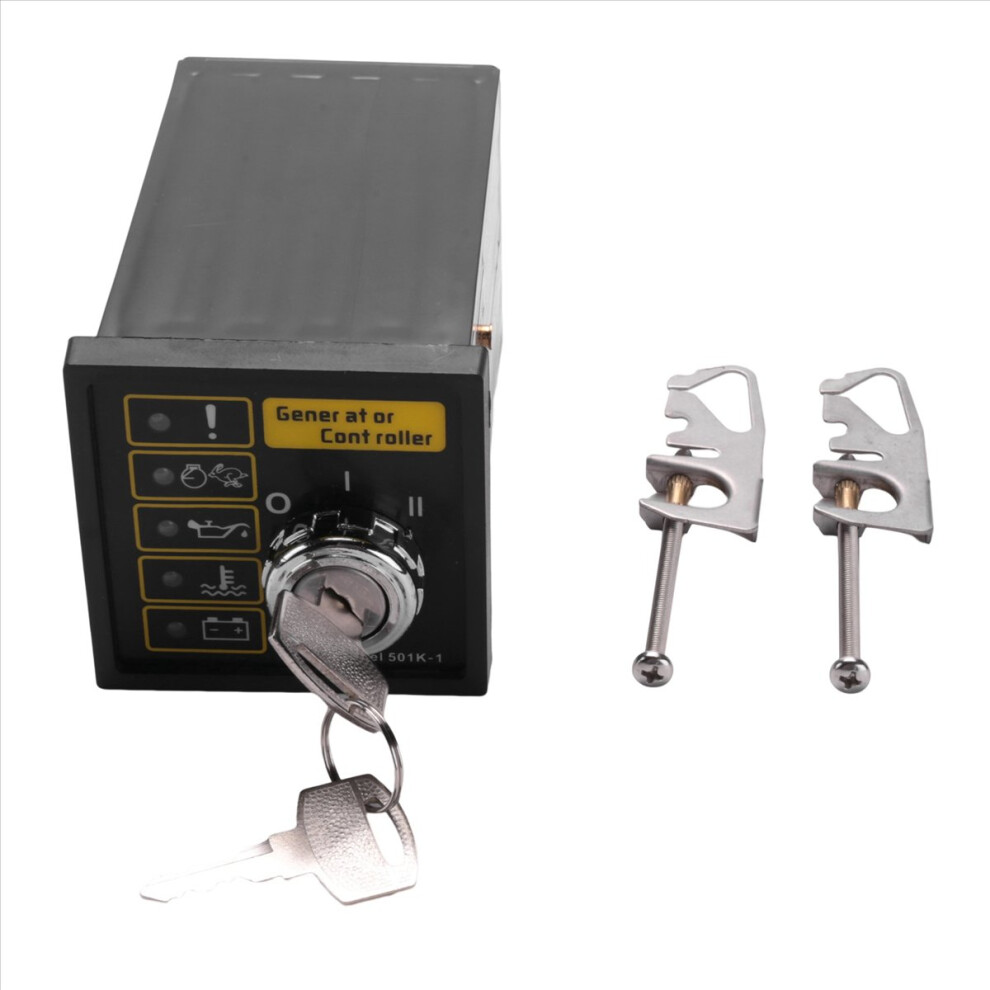

DSE501K Generator Controller Unit Start Control Panel Module DSE 501

DSE501K Generator Controller Unit Start Control Panel Module DSE 501 Description

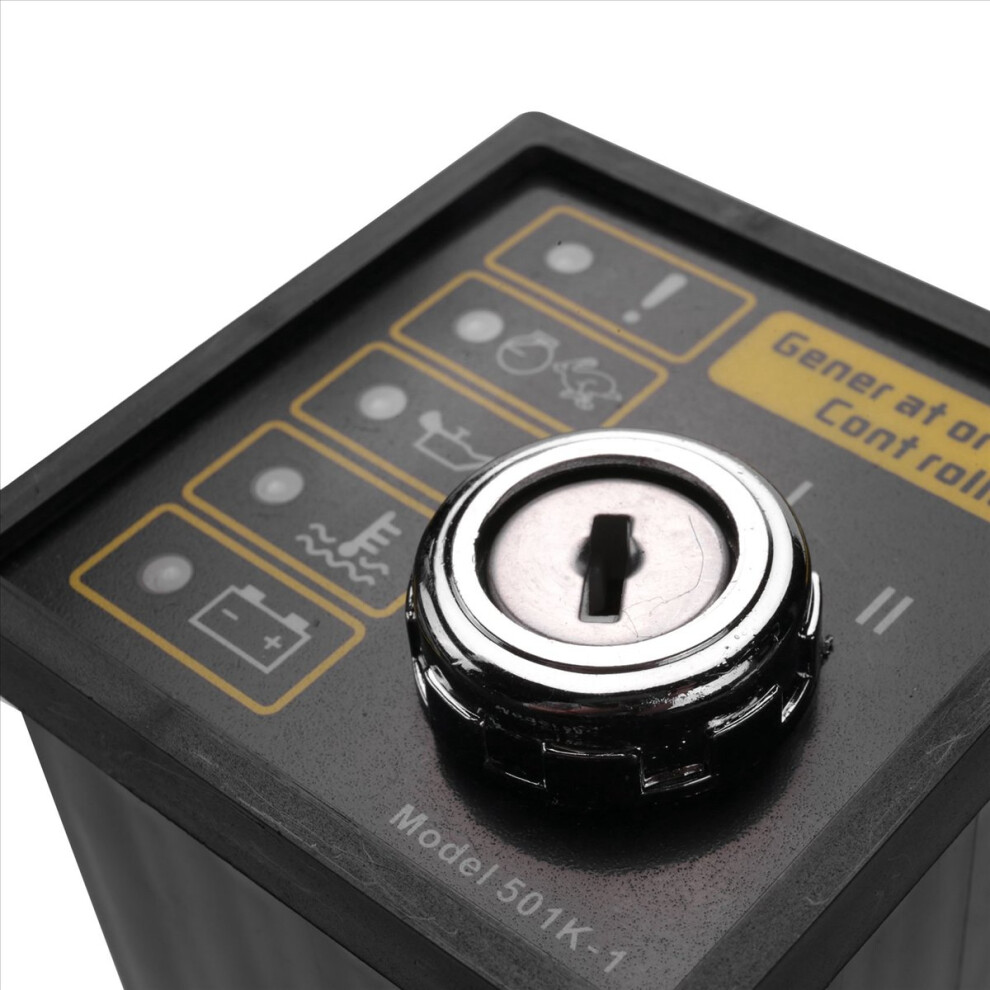

The Model 501K-1 is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on The front panel.
The module is used to start and stop the engine, indicating fault conditions; automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.

SPECIFICATION
DC Supply----9~33V continuous.
Alternator Input Range----15~305V AC RMS
Alternator Input Frequency---- 50~60Hz at rated engine speed.
Magnetic Input Range----0.5V~+/-80V
Magnetic Input Frequency----2300Hz~6000Hz
Start Relay Output----16 Amp DC at supply voltage
Run Relay Output----16 Amp DC at supply voltage
Alarm Output----1Amp DC at supply voltage
Operating Temperature Range----- -30~70celsius
Colour: black
Material: plastic

Package Contents:

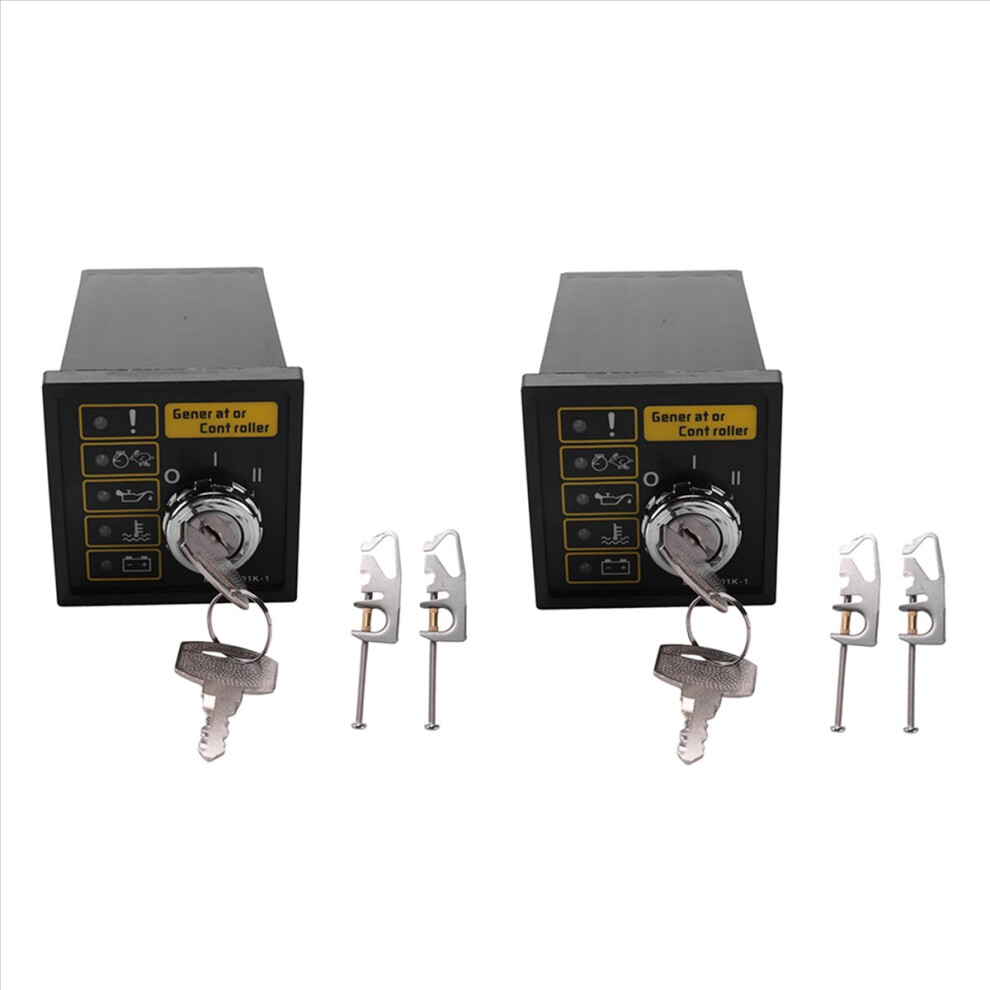

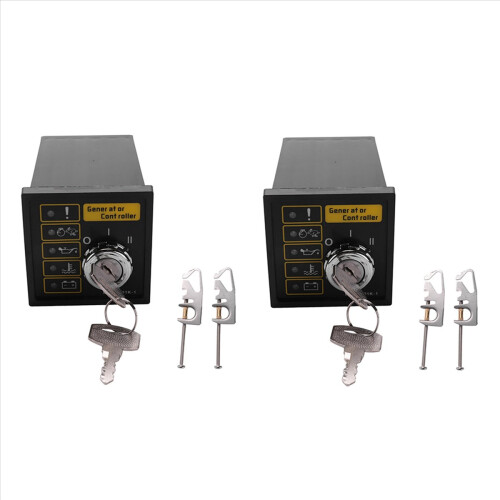

2 x Engine Control Module
4 x Accessories
4 x Key

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
