Electric Bike Display KT LCD4 E-Bike LCD 36V 48V E

Electric Bike Display KT LCD4 E-Bike LCD 36V 48V E Description

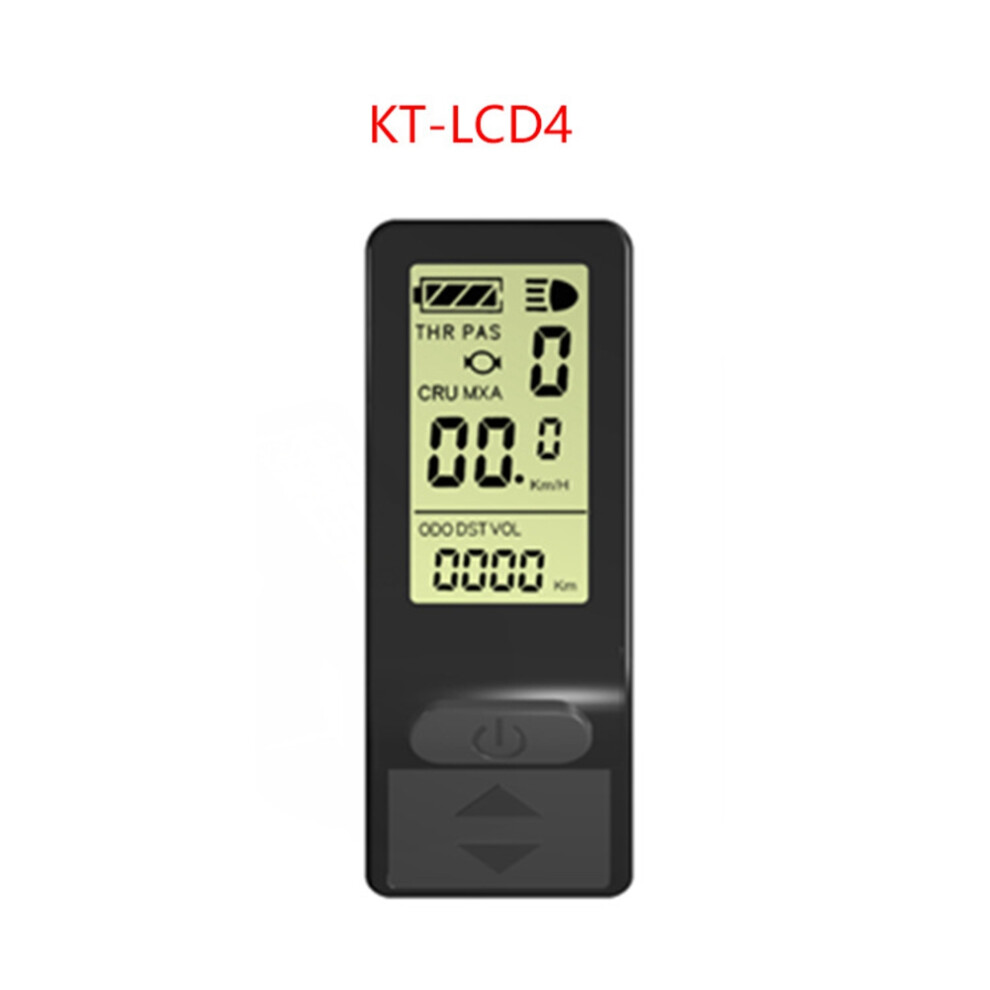

1. Data display:it shows the riding speed, a single mileage and cumulative mileage, riding time, power-assist gear, motor power and temperature, battery voltage and charge status, brake status and the used ambient temperature and other cycling parameters; 2. Intelligent power:a true reflection of the battery charge, real-time recording of the power consumption to riding mileage;
3. Stalls setting:multi-gear switch and automatic save of the power-assist gear, and it can restore power-off stall state when turned on; 4. Parameter setting:with a number of user parameter setting functions, motor parameters, velocity measurement parameters, speed-limit parameters, power parameters, power-assist control parameters, the minimum controller voltage and maximum current parameters and other operating models for settings adjustment ;
5. Data view:Users can view historical driving data and clear accordingly, view single or cumulative riding time, riding mileage, maximum speed and average speed of single riding; 6. Vehicle boosting:With 6Km/h power-assisting functions, the boost logo flashes during boosting, and riders can use it when driving the vehicle and the vehicle driving is labor-saving and easy;
7. Cruise and constant speed:With the setting and display of the cruise, achieving to automatically maintain the vehicle speed, so that the vehicle drives at a constant speed; 8. Night driving:With the functions of LCD backlit display and headlight switch control, instrument backlighting and headlights can be turned on during driving at night;
9. Password setting:With three-bit of power-on password setting; 10. Automatically prompt:For the appeared failure of the vehicle, it can prompt different fault codes for easy inspection and maintenance of vehicle. With a temperature display for motor operation and it is to achieve the ultra-temperature alarm and motor protection;

Use five-line of digital communication, the instrument has good compatibility and interchangeability, different instruments can be conducted the data exchanges and parameters copy directly;

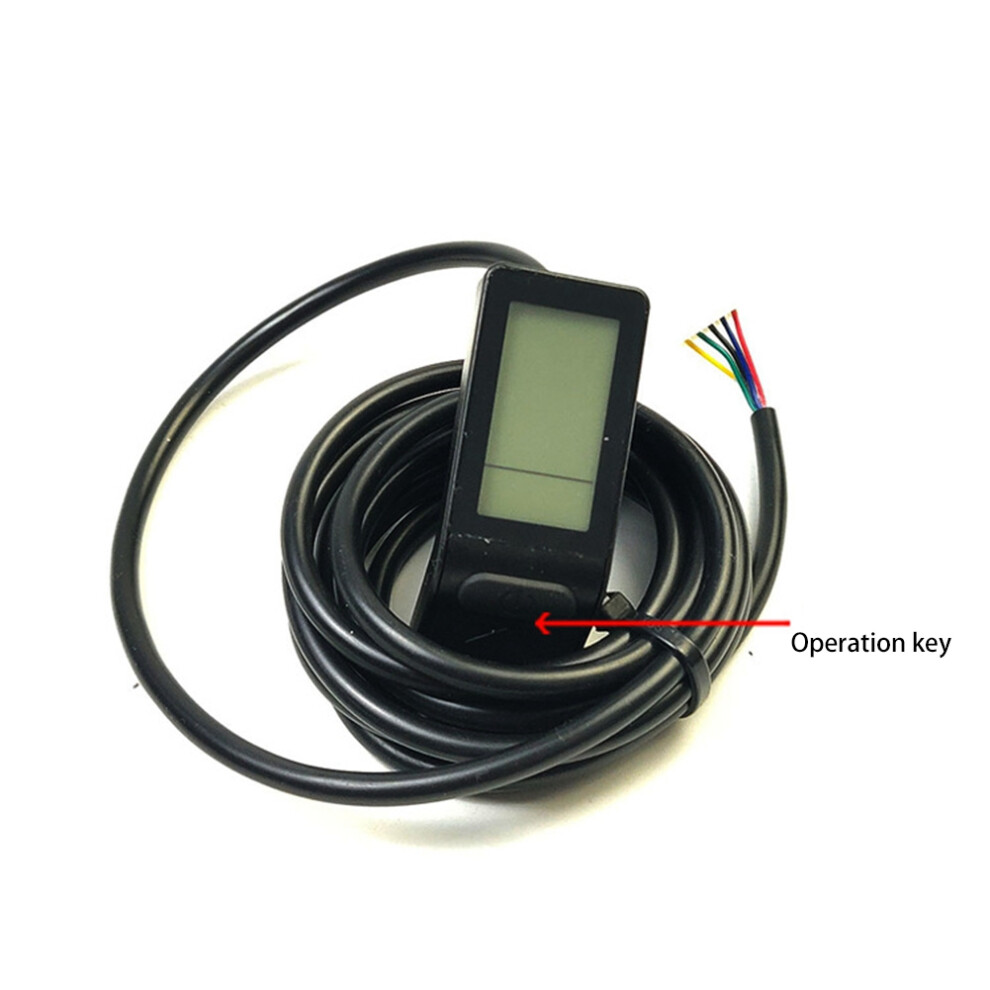

Host part and operation buttons of the meter use sub-structure design, making the operation to be more reasonable and convenient;
Supply voltage of 24V, 36V, 48V can be automatically identified and compatible

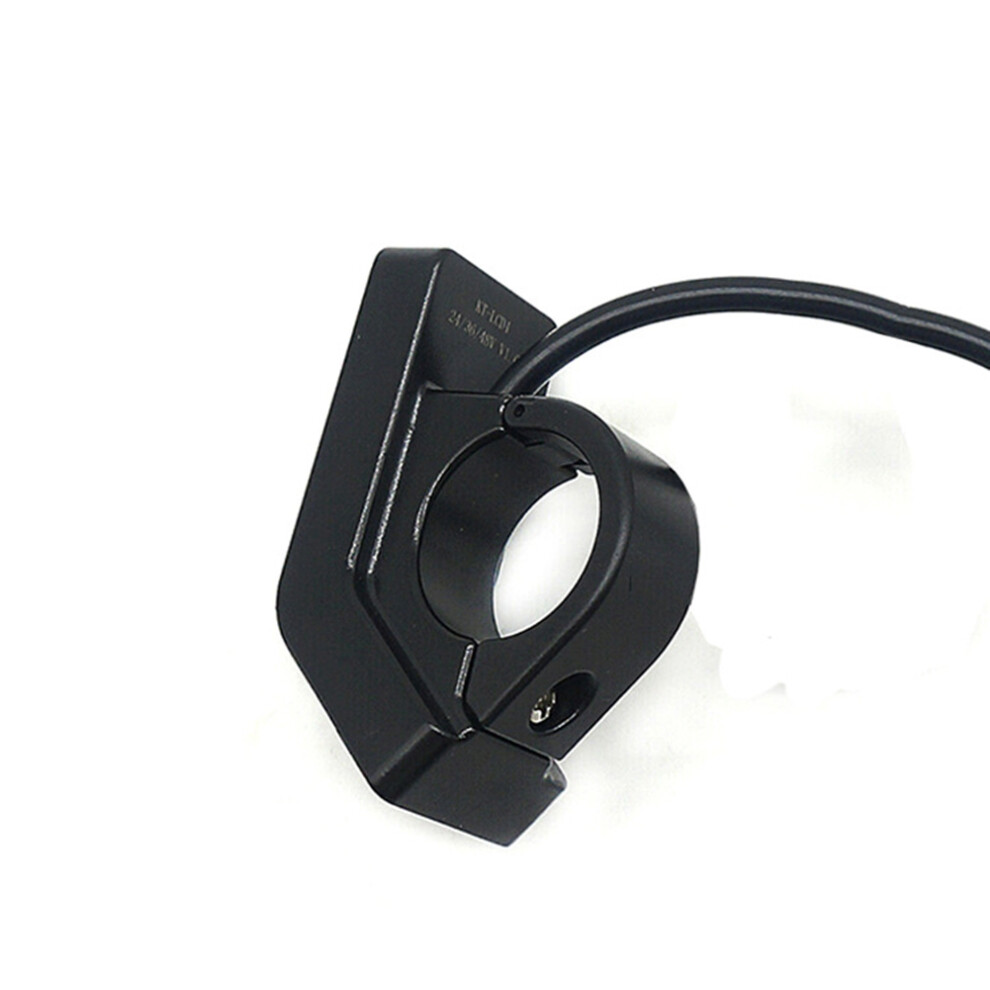

Black housing
Important notice of KT LCD4:
KT LCD4 EBike LCD Display is for KT Series Controllers. It only fits KT series controllers. It is not suitable for other controllers.
1. Note: How to determine the value of the parameter P5 ? The formula is LVC+P5/3.77.
For 24V battery, LVC=20V, P5/3.77=1.
For 36V battery, LVC=30V, P5/3.77=1.5.
For 48V battery, LVC=40V, P5/3.77=2.
You can adjust P5 parameter by your own battery discharge curve.

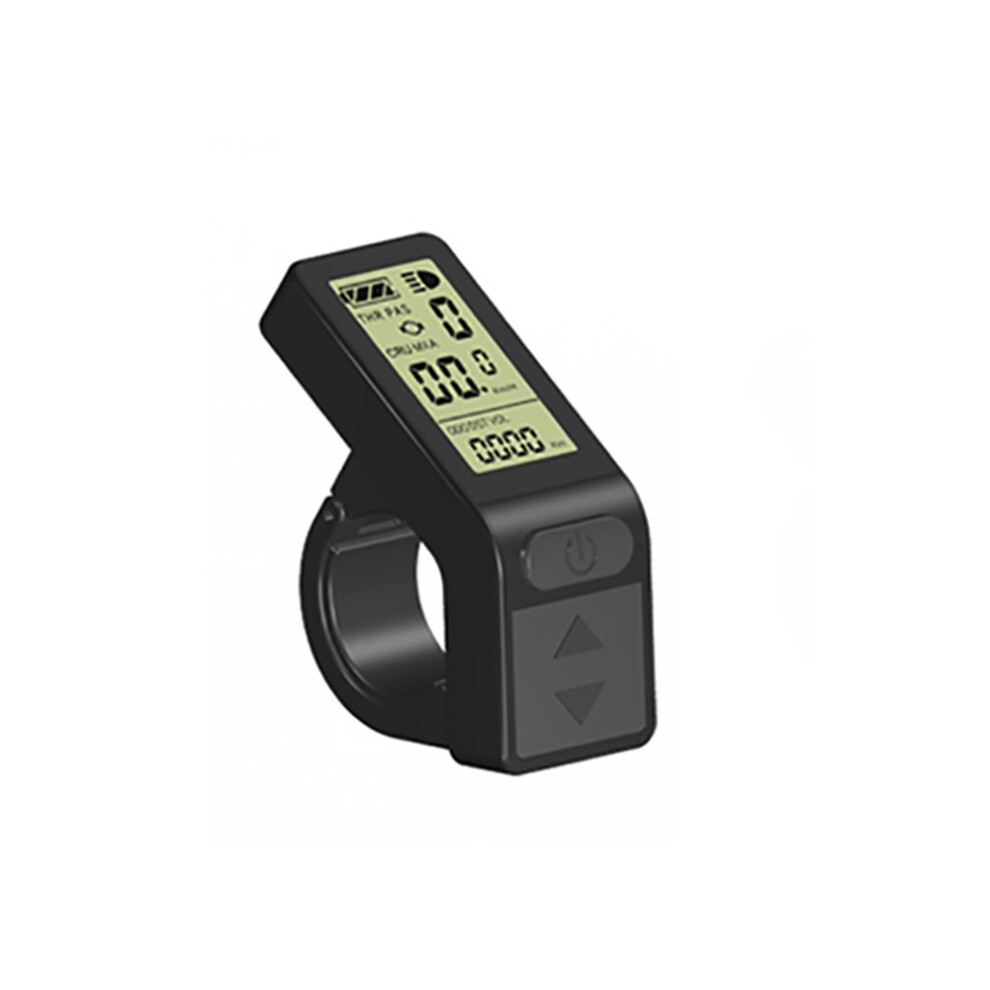

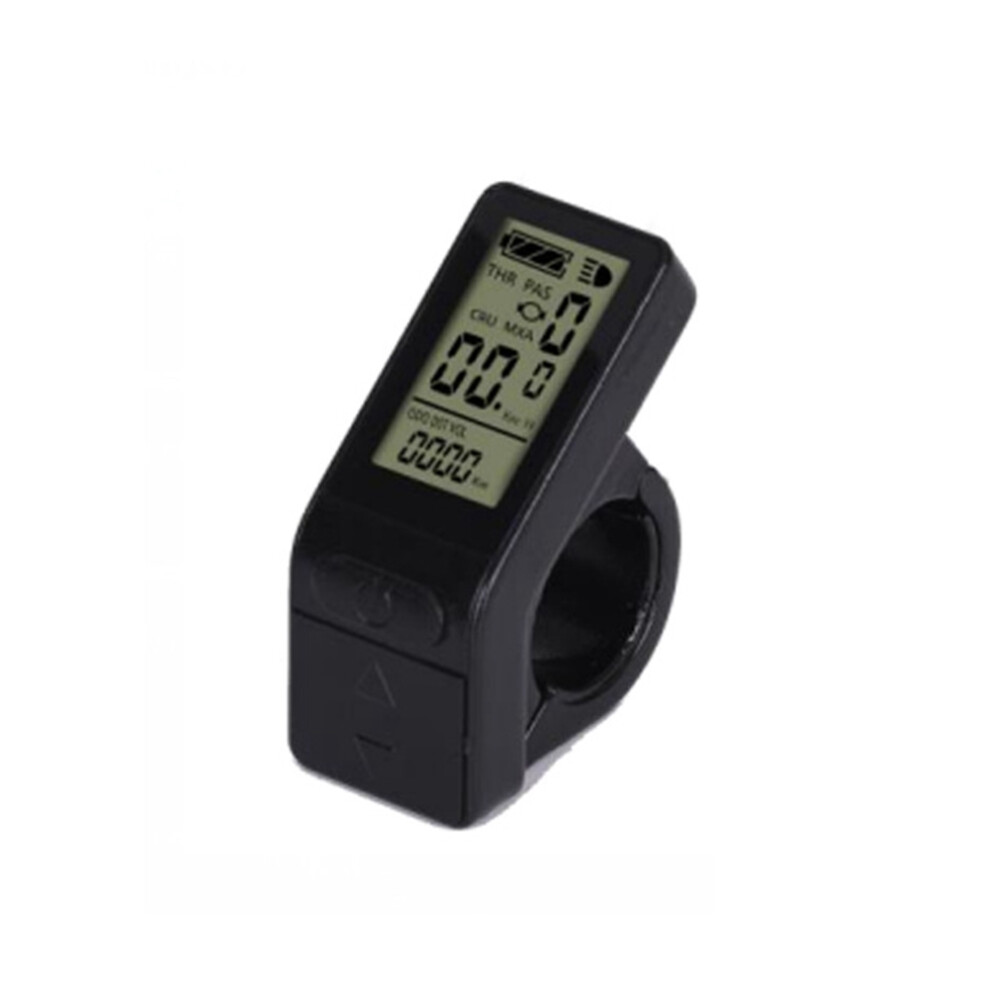

Mini Ebike Display KT LCD4:
1. Dimension: 19 x 54 x 10mm.
2. Supply voltage of 24V, 36V, 48V can be automatically identified and compatible

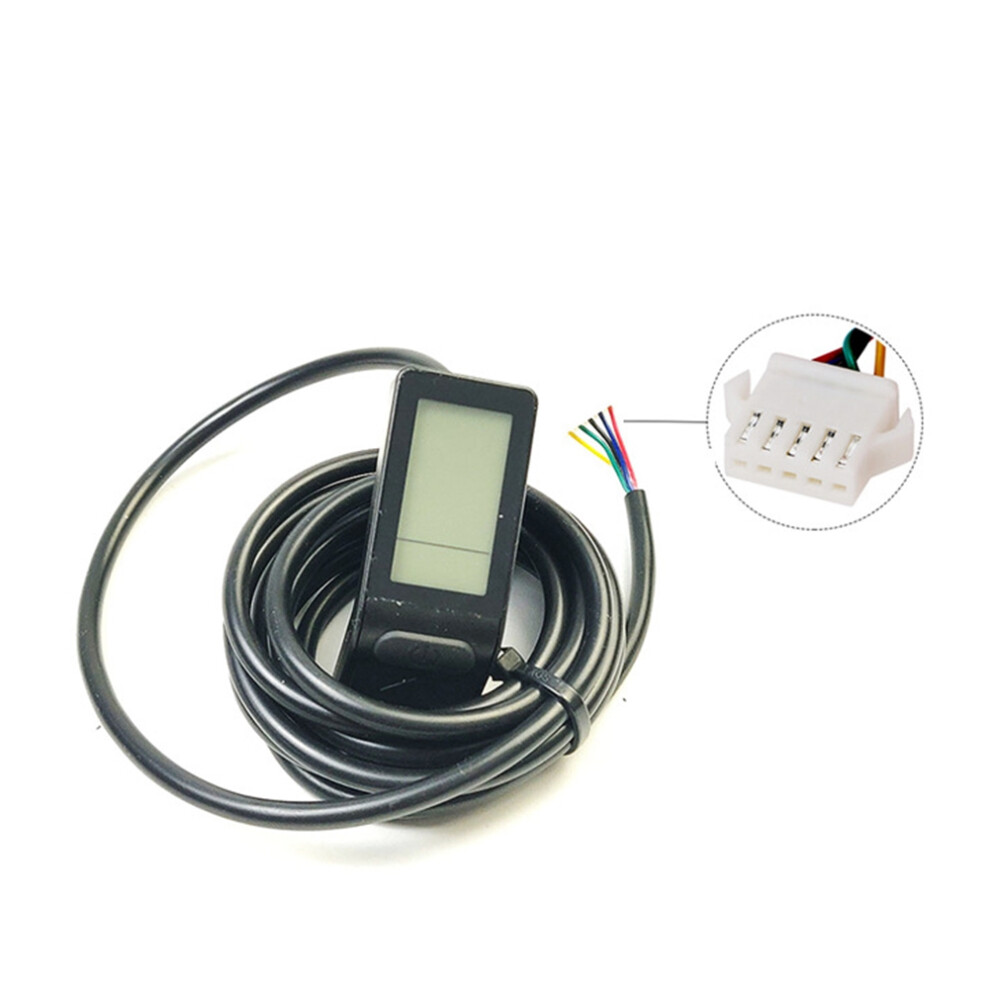

3. Cable Length: 160cm for SM connector
Colour: black
Material: plastic

Package Contents:
1 x Electric Bike Display

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
