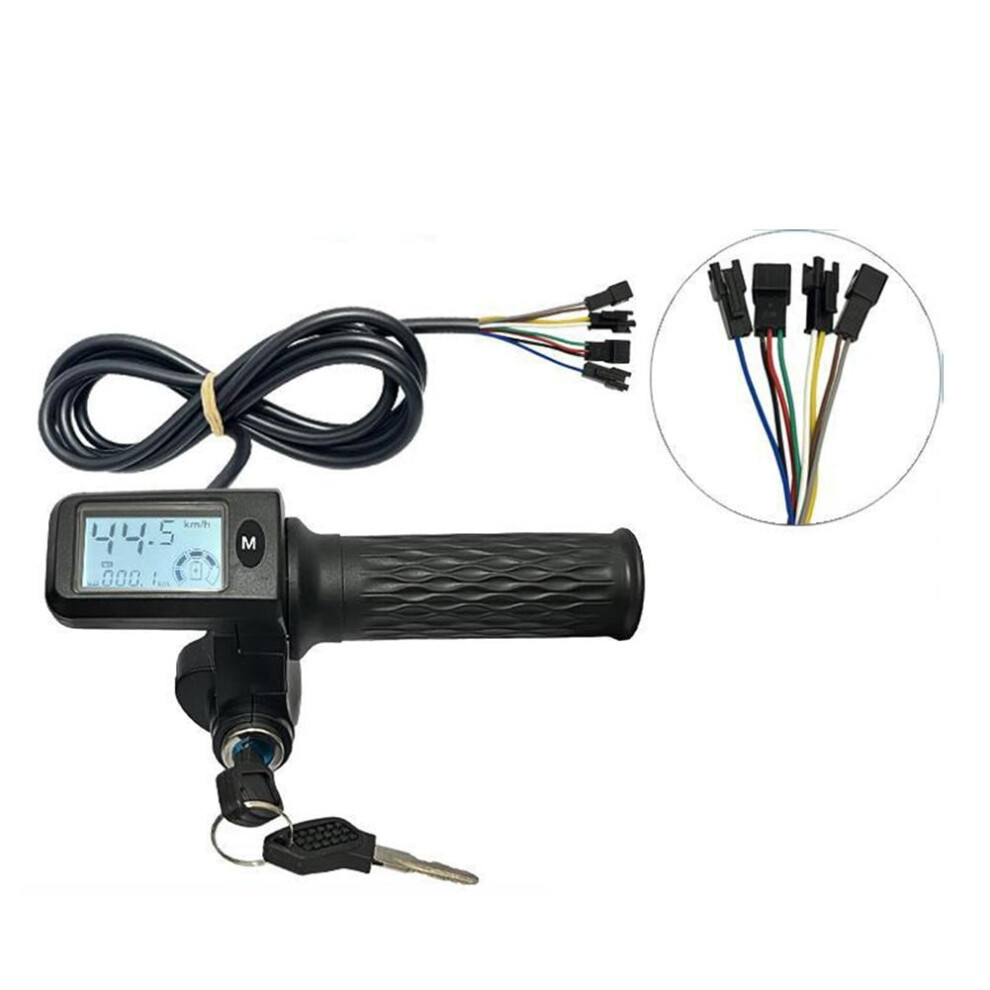

Electric Twist Throttle with LCD Display for E-Bikes &

Electric Twist Throttle with LCD Display for E-Bikes & Description

Describe: *The amount of remaining power can be accurately determined by rotating the real-time voltage value. *To avoid driving without electricity and accurate judgment of lithium batteries. *The quality of the judge's lithium battery can be accurately determined by rotating the real-time voltage value. * Automatically identify the voltage of the electric vehicle, below 100V, supports 36V or 48V, 60V, 72V and real-time display. * Used for electric bikes, scooters, tricycles and other electric cars. *Upgraded model supports 3-speed speed adjustment * Larger screen displays can show more information, including mileage, speed, power supply and voltage. Specification: Material: ABS + Rubber Color: Black Cable length: 1.7 million (approximately) Connection type: 6 pin, (only supports 3 gear adjustable speed) Used for: electric scooters, bicycles, motorcycles, tricycles, and. A Hall sensor is required to match the speed. Brown: Hall Speed Line Dark Blue: High Speed Light blue: low speed White: Power + Yellow: Electric door lock Red: 5V power supply Green: Signal line Black: GND 1. Press and hold "M" to turn on the power and wait for P00 to display to release the power. 2. Click "M" to the adjustment options, main menu: P00-P09. 3. After selecting the corresponding option, press and press to enter the next step. (For example: long press P00 to input voltage option: click the M button to select voltage, then press M long press M button to select, restart the LCD for use Package includes: 1pcs bicycle handlebar with monitor
