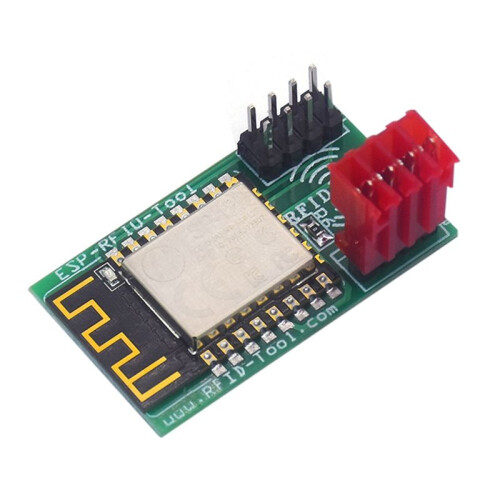

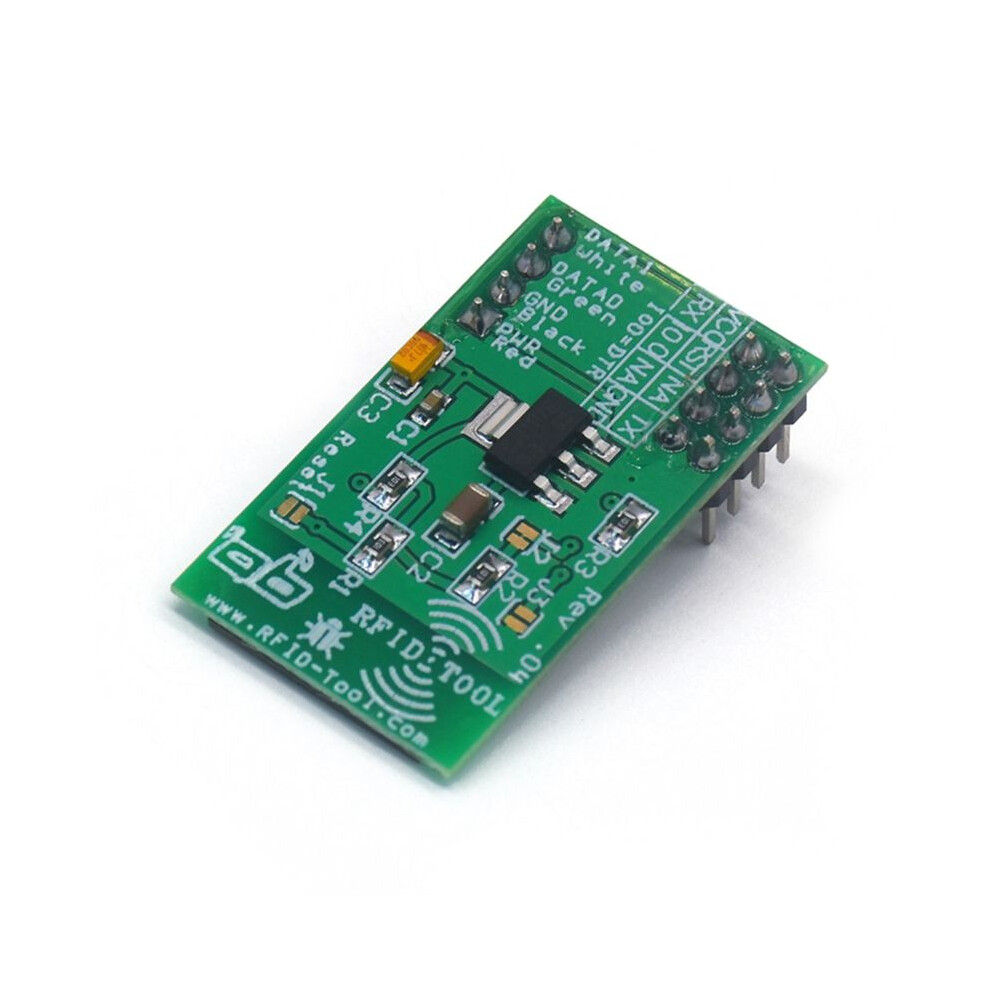

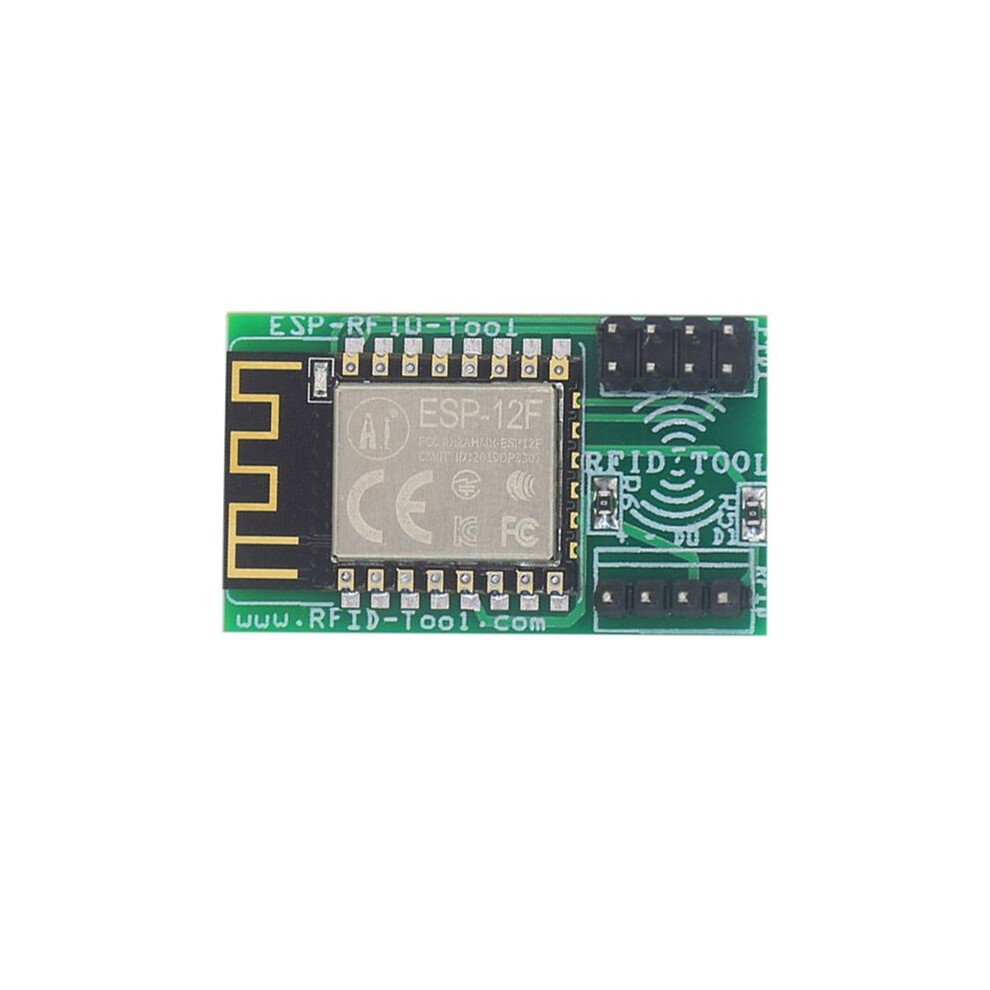

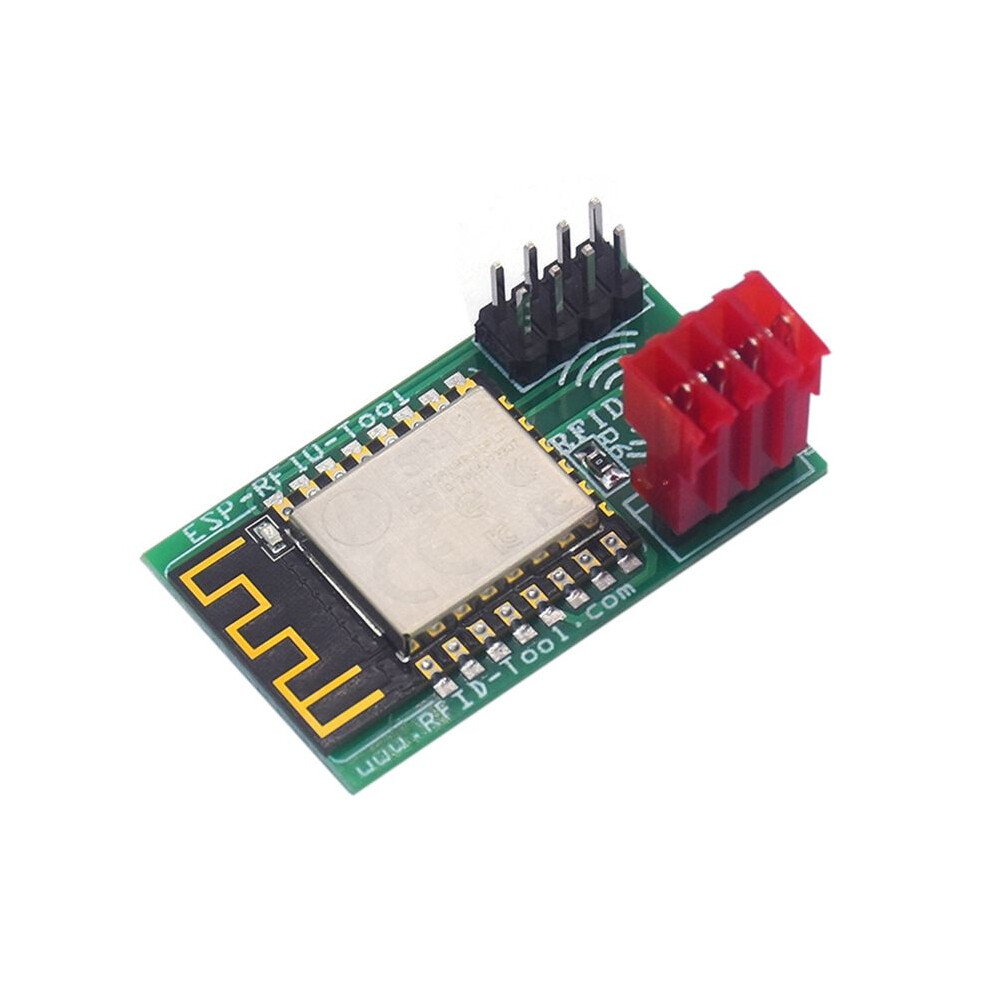

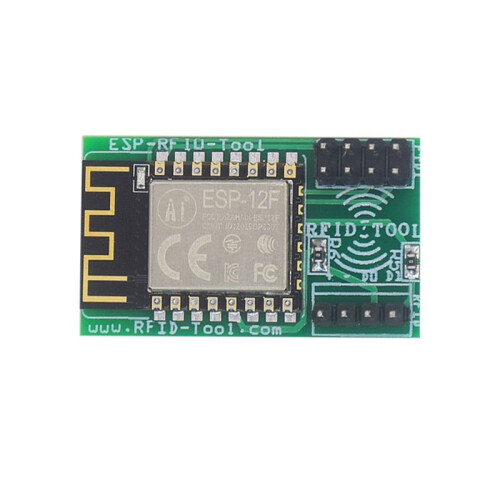

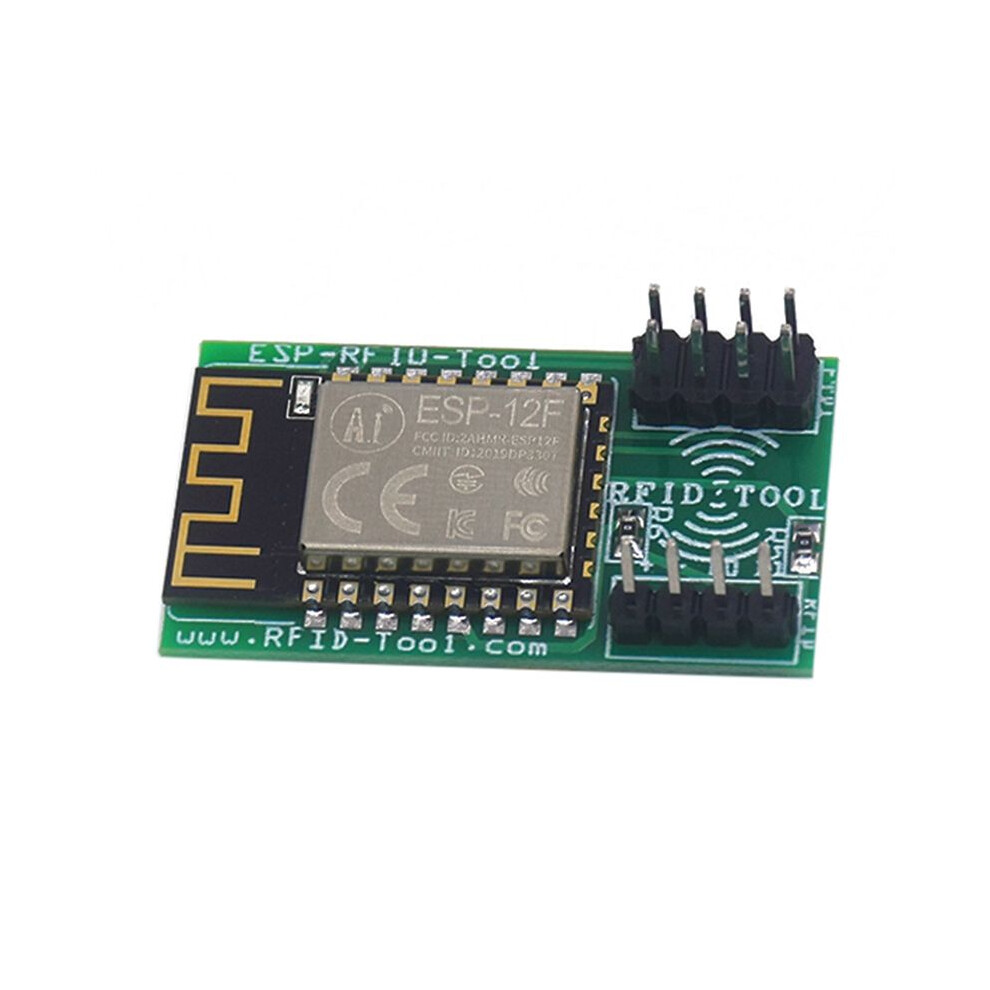

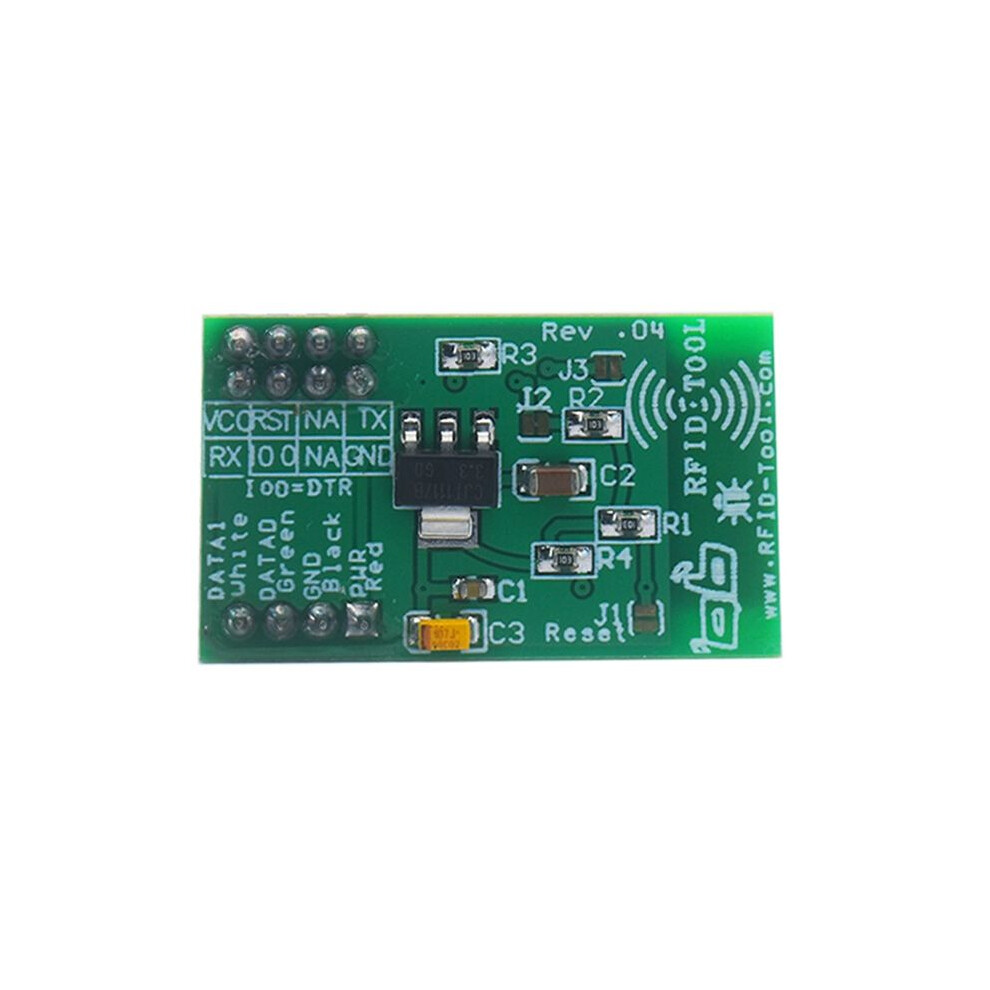

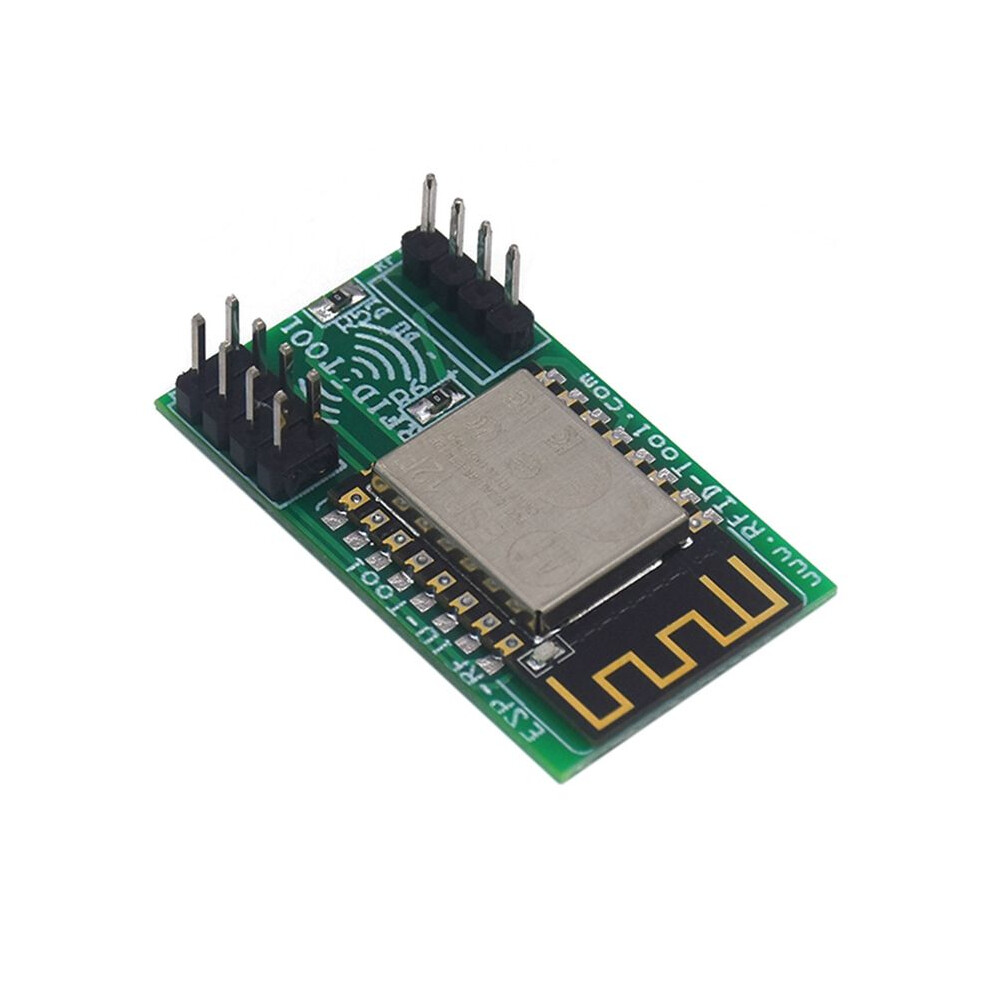

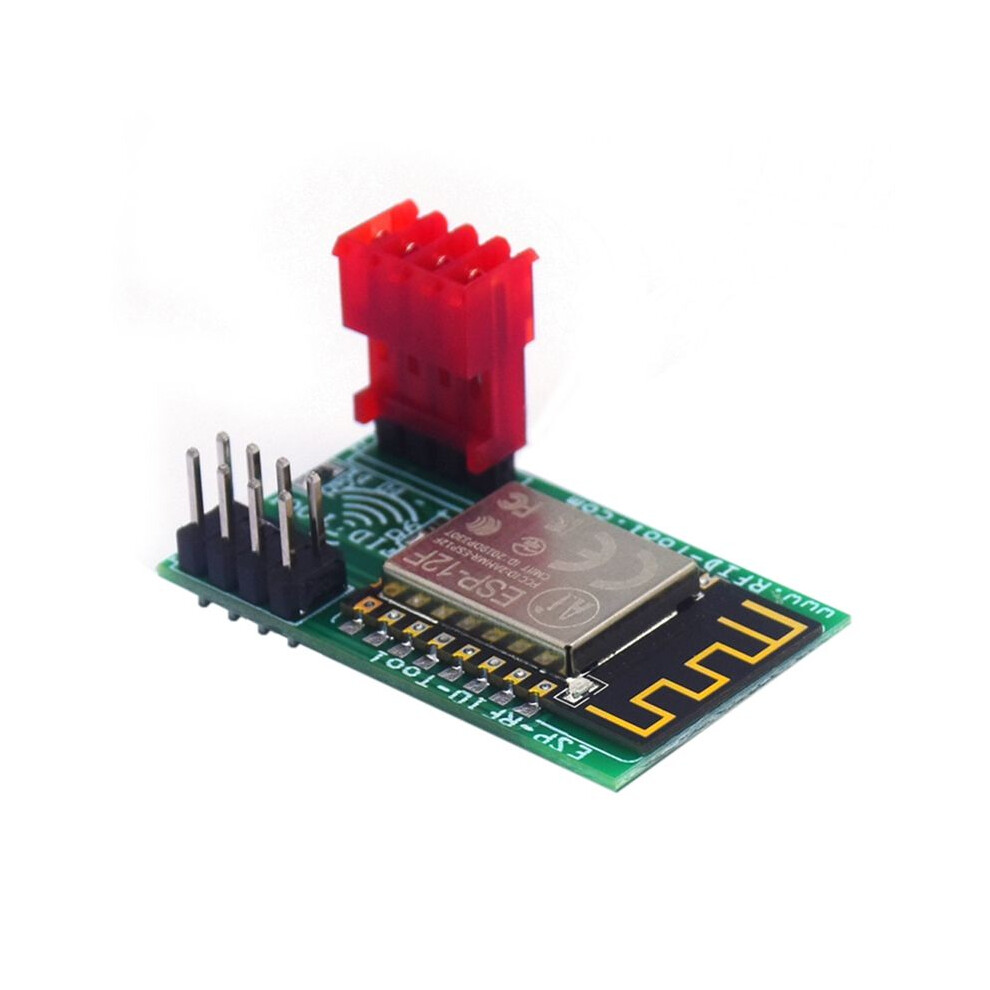

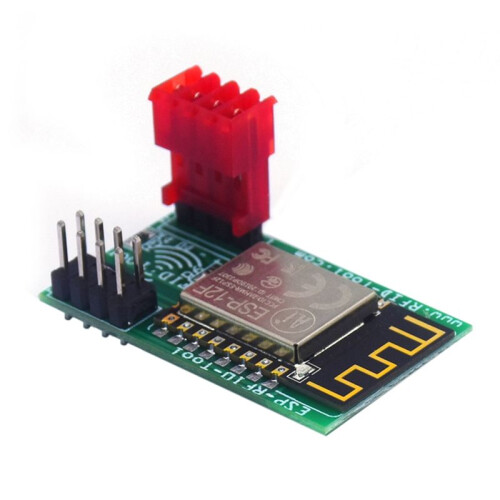

ESP RFID Tool RFID Card Reader & Writer ESP RFID Reader

ESP RFID Tool RFID Card Reader & Writer ESP RFID Reader Description

A tool for logging Wiegand data and also for testing devices contain a Wiegand Interface.
A universal data logger that captures the binary data from a standard 5V Wiegand Interface. The device is capable of logging the credentials for access control systems or nearly any device that utilizes a Wiegand Interface such as RFID card readers, pin pads, magnetic stripe systems, and even some biometric readers.
Wiegand Interfaces also do not have to be limited to just access control systems. The main target group for this device is 26-37bit HID cards.
For known card types both the binary and hexidecimal data is displayed directly in the log file for easy badge identification and also in case a clone of a card may be needed. For unknown card types only the binary data is shown.
NOTE:1.Wiegand RFID reader is not included.2.Don't power the module with battery only. Most of battery can't provide enough current for WiFi connection. Please try use 5V or 9V power adapter instead.

The ESP-RFID-Tool also contains an unsupported experimental TX mode as well. In this mode you may transmit the Binary of a card or even perform a couple of fuzzing tests, these include alternating bits the D0 and D1 and the device also has the ability to send bits the D0 and D1 at the same . Although please note that the device has an output of 3V3 volts so it is not guaranteed to properly trigger all 5V Wiegand controllers. This mode is unsupported and was used for debugging the software while it was being written, TX mode is only being included as a bonus feature. If you decide to use TX mode then do so at your own risk.
Colour:Green
Material:PCB+Components

Package Contents:
1 x RFID reader
