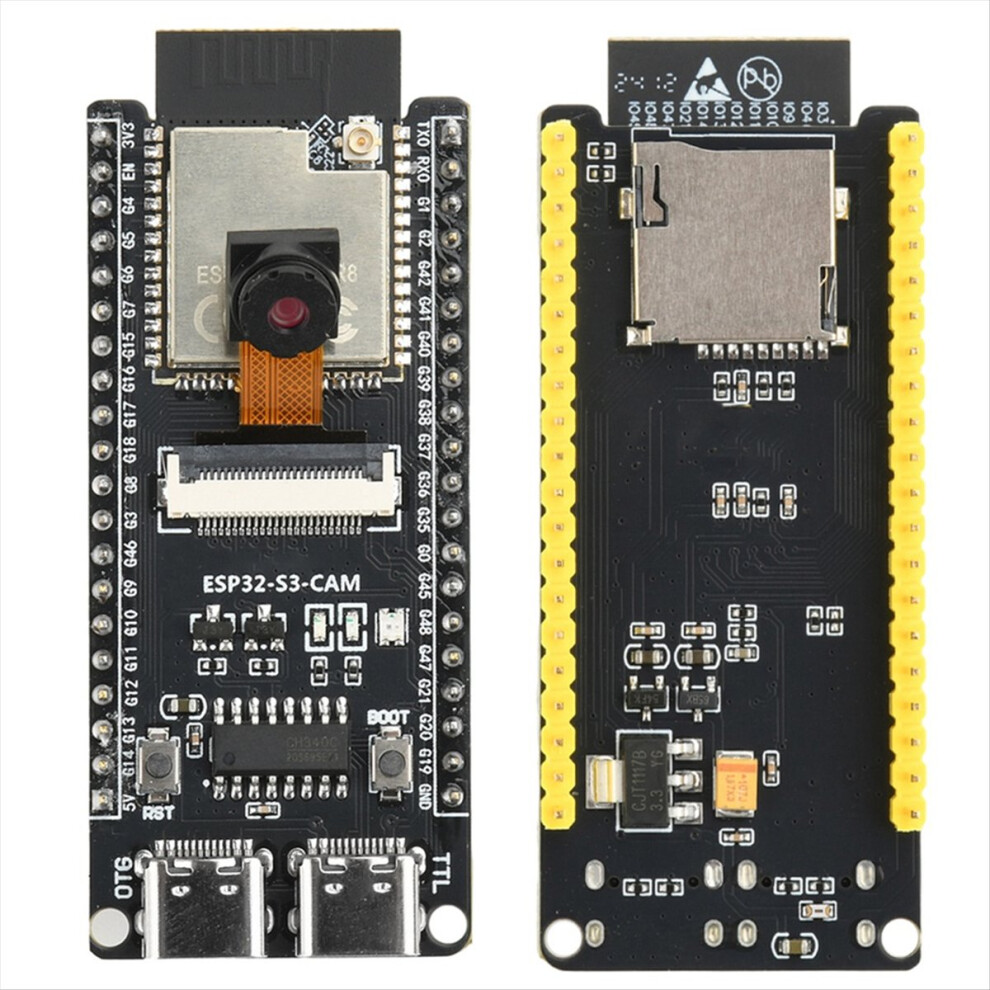

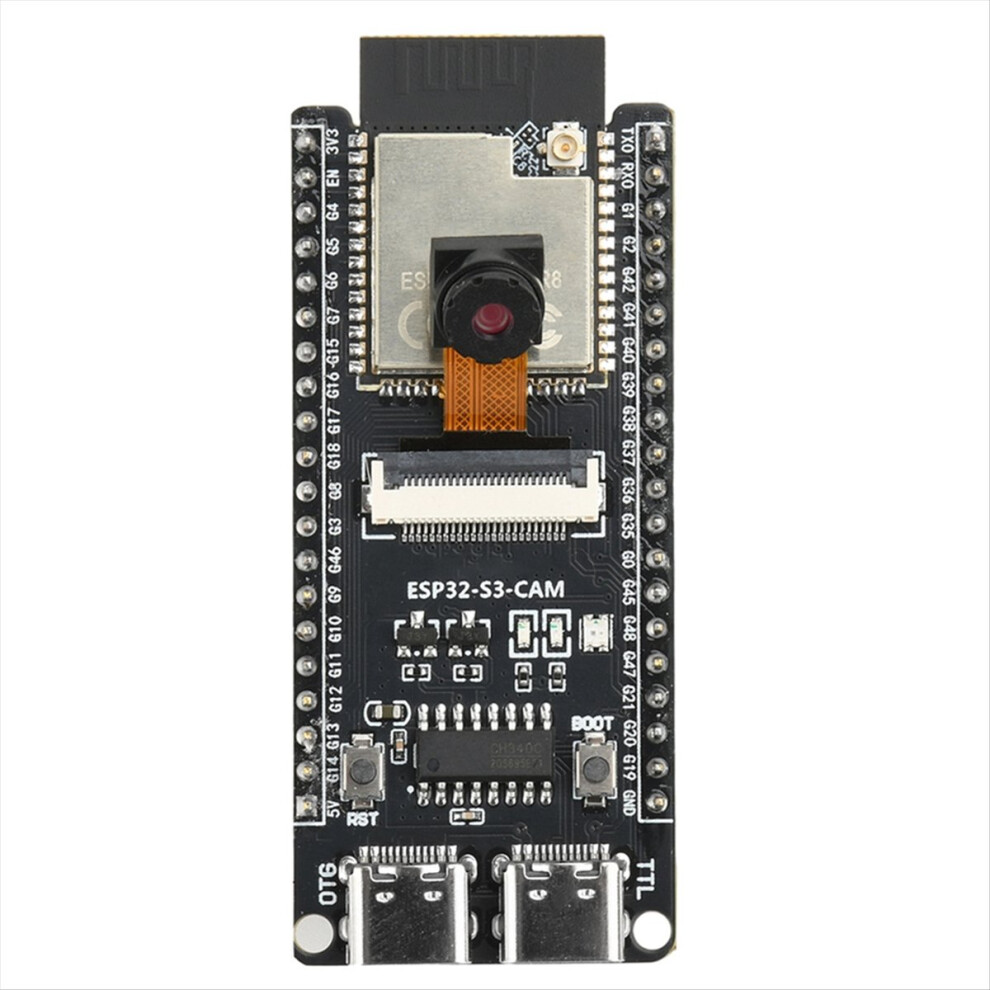

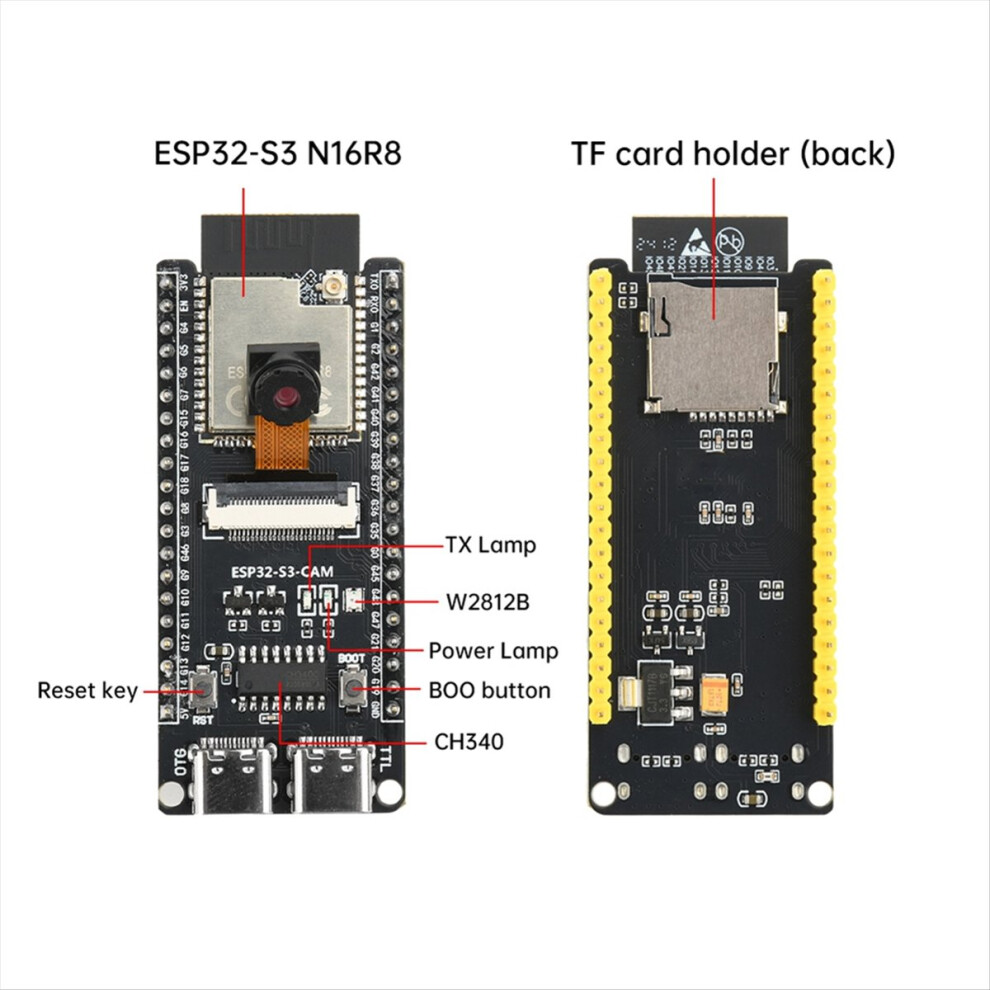

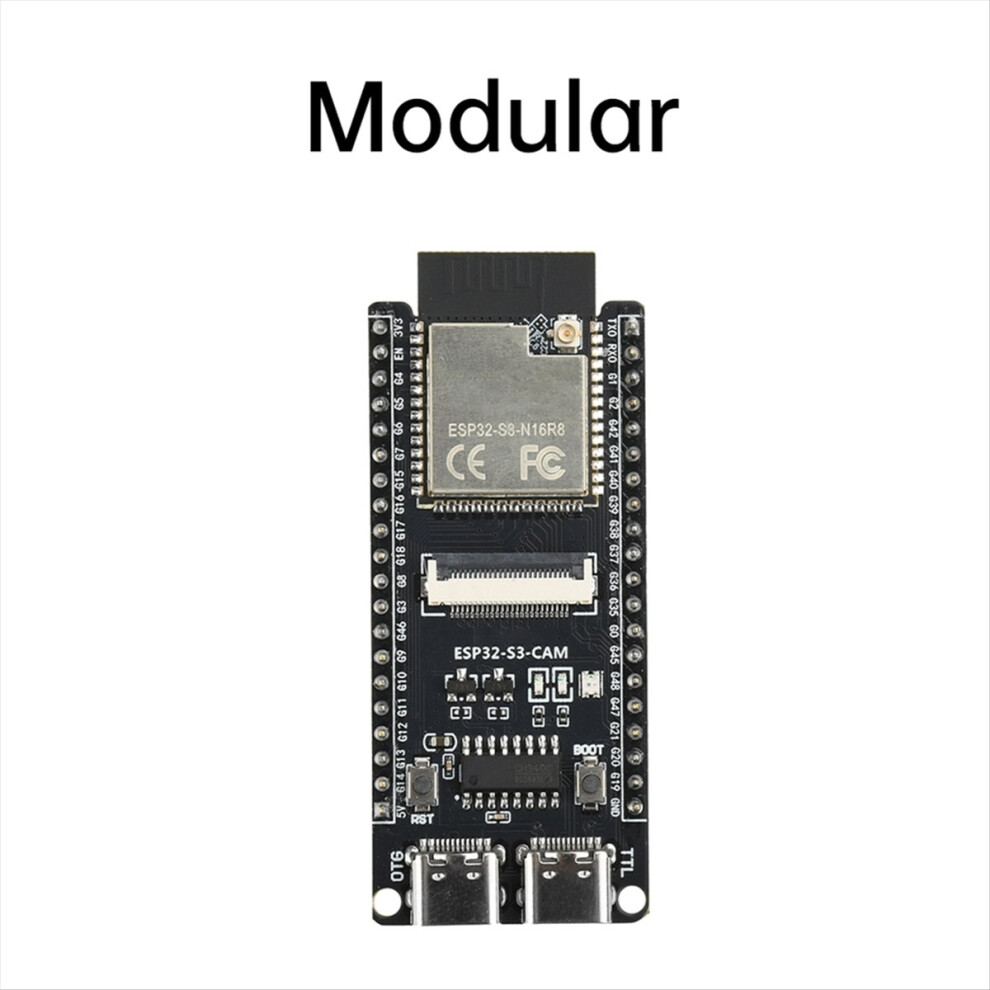

ESP32-S3-CAM Development Board Wifi Bluetooth Core CH340 Camera Module

ESP32-S3-CAM Development Board Wifi Bluetooth Core CH340 Camera Module Description

Excellent Wi-Fi performance: integrated IEEE 802.11b/g protocols to high-speed and stable connection.
Advanced Bluetooth subsystem: supports Bluetooth 5 (LE) and Bluetooth Mesh to achieve long-distance communication.
Efficient data processing capability: built-in 32-bit LX7 dual-core processor, providing a balance of powerful computing performance and low power consumption.
Multiple wireless function integration: Wi-Fi and Bluetooth LE share the same antenna to optimize multi-tasking.
High temperature and stable operation: excellent performance, stable operation even in high temperature environment, suitable for various harsh working environments.

Product introduction:
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11b/g) and supports 40MHz bandwidth; its low-power Bluetooth subsystem supports Bluetooth5 (LE) and BluetoothMesh, and can achieve long-distance communication through Coded PHY and broadcast extension. It also supports 2Mbps PHY to increase transmission speed and data throughput. ESP32-S3's Wi-Fi and BluetoothLE radio frequency performance are excellent and can work stably even at high temperatures.
Performance parameters:
Support IEEE802.11b/g protocol
Support 20MHz and 40MHz bandwidth in 2.4GHz band
Support 1T1R mode, data rate up to 150Mbps
Wireless Multimedia (WMM)
Frame aggregation (TX/RX A-MPDU, TX/RX A-MSDU)
Immediate Block
Fragmentation/defragmentation
Low power Bluetooth (BluetoothLE): Bluetooth5, Bluetooth Mesh
High power mode (20dBm)
Support rate 125Kbps, 500Kbps, 1Mbps, 2Mbps
Wi-Fi and Bluetooth coexist, sharing the same antenna
32-bit LX7 dual-core processor, main frequency up to 240MHZ

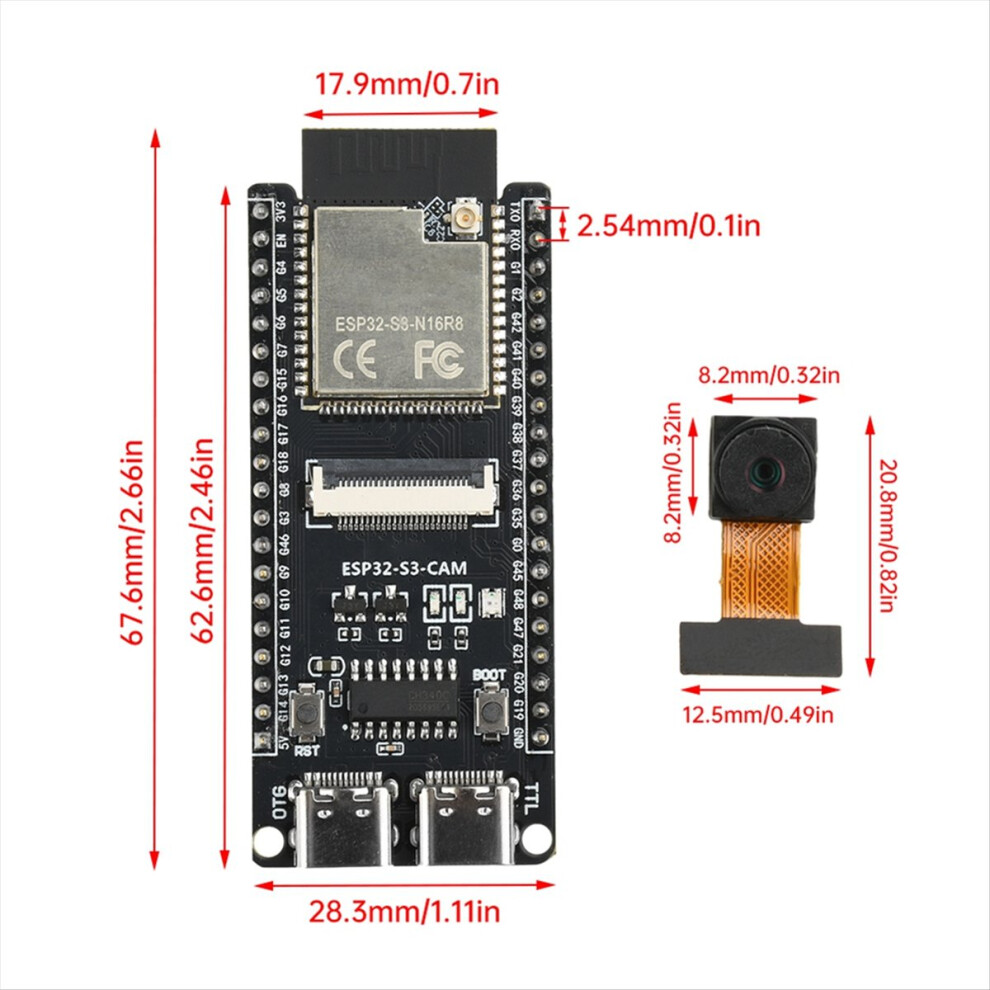

PCB board size: 62.6mm x 28.3mm
Color:Black
Material:PCB+Components

Package Contents:
1 x development board
1 x OV2640 camera

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
