ESP32 Wi-Fi HaLow Camera HT-HC33 80 Lens

ESP32 Wi-Fi HaLow Camera HT-HC33 80 Lens Description

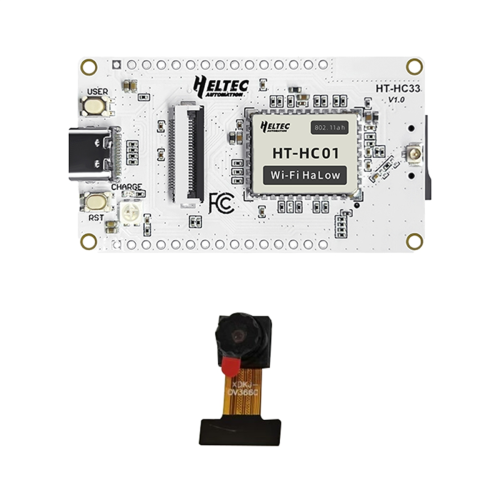

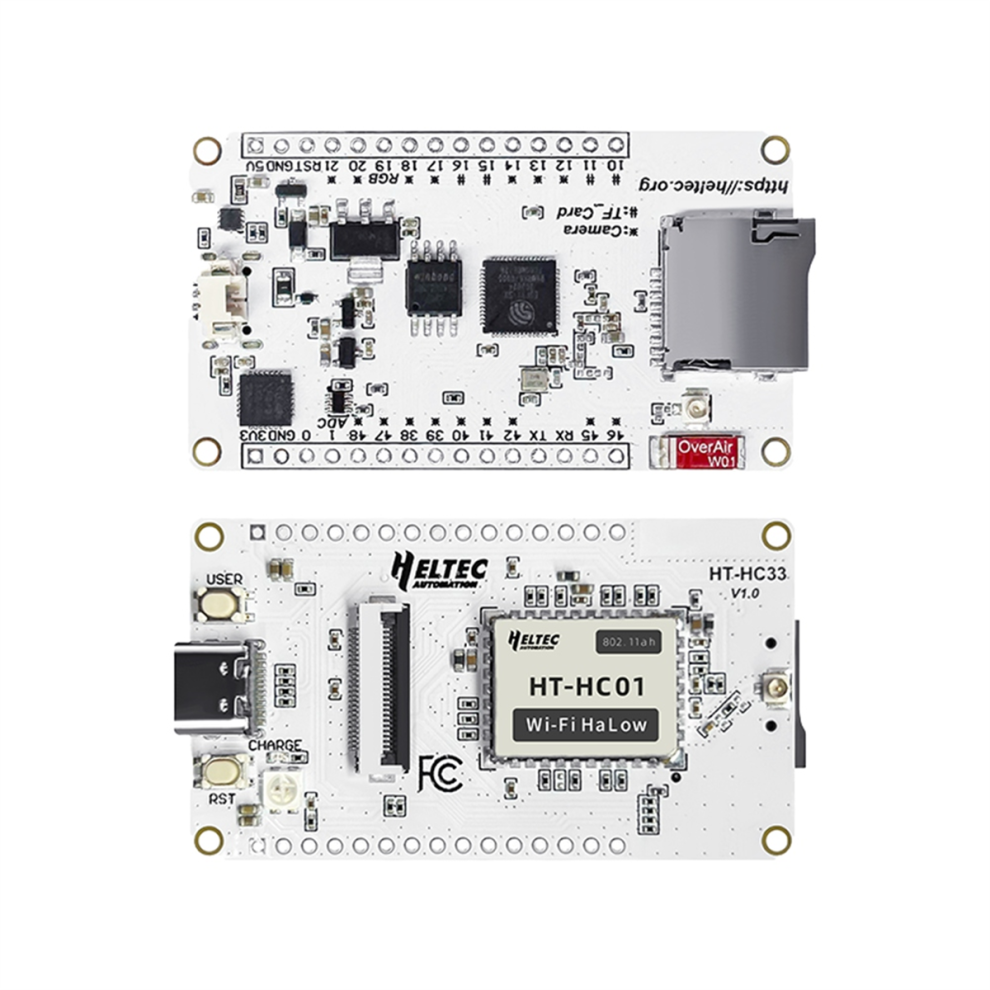

HT-HC33 is a development board with integrated camera, based on the ESP32-S3 MCU and Wi-Fi HaLow module.It is designed for long-range, high-speed wireless communication. With support for transmission distances of over 1 km and speeds of up to 32 Mbps, it is ideal for IoT applications that require reliable, high-performance connectivity.
The module features a low power consumption design with excellent signal penetration, ensuring robust performance even in challenging environments. The integrated camera has a 200-pixel wide-angle, which supports advanced image processing functions such as auto exposure control, auto gain control, image scaling, and image compression.

Features:
The MCU is the ESP32-S3, and the Wi-Fi HaLow module is HT-HC01.
Long transmission range, up to over 1~2km.
Fast transmission speed, with a maximum of 32 Mbps.
Low power consumption design with strong penetration.
Supports the for development environment.
Integrated SD card slot for easy local deployment and data storage.
Integrated CP2102 USB-to-serial chip, convenient for program downloading and debugging information printing.
Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, shielding, and other protection measures.
Integrated Wi-Fi, Bluetooth, and Wi-Fi HaLow three network connections, with onboard 2.4 GHz patch antenna for Wi-Fi and Bluetooth, and reserved (U.FL) interface for Wi-Fi HaLow.
Onboard SH1.25-2 battery interface, integrated lithium battery management system (charging and discharging management, overcharge protection, battery power detection, USB/battery power automatic switching).
Color: White
Material: PCB+ Components
Specifications: 80 Lens
The actual product may have color difference due to different light or display

Package Contents:
1 x Development board
1 x camera

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
