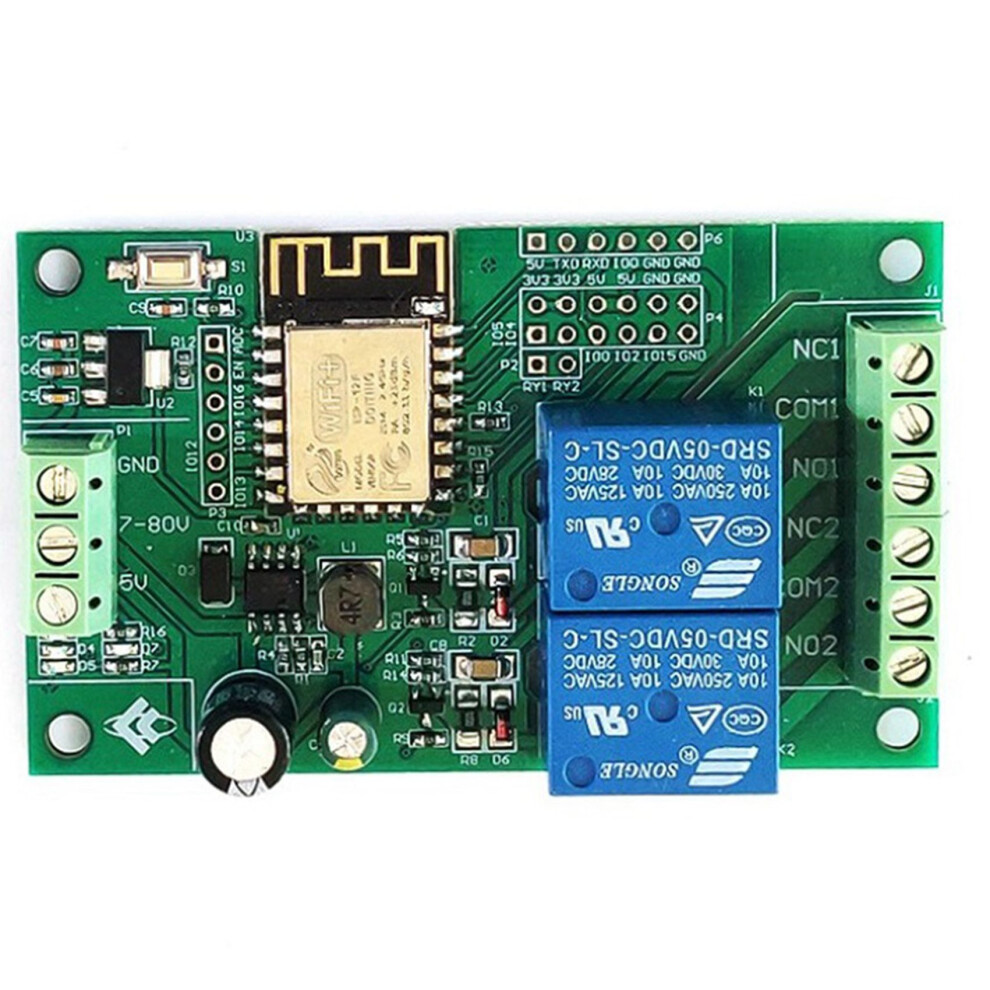

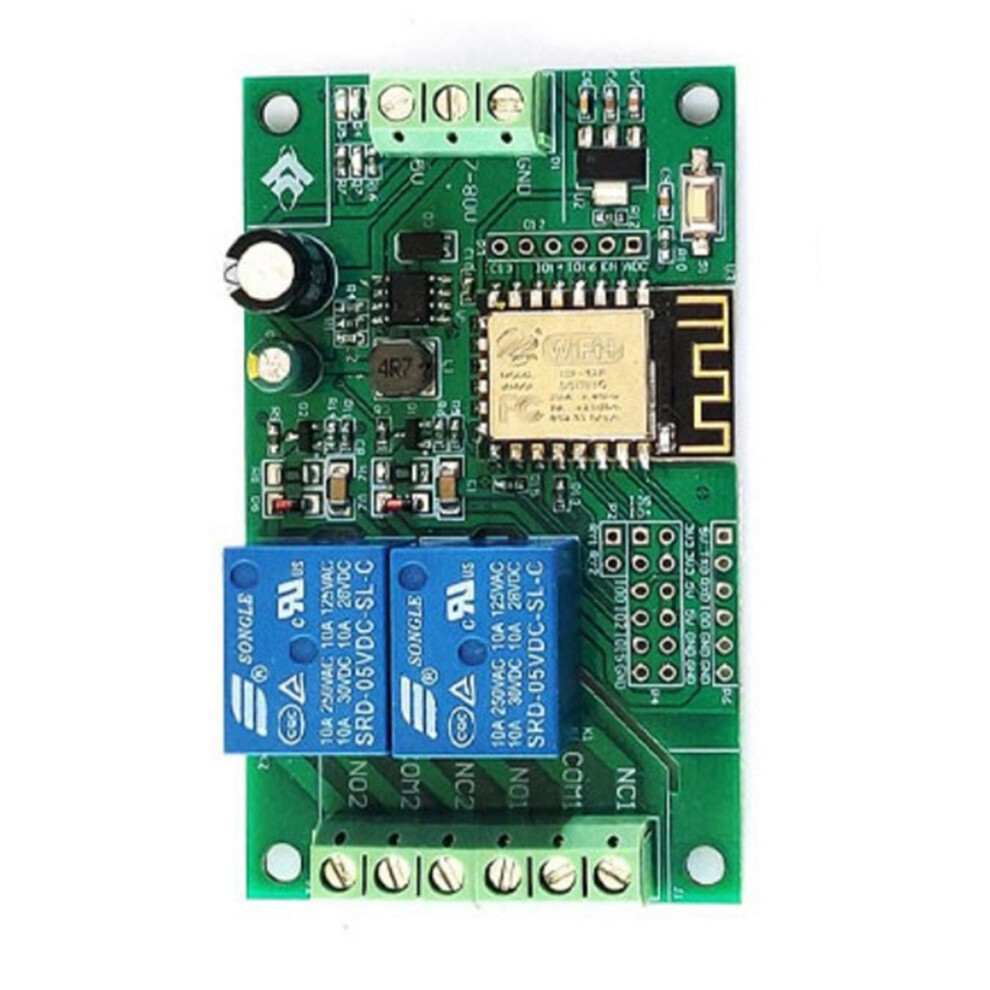

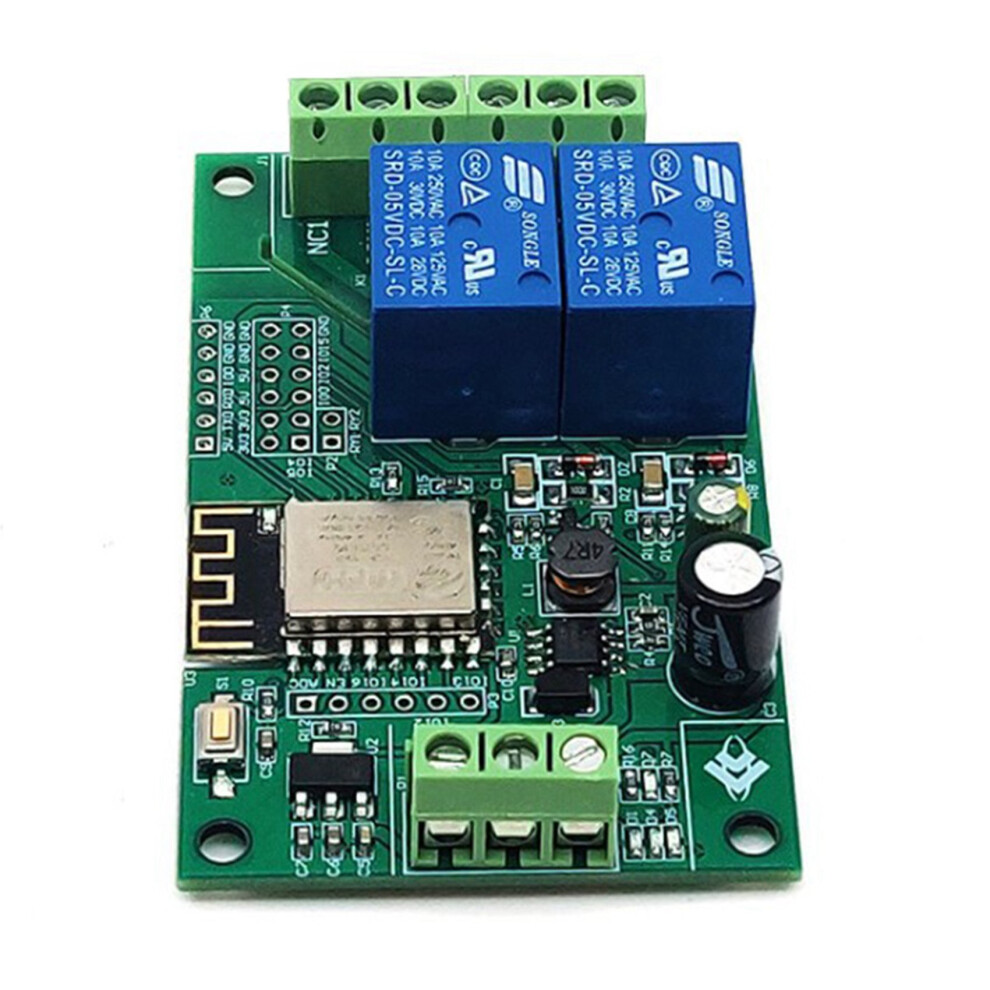

Esp8266 Esp-12F Wifi Relay Module 2Channel 5V/8-80V Network Switch

Esp8266 Esp-12F Wifi Relay Module 2Channel 5V/8-80V Network Switch Description

1. Onboard and stable ESP-12F WIFI module, large capacity 4M BYTE FLASH;
2. The I/O port of the WIFI module and the UART program download port are all led out to facilitate secondary development;
3. Onboard WIFI module reset button;
4. ESP-12F supports development tools such as ECLIPSE/ IDE;
5. Onboard 2 5V relays, output switch signal, suitable for controlling the working voltage of AC Load within 250V/DC30V;

Onboard power indicator, 1 programmable LED and relay indicator.
Type: Logic ICs
Model Number: ESP8266 ESP-12F WIFI Relay Module
Application: Computer
Operating Temperature: ESP8266 ESP-12F WIFI Relay Module
Supply Voltage: 5V/8-80V
colour:Green
Material:plastic
size: 78 x 47mm

Package Contents:
5 x Relay Switch Board

Only the above package content, other products are not included.
