Fli14+ Fli14 Plus 14CH Mini Receiver for AFHDS-2A

Fli14+ Fli14 Plus 14CH Mini Receiver for AFHDS-2A Description

RSSI Display Via OSD without any hack compatible with for all AFHDS-2A protocol transmitter
Telemetry Output: RSSI & RX Battery
Support RSSI Via Channel14 (Aux10 in Betaflight)
Compatible with -i4, -i6, -I6X, -i6S, -i10, -iT4S, I6, I6S, Evolution
Best for Racing Drone

Model: Fli14+
Item Name: 2.4G 14CH Compatible for AFHDS-2A Receiver
Channel: 14CH
Protocol: AFHDS-2A
2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
Antenna Length: 70mm (Dual Antennas)
Input Voltage:4-6.5V DC
Weight:Only 1.7g
Size:25x15x5mm
Signal Outpu: IBUS
RSSI Output: Channel14
No ground interference (Transmitting and receiving 1 m from the ground): more than 500m
Binding procedure:
1. Power for the Fli14+ Receiver while and holding the bind button
2. The LED blinking fast , which indicates the receiver is in binding mode
3. Get the for transmitter into binding mode and the LED on the receiver to be solid and this indicates binding successfully
NOTE:For use, both antennas should be placed at 90 degrees.
Color:As Shown
Material:PC

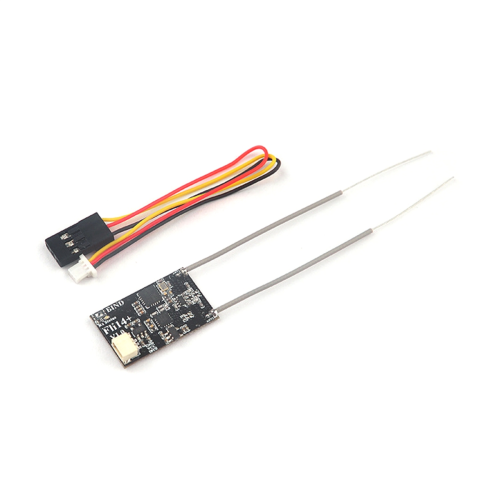

Package Contents:
1 * Mini Receiver
1 * cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
