for 5 Power over Ethernet Expansion Board

for 5 Power over Ethernet Expansion Board Description

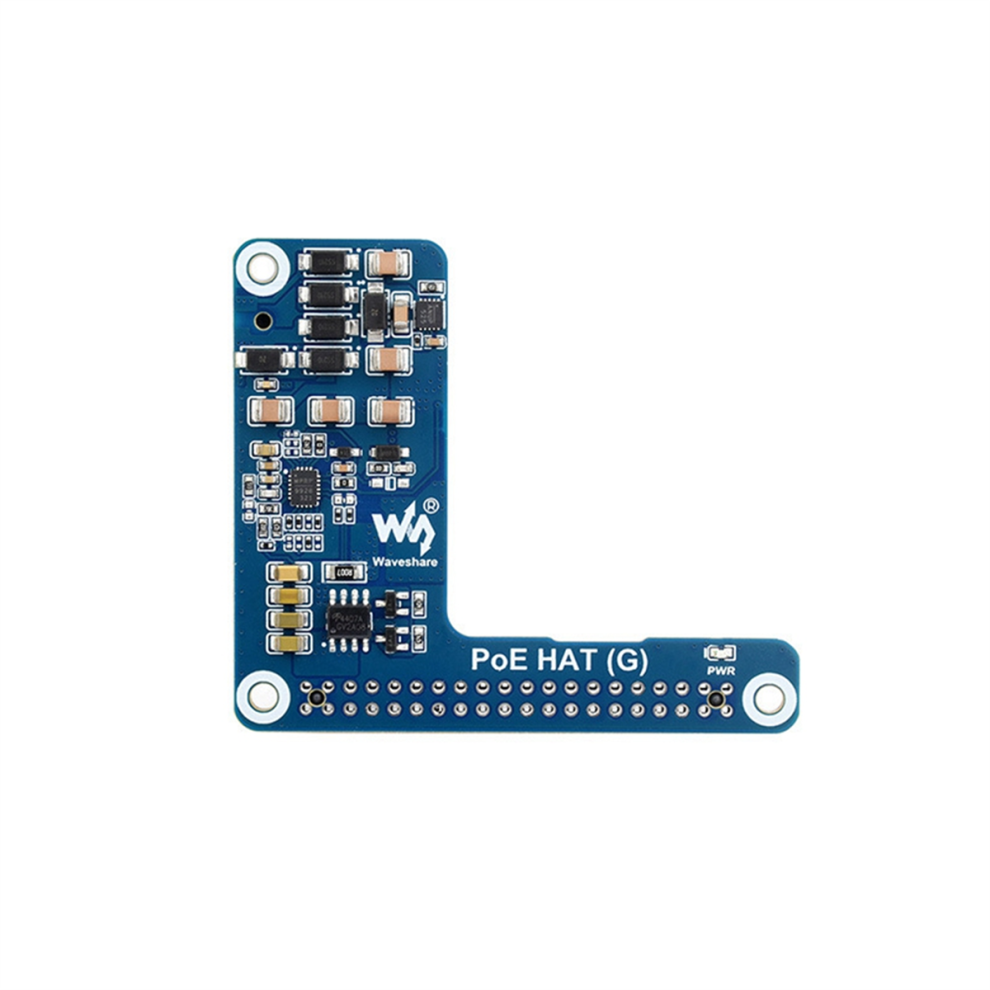

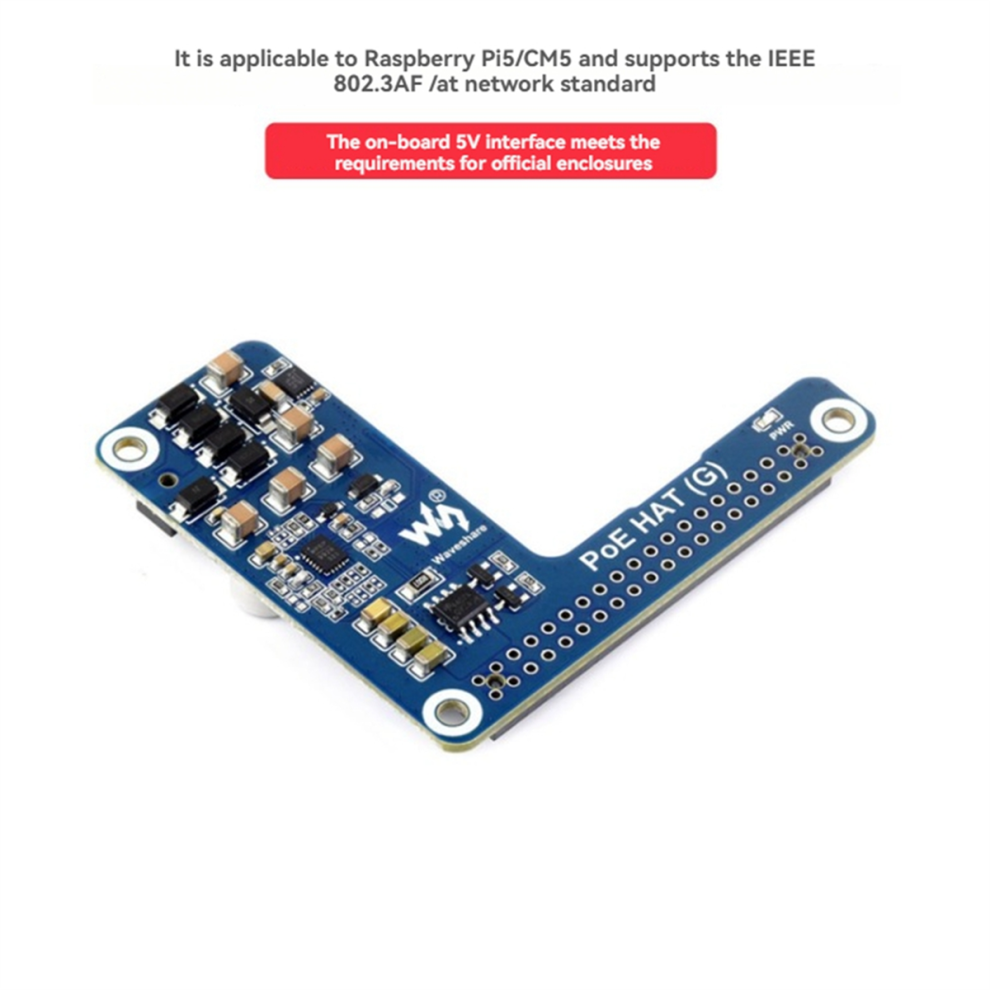

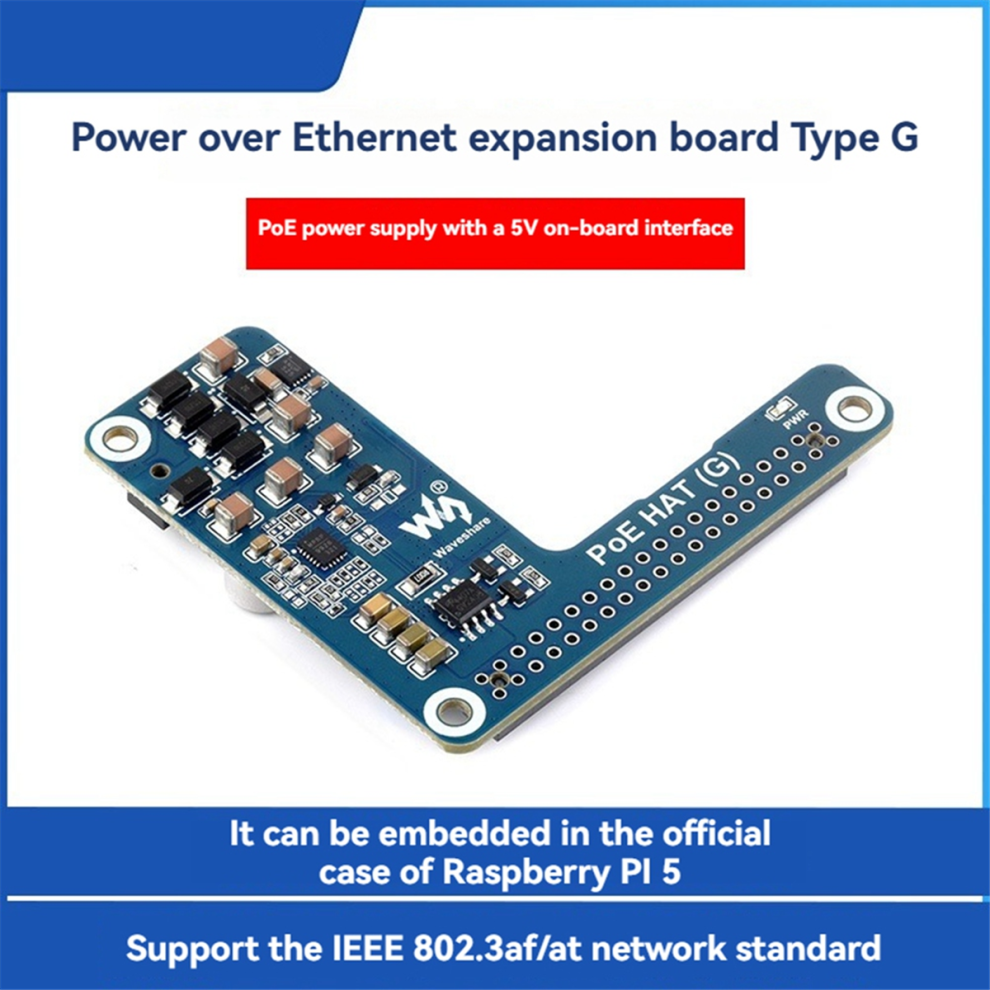

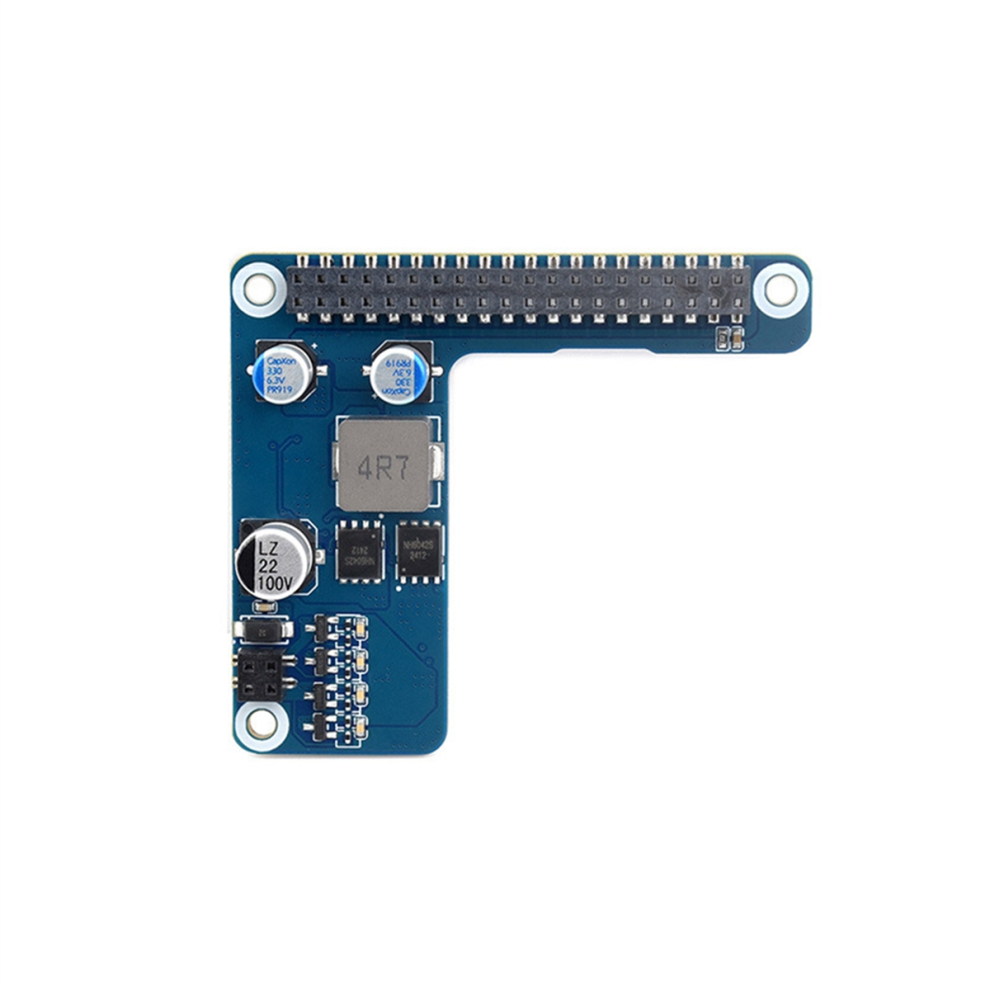

A Power over Ethernet (PoE) expansion board for Raspberry Pi5/CM5, supporting IEEE 802.3af/at network standards. Suitable for use with PoE routers or switches that support IEEE 802.3af/at network standards. Only one network cable is needed to connect the to the Internet and power it.
Based on the for 40PIN GPIO interface
Supports PoE Ethernet power supply and IEEE 802.3af/at PoE network standards
Onboard IC solution, PoE power supply performance is more stable
Uses non-isolated switch mode power supply

Small and easy to assemble
PoE power input: 38V-57V DC input
Power output: GPIO pin header: 5V 5A (MAX)
Network standard: Supports IEEE 802.3af/at PoE
(The product appearance and printed words depending on the batch, but this does not affect use)
Color:As shown
Material:PCB

Package Contents:
1 * POE Expansion Board Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
