For Pan Tilt HAT Light 40 PIN GPIO Extension Board

For Pan Tilt HAT Light 40 PIN GPIO Extension Board Description

for 2-DOF Pan Tilt HAT Light Intensity Sensing I2C Interface 40 PIN GPIO Extension Board for Camera

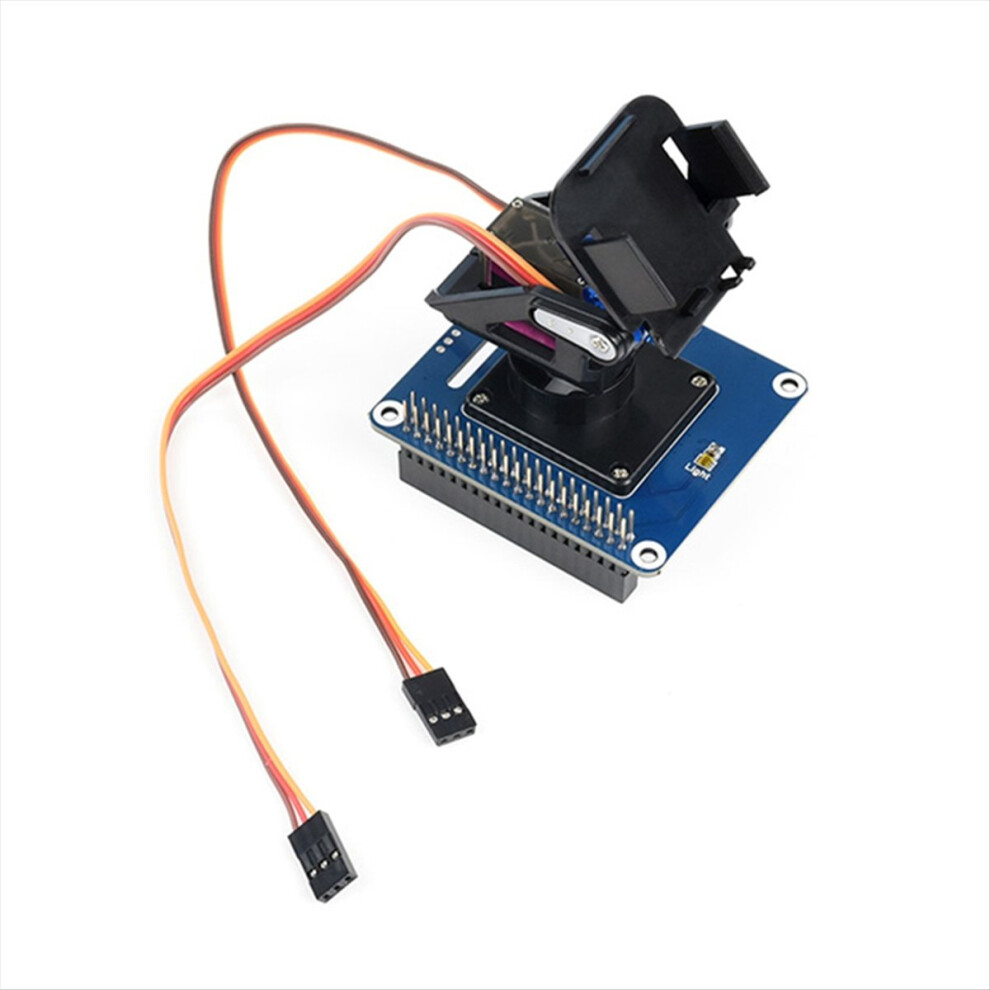

This is a 2-DOF pan-tilt kit designed for . With onboard PCA9685 PWM chip and TSL25911FN ambient light sensor, it allows Pi to control camera movement and sense light intensity through I2C interface.
Standard for 40PIN GPIO extension header, supports for series boards, Nano

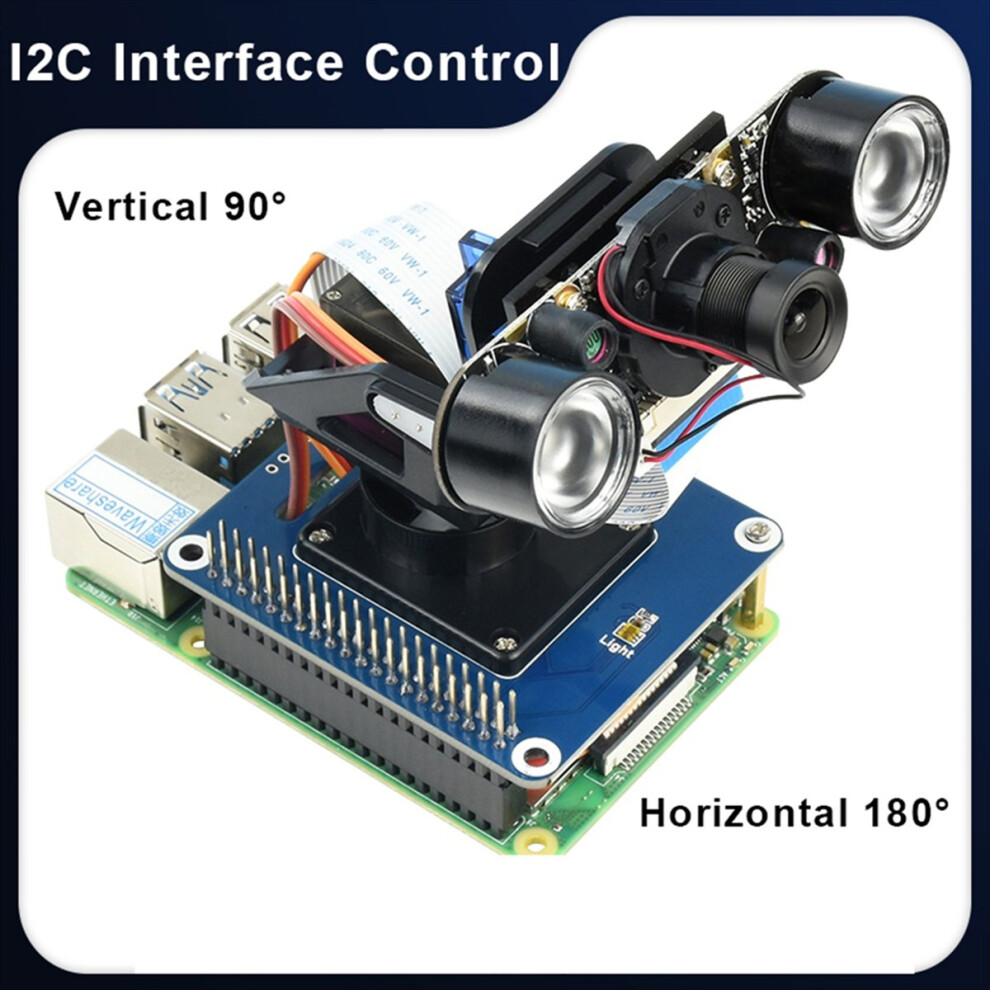

I2C interface, only 2 pins are required for moving and light intensity sensing
Onboard PCA9685 chip, provides 12-bit resolution PWM signal for moving control. Onboard TSL25911FN light-to-digital converter, with embedded ADC, provides a value that approximates human eye response to assist module

Onboard voltage level translator, compatible with 3.3V/5V operating voltage

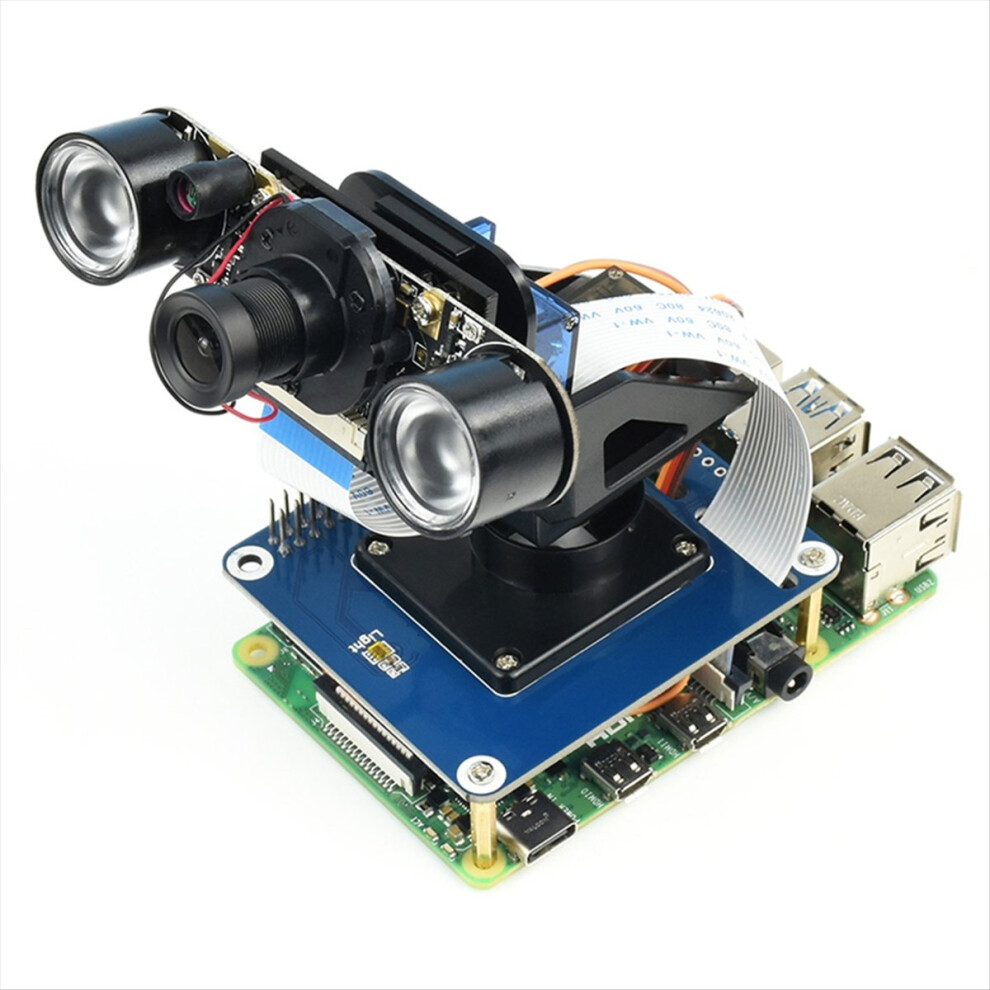

Specific acrylic board to fix for camera, easy to install
Comes with development resources and manual (demo code, assembly guide)
PWM driver: PCA9685
PWM resolution: 12-bit
Ambient light sensor: TSL25911FN
Ambient light resolution: 16-bit
Communication interface: I2C
Operating voltage: 3.3V/5V

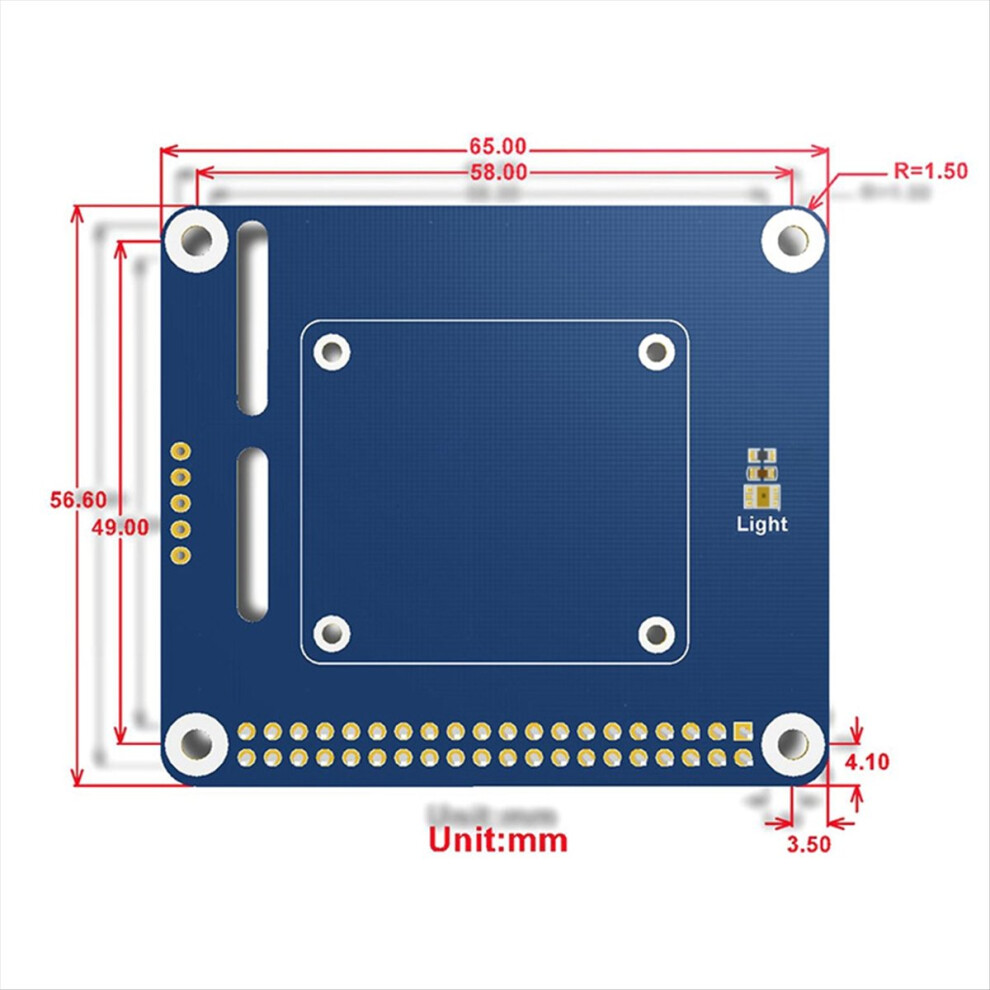

Dimension: 56.6mm x 65mm
How to Assemble: A little assembly work is required to use 2-DOF Pan-Tilt HAT, yet it's pretty easy to do, here's assembly guide.

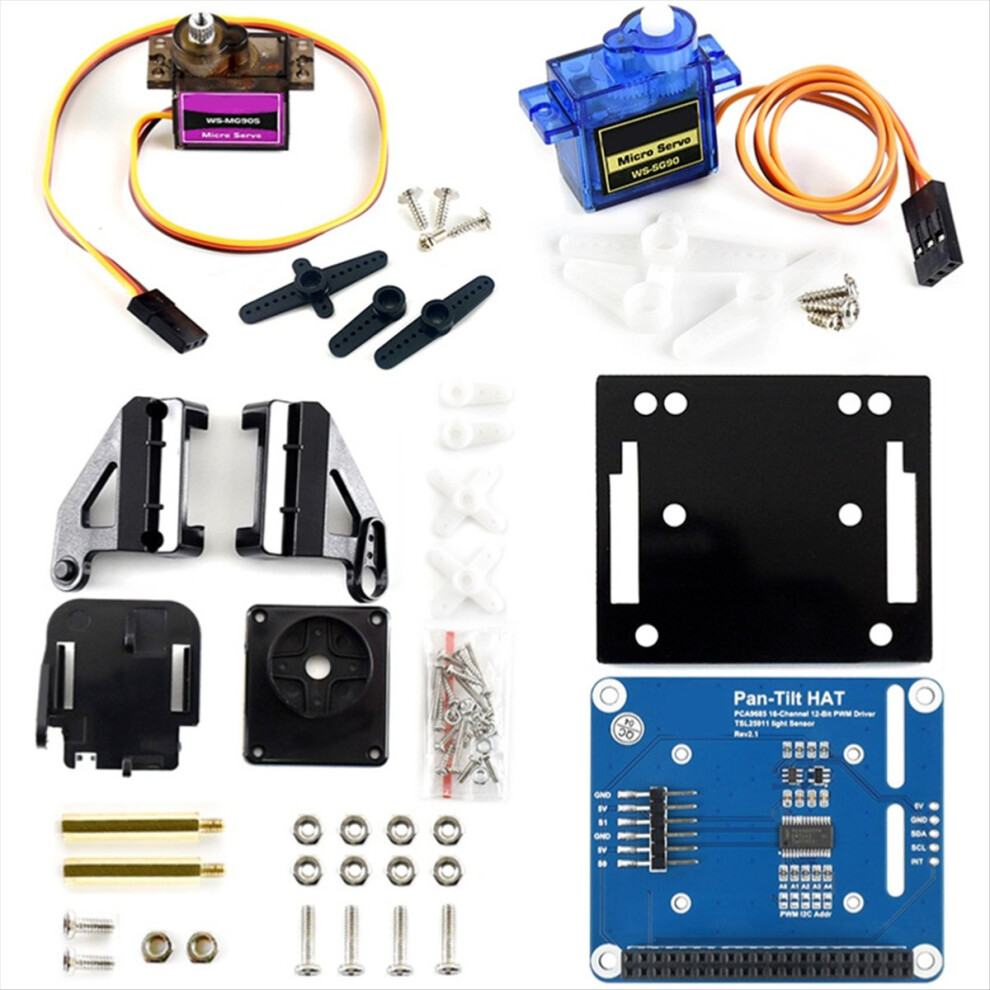

(Delivered as unassembled parts)
Color: As Shown
Material: PCB + Plastic + Copper

Package Contents:
1 set * for 2-DOF servo gimbal expansion board

Only above package content, other products are not included.
Note: Light reflection and different displays may cause color of item in picture a little different from real thing. The measurement allowed error is +/- 1-3cm.
