For Ultra WiFi Development Board+POE Module RV1106

For Ultra WiFi Development Board+POE Module RV1106 Description

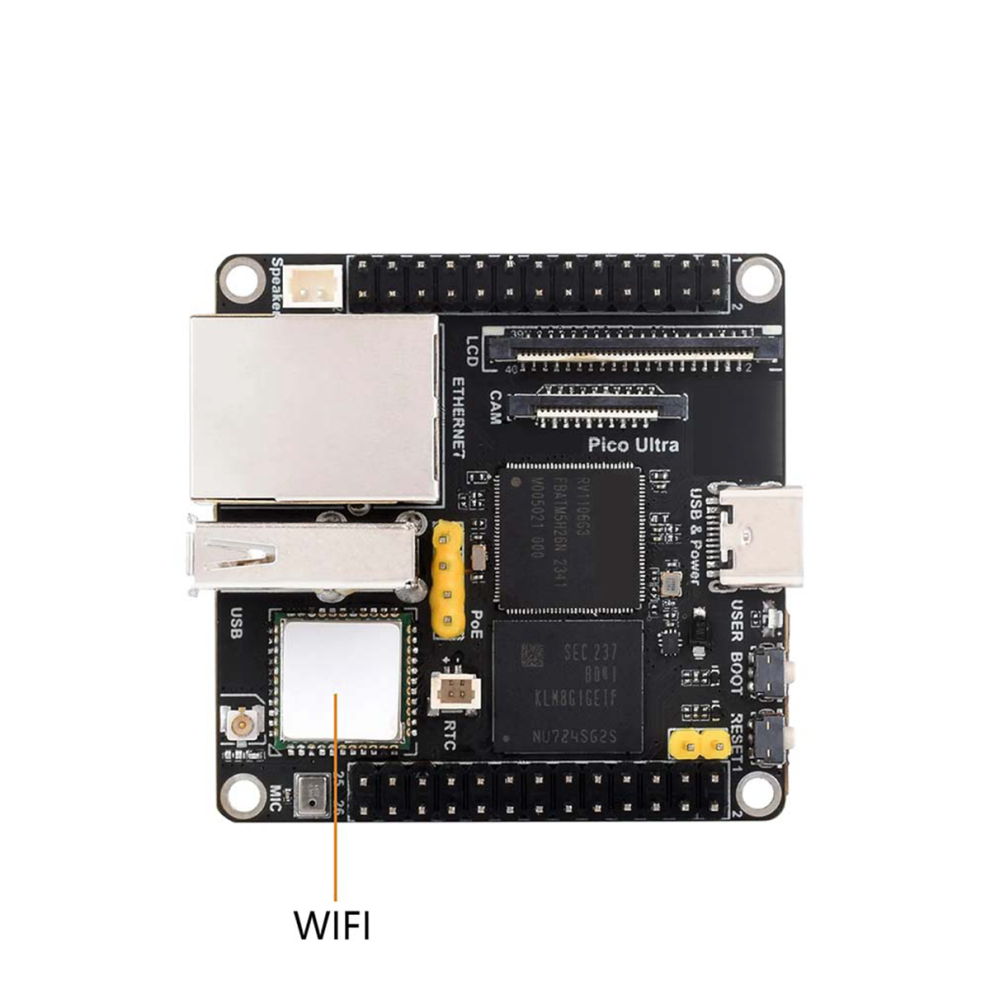

WiFi 6 and Bluetooth module,Onboard 2.4GHz WiFi6 and BT5.2/BLE Bluetooth module, stable connection, efficient transmission,Single-core ARM -A7 32-bit core, integrated with NEON and FPU
Built-in Rockchip's self-developed 4th generation NPU, with high computing precision, supports int4, int8, int16 mixed quantization, of which int8 computing power is 0.5TOPS, int4 computing power can reach 1.0TOPS
Built-in self-developed 1st generation ISP3.2, supports 5 million pixels, supports HDR, WDR, multi-level noise reduction and other image enhancement and correction algorithms
With powerful encoding performance, supports intelligent encoding, adaptively saves bitstream according to the scene, and saves 50% bitrate compared to conventional mode The above makes the picture not only high-definition but also smaller in size
Built-in 16-bit DRAM DDR3L can maintain demanding memory bandwidth

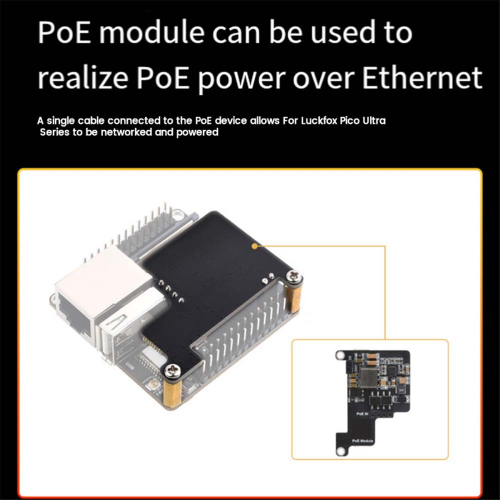

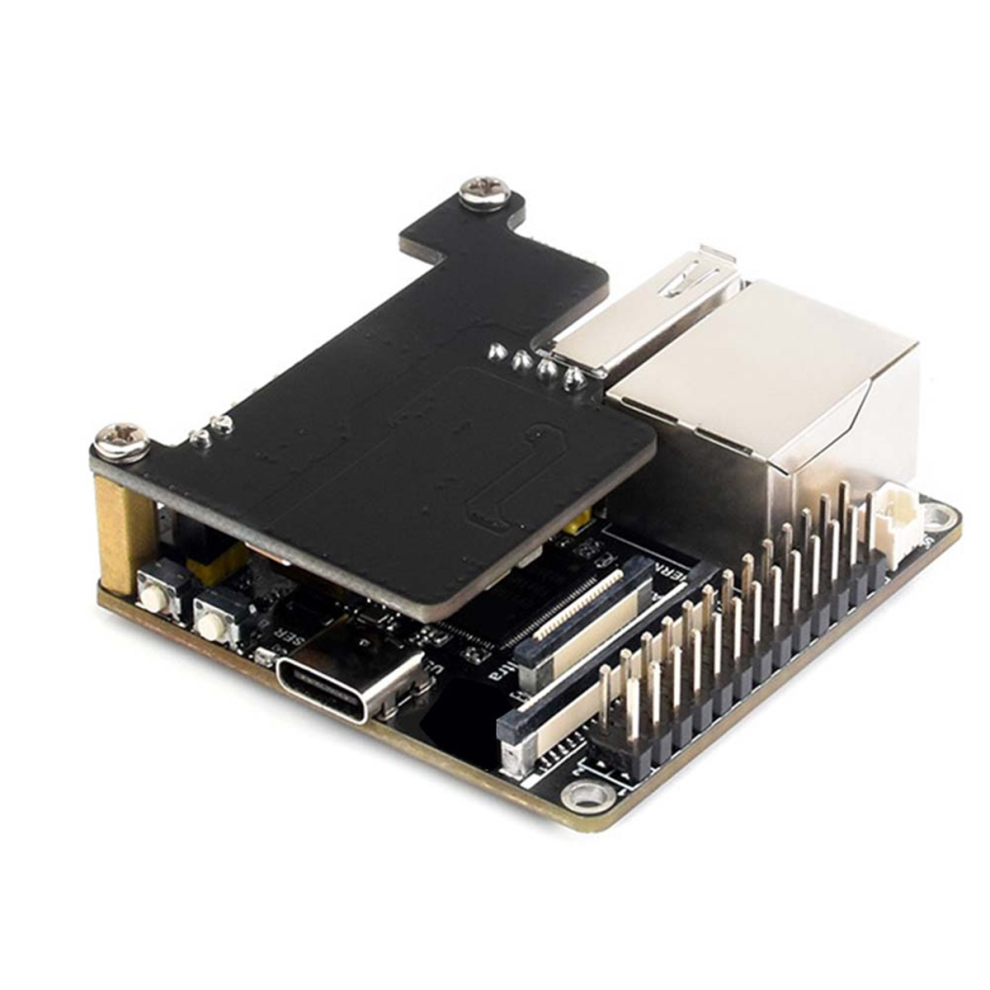

Ultra W PoE Kit
(with WI-FI module)
(with PoE Moudule)
(8GB EMMC)
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Colour:Black
Material: PCB

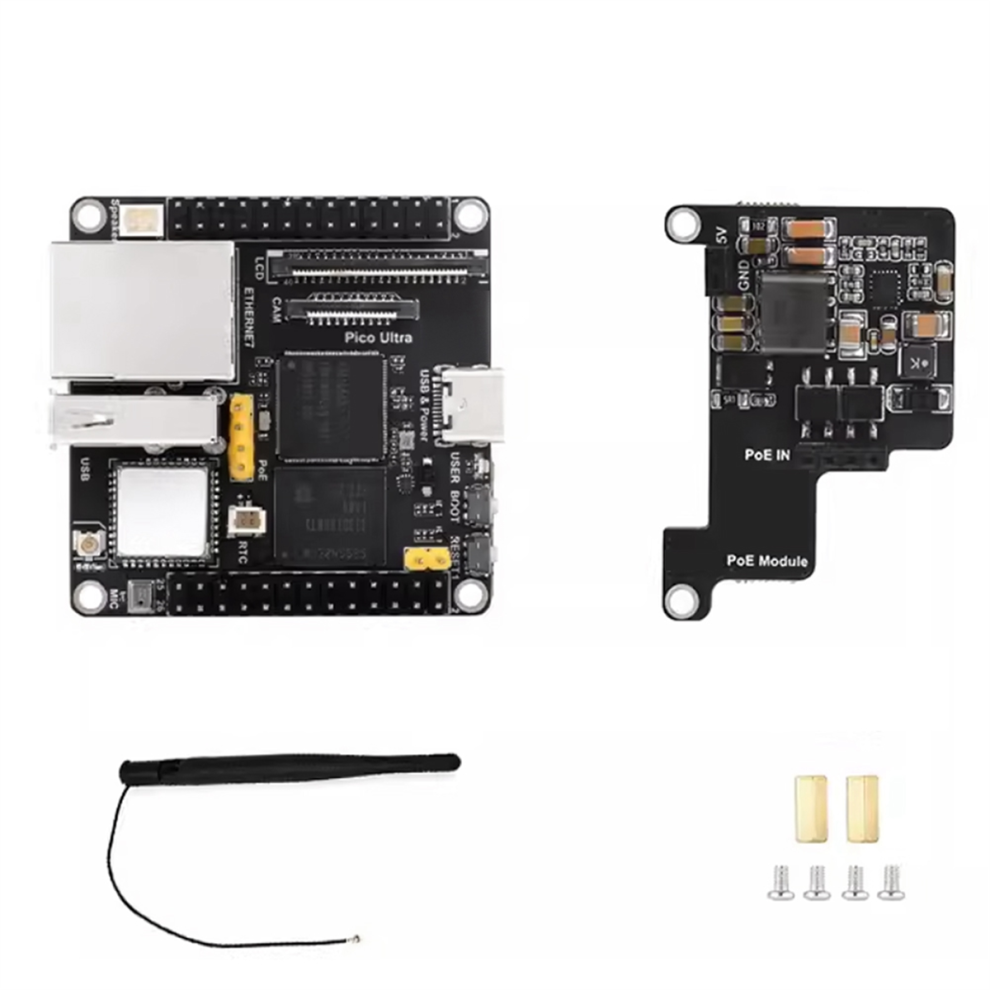

Package Contents:
1x Development Board
1x POE Module
1x Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
