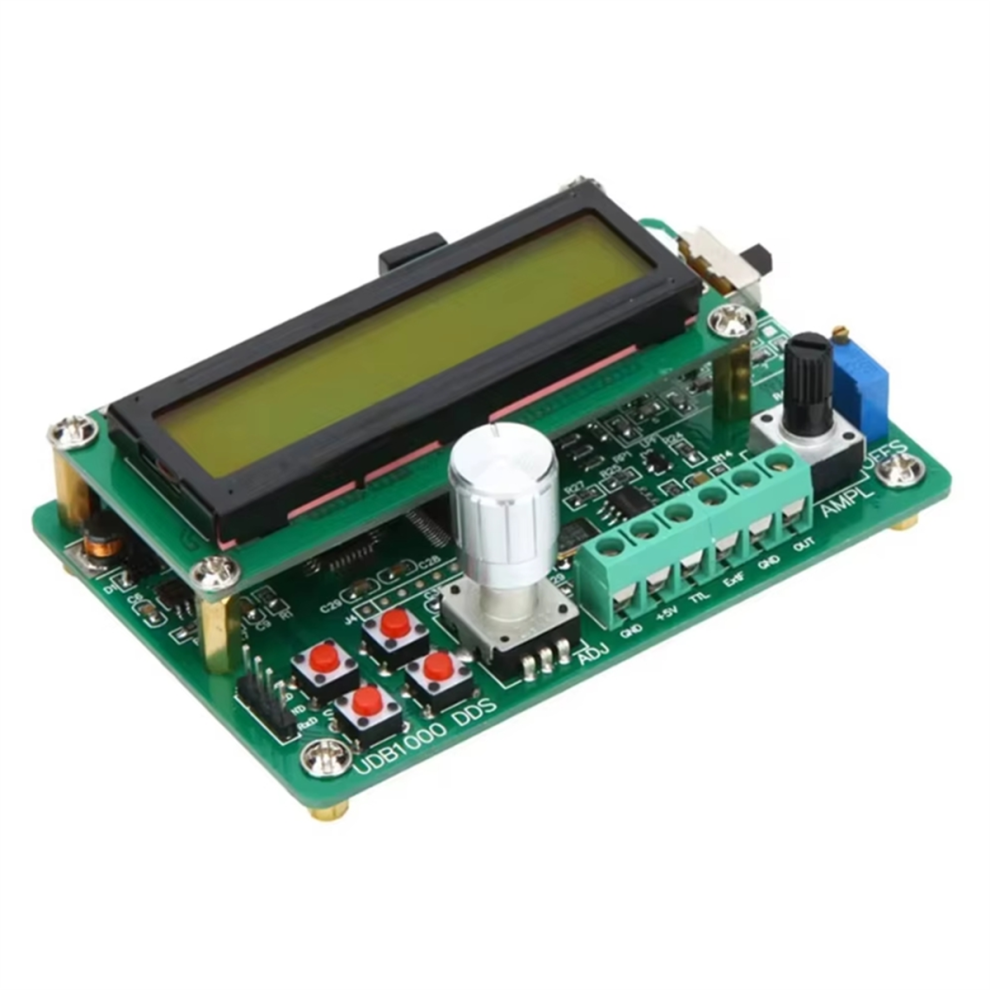

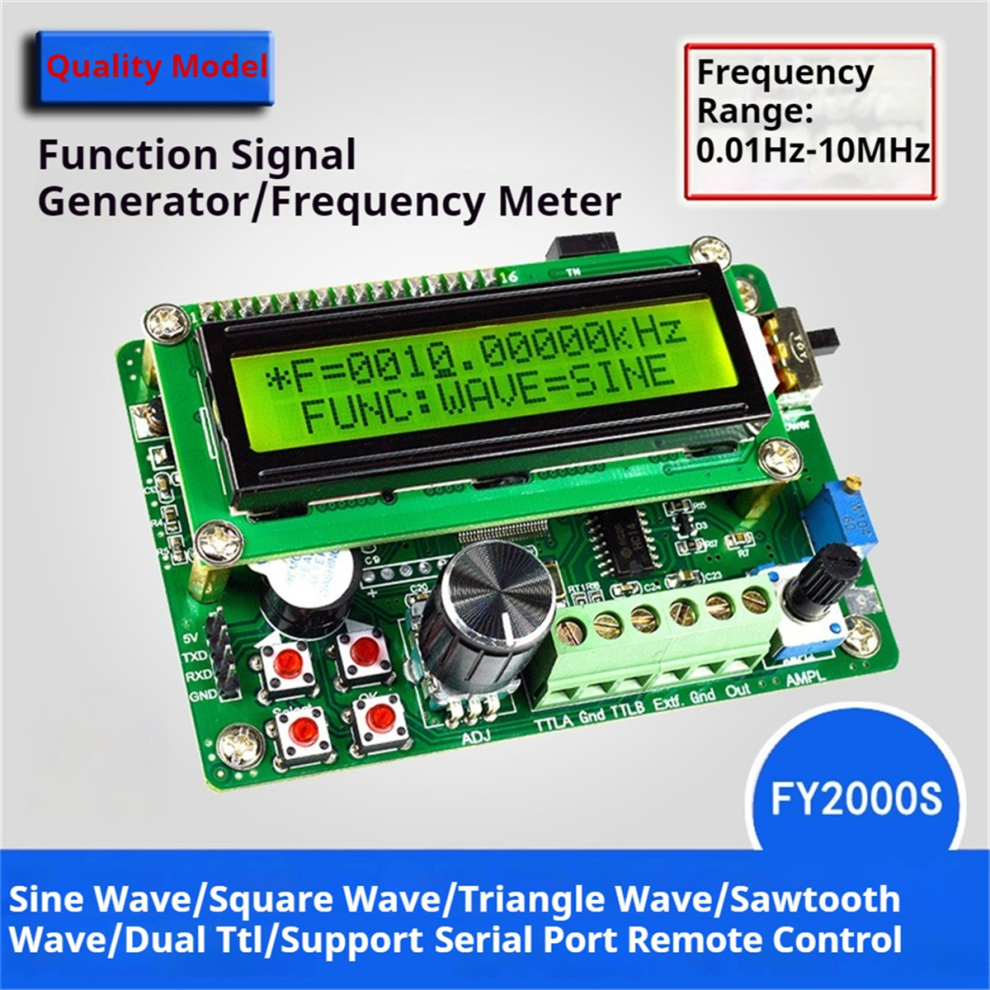

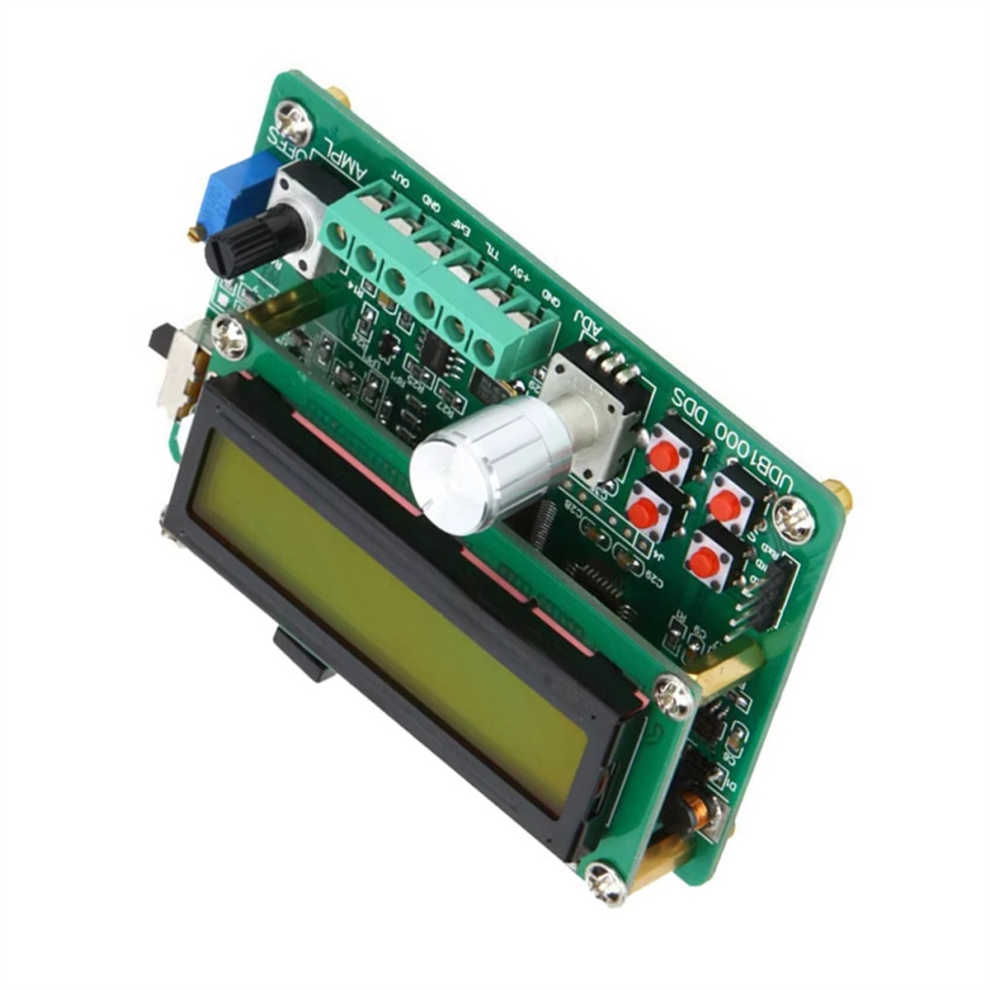

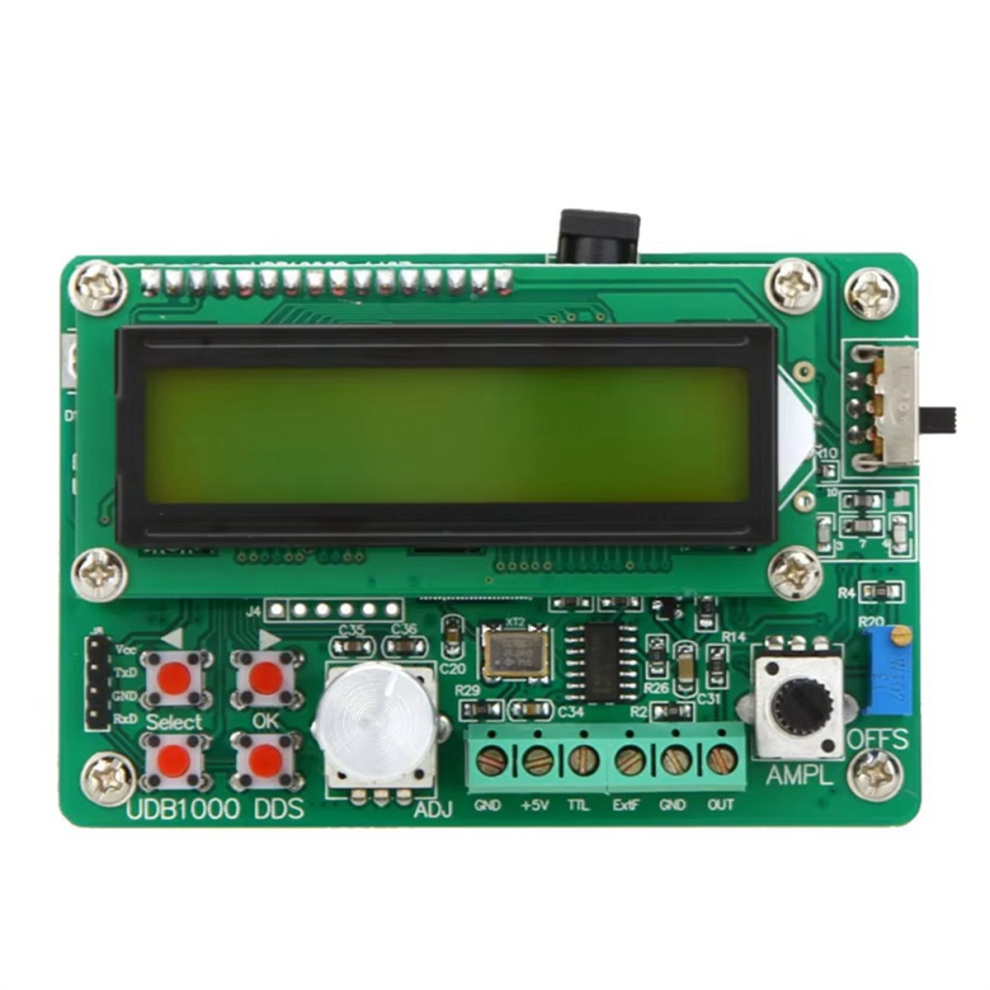

FY2010S 10MHz DDS Function Signal Generator

FY2010S 10MHz DDS Function Signal Generator Description

High frequency accuracy: frequency accuracy can reach 10-6 order of magnitude
High frequency resolution: full-scale frequency resolution is 10mHz
No range limit: full-scale frequency is not divided into grades, directly set digitally
High waveform accuracy: the output waveform is synthesized by function calculation value, with high waveform accuracy and low distortion
Multiple waveforms: sine wave, square wave, triangle wave, sawtooth wave, dual-channel TTL level differential output

Scanning characteristics: with frequency scanning function, the scanning start and end points can be set arbitrarily
Storage characteristics: 20 groups of user-set instrument status parameters can be stored, which can be called and reproduced at any time
Operation mode: full key operation, LCD1602 liquid crystal English display, direct digital setting or knob continuous adjustment
Frequency measurement: with 60MHz frequency meter function, can measure the frequency signal of internal/external signals
Buzzer prompt sound function: when the instrument is operated, the buzzer emit an operation prompt sound, which can be turned on or off by the user.
Output channel: one main waveform output, two TTL differential level outputs Output waveform: sine wave, square wave (adjustable duty cycle), triangle wave, rising sawtooth wave, falling sawtooth wave.
Output amplitude: 10Vp-p (no load)
Output impedance: 50Ω10%
DC bias: 3V
Frequency resolution: 0.01Hz (10mHz)
Power supply conditions: DC5V 1A, including AC220V to DC5V power adapter
Frequency scanning range: M1 preset frequency - M2 preset frequency
Counting range: 0-4294967295
Frequency measurement range: 1Hz-60MHz
Input amplitude: 2Vp-p-20Vp-p
Colour:Black & Green
Material:plastic
note:without adapter

Package Contents:
1 * frequency counter

Only the above package content, other products are not included.
