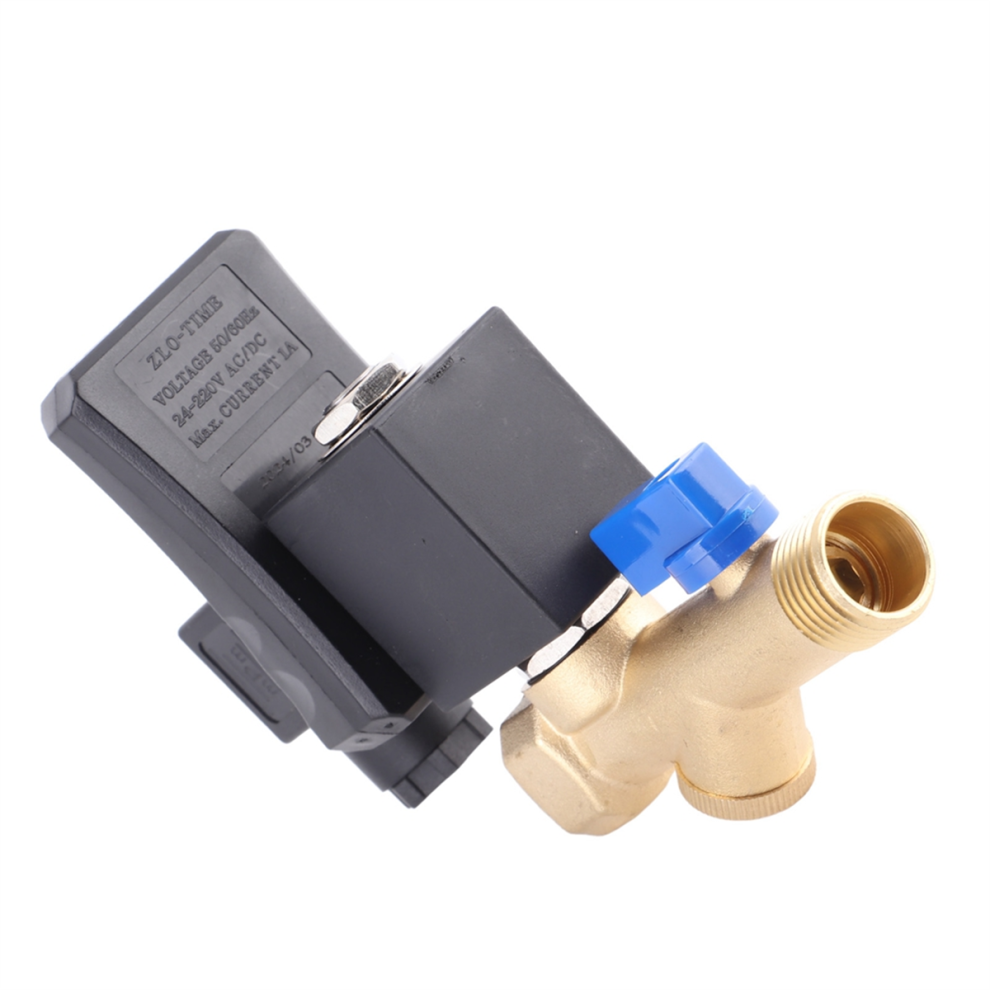

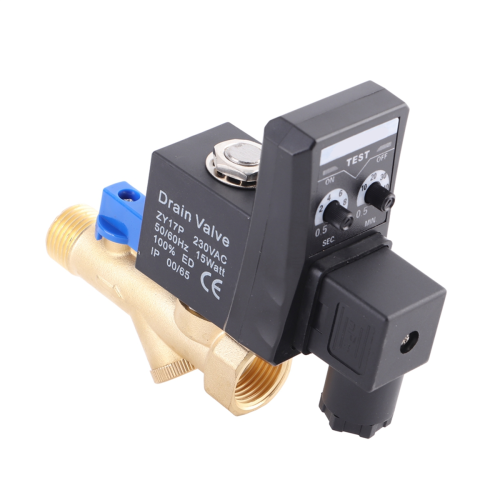

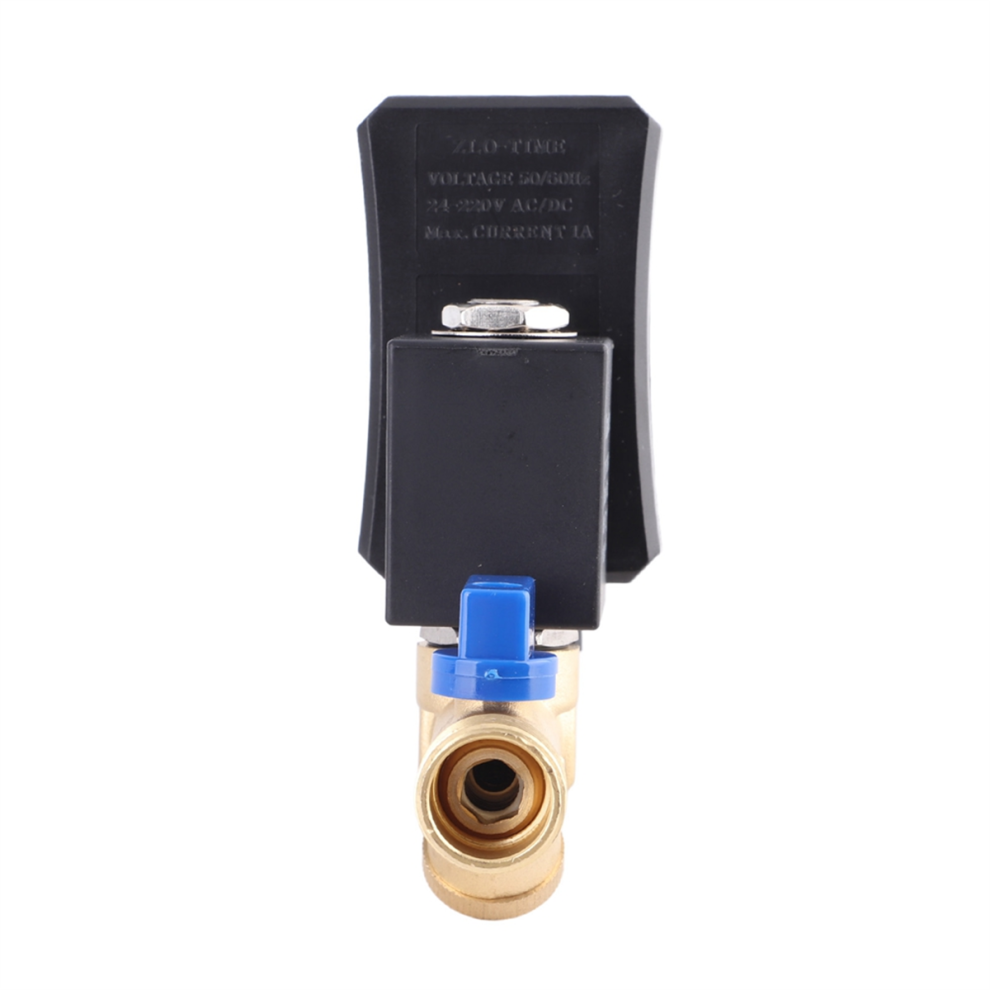

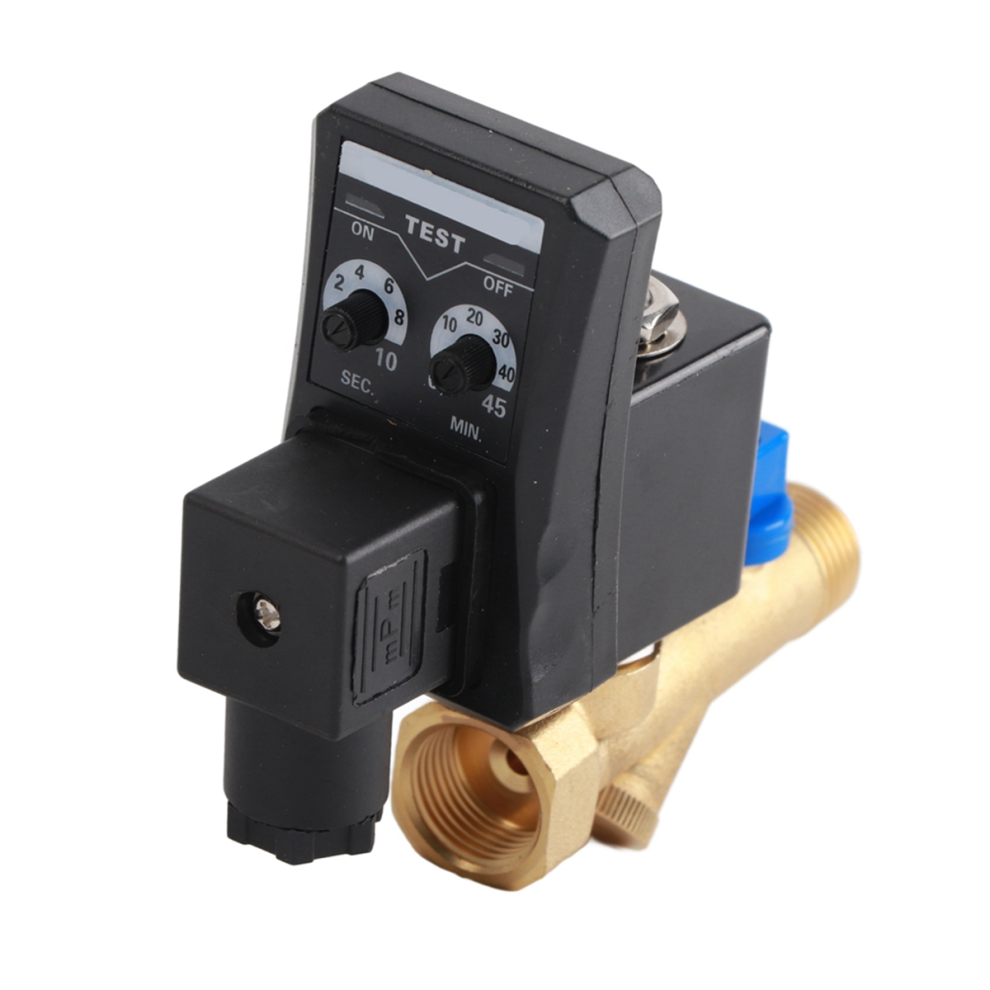

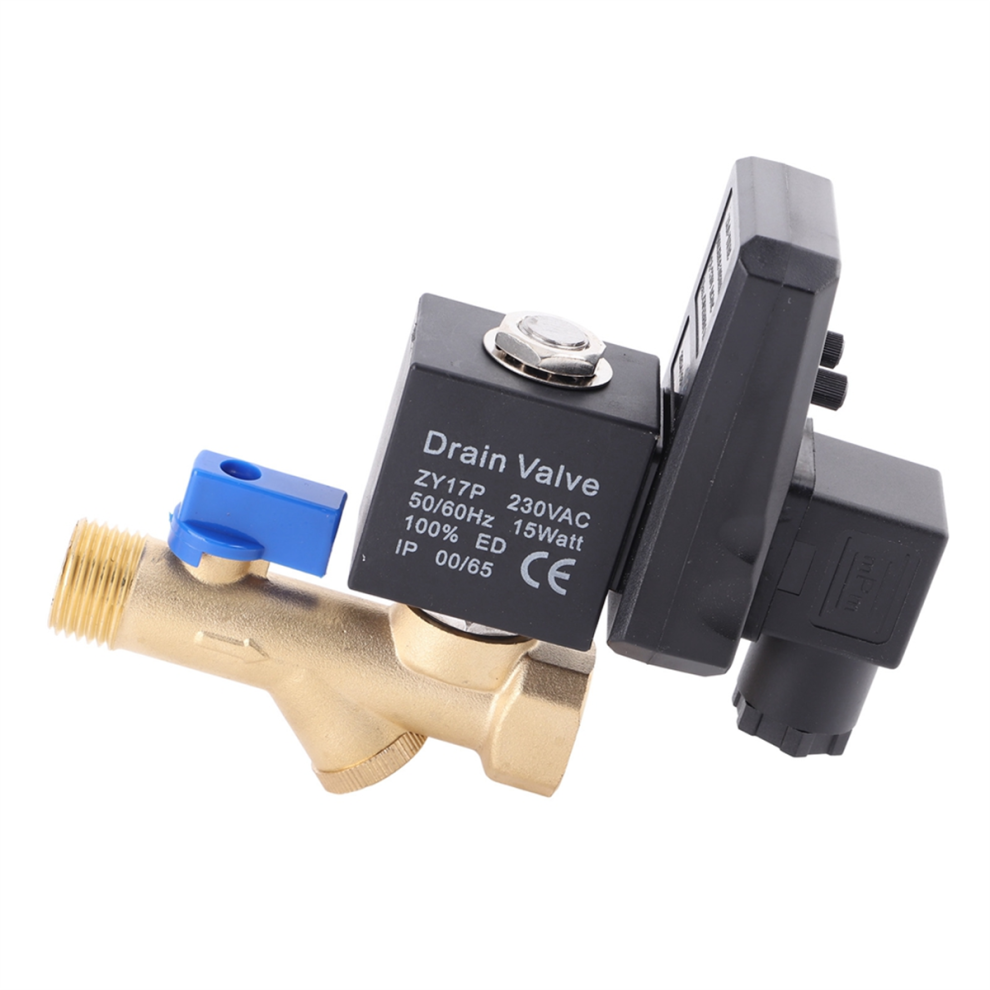

G1/2 DN15 Automatic Electronic Timed Drain Valve

G1/2 DN15 Automatic Electronic Timed Drain Valve Description

This is a reliable, high quality condensate drain valve to keep compressed air treatment equipment running optimally.
Timed electric drain valve can be programmed to discharge condensate at timed interval to match conditions.
Valve open time is adjustable from 0.5 to 10 seconds, and close time is from 0.5 to 45 minutes.
It operate automatically and waste less compressed air when discharging condensate.
G1/2 thread is widely used and can fit for most air compressors.

Voltage:AC220V
Type: Integrated
Valve Operating Modes: Direct-acting
Interval(OFF): 0.5-45min.
Discharge Time: 0.5-10sec.
Thread: G1/2 (DN15)
Thread Outer Diameter: . 21mm
Pressure: 0-1.6Mpa
Fluid: Air, water
Fluid Temperature: -5-80
Fluid Direction: One-way
Color:As shown
Material:Brass + Plastic

Package Contents:
1 * Drain Valve

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
