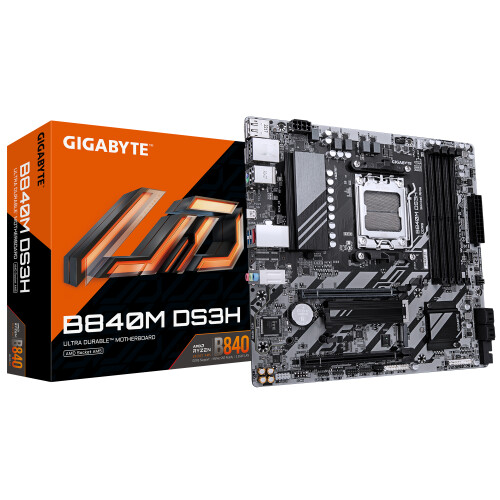

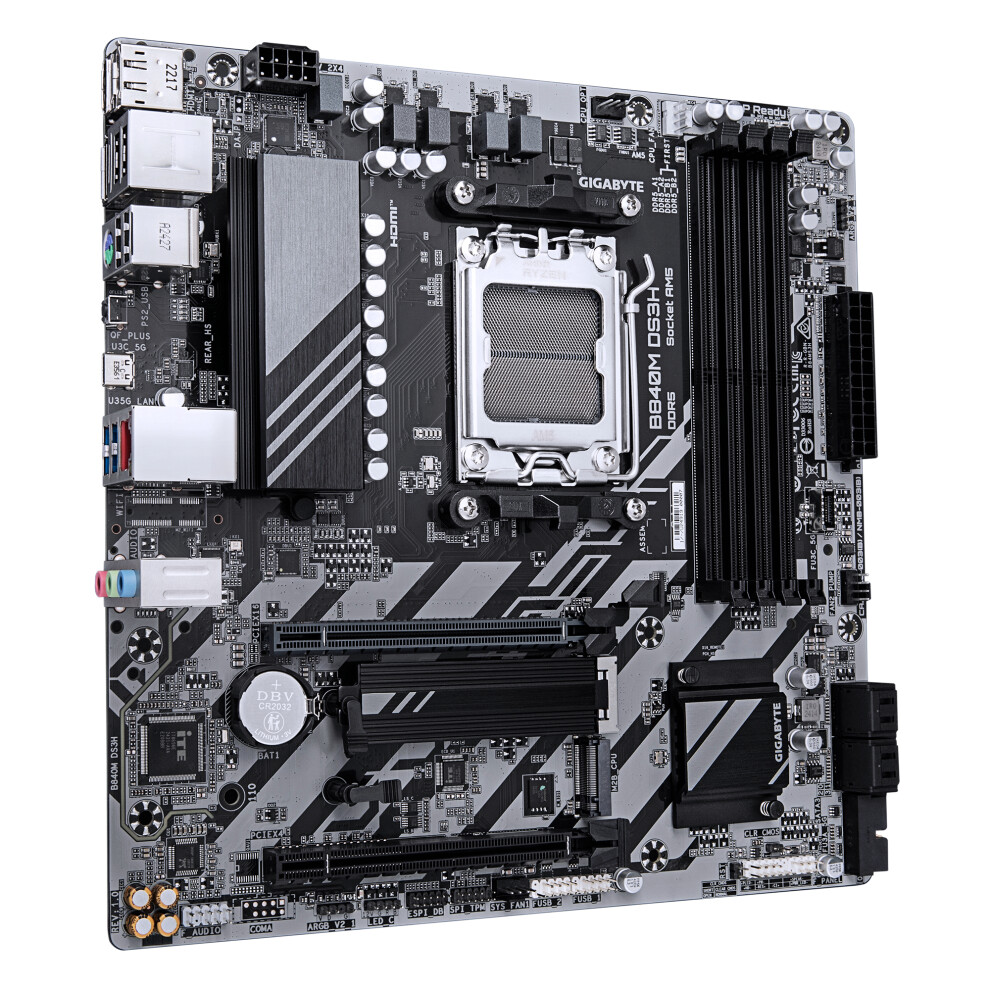

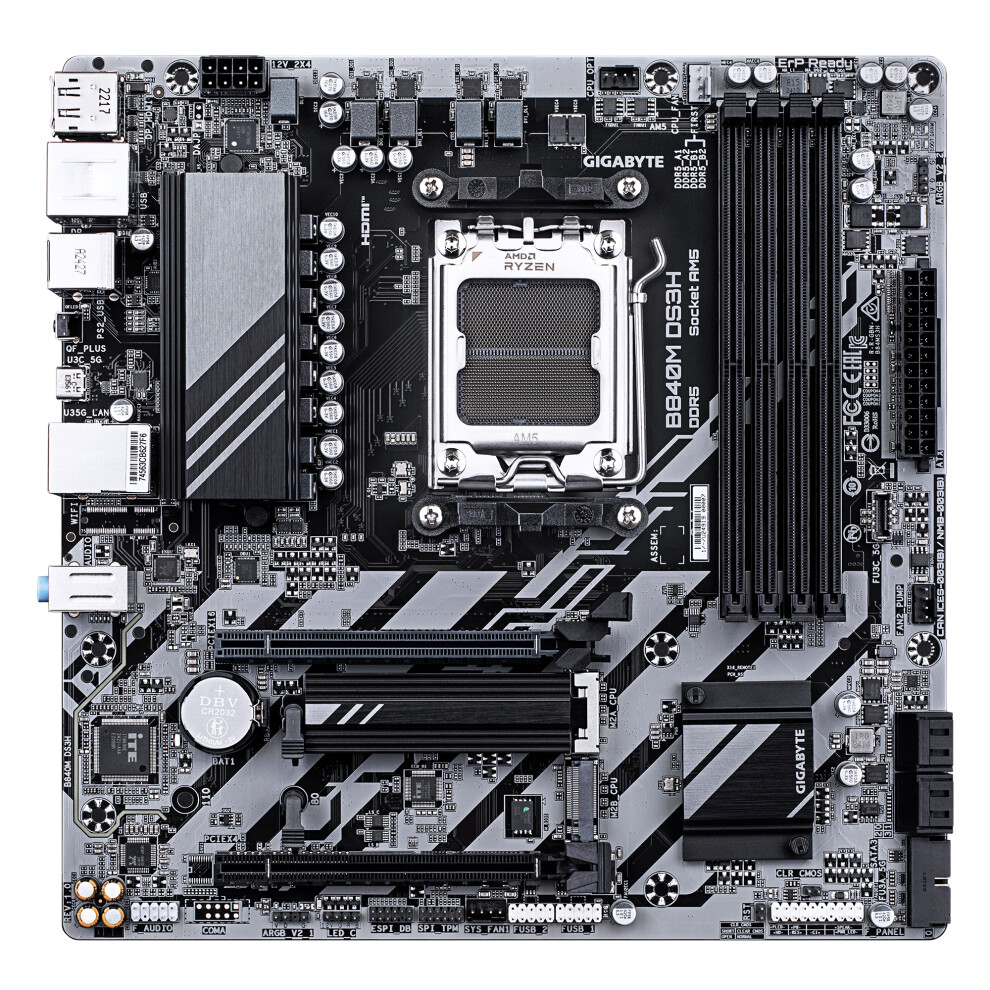

Gigabyte B840M DS3H - motherboard - micro ATX - Socket AM5 - AMD B840
Brand Gigabyte
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 131,000 Trustpilot reviews and an 'Excellent' rating
£182.90
FREE Delivery
1%
Earn £1.83 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 28th Aug - Thu 17th Sep
Sold by: Slava Computers
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Gigabyte B840M DS3H - motherboard - micro ATX - Socket AM5 - AMD B840 Description
Gigabyte B840M DS3H - motherboard - micro ATX - Socket AM5 - AMD B840
Details
| OPC | PG9MFVN |
|---|---|
| Brand | |
| Codes | 4719331868437 (EAN) |
| Links | Gigabyte Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Other features
| Weight | 1.05 kg |
|---|
Packaging content
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|---|---|
| Batteries included | Yes |
| Screws included | Yes |
Battery
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
|---|---|
| Battery type | CR2032 |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
Features
| Motherboard chipset | AMD B840 |
|---|---|
| Motherboard form factor | micro ATX |
| Product colour | Dark brown |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC897 |
Packaging data
| Package weight | 1.13 kg |
|---|---|
| Package depth | 265 mm |
| Package height | 54 mm |
| Package width | 265 mm |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |

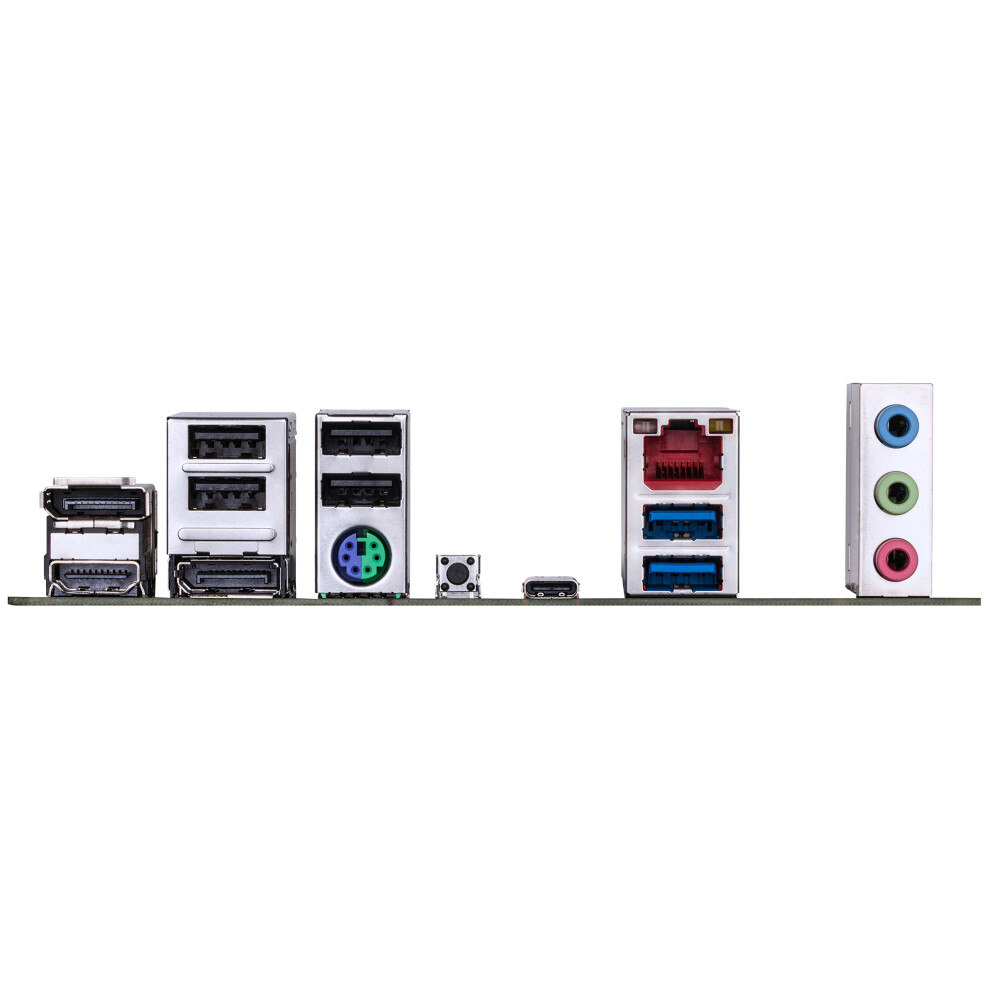

Rear panel I/O ports
| PS/2 ports quantity | 1 |
|---|---|
| Line-in | Yes |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
Network
| Ethernet LAN | Yes |
|---|---|
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Memory
| Maximum internal memory | 256 GB |
|---|---|
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Unbuffered memory | Yes |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8200 MHz |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | Non-ECC |
Weight & dimensions
| Height | 35 mm |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Storage controllers
| RAID levels | 0, 1, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
Graphics
| Maximum resolution | 4096 x 2160 pixels |
|---|---|
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 1 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2580 |
| 2nd M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
Logistics data
| Products per shipping (inner) case | 1 pc(s) |
|---|
Technical details
| Warranty period | 3 year(s) |
|---|
