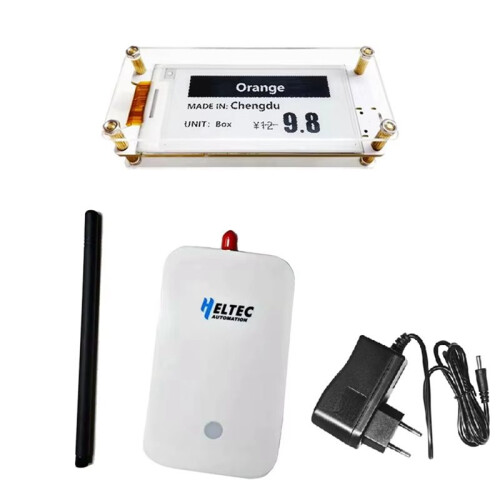

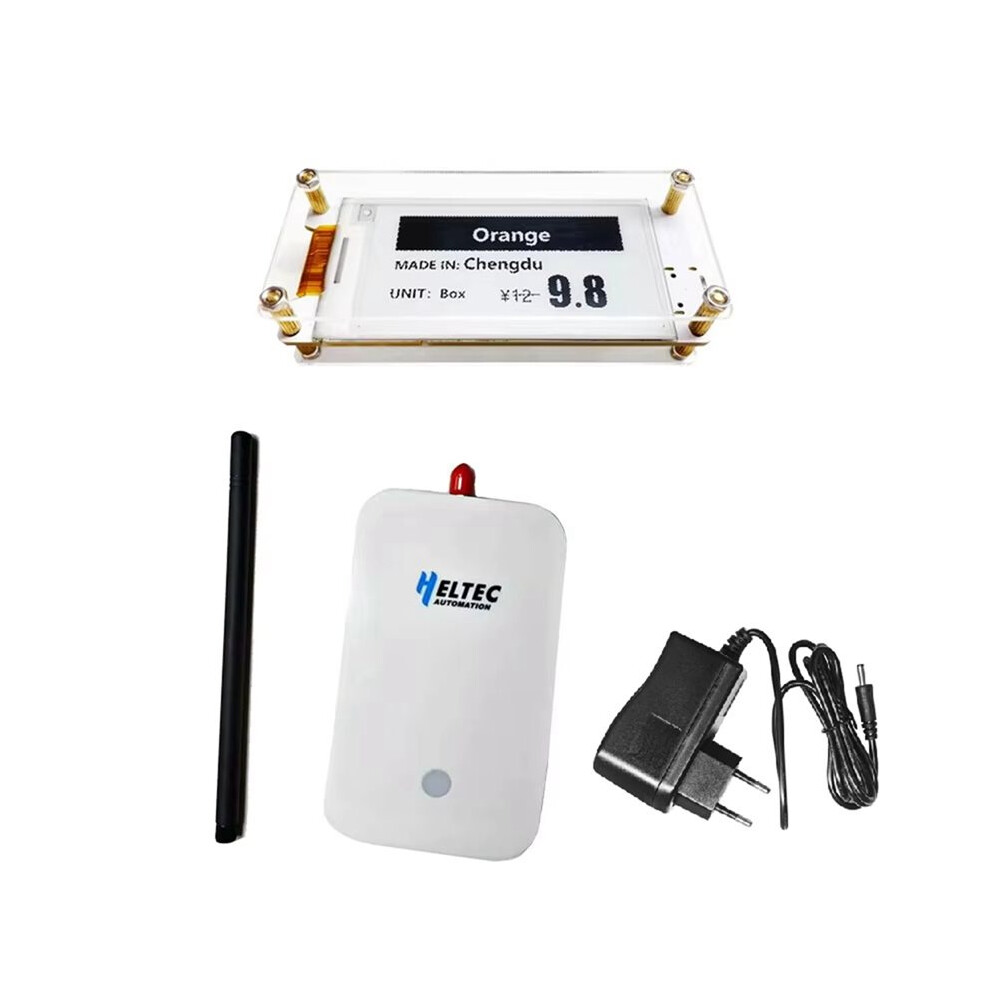

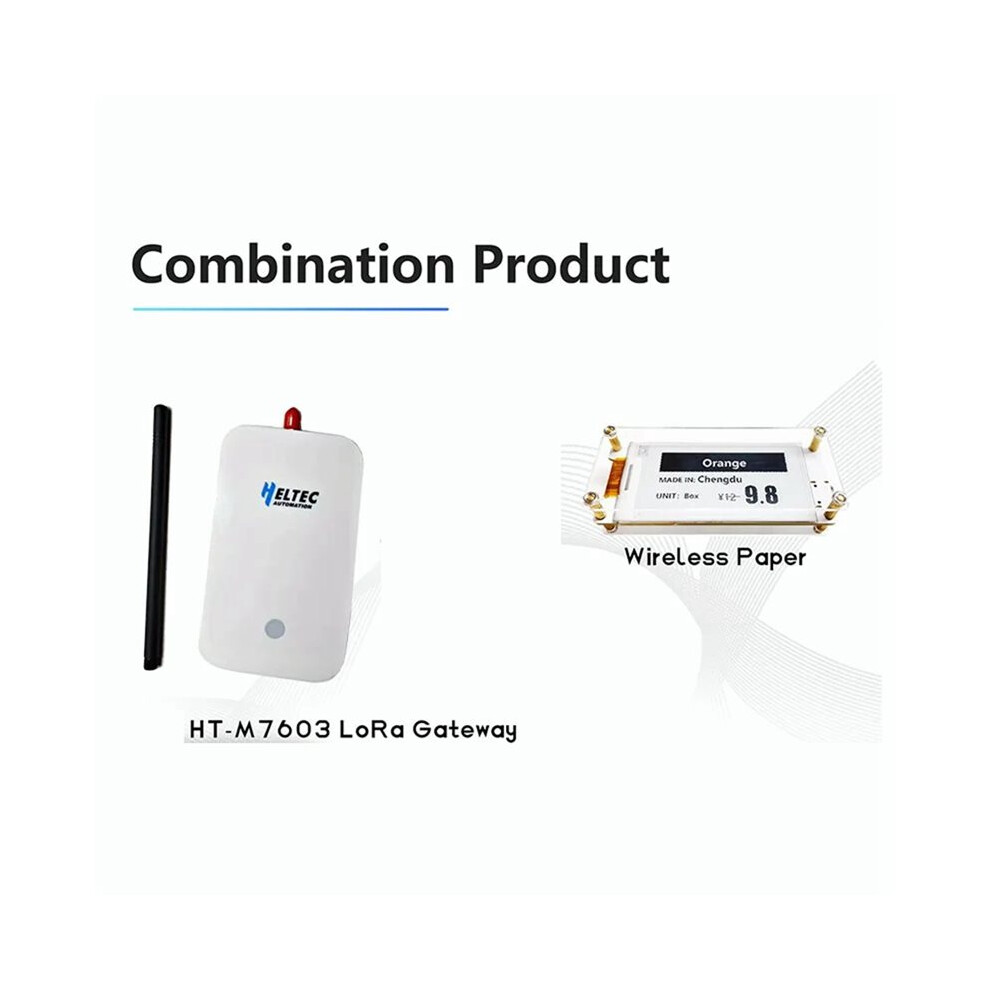

H ELTEC AUTOMATION HT-M7603 Gateway LoRa Router Hotspot LoRaWAN E-Paper Tag E-Link Display ESP32 BLE IOT Ethernet 868mhz EU Plug

H ELTEC AUTOMATION HT-M7603 Gateway LoRa Router Hotspot LoRaWAN E-Paper Tag E-Link Display ESP32 BLE IOT Ethernet 868mhz EU Plug Description

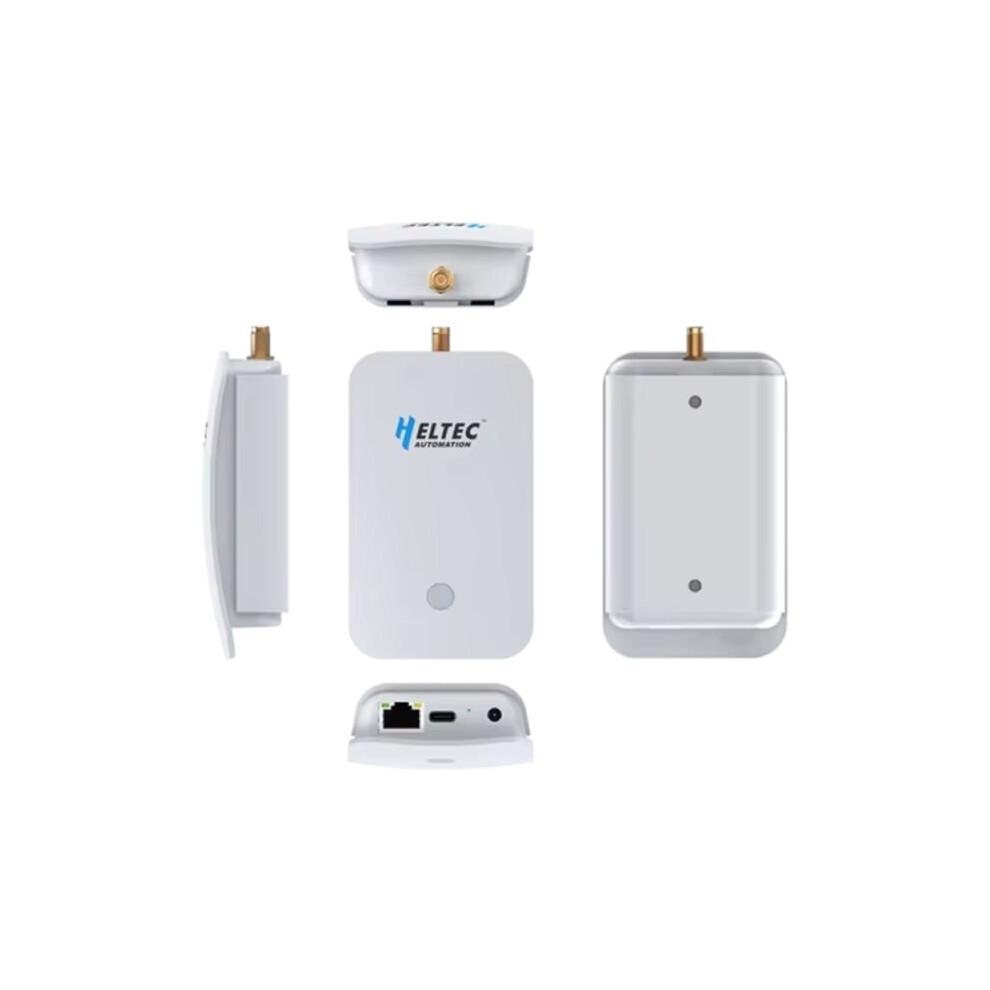

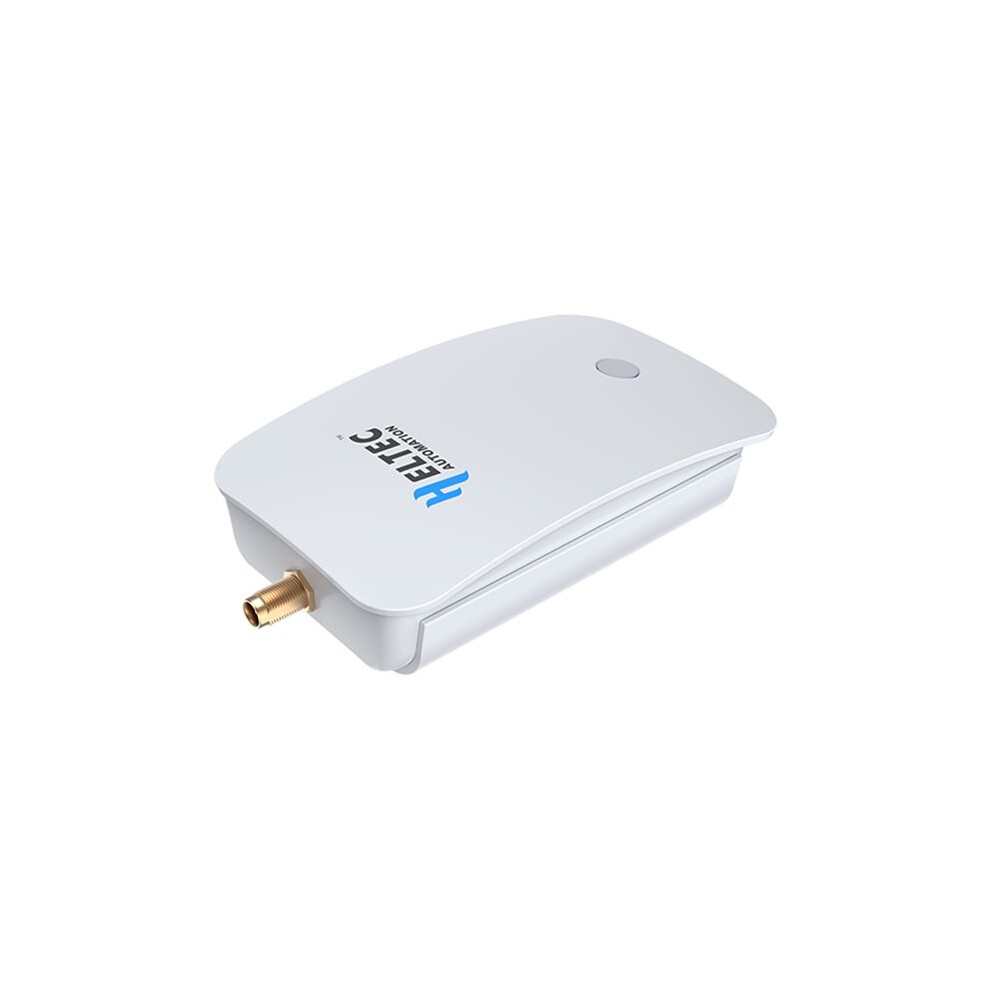

HT-M7603 is a high cost-effective indoor standard LoRaWAN gateway, which can be used independently or as a blind filling gateway. With simple configuration, it allows you to bridge LoRa wireless networks to IP networks and different network servers via Wi-Fi or Ethernet.This gateway has a sleek, contemporary design.

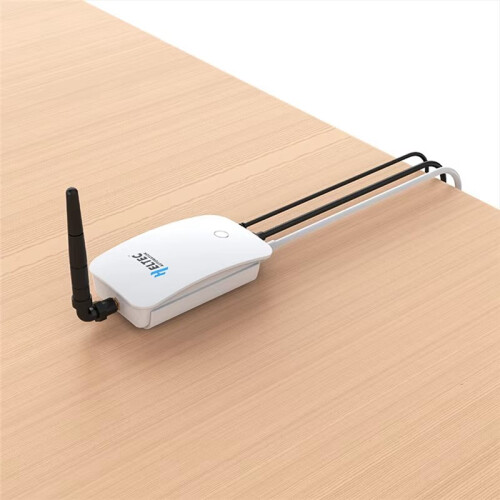

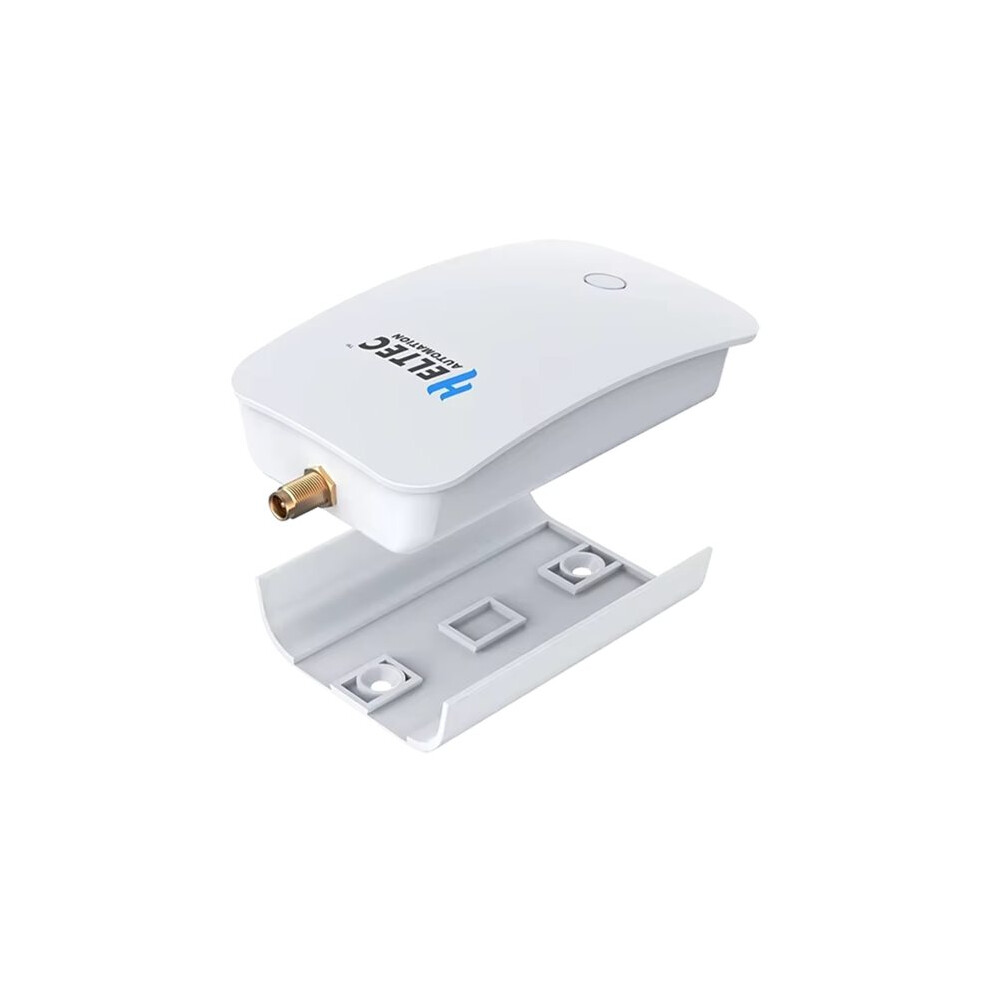

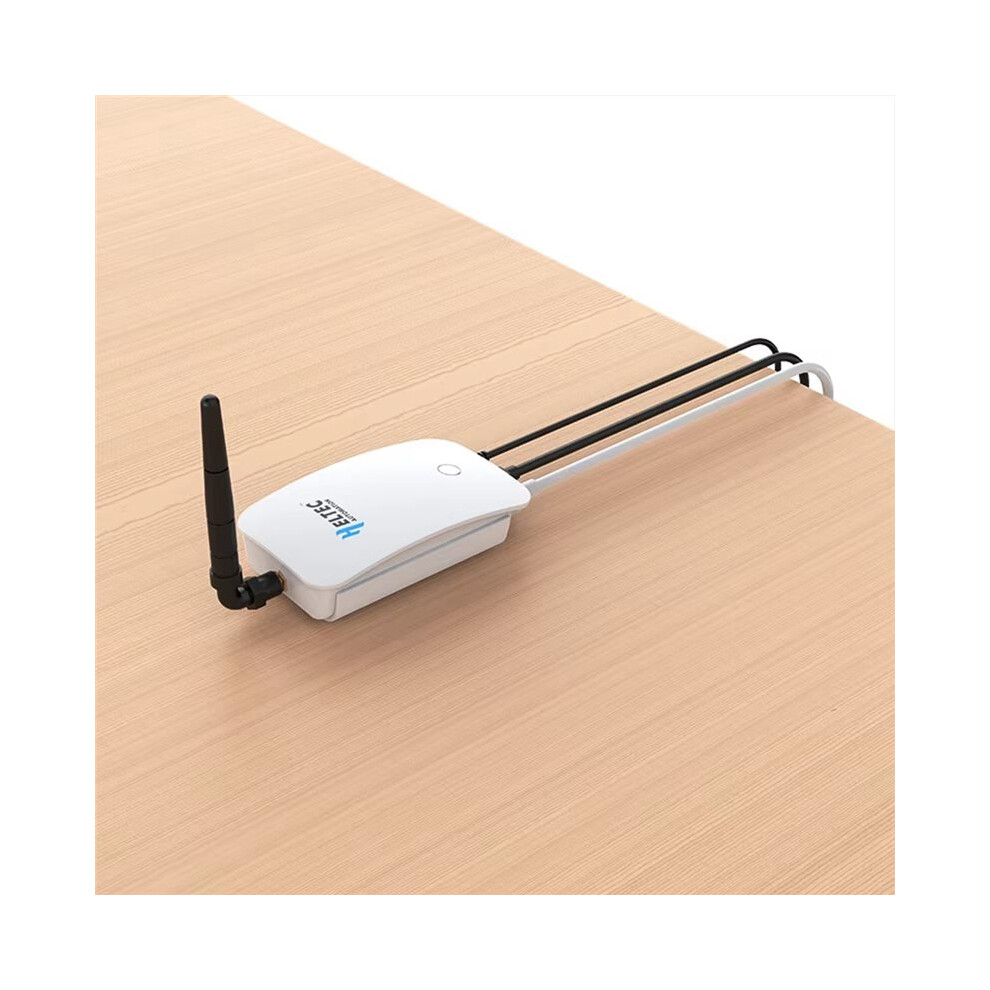

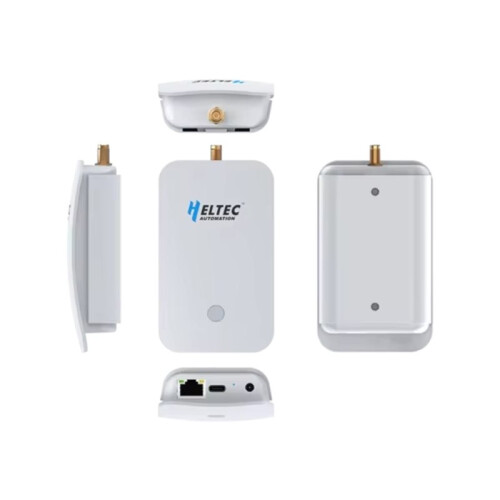

It is wall-mounted, can be easily placed anywhere indoor to ensure that it provides adequate signal coverage.
Support LoRaWAN Class A, Class C, custom MQTT protocols: By selecting Gateway Mode, the M7603 can working modes, supporting bothLoRaWAN and custom MQTT.
Low cost blind filling gateway: With its low cost and compact size, the HT-M7603 can be installed anywhere indoorsand can be used independently or as a blind filling gateway.

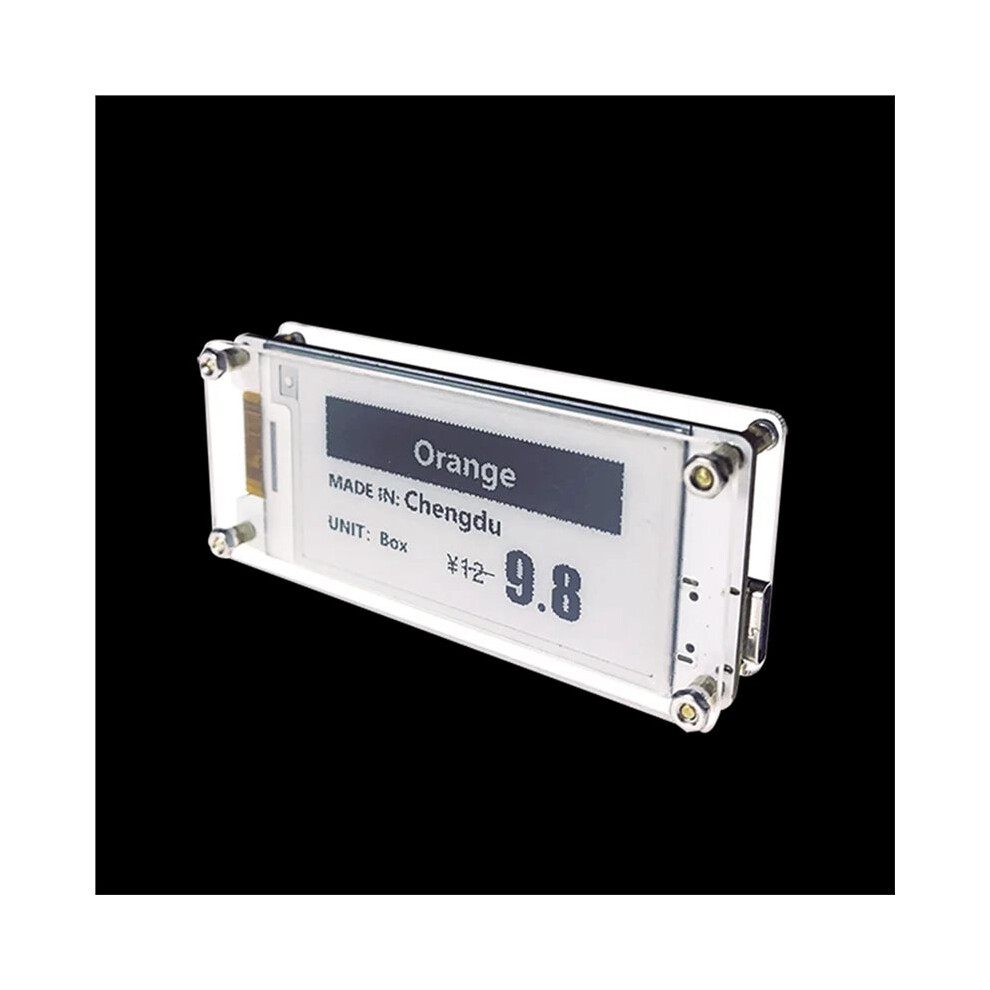

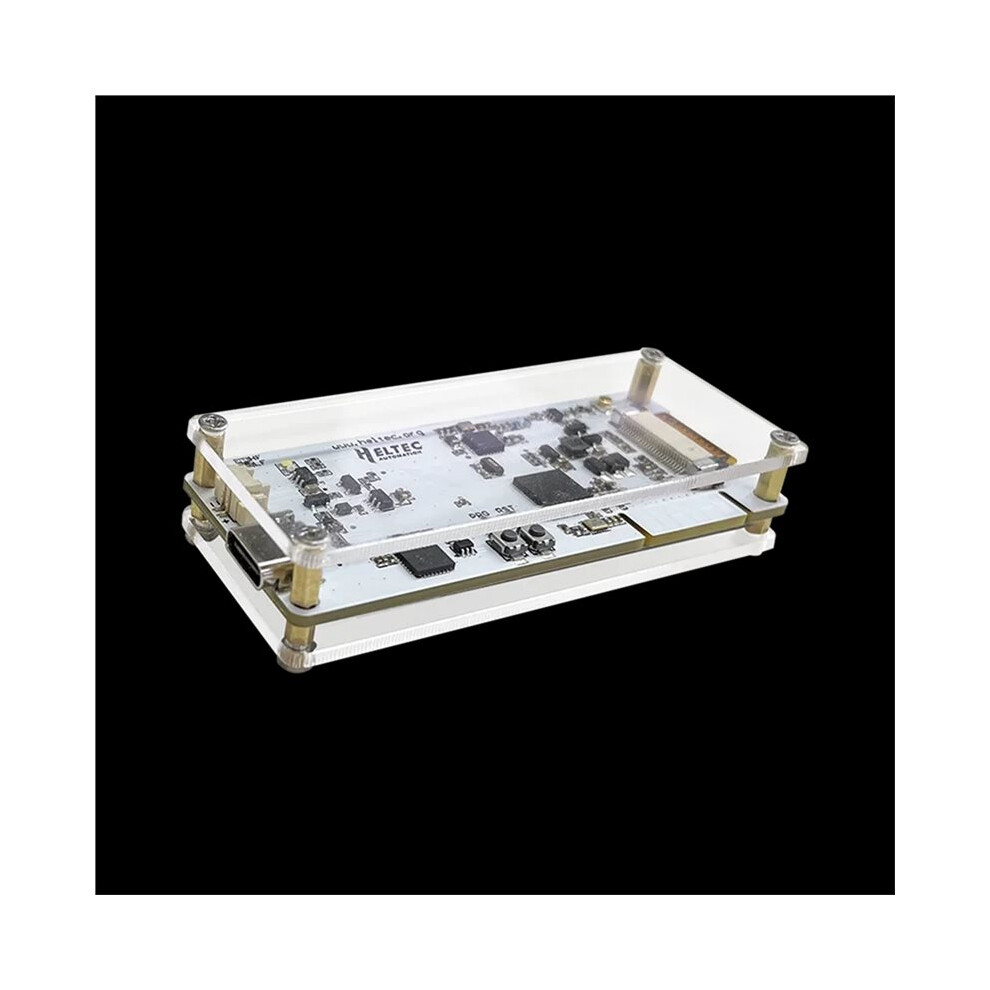

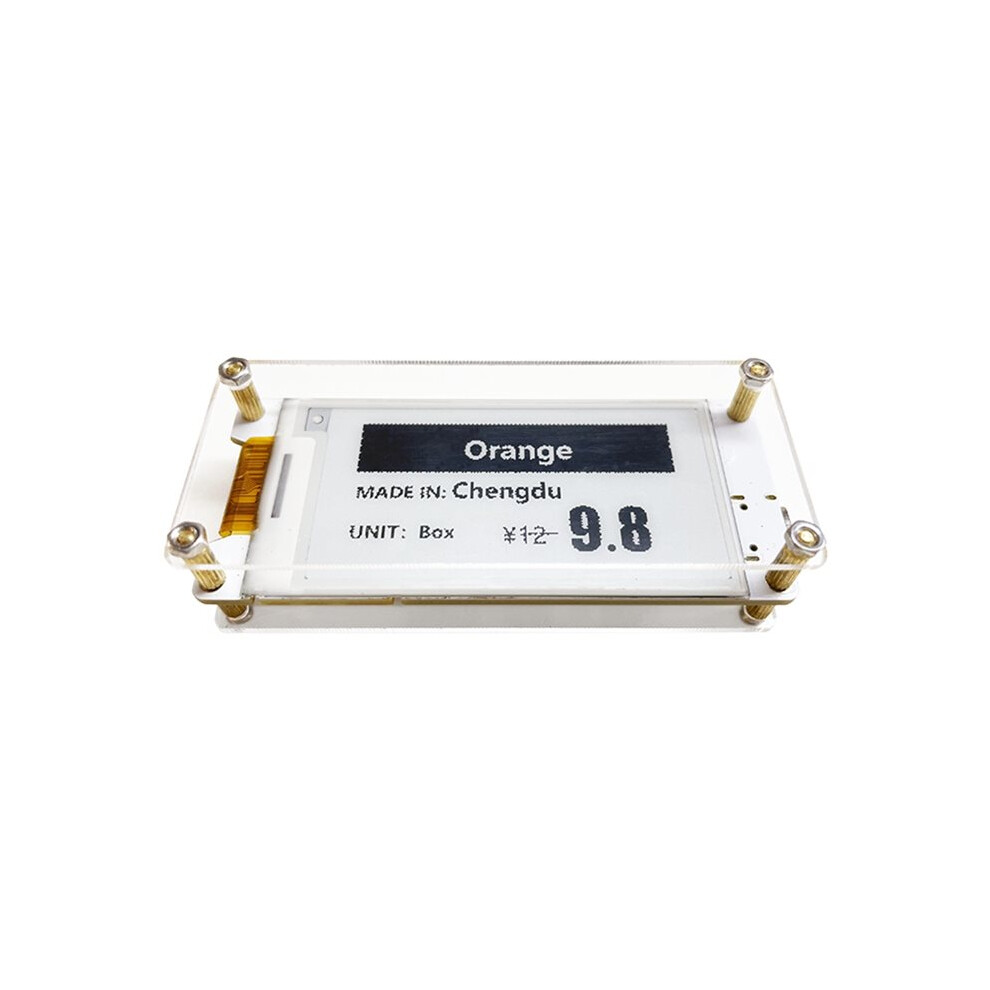

Wireless Paper: Wireless Paper is an E-Ink development kit with multiple wireless drive methods. This board is equipped with a default 2.13-inch black and white E-Ink display screen, continuous display for 180 days after power outage. It can be used to develop applications such as electronic tags and identity tags.

HT-M7603 Gateway Main Features:
MT7628 MCU, SX1303 + SX1250 Chip
Wi-Fi and Ethernet supported
Maximum output: 27 2dBm
The power supply voltage:5V
Wireless Paper Main Features:

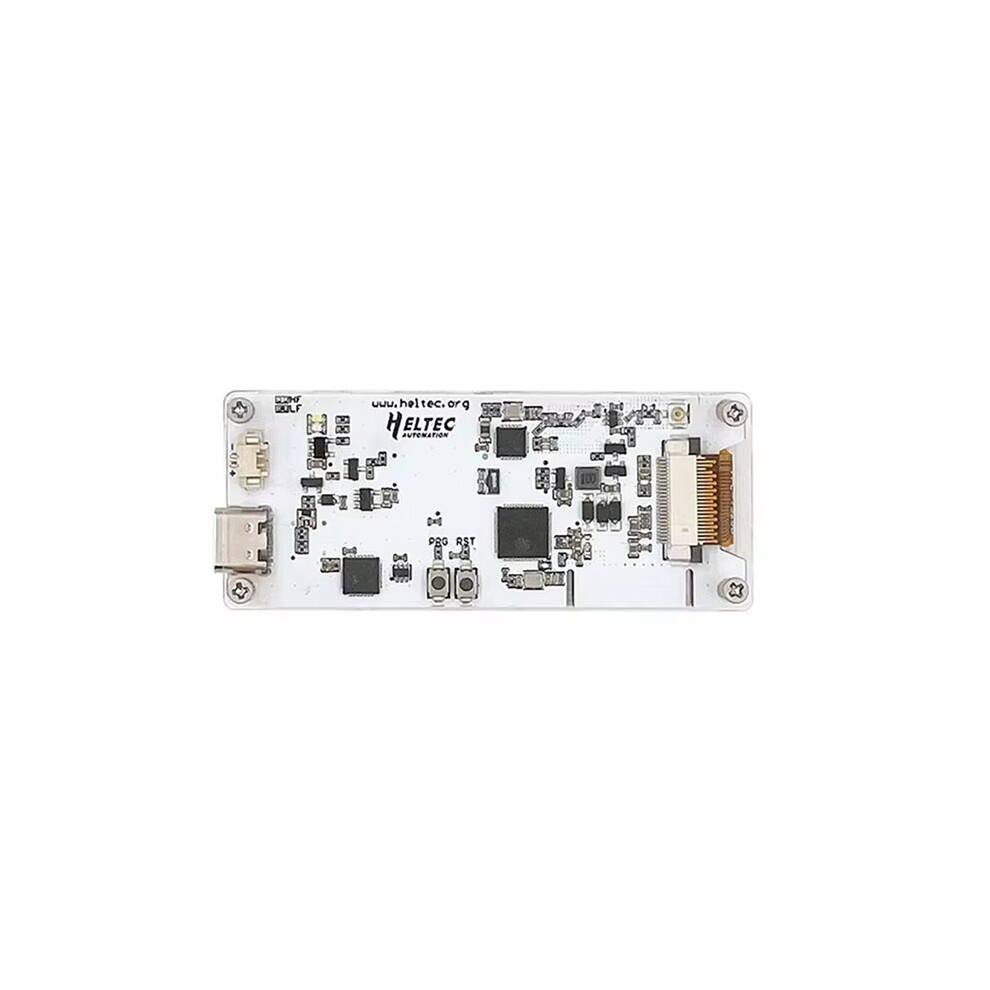

ESP32-S3FN8 + SX1262 Chipset, device can be driven via Wi-Fi, BLE and LoRa;
Default 250 x 122 pixels black-white display, it can also be used to drive E-Ink screens of other sizes;
High contrast, high reflectance, ultra-wide viewing angle;
Low power consumption, 20uA in deep sleep;
Internal integrated display screen refresh page function, users can drag and drop BMP images to achieve refresh;
Operation condition: 0~50, 35~70%RH;
Onboard USB-UART bridge, facilitate user secondary development.
Wireless Paper High Light
USB Type C: The p
