IMX477 IR-CUT Camera Module Camera for for

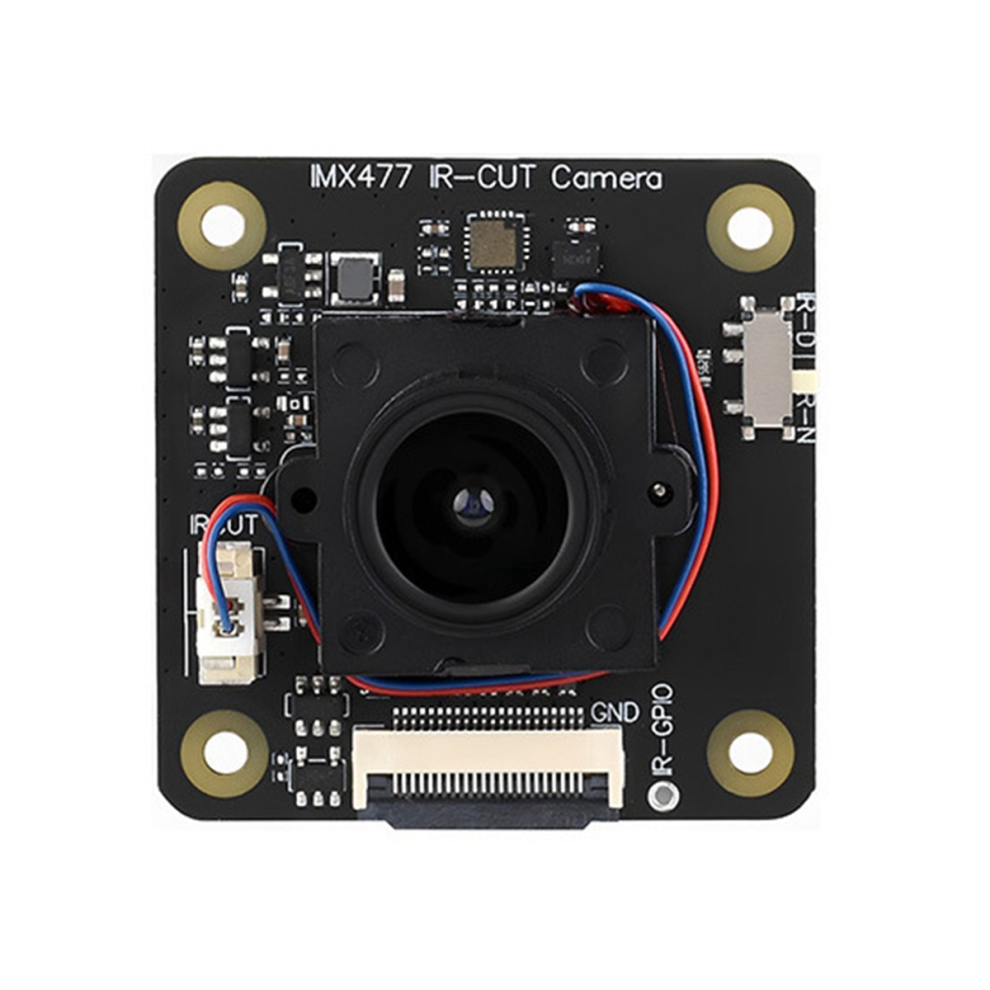

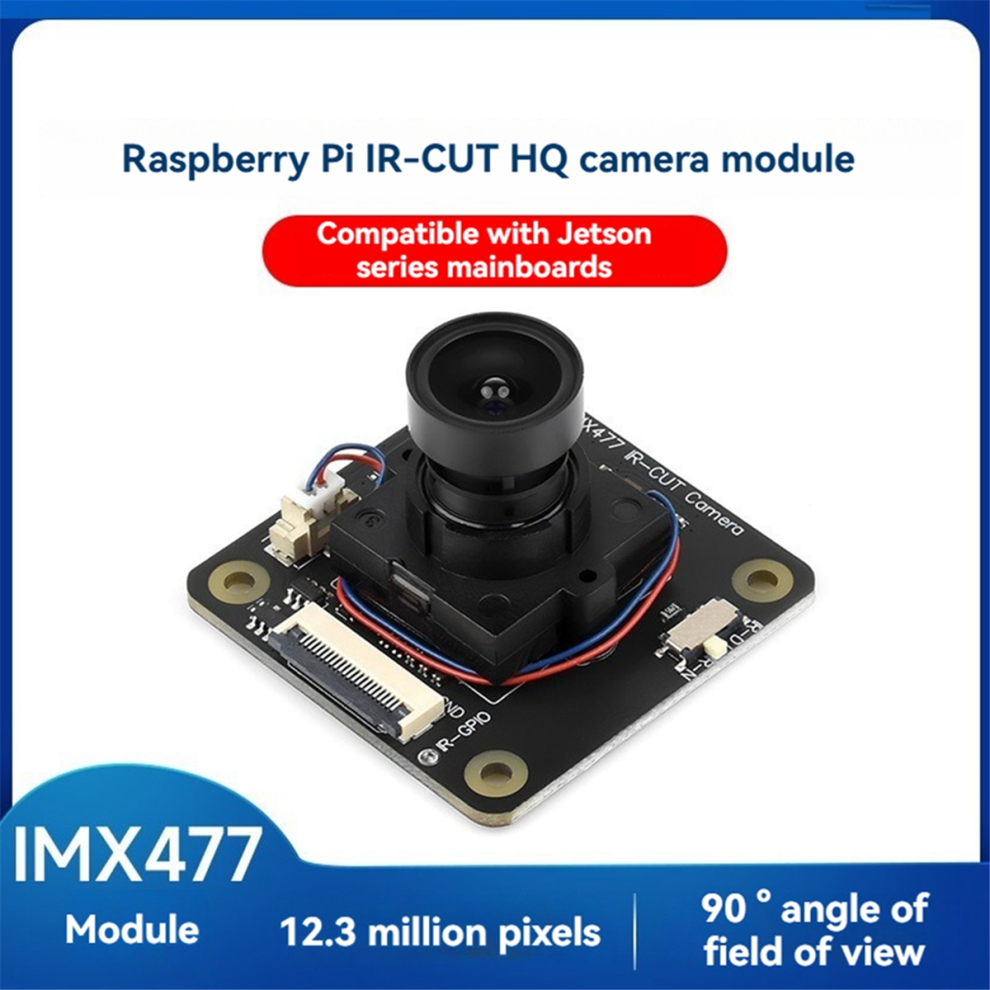

IMX477 IR-CUT Camera Module Camera for for Description

Adopt IMX477 photosensitive chip, which can be connected to series and series motherboards.
IMX477 sensor supports up to 12.3 million pixel resolution to capture every detail in the picture.
IR-CUT module can be switched freely, and users can switch filters according to the usage scenario.
IR-CUT filter suitable for all weather conditions. During the day: present natural colors without color cast, at night: support infrared imaging, and provide night vision effect with infrared light. (Night vision effect needs to be used with infrared fill light, and fill light needs to be purchased by yourself).

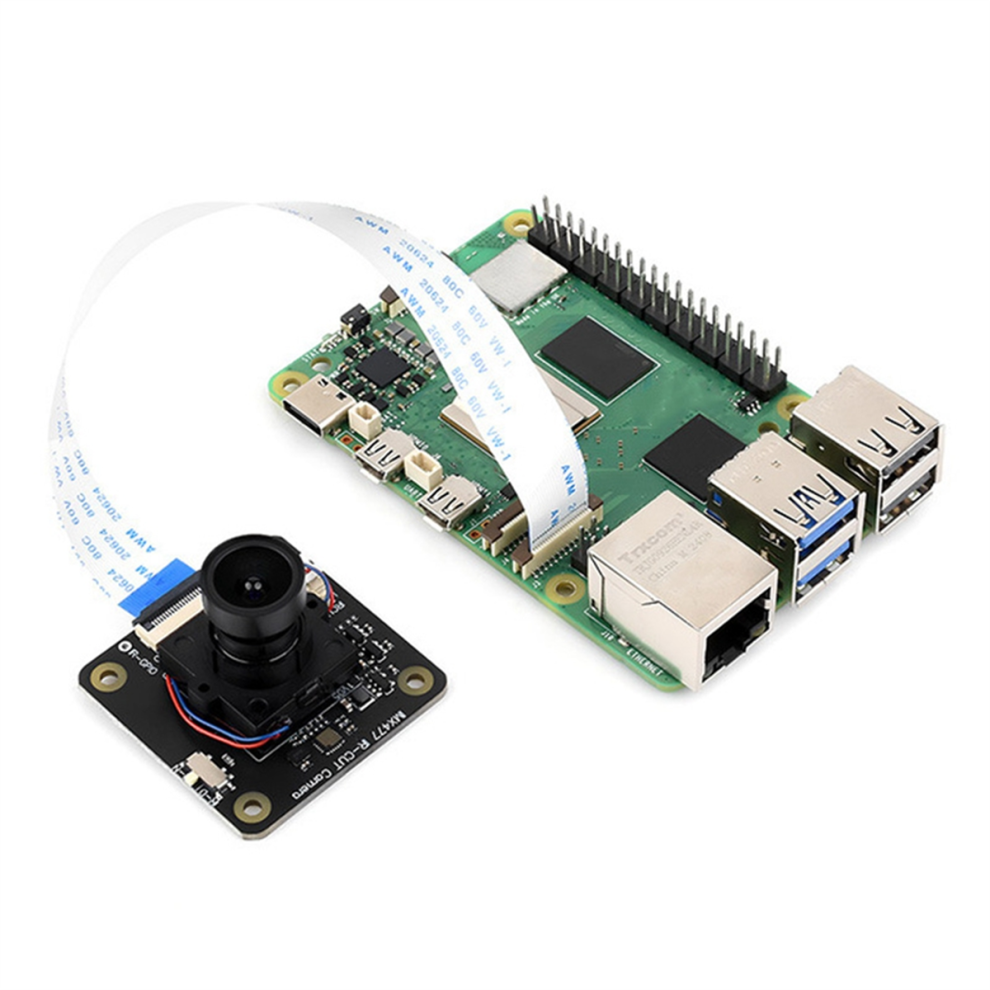

Support multiple motherboards: compatible with for series, for series (special driver required) and other motherboards, such as:For 4/5/CM4/CM5/Zero 2 W for Nano/.

Application scenarios: AI intelligent applications such as face recognition, road marking line recognition and license plate recognition.
Parameters:
SENSOR: IMX477
PIXELS: 12.3MP (4056 x 3040)
CMOS diagonal length: 7.9mm
Single pixel size: 1.55um (H) x1.55um (V)
Aperture (F): 2.0
length (): 3.95
Field of view (FOV): 90 (D)
Distortion: Less than 12.5%
Operating voltage: 3.3V
Colour:black
Material:Plastic + Metal
Cable color random, don' accept the specified color
Due to different product batches, the appearance , which does not affect the use

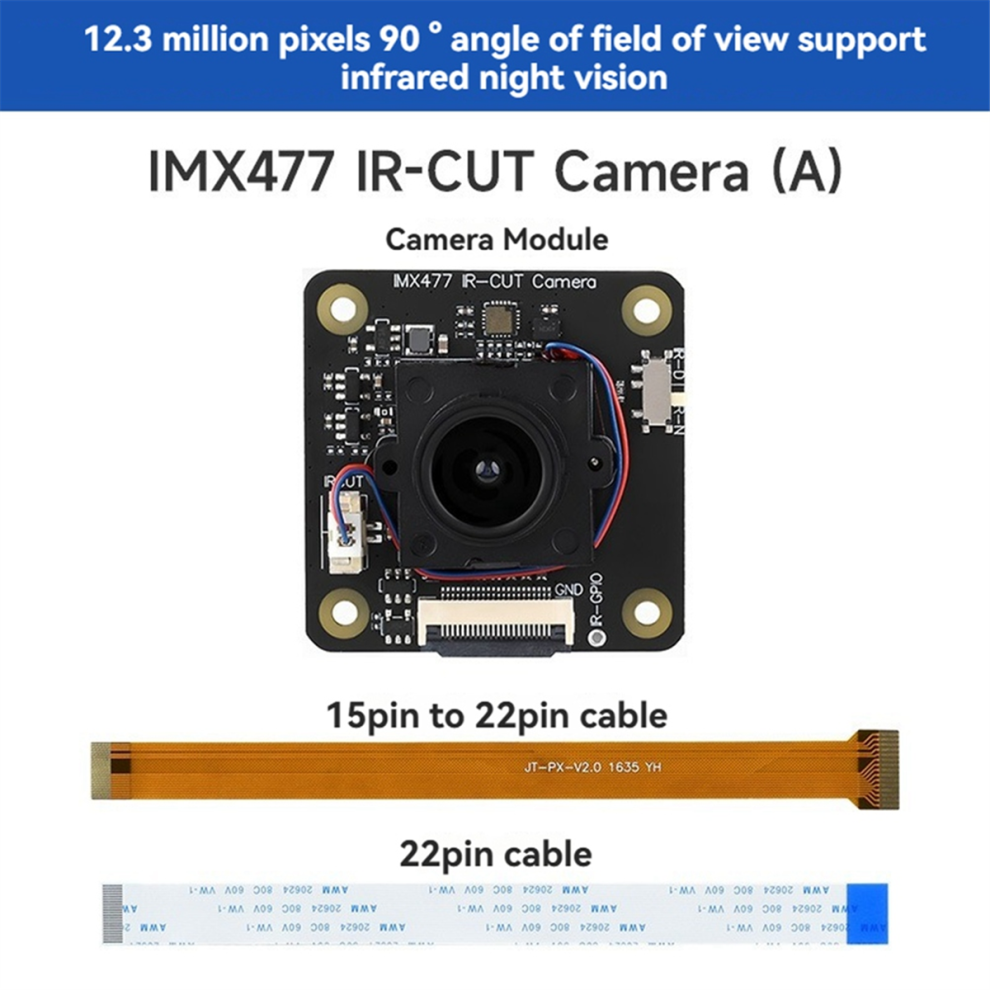

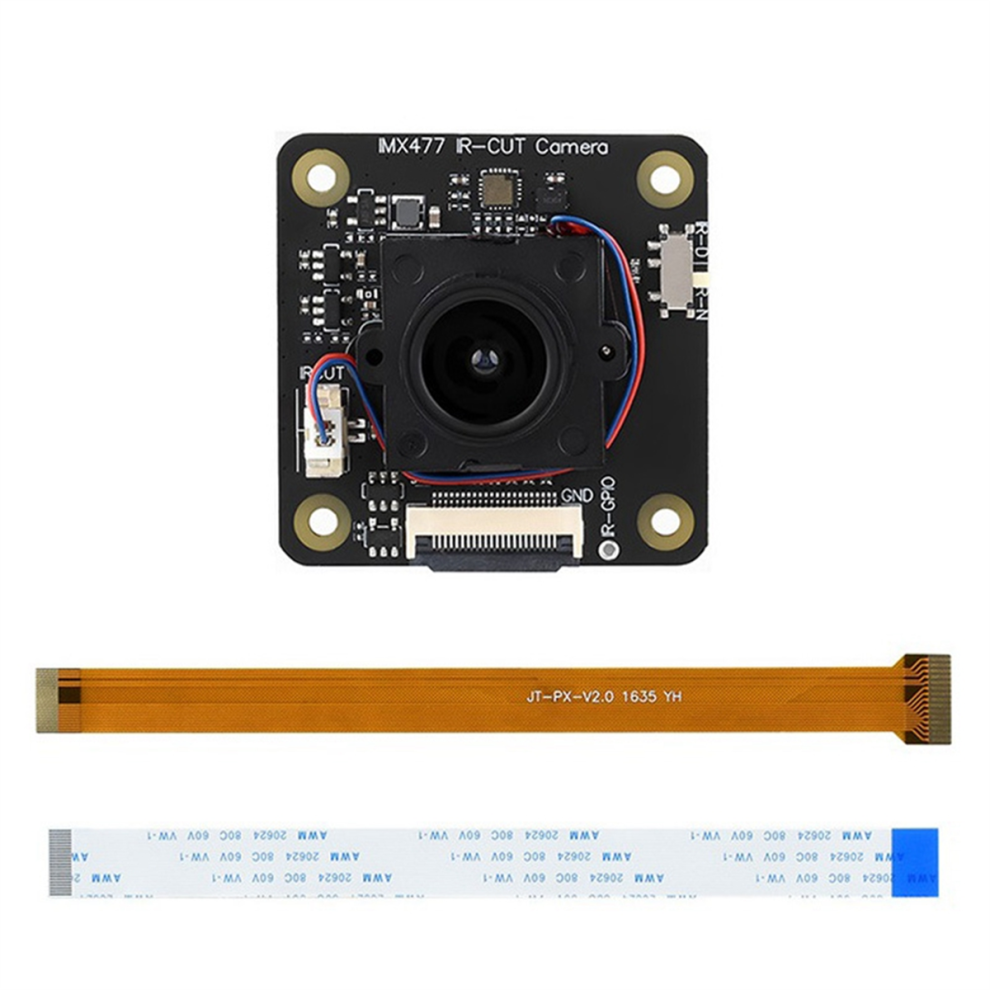

Package Contents:
1 * Camera Module
1 * 15pin to 22pin cable
1 * 22pin cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
