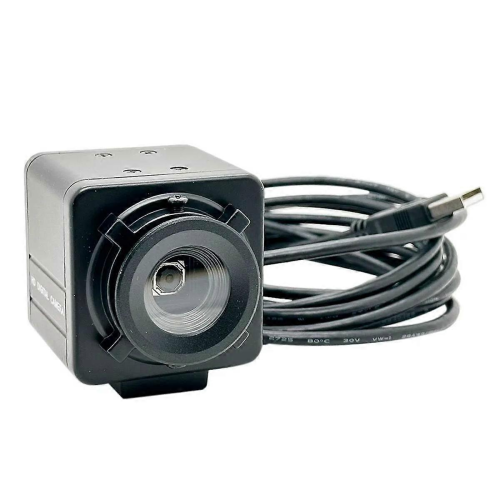

Industrial 4K USB Webcam with 8MP Autofocus & IMX179 Sensor

Industrial 4K USB Webcam with 8MP Autofocus & IMX179 Sensor Description

Sensor: CMOS IMX179
Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
3264X2448 @ 15fps / 2592X1944@ 20fps
2048*1536 @ 20fps
1920x1080 @ 30fps / 1600X1200@ 30fps
1280X720 @ 30fps / 960X540@ 30fps
800X600 @ 30fps / 640X480@ 30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control : Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: with no distortion lens
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 160mA~260mA
Working temperature: -10~70
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
- 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
Colour:Black
Material:iron
Cable length: about 1m
Package Contents:
1 x USB Webcam(Due to different product batches, the appearance , which does not affect the use)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
