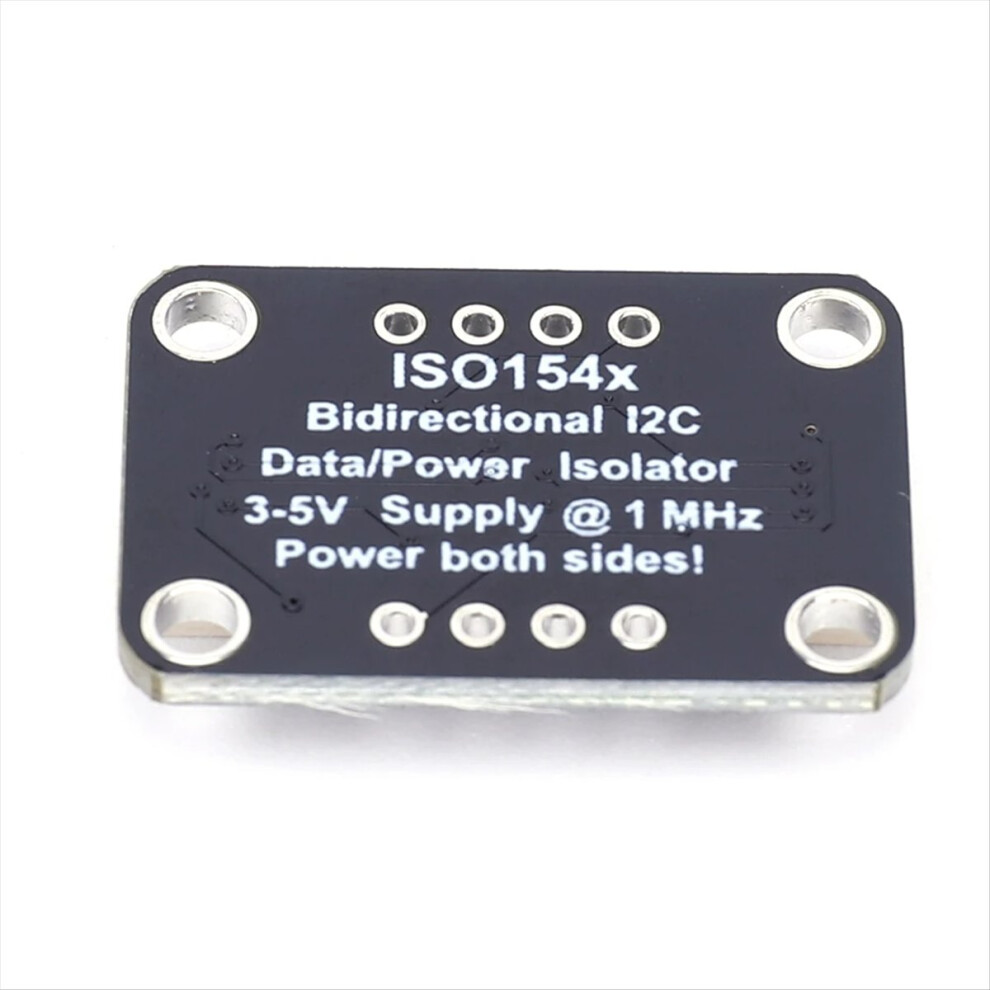

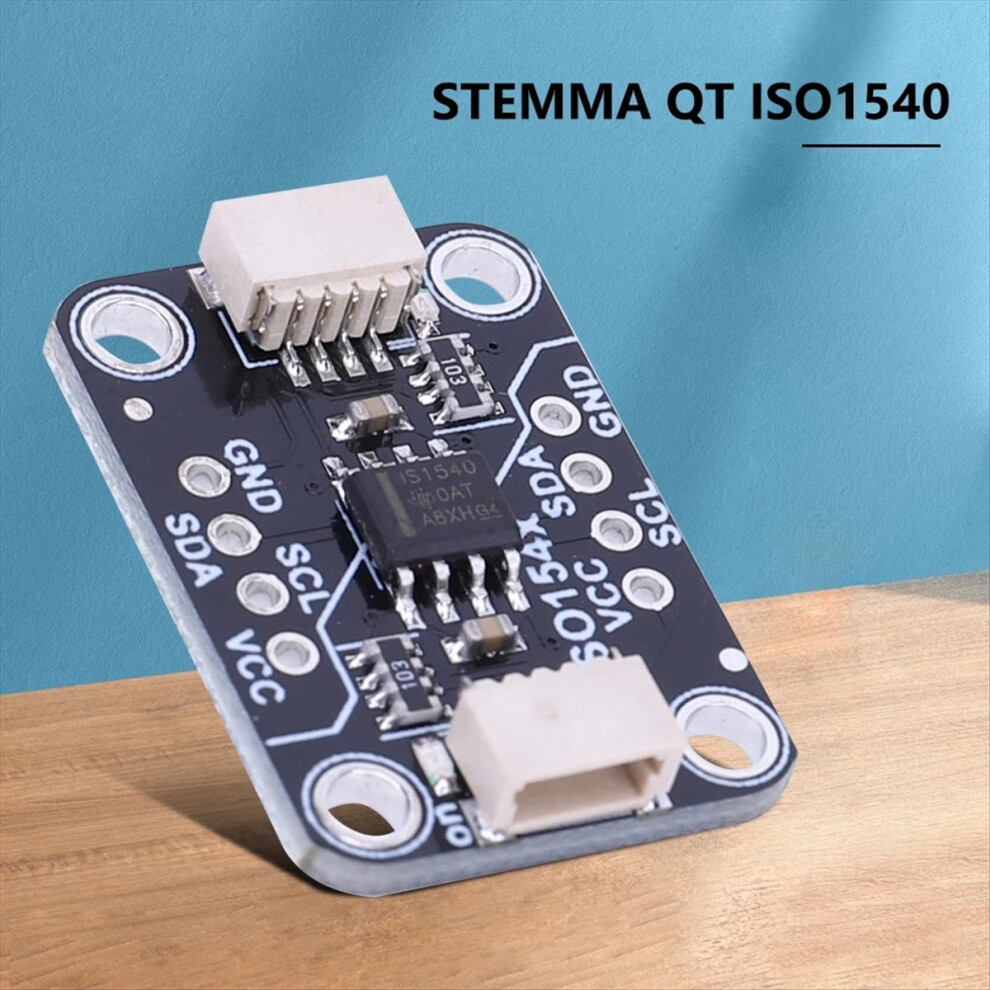

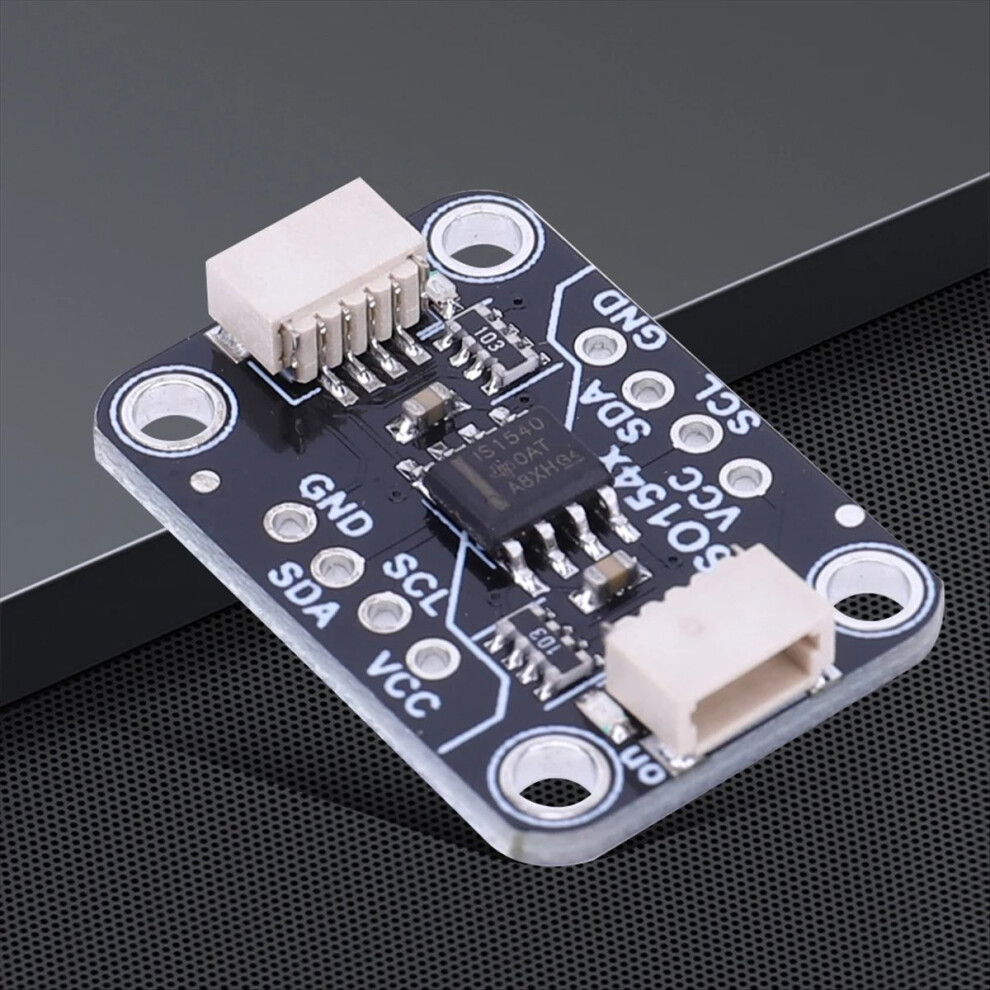

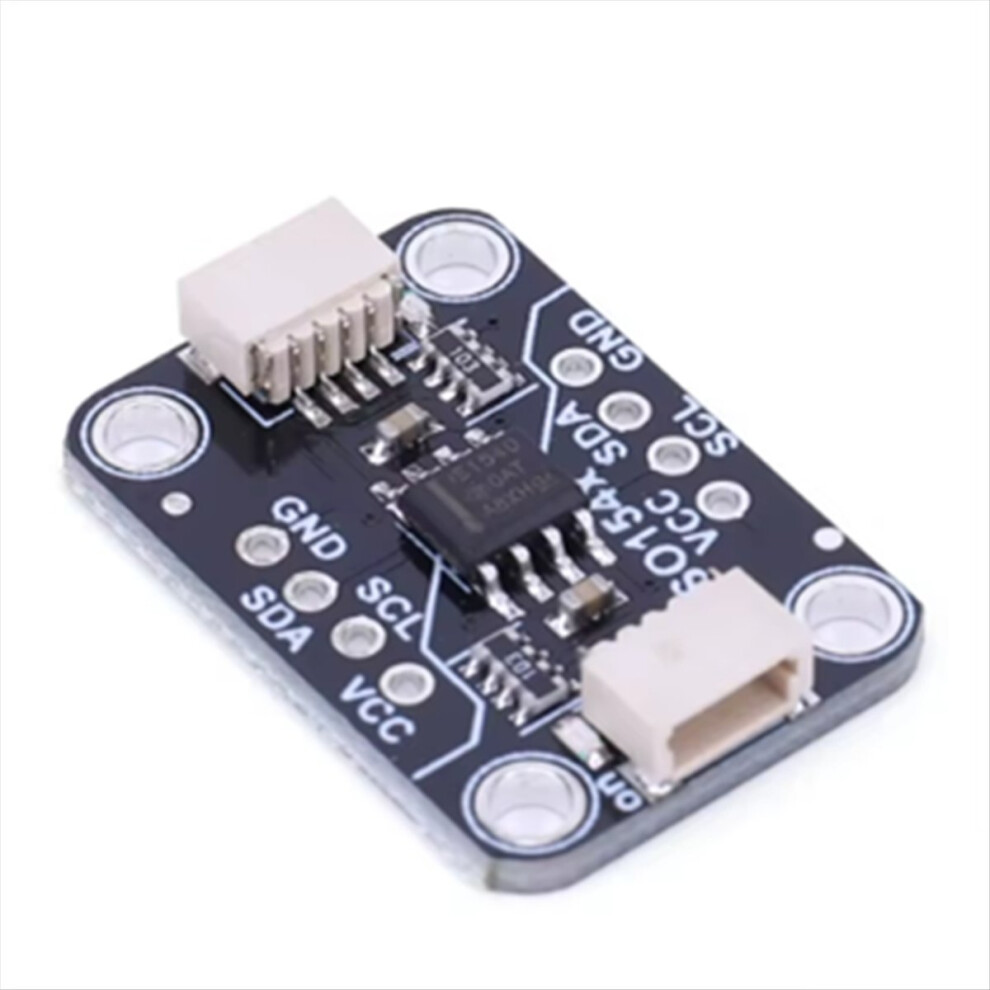

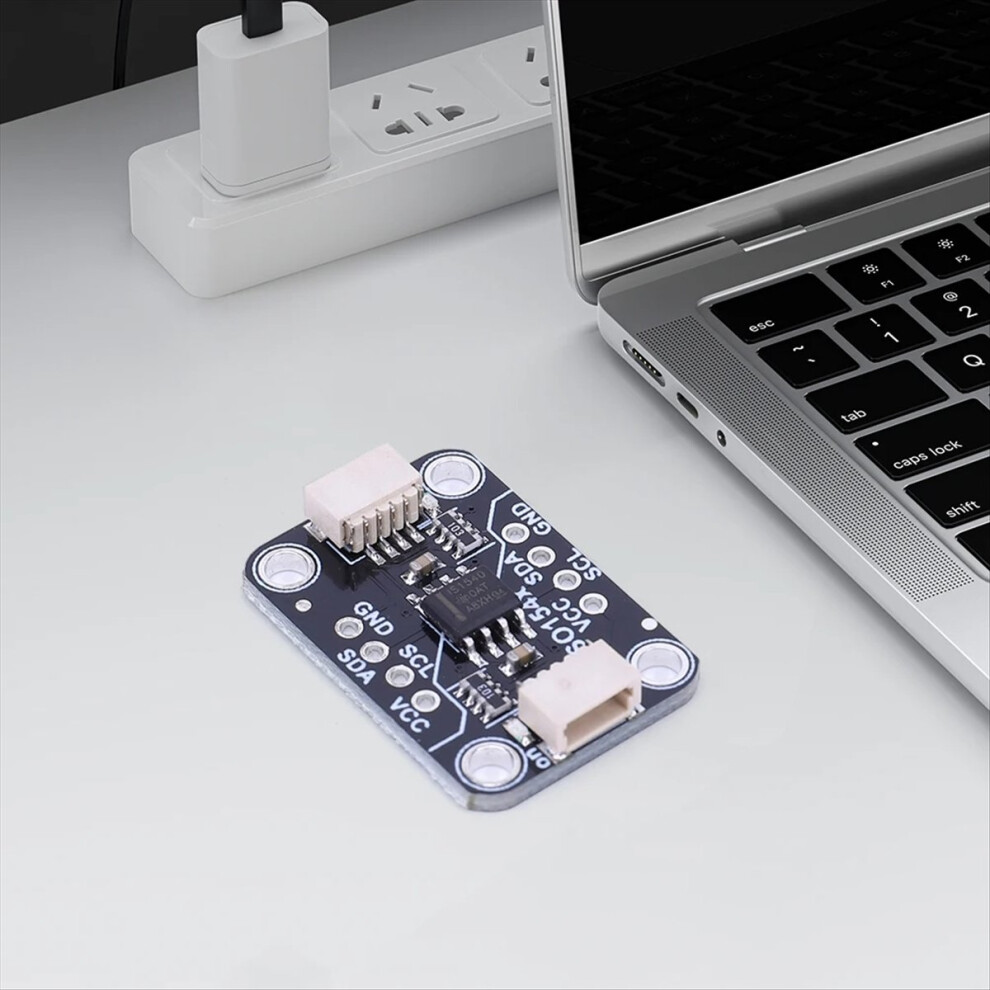

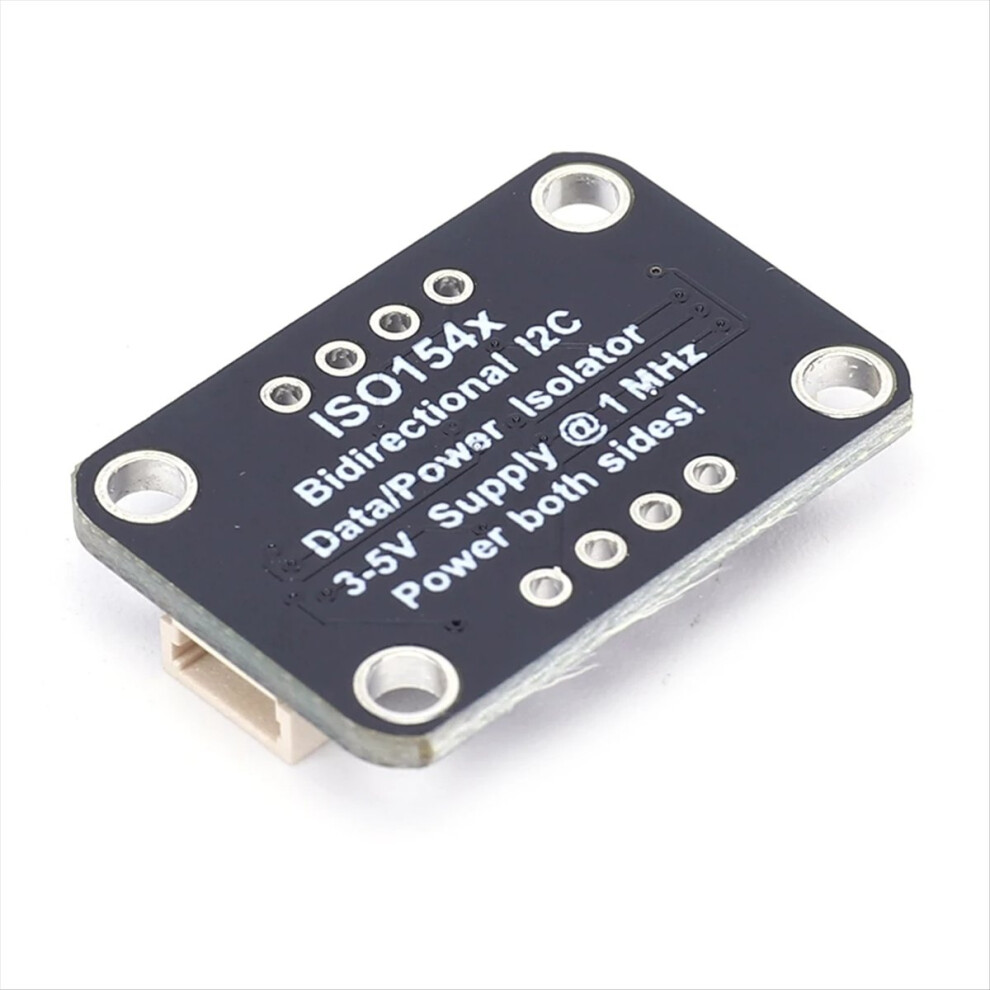

ISO1540 Bidirectional I2C Isolator STEMMA QT Qwiic Module 3.3V/5V

ISO1540 Bidirectional I2C Isolator STEMMA QT Qwiic Module 3.3V/5V Description

Feature:
1. Bi-Directional Isolation: This module features an ISO1540 bidirectional isolator that allows electrical isolation of two devices communicating through an I2C interface. It provides 2500 V-RMS isolation, ensuring reliable and safe communication between different devices.
2. High-Speed Communication: The module supports up to 1 MHz communication, which ensures smooth and efficient data transfer between various devices.
3. Open-Drain Outputs: The first side has a sink current capability of 3.5 mA, while the second side has a sink current capability of 35 mA. These open-drain outputs easy to connect to different devices without any compatibility issues.
4. Wide Temperature Range: With a working temperature range from -40C to +125C, this module is ideal for use in a wide range of applications, even in harsh environments.

ESD Protection: All pins have HBM 4 kV ESD protection, while the bus pins provide 8 kV protection, protecting the module from electrostatic discharge. It also comes with a STEMMA QT connector, making it easy to connect to different devices.
Specification:
Bidirectional insulation isolator, compatible with I2C
It supports communication up to 1 MHz
The open drain output has a current carrying capacity of 3.5 mA on the first side and 35 mA on the second side
Working temperature from -40 C to+125 C
Anti transient 50 kV/ μ S
HBM 4 kV ESD protection on all pins; 8 kV on bus pins
Voltage: 3.3V or 5V
STEMA QT connector
Size: 25 x 18 x 5mm/0.98 x 0.70 x 0.19inch
Color: Black
Material: PC

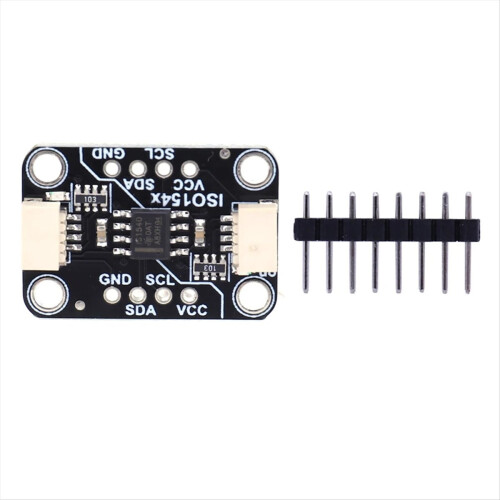

Package Contents:
1 x Module
1 x 8-pin Pin Header

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
