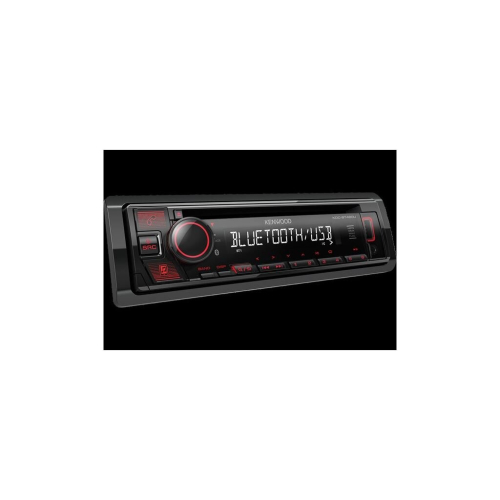

Kenwood CD Tuner, Bluetooth

DIN Size1 DINDetachable Faceplate Yes Faceplate Mechanism Full Detachable Faceplate Key Illumination Red LED Rotary Encoder & Control Knob Yes Dual Accent Key Handsfree & Audio Streaming User Memory Yes Back-up Memory Menu Settings Digital Clock (24H) Yes Clock display when power-off default off All-off Select (20/40/60 minutes) Yes Built-in Connector Mitsumi, 16 pin Bluetooth unit built-in Yes USB interface x 1 Yes, (Front) Firmware upgreadableYes

Display Features

Display TypeLiquid Crystal Display (LCD)Display Layout1 line 13 Segments x 13 DigitVertical Aligment Liquid Crystal DisplayYesDisplay IlluminationWhite (LED)Dimmer ControlManual / Set by TimerBrightness control0 - 31 stepsDemo Mode Yes Menu text in selectable languageEnglish(default) / Spanish / French / RussianTAG Language DisplayEnglish / Spanish / French / Russian / Greek

Cosmetics features

Front/edgeBlack InjectionDress plateBlack InjectionPreset key finishBlack InjectionEscutcheon finishBlack InjectionTriangle IlluminationRed LEDFront terminals dust coverYesKey illuminationRed LEDIlluminated front USB portRed LEDDisplay illuminationWhite LEDBrightness Control (Key)0 - 31 stepBrightness Control (Display)0 - 31 stepDimmer Control (Key)Manual / Set by TimerDimmer Control (Display)Manual / Set by Timer

Tuner Features

Tuner preset/recall key Yes FM Reception Yes AM (MW/LW) Reception Yes FM(RDS) + AM(MW/LW) Tuner Yes Tuner Presets (FM/AM) 24 Presets (18FM / 6AM) Preset memory w/o back-up power Yes Tuning mode Auto1/Auto2/Manual Up/Down Seek/Scan Yes Automatic Memory Entry (AME) Yes FM Stereo / Mono Selector Yes Radio Data System Yes Radio Text Plus Yes Traffic Information Yes Local search Yes AF Regional Selectable: AF/AF Reg/OFF Auto TP search Yes Enhanced Other Networks Function (EON) Yes Program Type Function (PTY)YesPTY NewsOff/0/10/20/.../80/90min

Playable Audio File

MP3 files are playable CD/USB WMA (.wma) files are playable CD/USB WAV (.wav) files are playable USB FLAC files are playableUSB

CD Features

CD-R/RW Compatible Yes MP3 Playback with ID3 Tag Display Yes WMA (Windows Media Audio) Playback Yes CD Text Support Yes CD Text with special Character Support English(default) / Spanish / French / Russian / Greek D.A.C. processing 24bit 0 bit MuteYesRandom FunctionDISC Random/Random OFFRepeat FunctionTrack Repeat/All RepeatFast Forward / Reverse playYesTag Information DisplayYes

USB Features

USB terminal Yes, Front side with dust cover USB terminal Yes, Front side with slide protection cover USB Type 2.0 Full speed Drive Change Yes MP3 playback with ID3 Tag Display Yes Tag Information Display Yes WMA (Windows Media File) playback Yes MP3, WMA, WAV, FLAC playback Yes Repeat/Scan/Random search Yes Repeat / Random Play Yes Repeat Play Folder/File/All Random play Folder Resume play Yes Time code display Yes 1,5A Smartphone Quick ChargeYes

Audio Features

Maximum Output Power50W x 4MOSFET Power ICYesAuxiliary input Yes, in front panel Auxiliary Type Mini-jack, front panel Pre-out 1 RCA Pre-out Output Level 2.5V Preout Rear / Subwoofer Switchable Yes Subwoofer Reference Level Adj. Yes 3-Way x'over (bi-amp connection) Yes Source Tone Control & Memory yes Tone Control / Easy EQ 13 band, 8 presets Balance/Fader Control Yes Loudness Control Off / LV1/ LV2 Bass Boost Circuit Off/+1/+2/+3/+4/+5 Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets. Digital Sound Processor (DSP) Built-in Yes Digital Time Aligment (DTA) Yes Low- & High-pass Filter Yes Speaker Size Control Yes Sound Reconstruction Yes Space Enhancer Yes Realizer Yes Stage EQ Yes Drive EQYes

Bluetooth General Features

Max num. of regist. phones for HFP & A2DP5 phonesHands Free Profile (HPF) V1.7.1 2 Phones Switchable Hands Free Yes 2 phones fulltime connection Yes Audio Streaming (A2DP) Yes, (SBC) Serial Port Profile (SPP) Yes Phonebook Access Profile (PBAP) Yes Audio/Video Remote Control Profile (AVRCP) Yes, V1.6.1 Wireless Music Browsing (AVRCP) Yes KENWOOD Remote App Ready Android only, available in Play store KENWOOD Music Mix Support Yes Private mode Yes Interrupt call request Yes Noise Canceller Yes Echo Canceller Yes Phone device status display Yes Audio device status display Yes Signal strength display Yes Remaining battery display Yes Bluetooth Paring Indicator Yes Bluetooth phones to register 5 High-quality noise canceling microphone Included (rear wired) Bluetooth firmware upgradeable Yes * depends on phone model/make& Kenwood unit

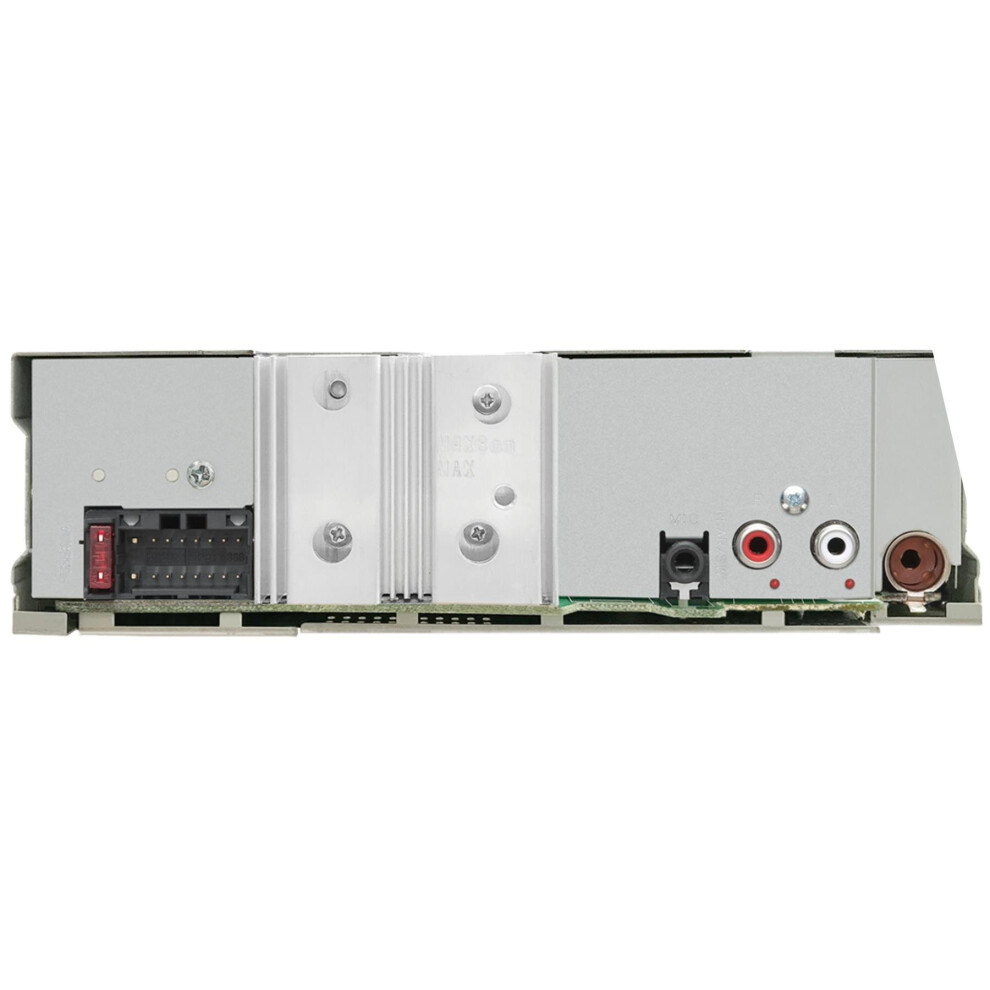

Connectivity

Front USB & AUX Input Yes OEM Wired Remote Control ready Yes, Optional interface needed DC-Cord Mitsumi to ISO Power Control (P.CON) wireYesPreout1 x RCA (rear / Sub woofer switchable)FM Antenna InputJASO connectorExternal microphone input3,5mm mini-jack

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step)YesFM Usable Sensitivity0.71μV/75ohm (S/N 30dBf)FM Quieting Sensitivity2μV/75ohm (S/N 46dBf)FM Frequency Response30Hz ~ 15kHz (± 3dB)FM Signal to noise ratio (Mono)64dBMW range: 531kHz - 1611kHz (9kHz step)YesMW Usable Sensitivity28.2μVLW range: 153kHz - 279kHz (9kHz step)YesLW Usable Sensitivity50μV

Codec Specs

MP3 FormatCompliant with MPEG-1/2 Audio Layer-3WMA FormatCompliant with Windows Media AudioWAV FormatRIFF waveform Audio Format (only for LinearPCM)FLAC FormatFLAC files (up to 96kHz/24bit)

CD Specifications

Laser DiodeGaAIAsDigital Filter(D/A)8 Times Over SamplingDigital/Analogue Converter24 BitSpindle Speed500 ~ 200rpm (CLV: 8 times)Wow & Flutterbelow measurable limitFrequency Response20Hz ~ 20kHz (±1dB)Total Harmonic Distortion0.02% (1kHz)Signal to Noise Ratio94dB (1kHz)Dynamic Range91dBChannel Separation86dBMP3 DecoderCompliant with MPEG-1/2 Audio Layer-3WMA DecoderCompliant with Windows Media Audio

USB Specifications

USB Version compatibilityUSB 1.1 / 2.0 full speedFile SystemFAT 32/16/12Maximum Supply current1500mAD/A Converter24bitMP3 DecodeCompliant with MPEG-1/2 Audio Layer-3WMA DecodeCompliant with Windows Media AudioWAV DecodeLinear - PCM Filesflac DecodeFLAC files up to 96kHz/24bitFrequency Response20Hz - 20kHzS/N Ratio98 dB (1kHz)Dynamic Range94dBChannel Separation91dB

Audio Specifications

Maximum Power50W x 4Output Power (DIN45324,+B=14.4v)22W x 4Output frequency band20Hz ~ 20kHzPreout Level2500mV / 10kOhm,Preout Impedance≤ 600OhmSpeaker Impedance4Ohm ~ 8OhmAUX Frequency Response20Hz ~ 20kHz (±1dB)AUX Maximum Input Voltage1000mVAUX Input Impedance30kOhmGraphical Equalizer13-BandG. EQ. Frequency (Hz)62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16kG. EQ. Gain (dB)+/- 9dBHigh Pass Filter Frequency (Hz)Through/50/60>>>/180/220Low Pass Filter Frequency (Hz)50/60/80/100/120/ThroughSubwoofer Level (dB)-15 dB to +15dB

Bluetooth specifications

TechnologyBluetooth V4.2Frequency2.402 - 2.48 GHzOutput power+4dBm(max), power class 2Maximum rangeLine of sight approx. 10 meterSerial port profile (SPP)YesAdvanced audio distribution profile (A2DP)YesAudio CodecSBCAudio/Video remote control profile (AVRCP)Yes, V1.6.1Phonebook access profile (PBAP)Yes

Accessories

Release keys2 piecesEscutcheonYesInstallation SleeveYesDC cord (Mitsumi to ISO) 25 cm Handsfree Microphone with 3 m cable Multi-Language Instruction Manual Included Quick-Guide + Instruction manual Manuals DownloadableYes

General Specifications

Operation voltage12V DC car batteryMaximum Current Consumption10ADark Current ConsumptionBelow 1mAWeight Main Unit1200gr, (Sleeve & Escution included)Dimensions (WxHxD)182 x 53 x 155.5mmWeight, inclu. sleeve & escutcheon1.2 kg
