Laser Infrared Distance Sensor Module MODBUS IIC Serial Connect 3V-5V with PH1.0MM 6PIN Cable

Laser Infrared Distance Sensor Module MODBUS IIC Serial Connect 3V-5V with PH1.0MM 6PIN Cable Description

Development Routines/Software:for Ardunio Demo /STM32 Demo /PI Demo/Host computer/Serial command
Operating Voltage:3.0V-5V(DC)
Working current:40mA (Max)
Operating temperature:-20C-70C
storage temperature:-20C-80C
Model:TOF200F
Ranging chip: VL53LOX
Measuring distance:2M(Max)
Measurement dead zone:0-3CM
Measurement Mode(Range):
0:Default,1.2m
1:High precision,1.2m
2:Long distance,2m
3: High speed, 1.2m
Infrared emission mechanism:940nm
FOy field of view:25
Communication mode:UART/Modbus/IIC
/
TOF400F
Ranging chip: VL53L1
Measuring distance:4M(Max)
Measurement Mode(Range):
0:High precision,1.3m
1:Long distance,4m
Infrared emission mechanism:940nm
FoV field of view:25
Communication mode:UART/Modbus/IIC
/

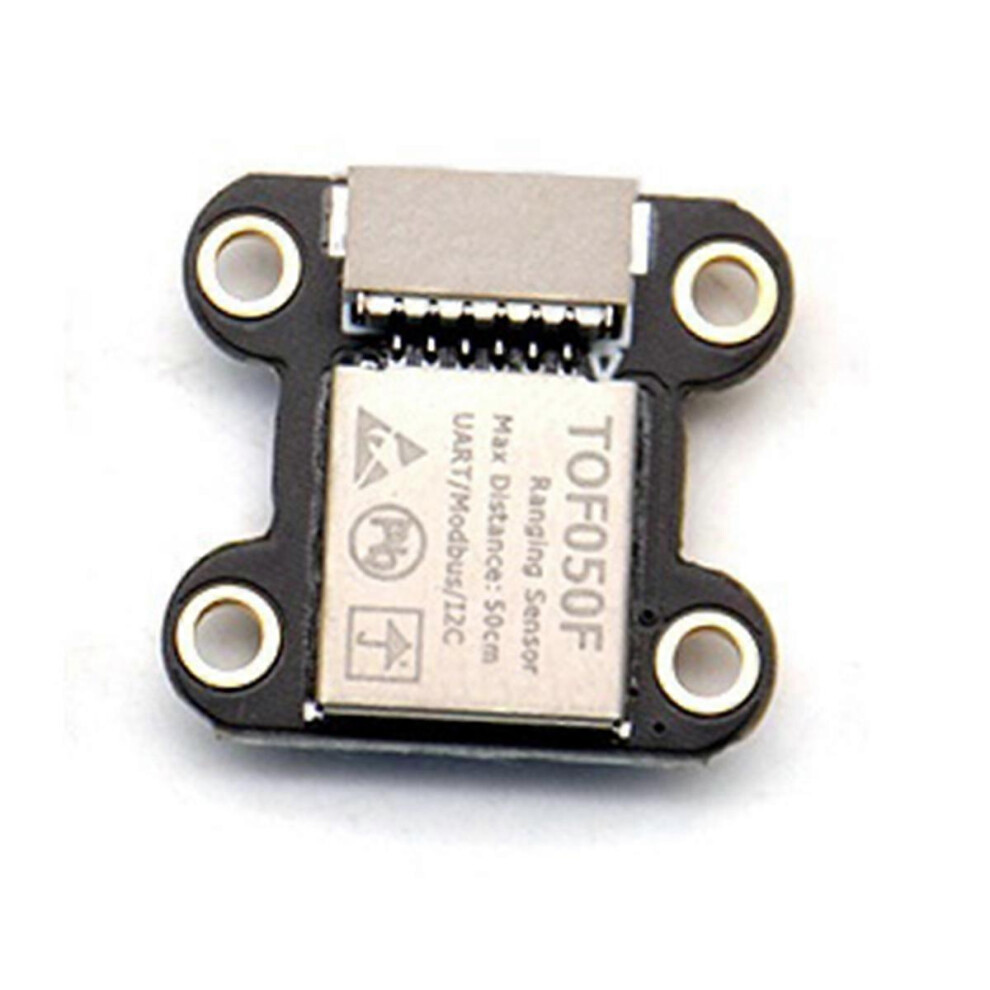

TOF050F
Ranging chip:VL6180
Measuring distance:50cm (Max)
Measurement Mode(Range):
1: High precision,200mm
2: Middle distance,400mm
3:Long distance,500mm
Infrared emission mechanism:850nm
FOV field of view:25
Communication mode:UART/Modbus/IIC
Color: Black & Gold
Material: PCB
Package Contents:
1 x Laser distance sensor Module
1 x cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
