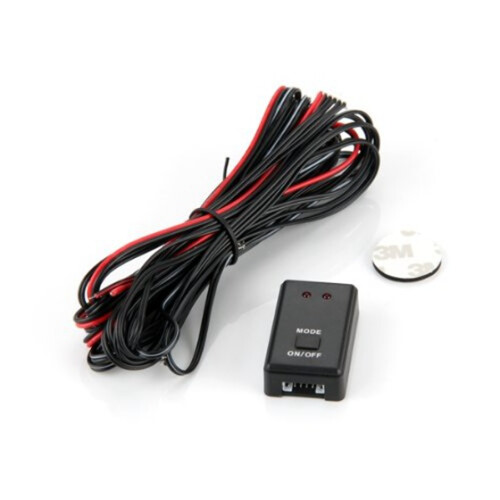

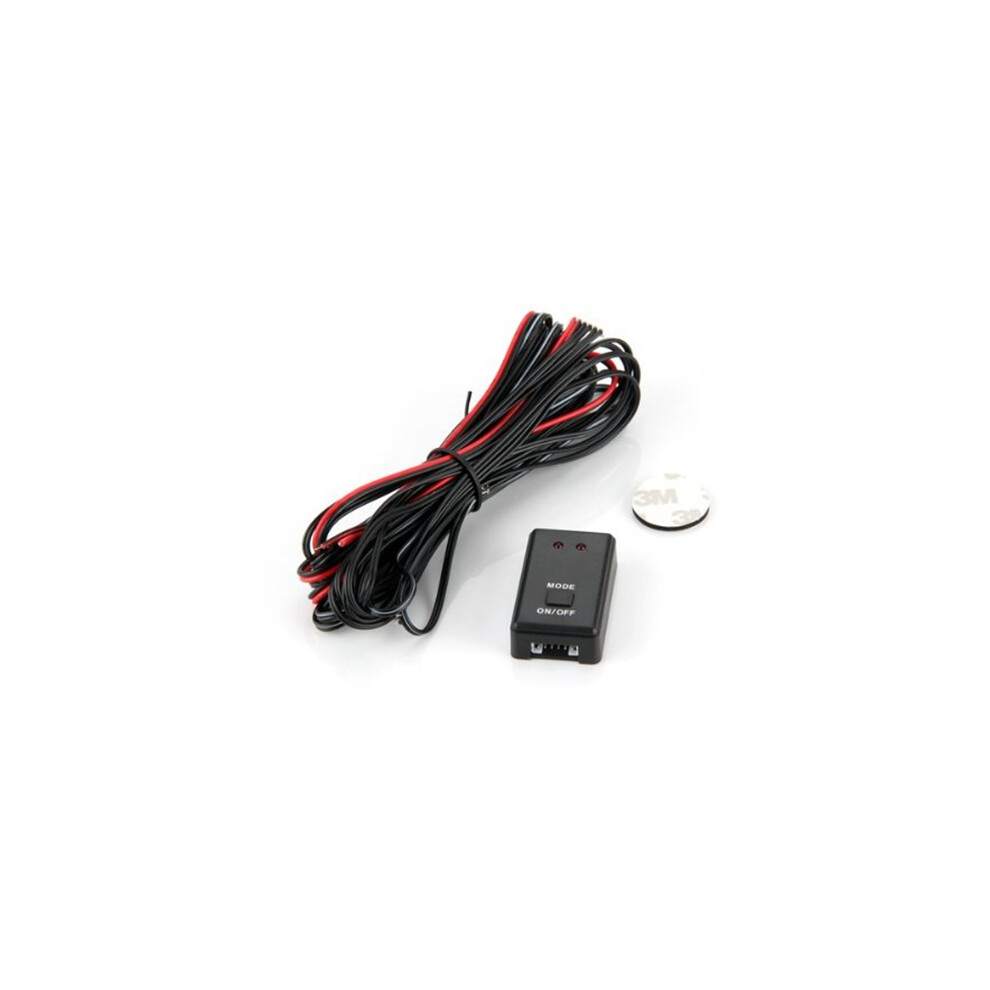

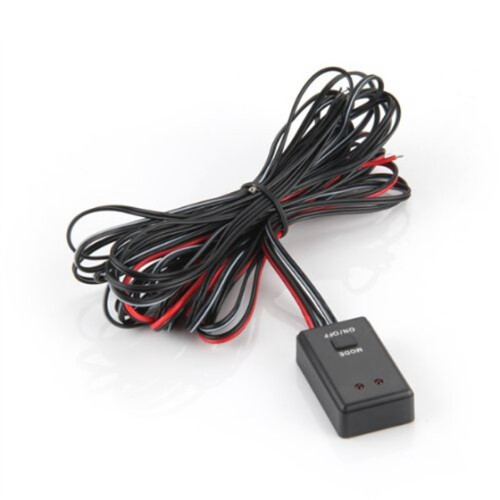

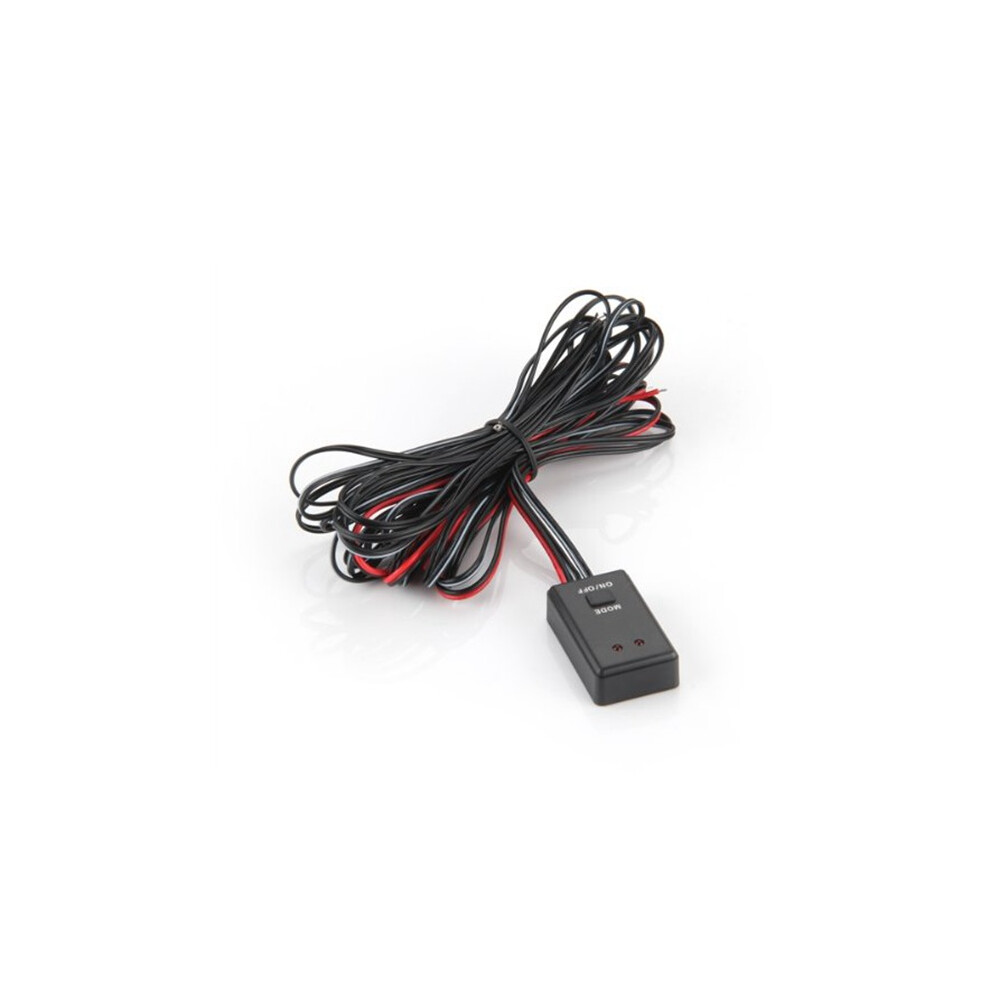

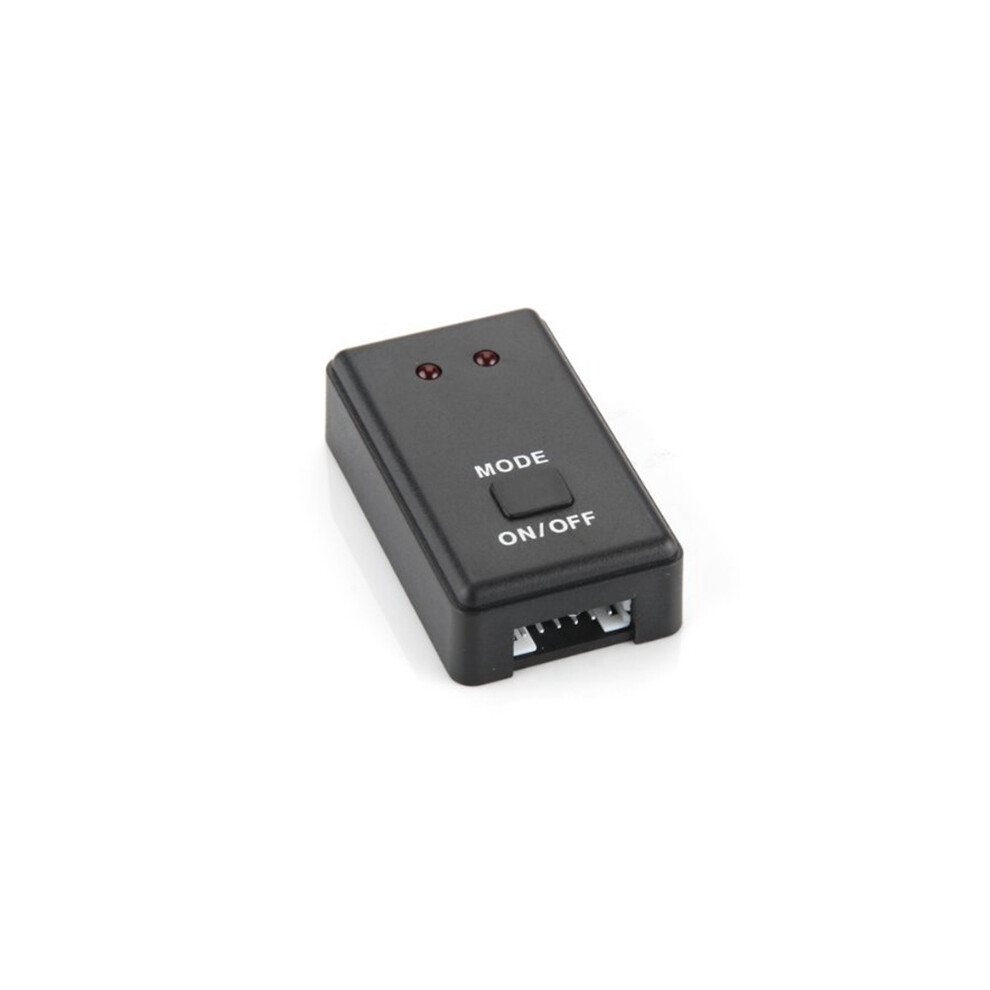

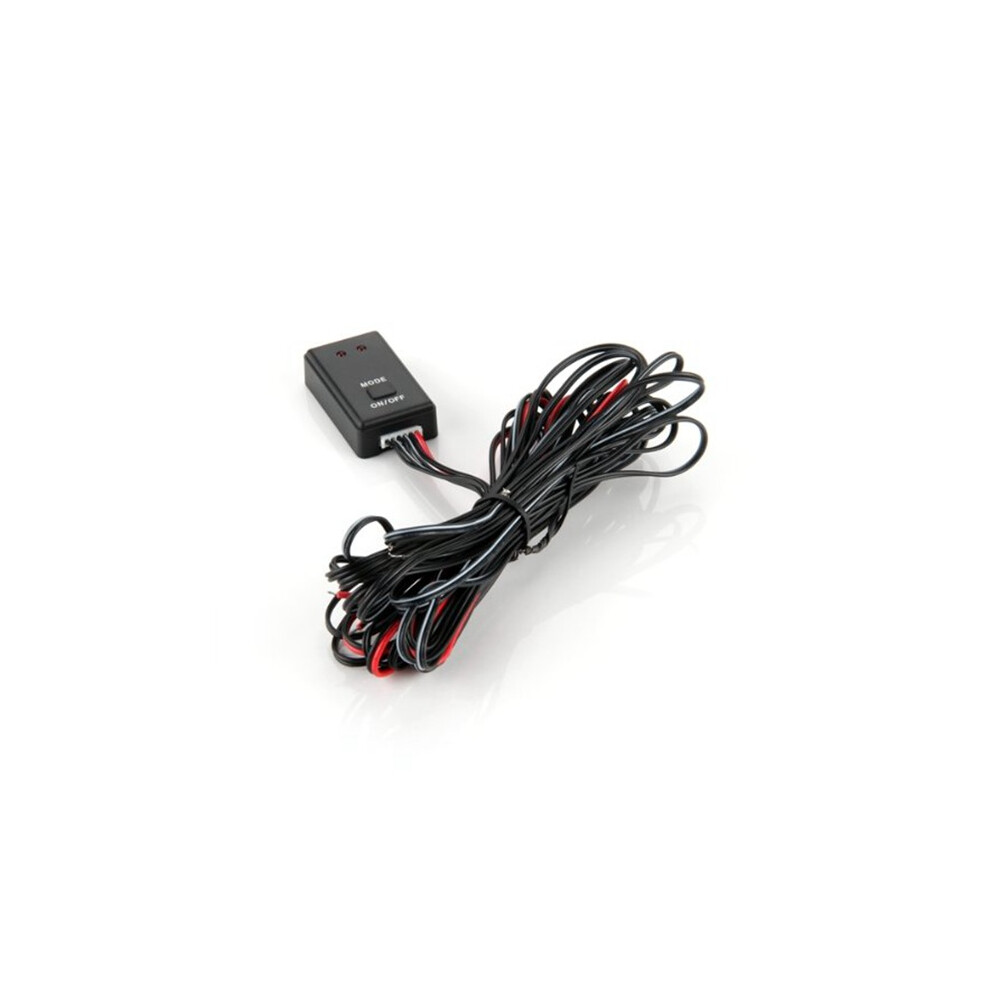

LED Strobe Flashing Unit Controller Auto 12V

LED Strobe Flashing Unit Controller Auto 12V Description

product, easy to use and install
More than 10 methods blinking, compatible with many LED light
External flash mode is observed when the entire
Bassimo consumption, long service life
for car, motorcycles and other products.

Operating Voltage: 12V
Maximum power: 12V / 48W
Ambient temperature: -40 to + 50 Celsius
Size: 46 x 28 x 13mm
Material: ABS Black
flashing mode
eternal light
4 groups of light flash alternately
12 groups of light flash together
alternative flash
3 groups of light quickly and alternately flash
4 groups of light flash together
4 groups of light flash alternately, then flash together
all the lights flash alternately and off
all the lights flash and off alternately, then blink and off together
All the lights are flashing and off together
instructions:
Connect the terminal to the controller, not tascinare too strongly the cable to avoid bad connection
For red and black cable (about 1.2m), connect the red with the positive electrode of power, connect the black to the negative
For white and black cable black cable (about ), two cables, connect the white black with the positive electrode of the lamp, connect the black to the negative
Turn the power , press the MODE button the controller for 2-3 seconds to turn it , then press the MODE button to change the flash mode.
Avoid water and sunburn
With the mounting adhesive and LED indicator for the controller
This is a 2 way strobe controller

Package Contents:
1 x Controller
1 x Cable
1 x Adhesive

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
