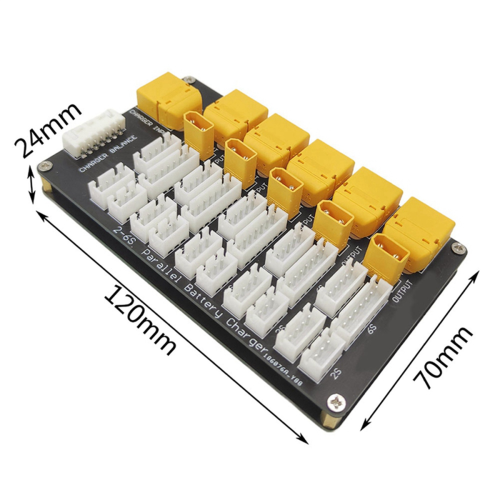

Lithium Battery Charging Board Parallel XT30 XT60 Plug 2‑6S for B6

Lithium Battery Charging Board Parallel XT30 XT60 Plug 2‑6S for B6 Description

Features: 1. XT30 XT60 Parallel Charging Board Lithium Battery And Charging Board
2. Support More Common Balance Chargers (Such AsIMAX B6/ B8/UN-A6/ / Chargers, Etc.) To Parallel Balance Charge 5 Groups Of 2-6S Battery Packs Of The Same Type And The Same Number Of Cells.
3. It Can Simultaneously Support 5 Groups Of 2S, Or 5 Groups Of 3S, Or 5 Groups Of 4S, Or 5 Groups Of 5S, Or 5 Groups Of 6S For Parallel Balanced Charging.
4. The Main Input Wire Adopts 14AWG Soft Silicone Wire
5. The Balance Output Line Adopts 22AWG Multi-Strand Silicone Wire

Description:
1. The Balanced Output Wire Adopts 22AWG Multi-Strand Silicone Wire.
2. The Main Input Line Adopts 14awg Soft Silicone Wire (400 Cores, 200 Degrees High Temperature)
3. Thickened Pcb Copper Foil (FR-4 1.6 Thick Plate 20Z Copper Thickness) Can Safely Pass 40A Current!
4. XT60 Plug
5.Color: As Shown
6.Material: PCB

Package Contents:
2 x Dual Charging Board
2 x XT60 To XT60 Charging Cable
2 x 6S Balance Cable
2 x Banana To XT60 Charging Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
