M5Stack ATOM RS-232 M5Atomic TTL to RS232 LevelConverter Full-Duplex Communication Protocol Standard Industrial Control

M5Stack ATOM RS-232 M5Atomic TTL to RS232 LevelConverter Full-Duplex Communication Protocol Standard Industrial Control Description

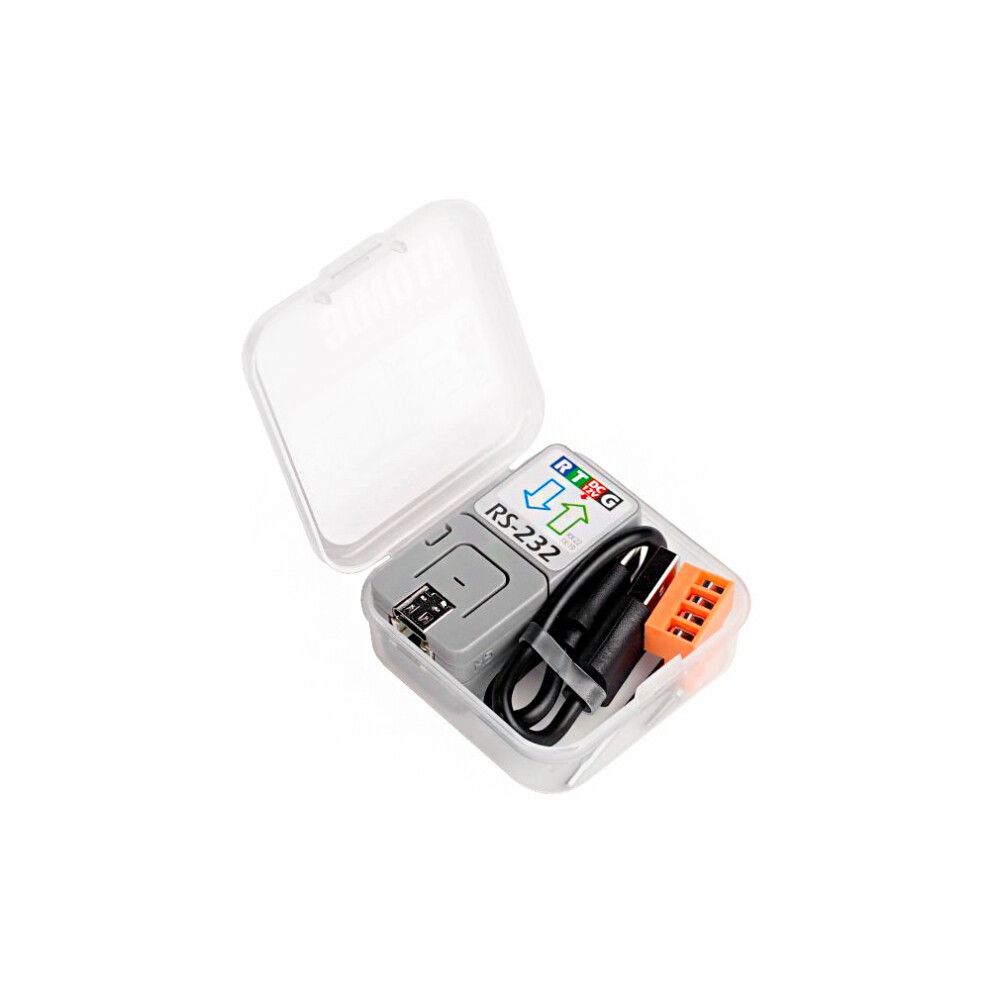

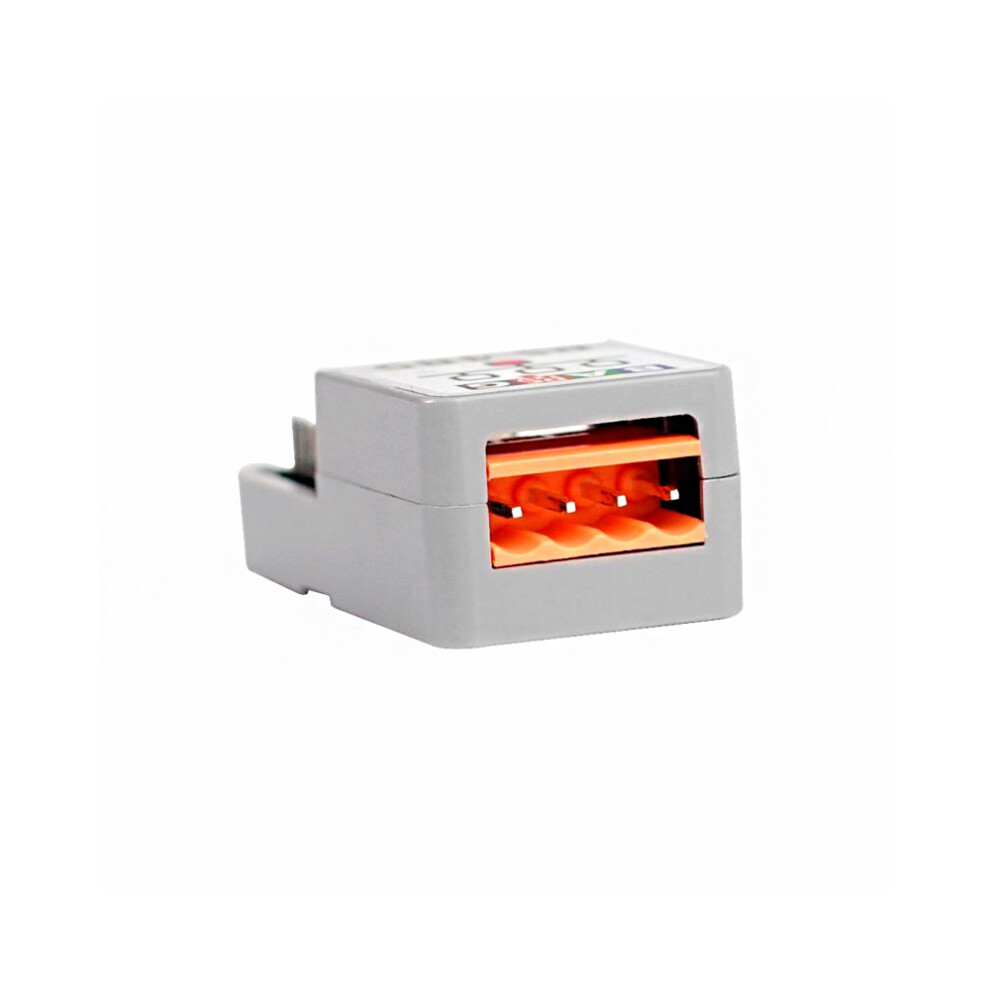

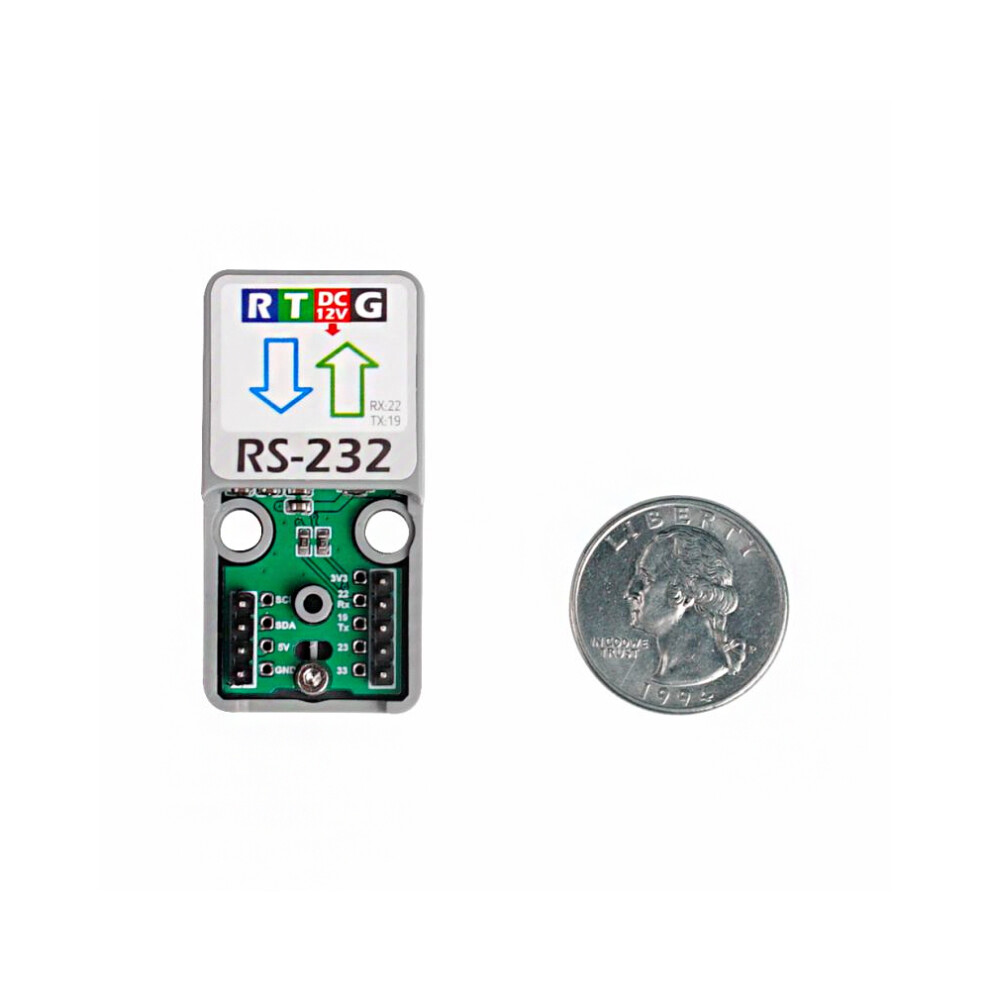

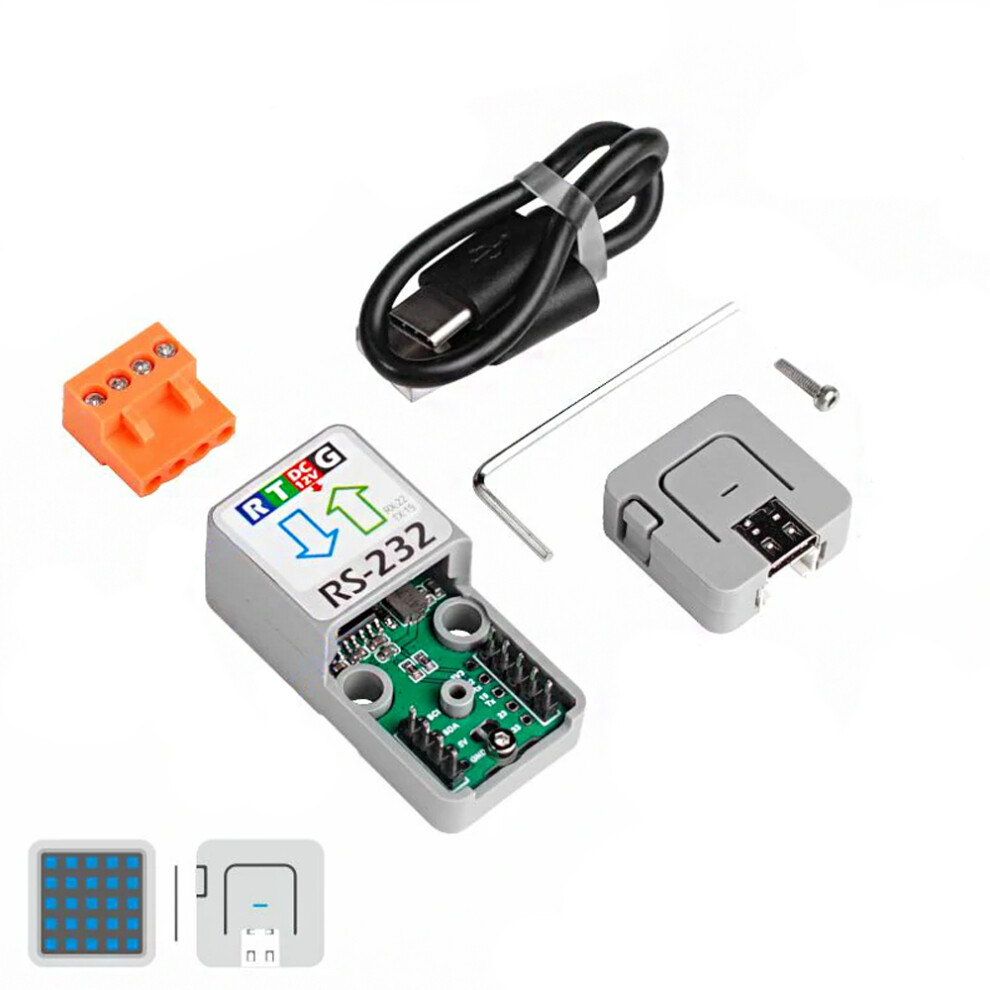

Description: ATOM RS-232 is a TTL-RS232 level-converter designed for use with the M5Atomic module. RS232 is a full-duplex communication protocol standard, which defines the electrical characteristics of the serial communication system. It is a widely used communication protocol in the field of industrial control. MAX232 chip is integrated in the module, which supports bidirectional conversion between TTL level and RS232 level. A DC/DC voltage regulator chip is integrated in the ATOM RS485, which can directly convert the 12V voltage of the RS232 hub to 5V to supply power for ATOM. Features: - Compatible ATOM Matrix/ATOM Lite - Built-in DC/DC - Full-duplex communication Package Included: - 1x ATOM RS-232 - 1x ATOM Lite - 1x Key - 1x M2*8mm Heagon socket cup head machine screw - 1x 18cm TYPE-C Cable Applications: - RS232 Communication - Industrial control node Specification: Specification Parameter External port VH-3.96 4P level-conversion IC MAX232 DC-DC A0Z1282CI Net weight 26g Gross weight 36g Product Size 24*48*18mm Package Size 54*54*20mm Case Material Plastic( PC ) EasyLoader: Click to download EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial , M5StickC/V/T/ATOM series can be used without driver) Related Link: MAX232 AOZ1282CI Pin Map ATOM GPIO22 GPIO19 5V GND ATOM RS-232 RX TX 5V GND Schematic: Click here Example: 1. Arduin IDE Click here to get Arduin example 2. UIFlow Click here to get UIFlow example
