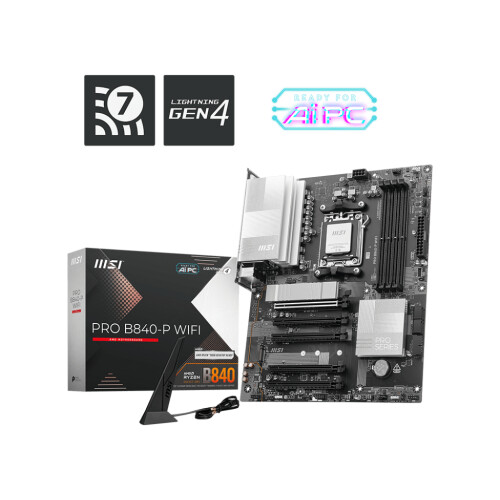

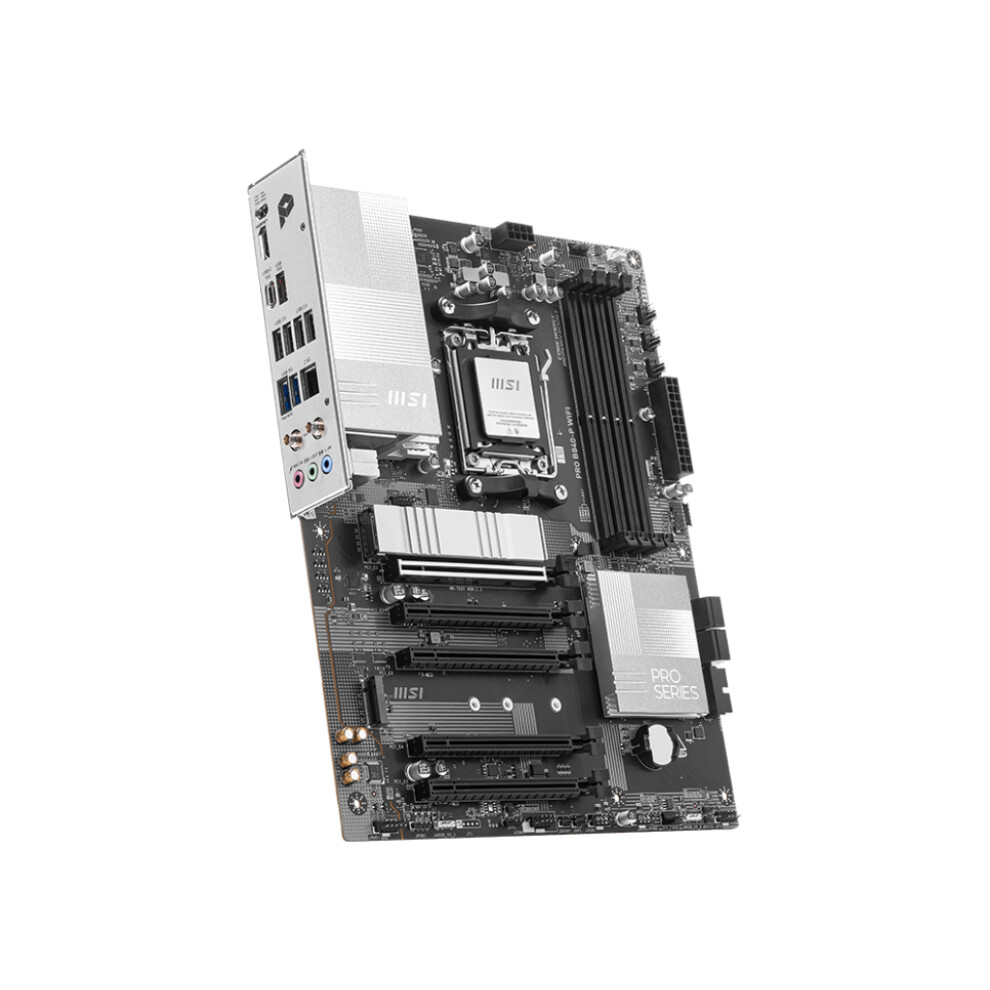

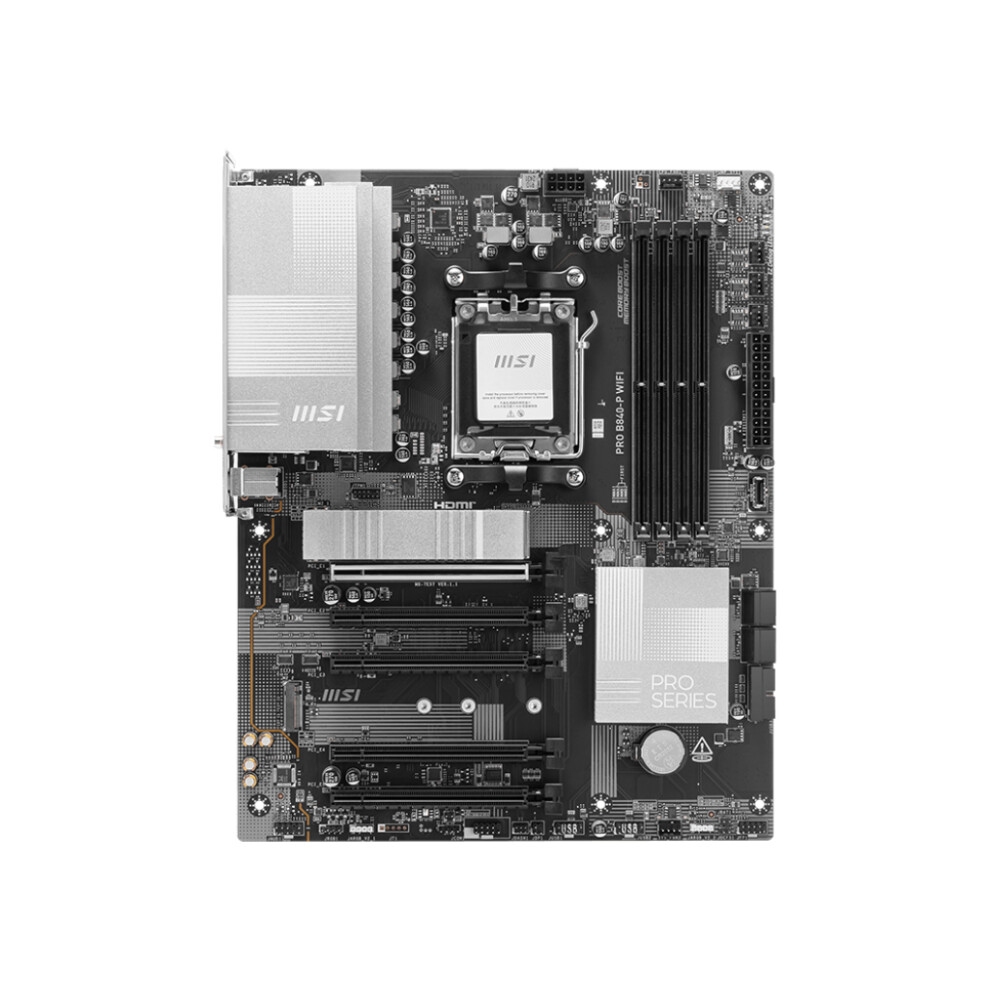

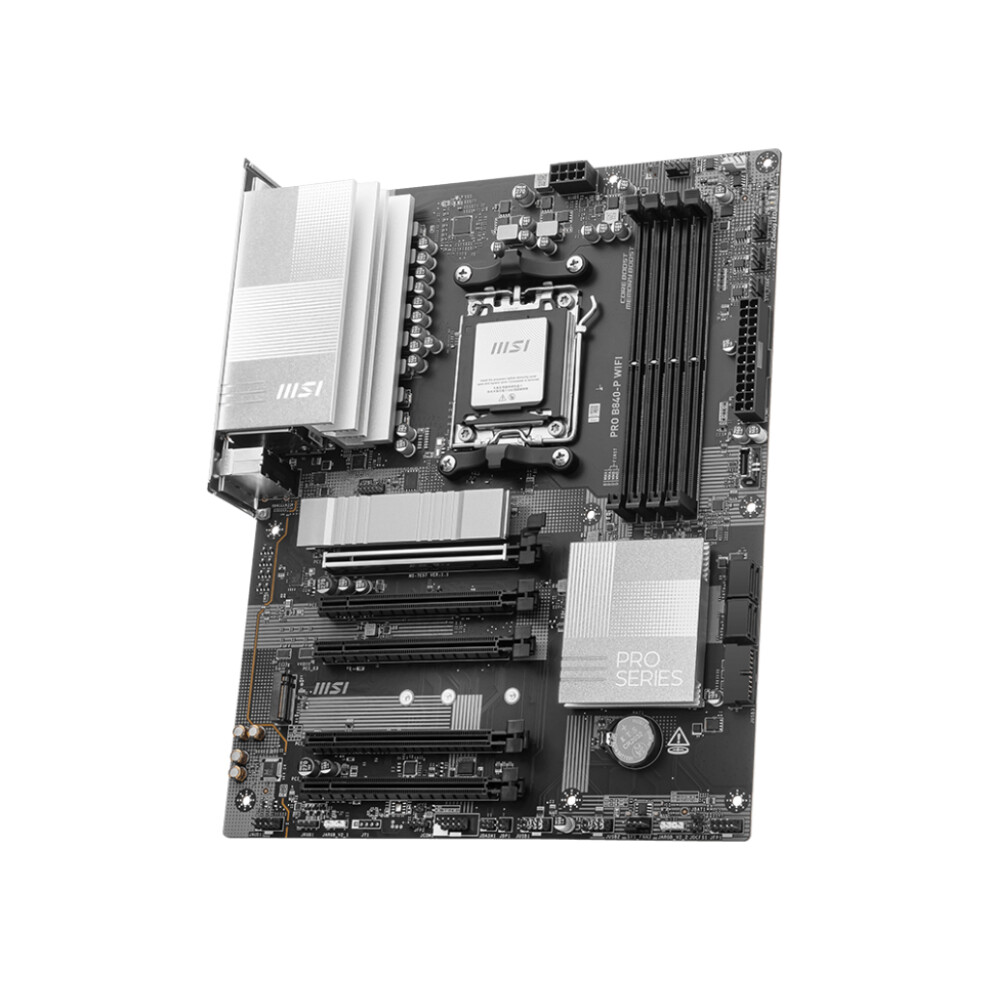

MB MSI AMD AM5 PRO B840-P WIFI Description
MB MSI AMD AM5 PRO B840-P WIFI
Details
| OPC | PFX2F9P |
|---|---|
| Brand | |
| Codes | 4711377286596 (EAN) |
| Links | MSI Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
|---|---|
| Bluetooth version | 5.4 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features
| Motherboard chipset | AMD B840 |
|---|---|
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC897 |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 256 GB |
Memory
| Maximum internal memory | 256 GB |
|---|---|
| Supported memory clock speeds | 4800,5600,8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Micro SATA III |
Weight & dimensions
| Width | 243.8 mm |
|---|---|
| Depth | 304.8 mm |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |

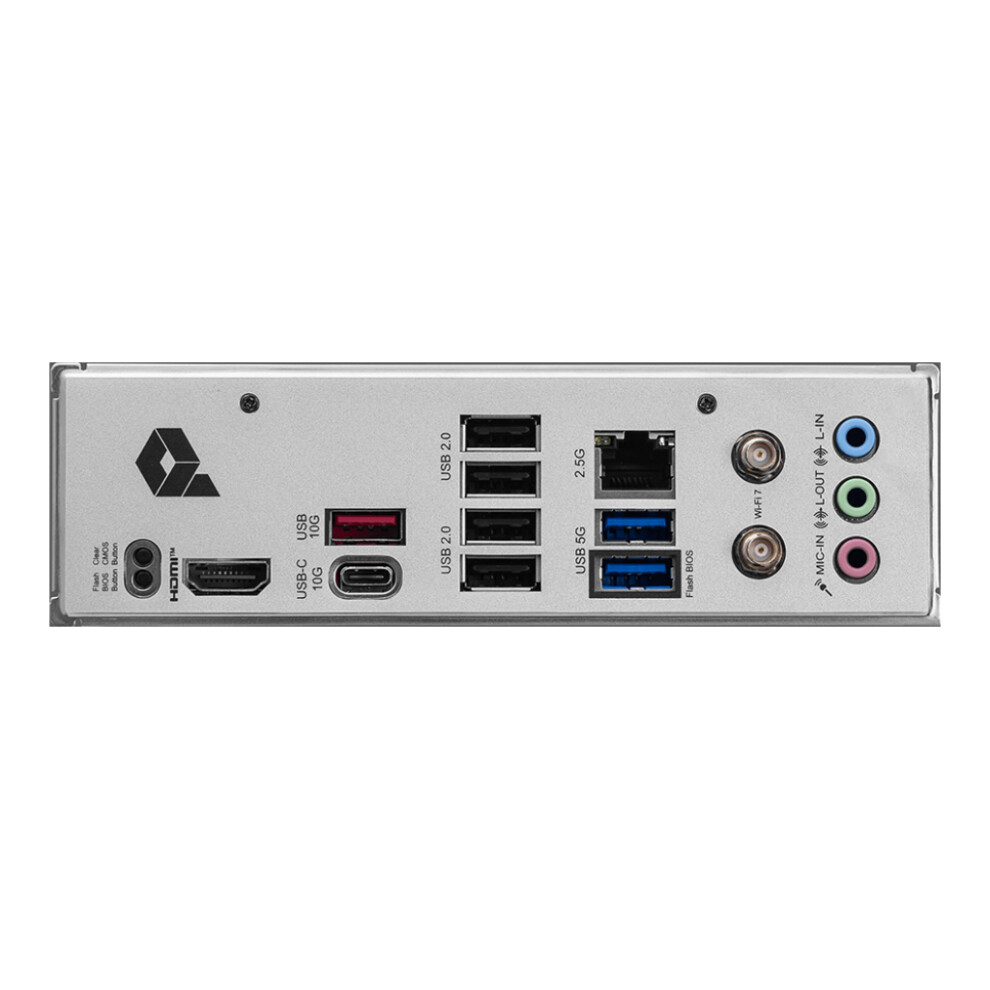

Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Internal I/O
| USB 2.0 connectors | 4 |
|---|---|
| Number of chassis fan connectors | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
Graphics
| On-board graphics card | No |
|---|
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 4 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
Would you like us to let you know when it's back?
MB MSI AMD AM5 PRO B840-P WIFI
New
£215.99
