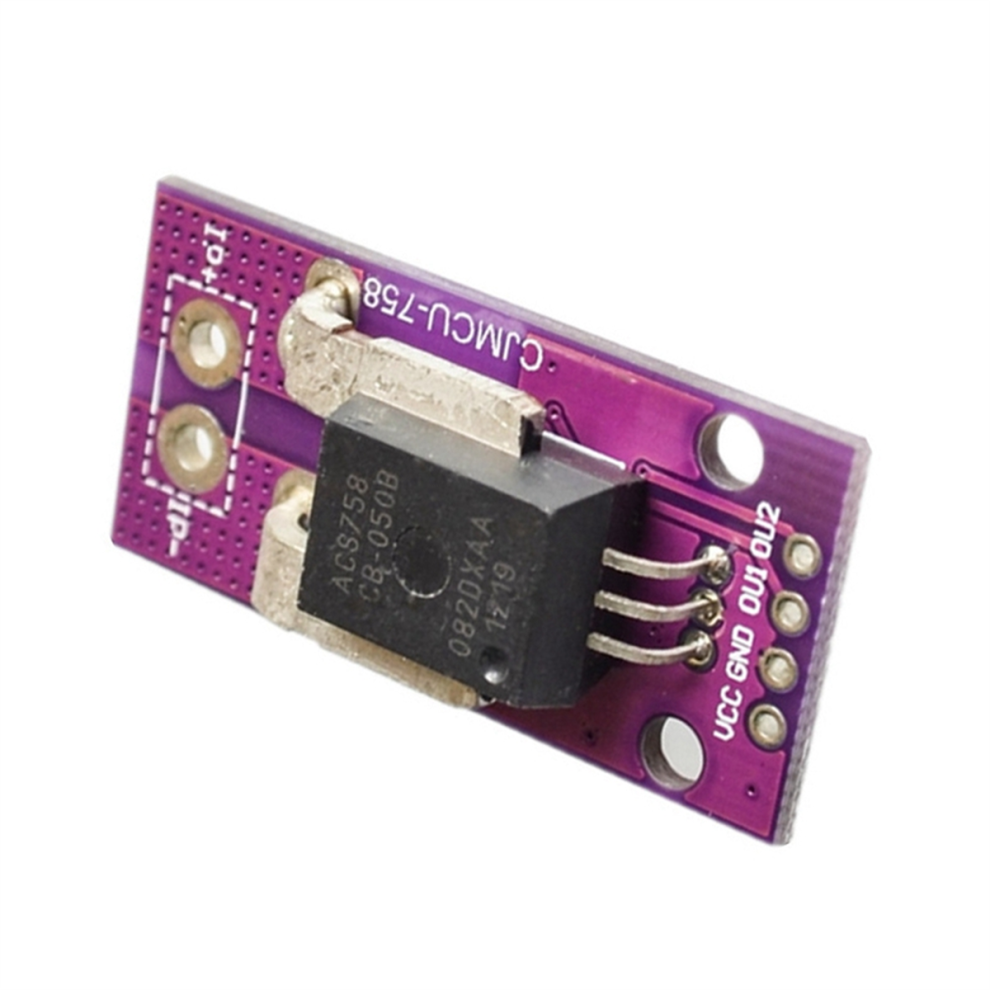

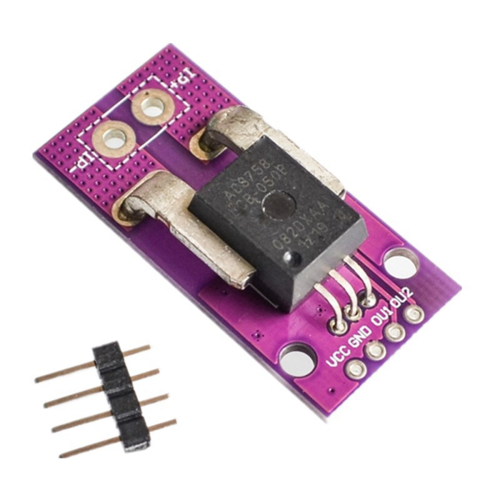

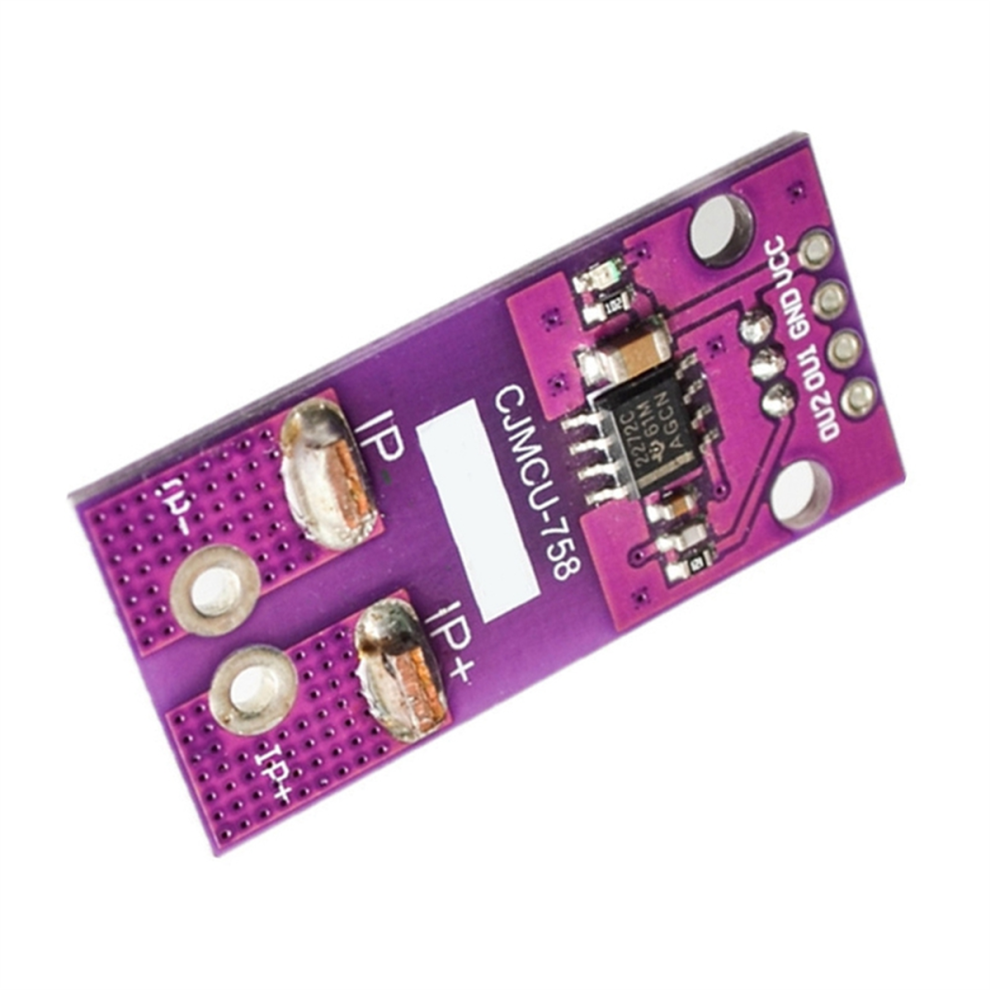

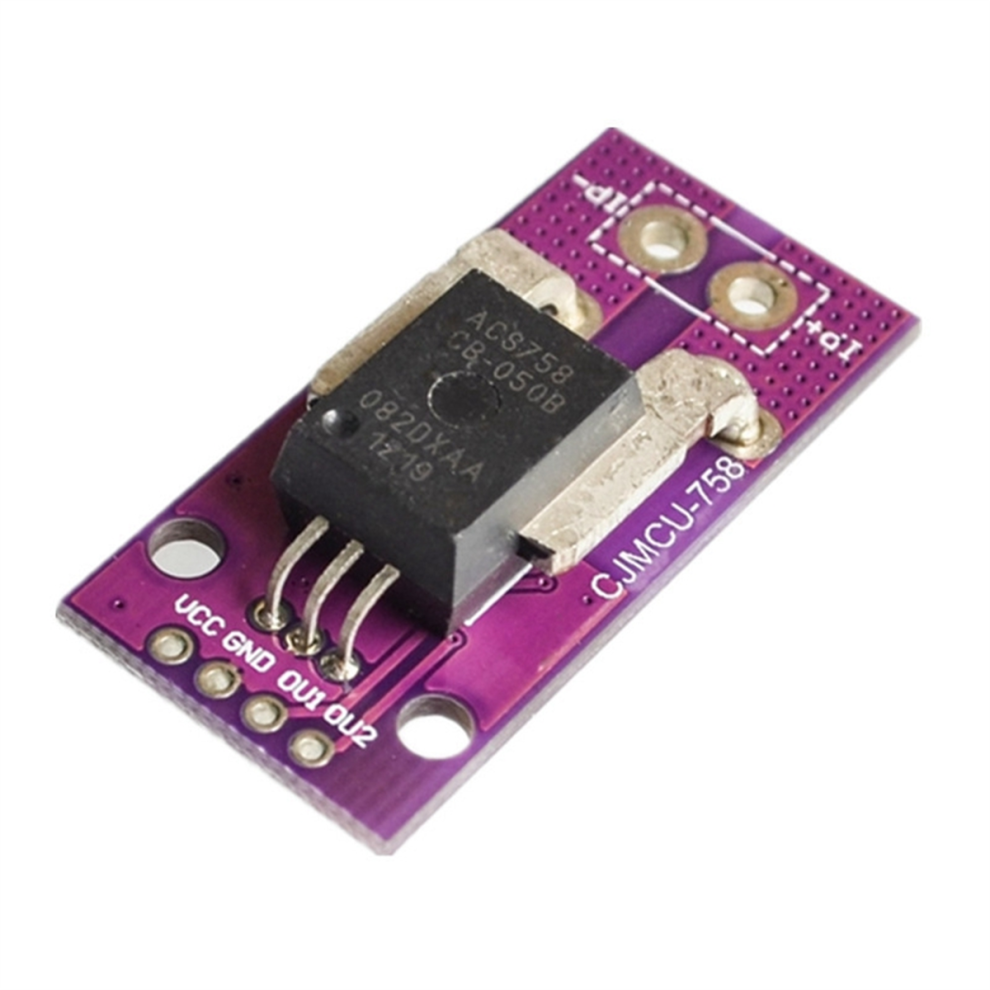

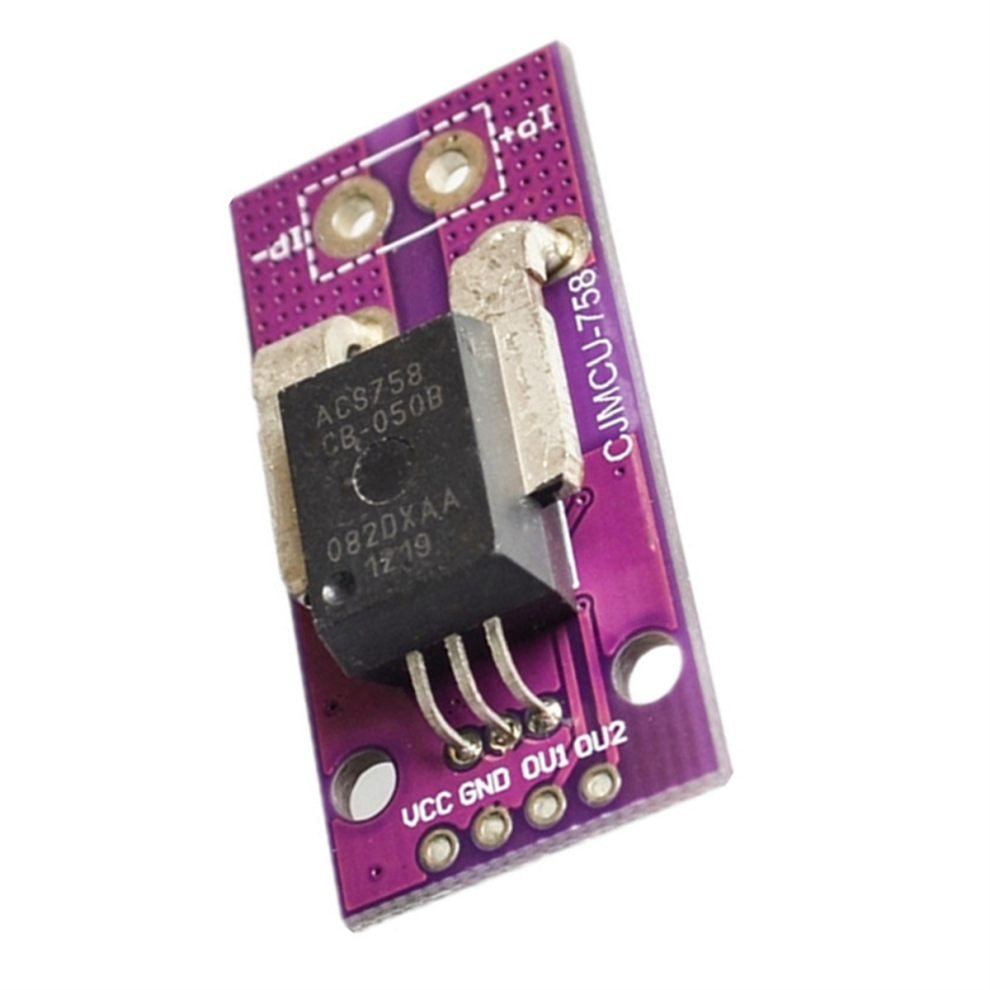

MCU-758 ACS758LCB-050B-PFF-T 50A Hall Current Sensor Module

MCU-758 ACS758LCB-050B-PFF-T 50A Hall Current Sensor Module Description

1.Industry-leading noise performance through proprietary amplifier and filter design techniques
2.Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals,and prevents offset drift in high-side,high voltage applications
3.Total output error improvement through gain and offset trim over temperature
4.Small package size, with easy mounting capability
5.Monolithic Hall IC for high reliability

Ultra-low power loss: 100 internal conductor resistance
Galvanic isolation allows use in economical, high-side current sensing in high voltage systems
3.0 to 5.5 V, single supply operation
120 KHz typical bandwidth
3 us output rise time in response to step input current
Output voltage proportional to AC or DC currents
Factory-trimmed for accuracy
Extremely stable output offset voltage
Nearly zero magnetic hysteresis
There are differences in printing screen printing due to different batches, which does not affect the use;
Color:
Material: PCB

Package Contents:
1 x Hall Current Sensor Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
