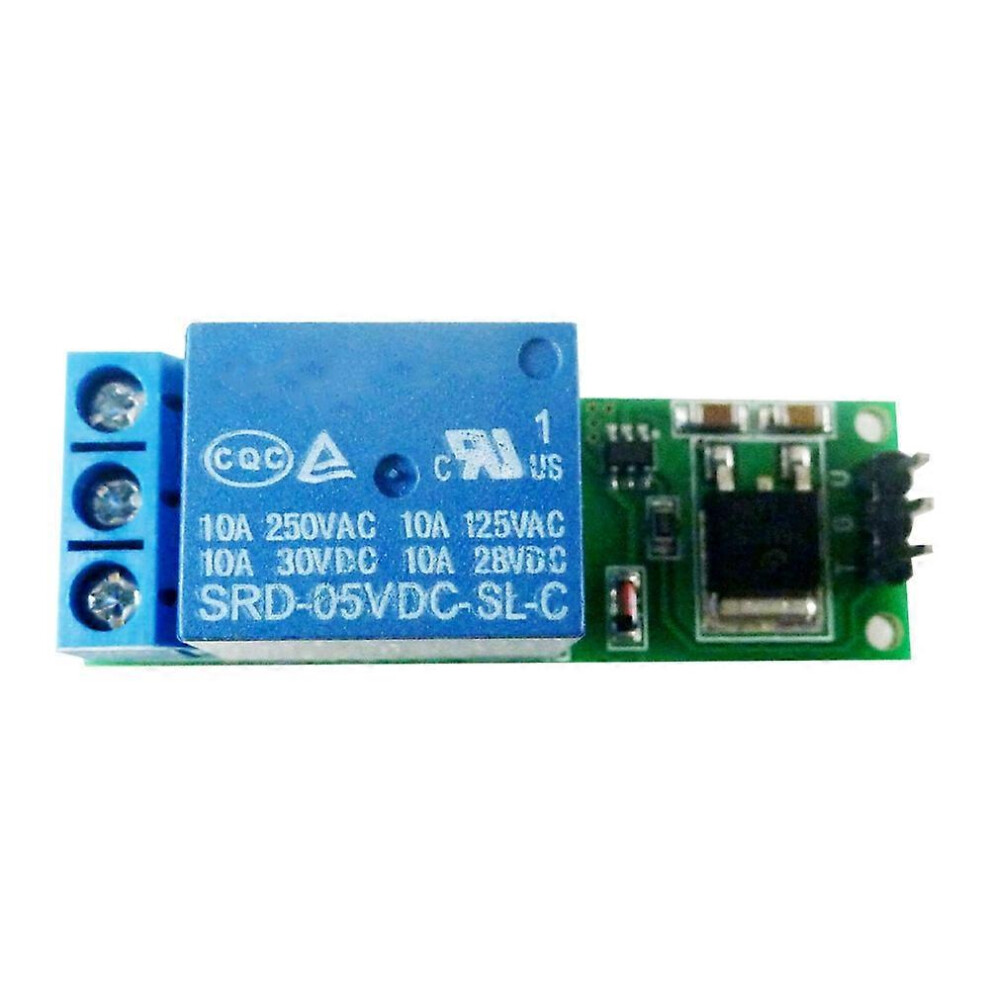

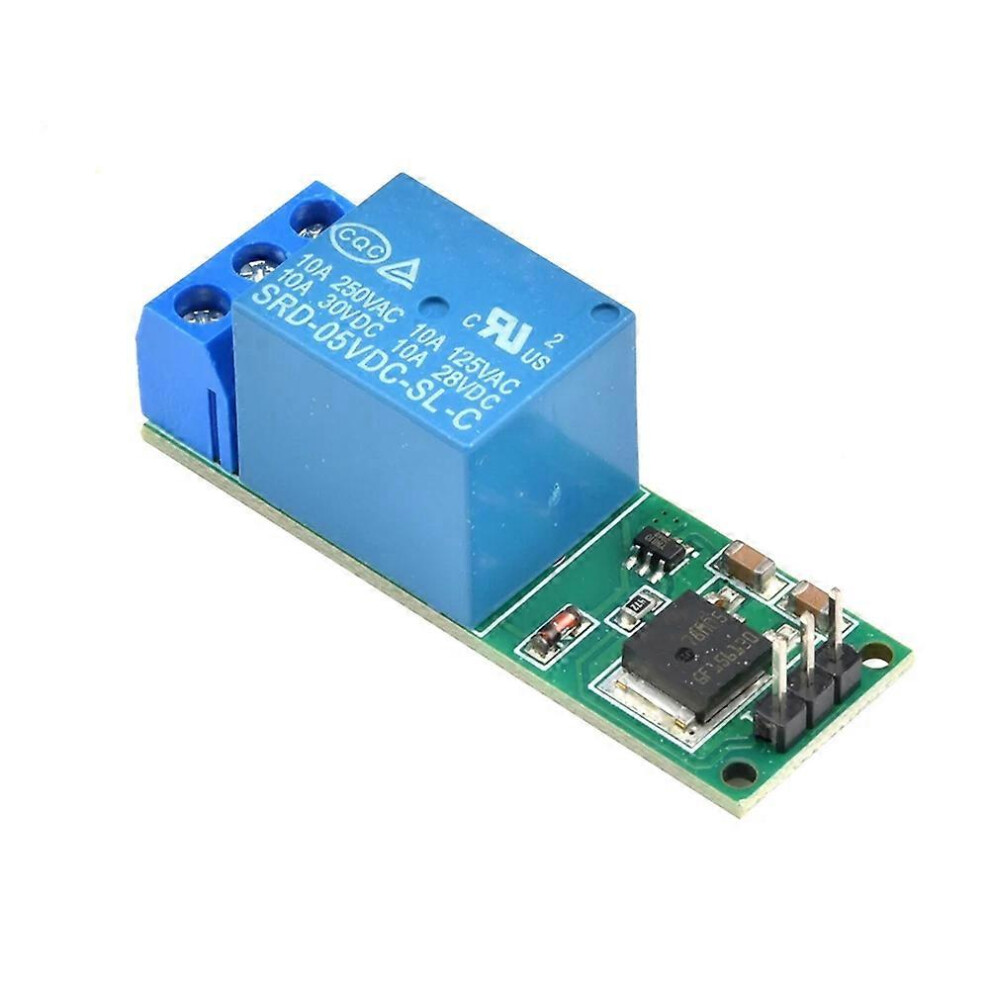

Mini 6-24V Flip-Flop Latch Relay Module 1 Channel Bistable Self-Locking Switch Low Pulse Trigger Board

Mini 6-24V Flip-Flop Latch Relay Module 1 Channel Bistable Self-Locking Switch Low Pulse Trigger Board Description

This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds).

Description:

Working voltage: DC 6-24V

Working current: 60-70MA

Standby current: 1UA

Load current : AC 250V/10A, DC 30V/10A

Trigger mode: Low pulse trigger

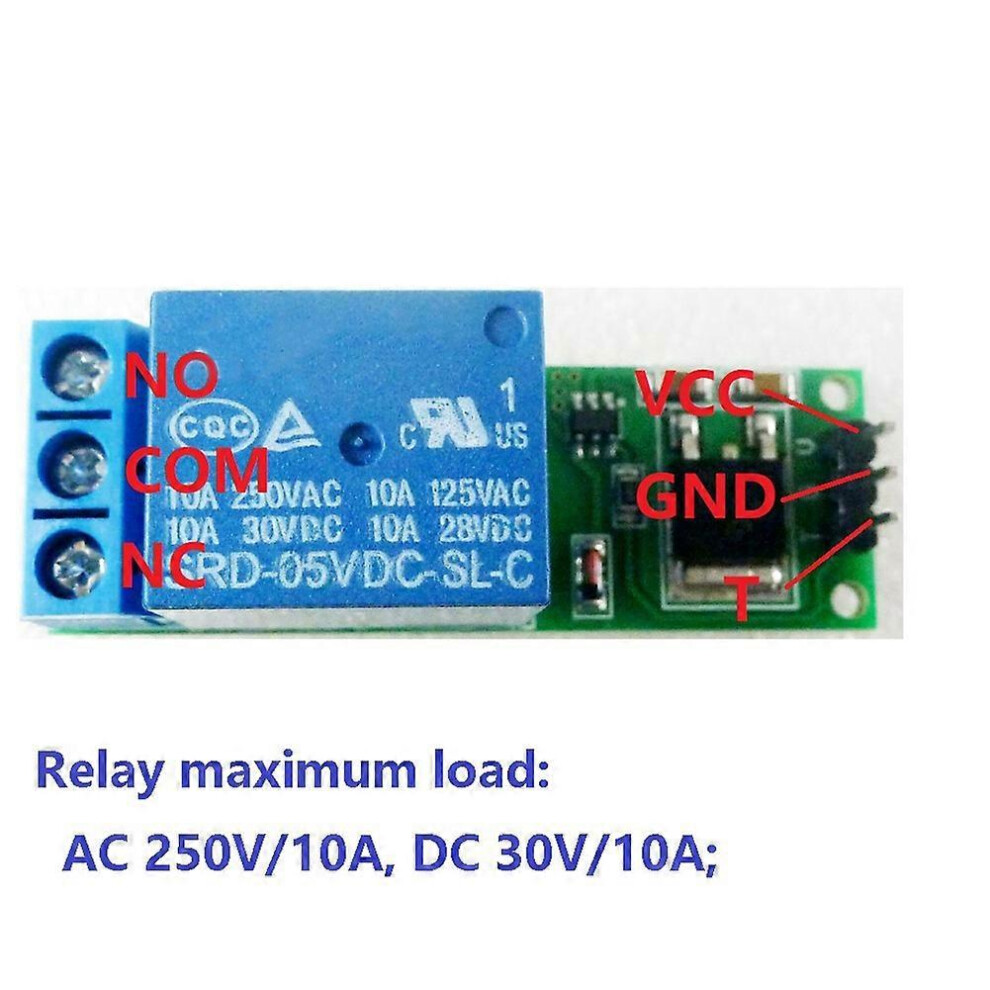

Module interface:

1. VCC: positive power supply (VCC)

2. GND: negative power supply (GND)

3. T : Low pulse trigger

Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

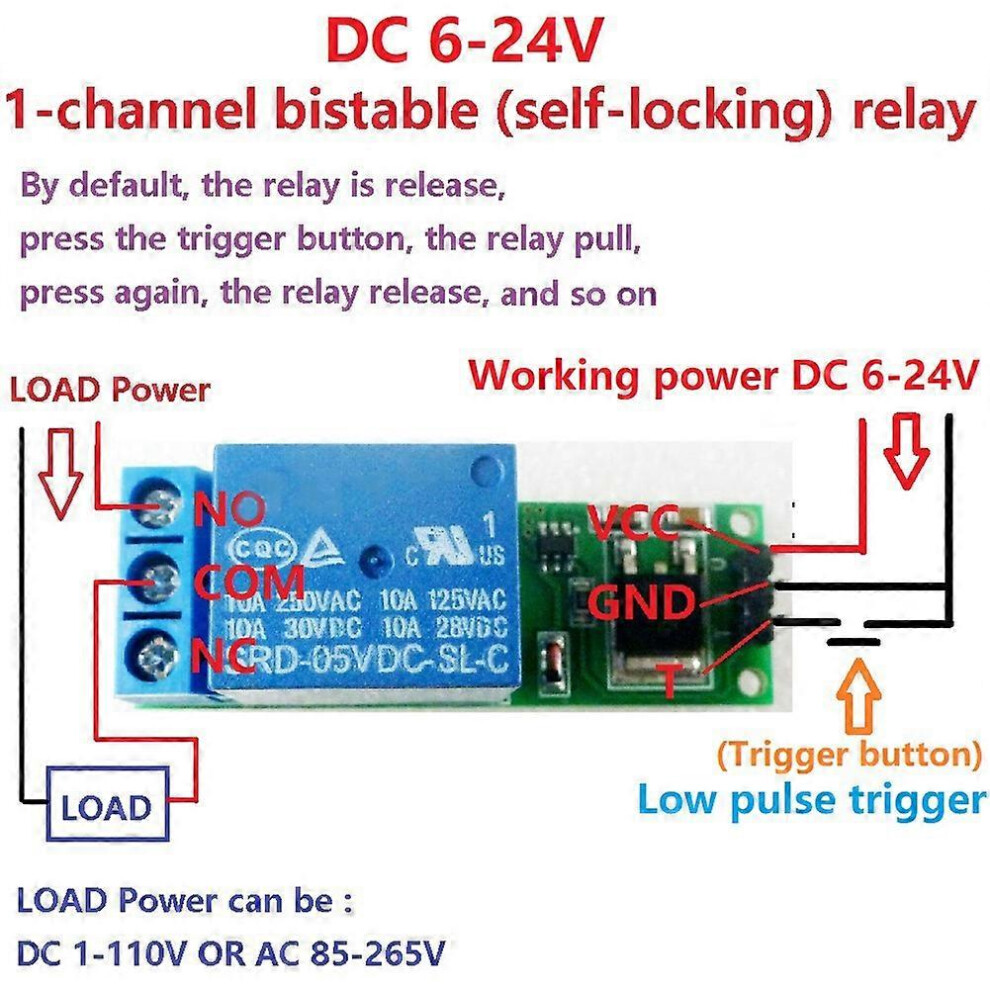

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Typical applications:

Automotive electronics

Industrial equipment

Motor

LED

Smart Home

Emergency lighting

MCU development board

Toy car

Color: Green

Material: PCB+Components

Package Contents:

1*1 Channel DC 6-24V Self-locking Relay Module
