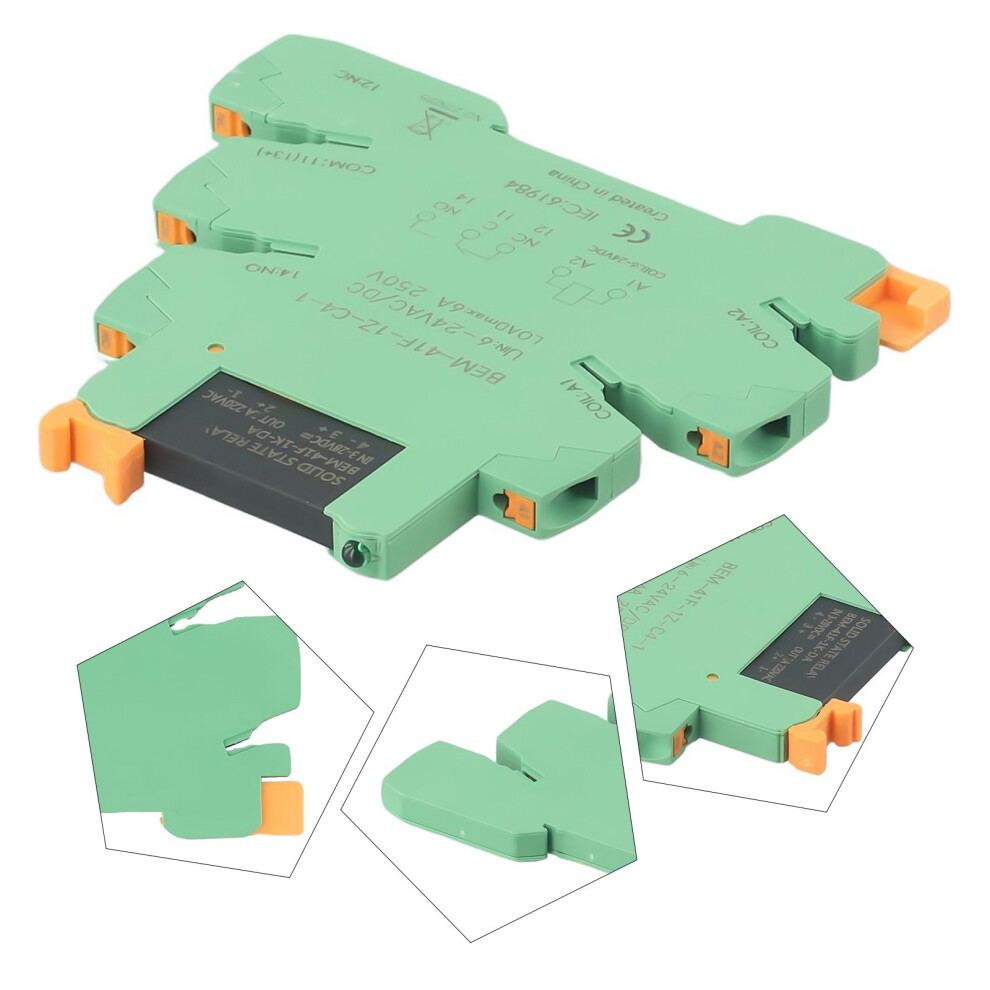

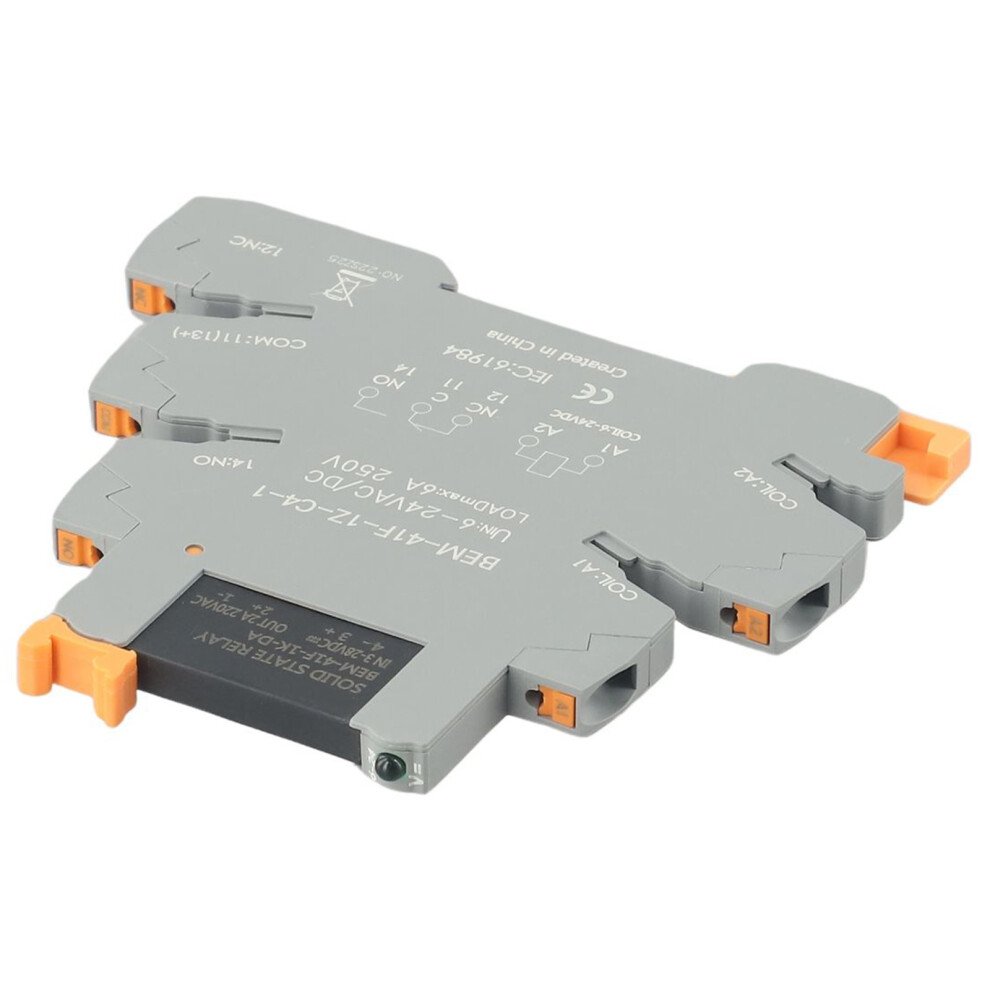

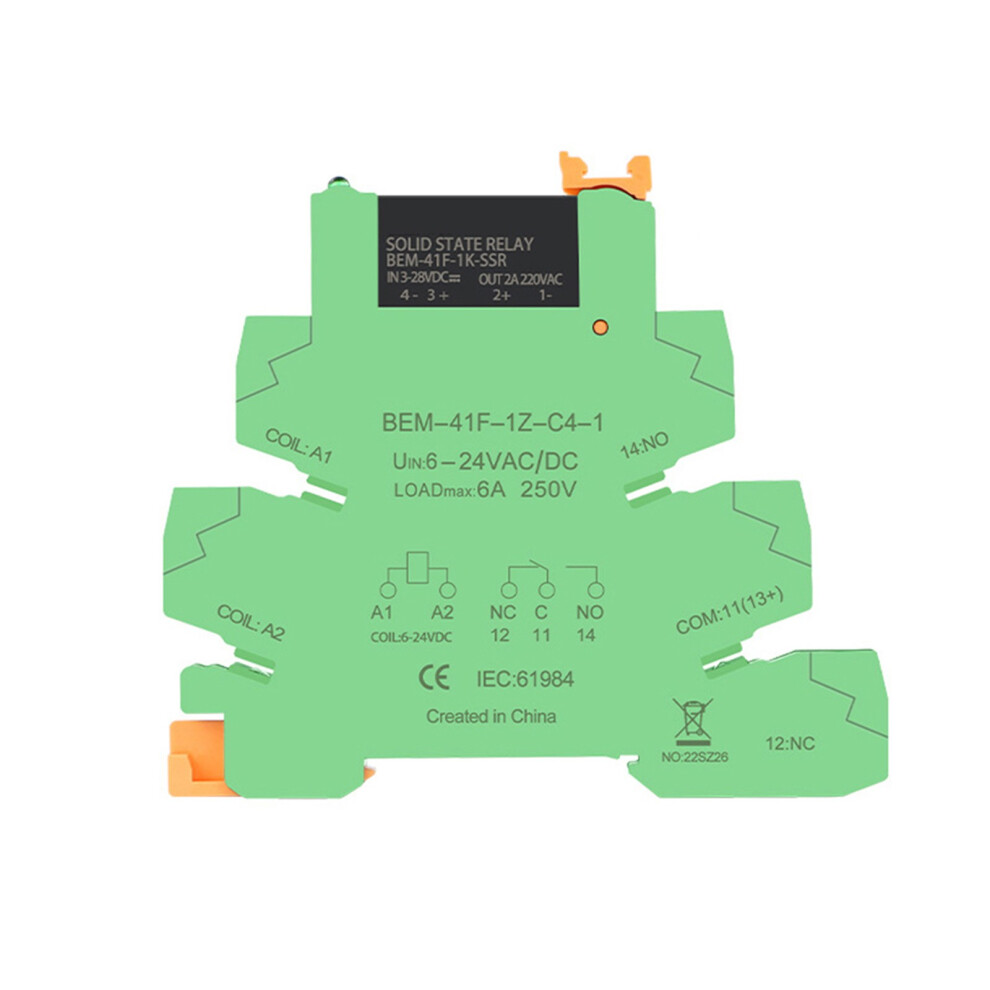

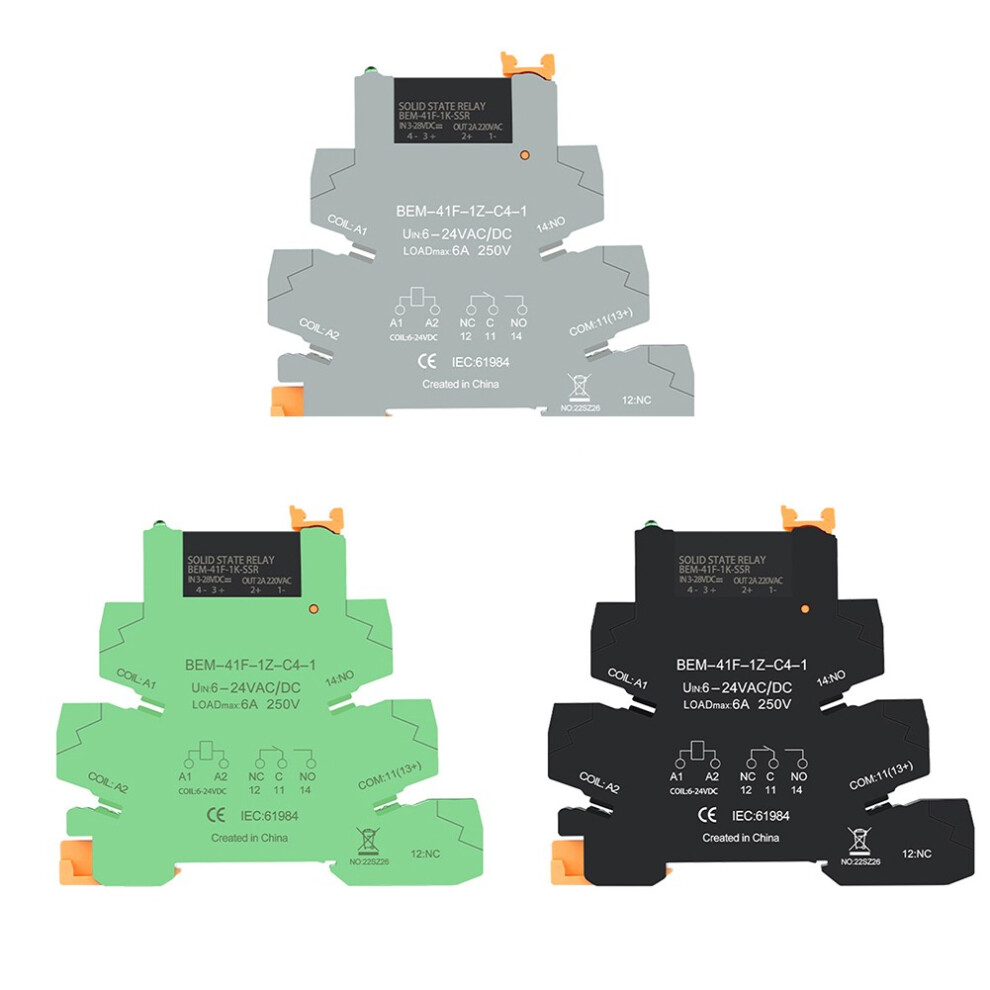

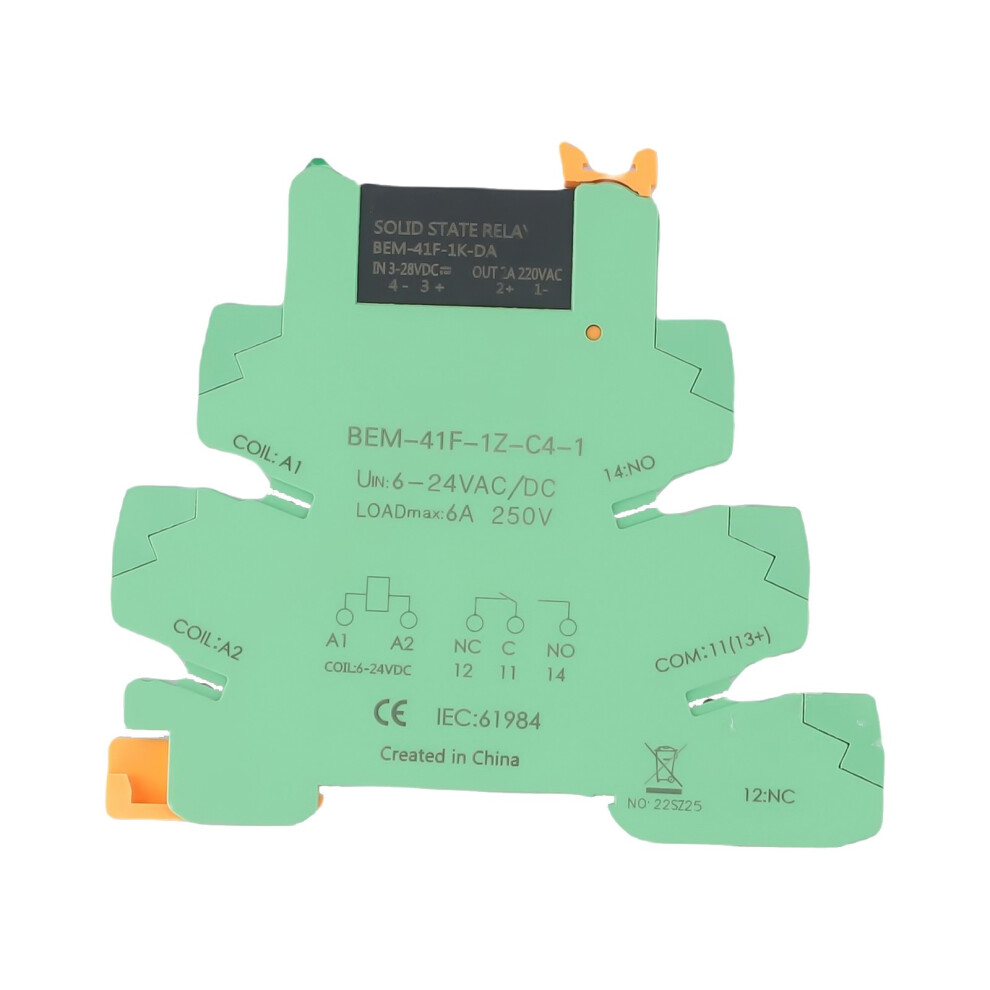

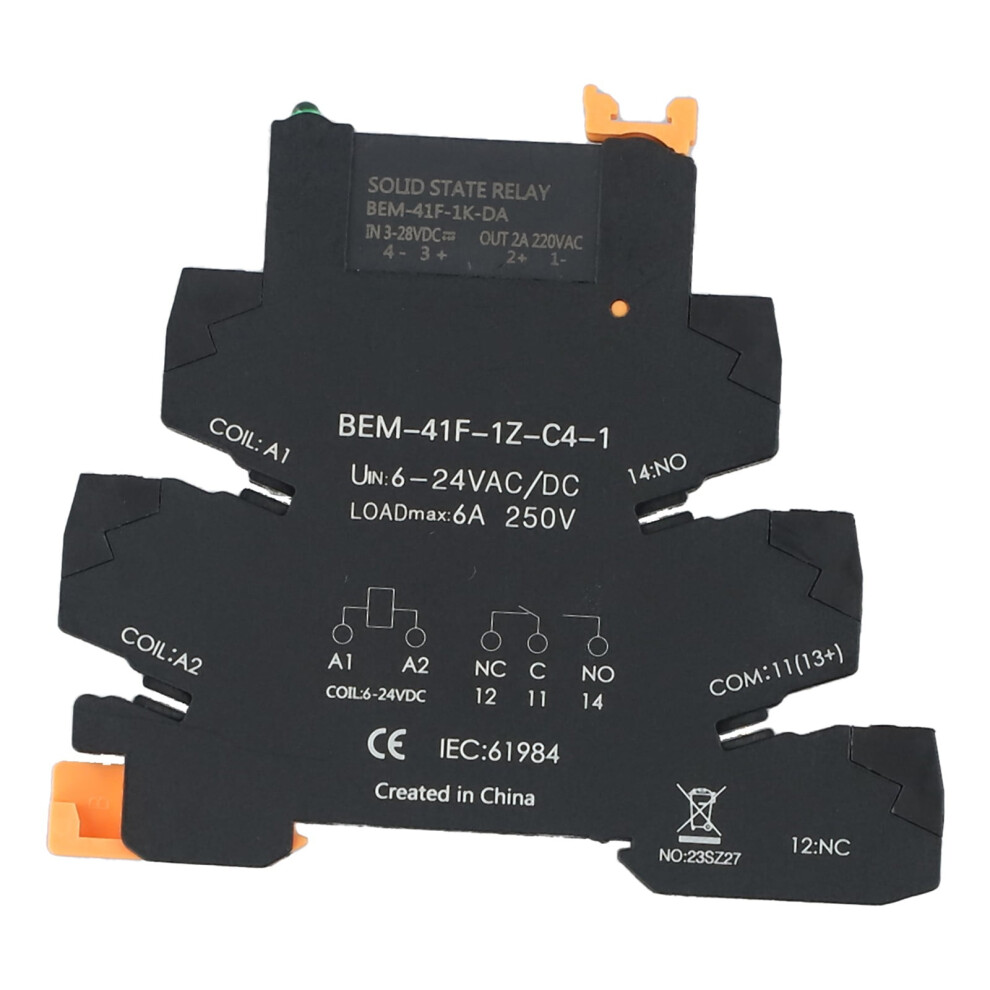

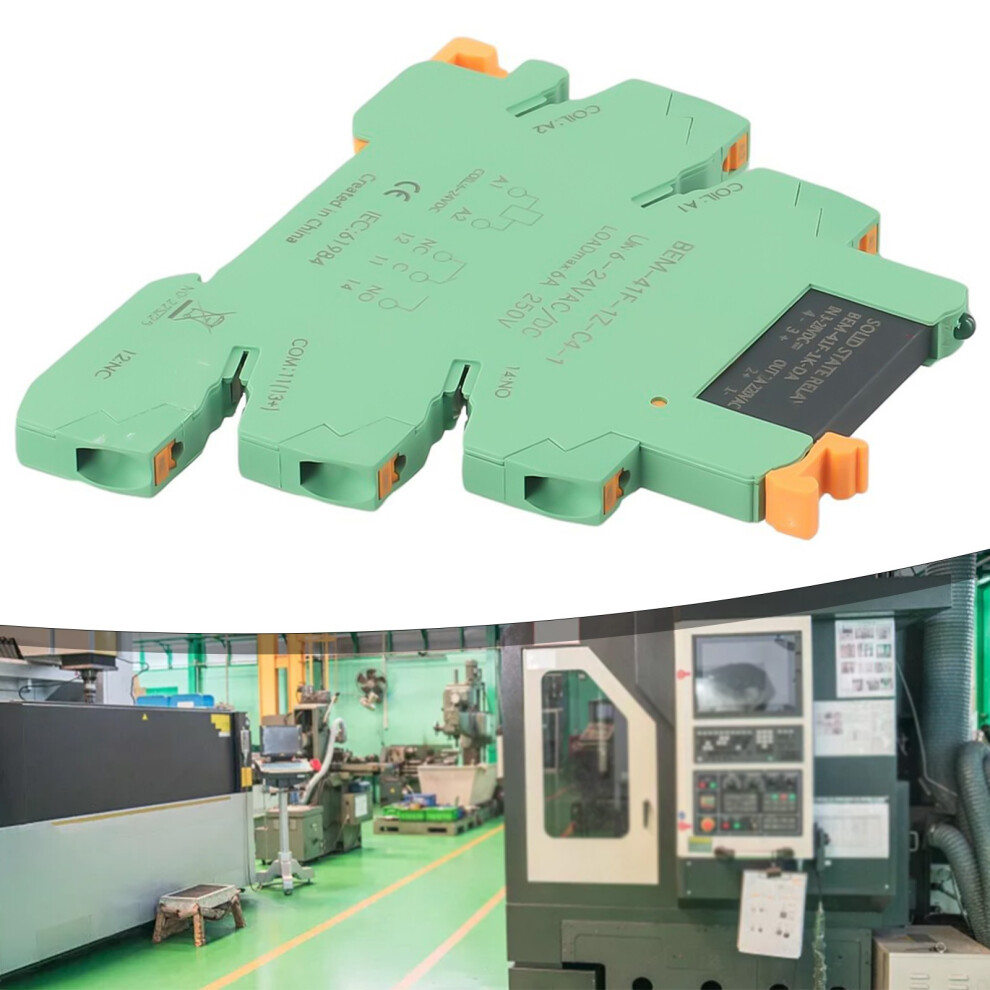

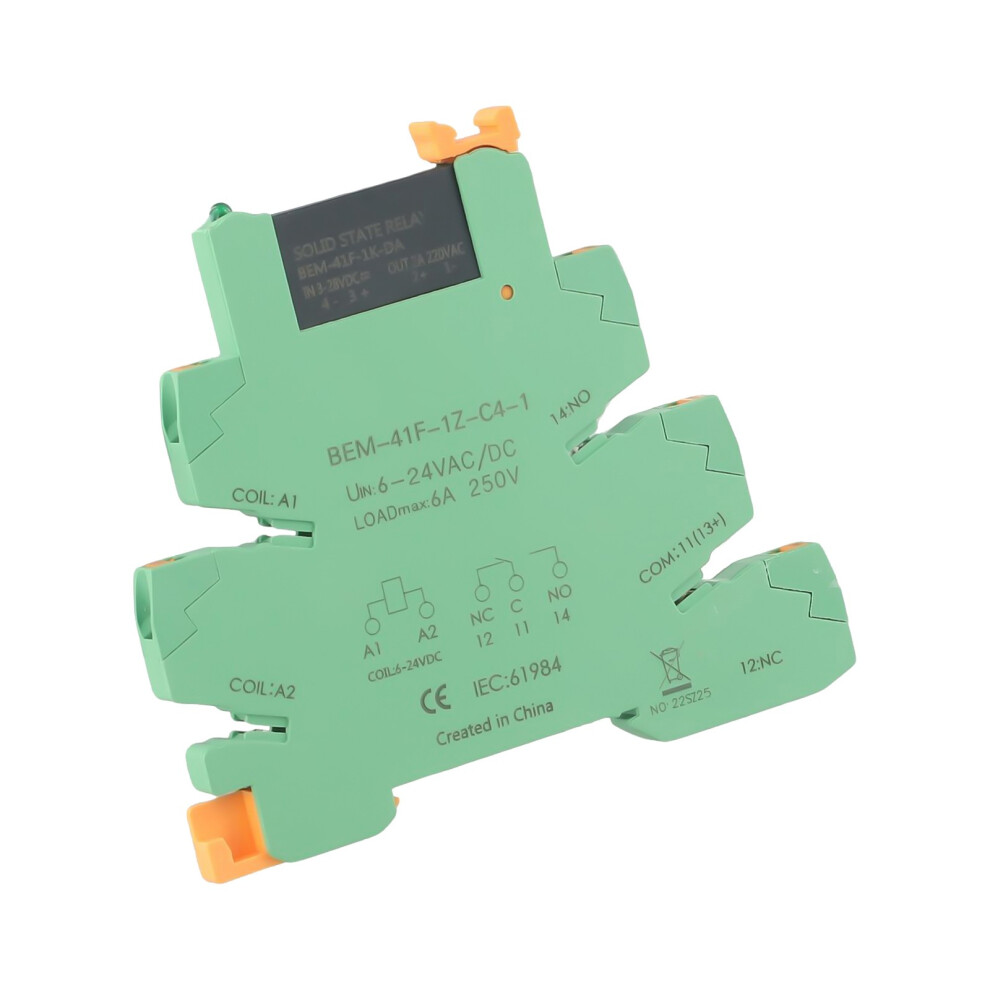

Mosiee Ultra-Thin Relay Module Module Spring Type Thin Chip 41F-1Z-C4-1-V SSR Thin Solid State Relay 250VAC 6A 5-20mA For CNC Lathes

Mosiee Ultra-Thin Relay Module Module Spring Type Thin Chip 41F-1Z-C4-1-V SSR Thin Solid State Relay 250VAC 6A 5-20mA For CNC Lathes Description

Feature: *Large-diameter wiring holes optimize wiring s and achieve wiring standardization *Ultra-thin thickness, saving space: The width is only 6.2mm, replacing traditional relays and effectively utilizing space, saving about 70% of space and improving performance. *Insulated shell, 35MM guide rail installation: 35MM standard DIN rail installation is firm and stable (the product does not include guide rails) *LED signal indicator: green indicator light to observe the working status of the relay at any time. *Wide range of use: industrial equipment, CNC lathes, instruments and meters, etc. Specification: Name: Thin Solid State Relay Model: BEM-41F-1Z-C4-1-V Format: 1NO Control voltage: 250VAC 6A Control current: 5-20mA Load voltage: DC: 5-6VDC: AC: 40-300VAC Load current: DC: 2A; AC: 2A On-state voltage reduction: DC1.2; AC1.6 On-off current: DC5S; AC10s Medium pressure resistance: 1500VAC Product size: 93.5*85*6.2mm Thickness: 6.2mm Weight: 0.0307kg Package Contents: 1*Thin Solid State Relay Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data. 【Ultra-thin Design】With a width of only 2mm, this relay module features an ultra-thin thickness, allowing it to save space and replace traditional relays effectively. It can save about 70% of space while improving performance. 【Optimized Wiring】The large-diameter wiring holes optimize wiring operations and achieve wiring standardization, making it easier and more efficient to wire this relay module. 【Sturdy Installation】The insulated shell and 35MM guide rail installation ensure firm and stable installation (the product does not include guide rails). This provides a secure and reliable mounting option. 【LED Signal Indicator】Equipped with a green indicator light, this relay module allows you to conveniently observe the working status of the relay at any time, providing visual for easy monitoring. 【Wide Applications】Suitable for various applications including industrial equipment, CNC lathes, instruments, and meters, this thin solid state relay offers versatility and can be utilized in different scenarios.
