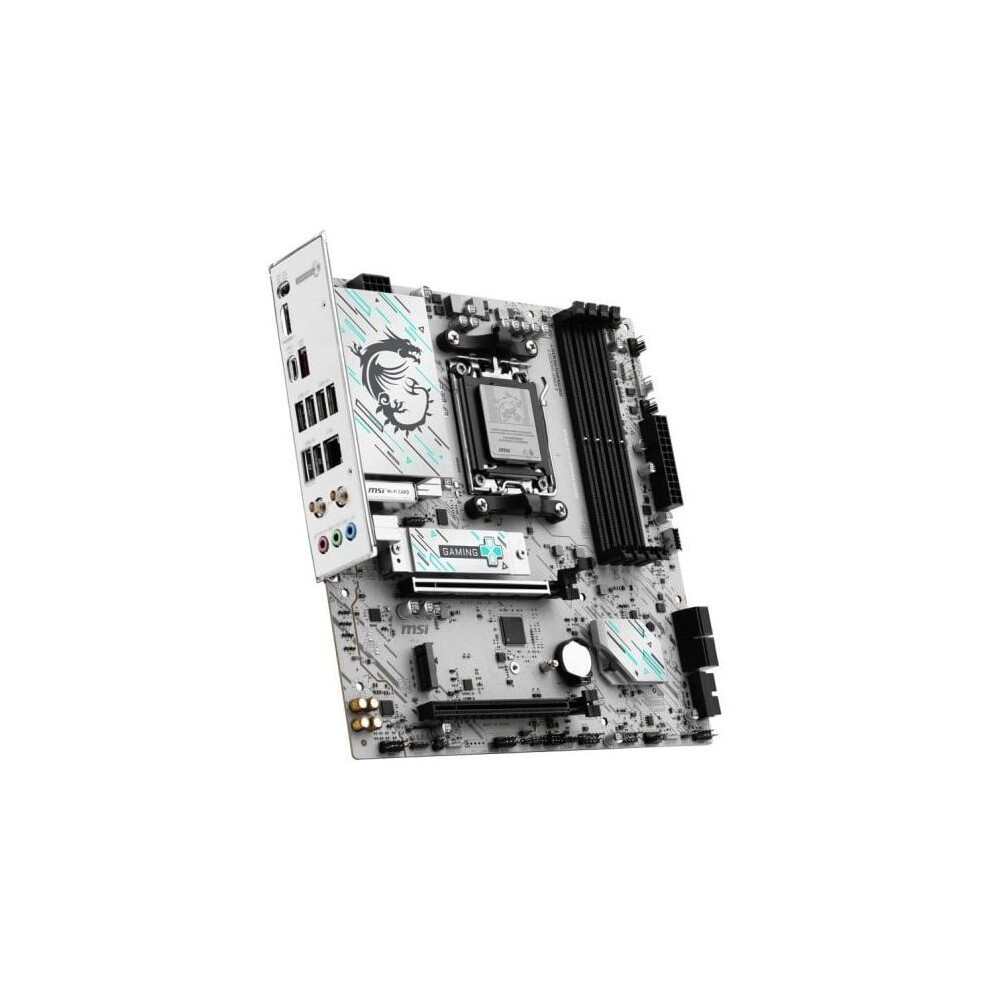

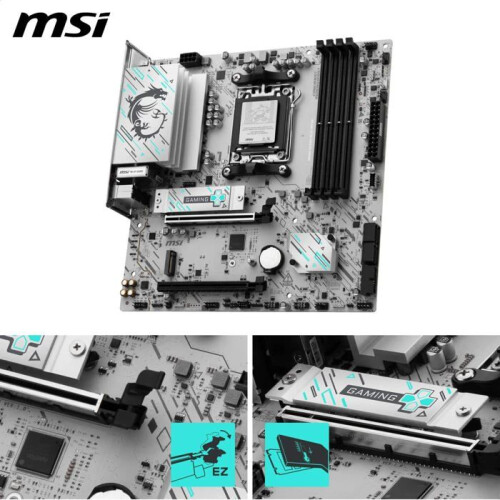

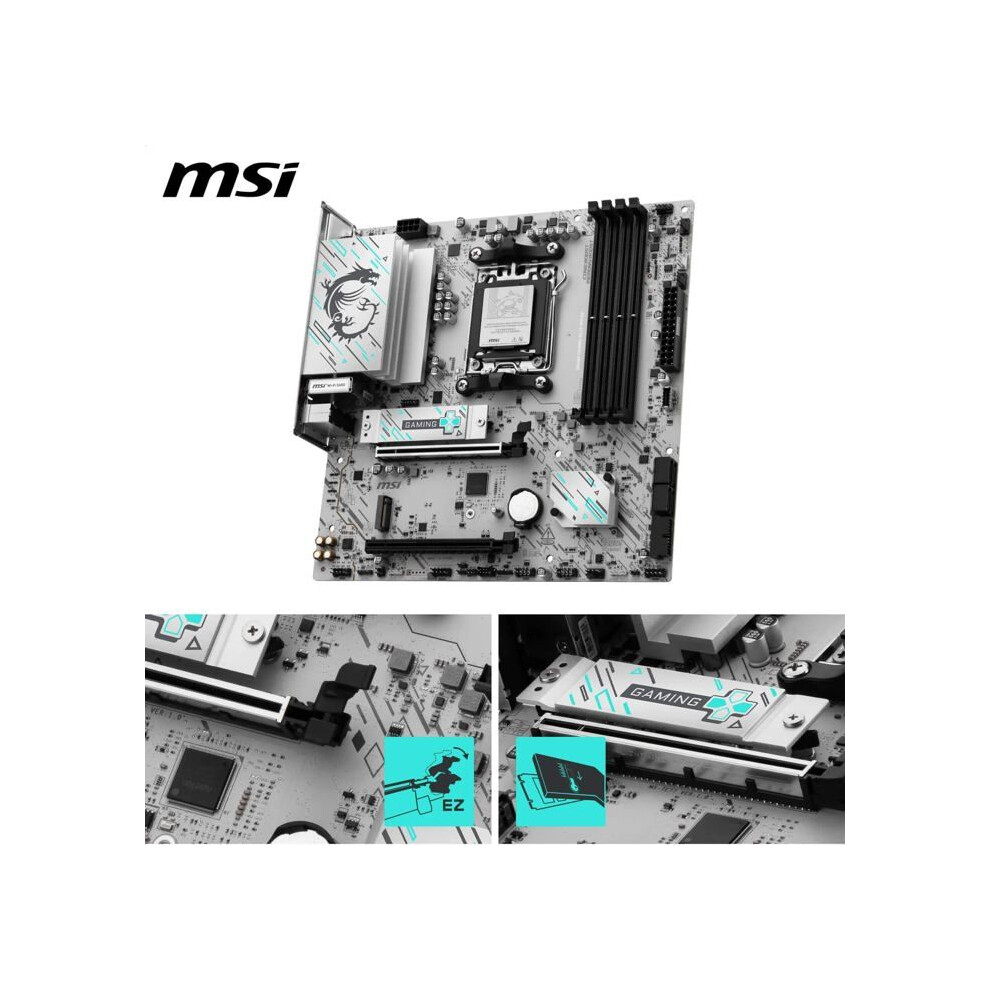

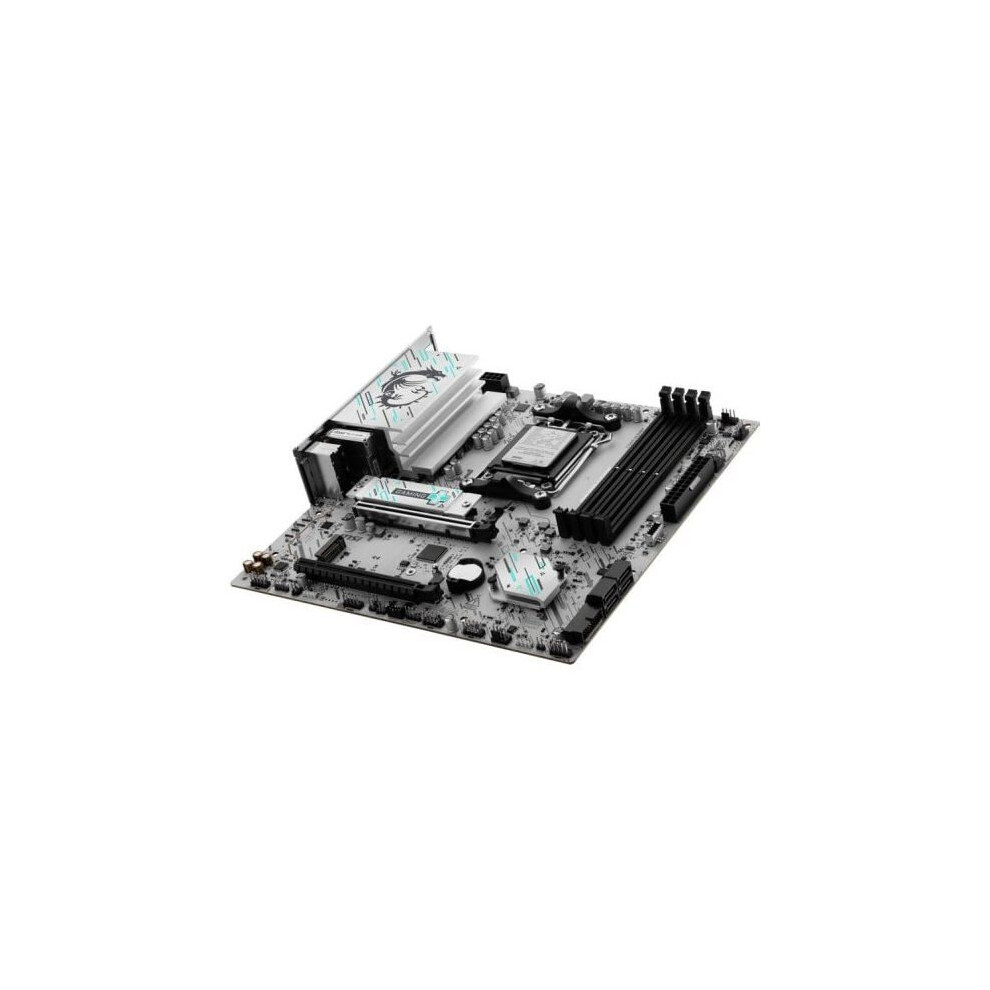

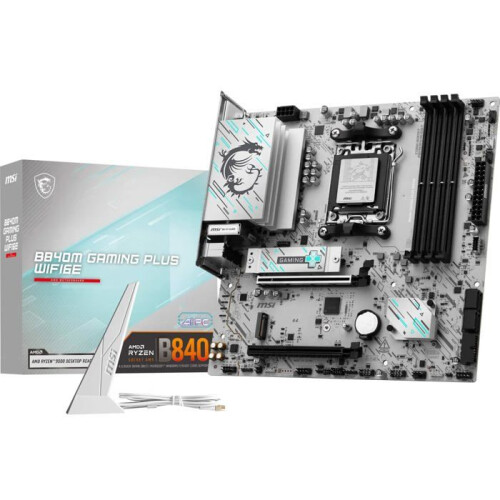

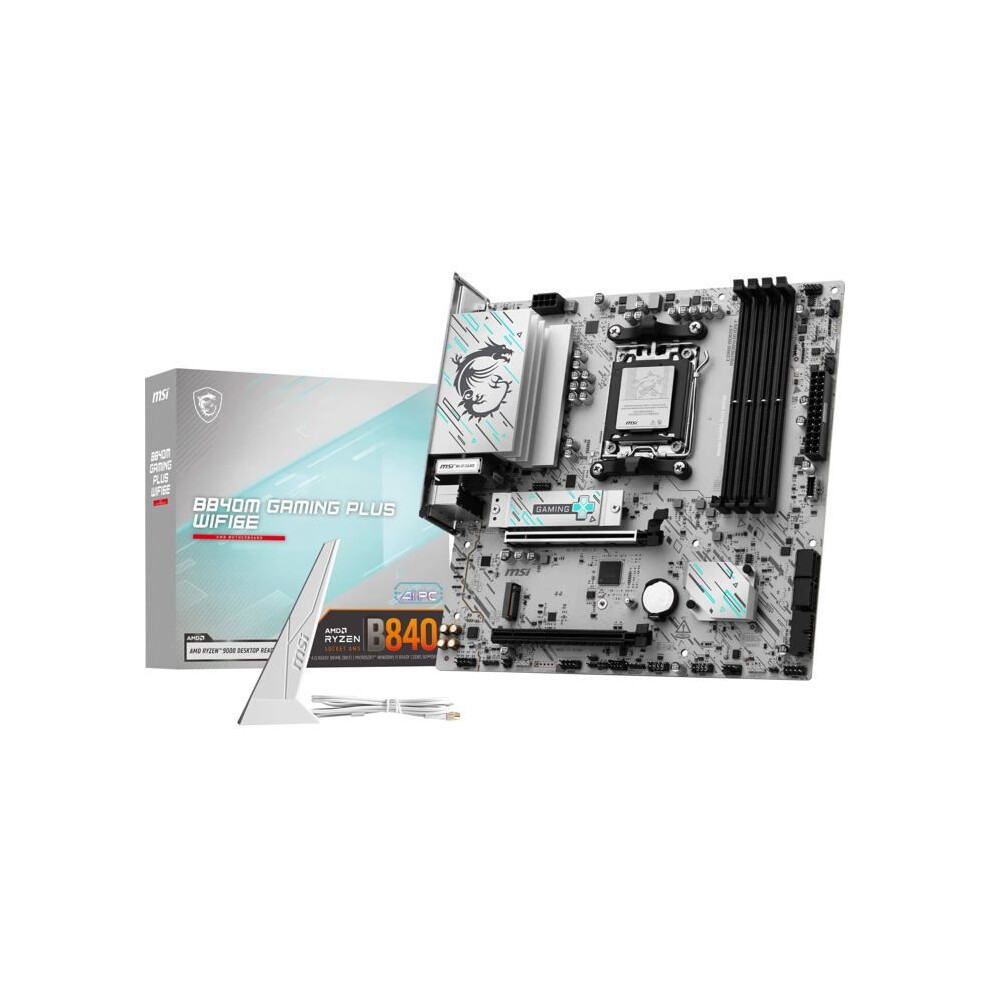

MSI B840M GAMING PLUS WIFI6E
Brand MSI
New
Hurry only 1 left
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 135,000 Trustpilot reviews and an 'Excellent' rating
£181.48
FREE Delivery
1%
Earn £1.81 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 8th - Sat 10th Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
MSI B840M GAMING PLUS WIFI6E Description
EXCEPTIONAL PERFORMANCE The MSI B840M GAMING PLUS WIFI6E stands out with a cutting-edge architecture featuring a state-of-the-art chipset and an LGA1700 socket, allowing for the use of 12th generation Intel Core processors. With clock speeds reaching up to 5.0 GHz in turbo mode, this motherboard offers impressive responsiveness for the most demanding applications and
Details
| OPC | PKJ6JPK |
|---|---|
| Brand | |
| Codes | 4711377361811 (EAN) |
| Links | MSI Motherboards |
External product information
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Network
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
|---|---|
| Bluetooth version | 5.3 |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8125D |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Features
| Motherboard chipset | AMD B840 |
|---|---|
| Motherboard form factor | micro ATX |
| Product colour | White |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC897 |
Processor
| Processor manufacturer | AMD |
|---|---|
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| BIOS type | UEFI AMI |
| ACPI version | 6.5 |
| System Management BIOS (SMBIOS) version | 3.7 |
Memory
| Maximum internal memory | 256 GB |
|---|---|
| Supported memory clock speeds | 4800,5600,8000 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | Non-ECC |
Storage controllers
| RAID levels | 0, 1, 10 |
|---|---|
| Number of HDDs supported | 4 |
| RAID support | Yes |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, Micro SATA III |
Weight & dimensions
| Width | 243.8 mm |
|---|---|
| Depth | 243.8 mm |
Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Internal I/O
| USB 2.0 connectors | 4 |
|---|---|
| Number of chassis fan connectors | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 4 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |
| Number of CPU fan connectors | 1 |
| Number of water pump connectors | 1 |
Expansion slots
| PCI Express x16 slots | 2 |
|---|---|
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
Graphics
| On-board graphics card | No |
|---|
