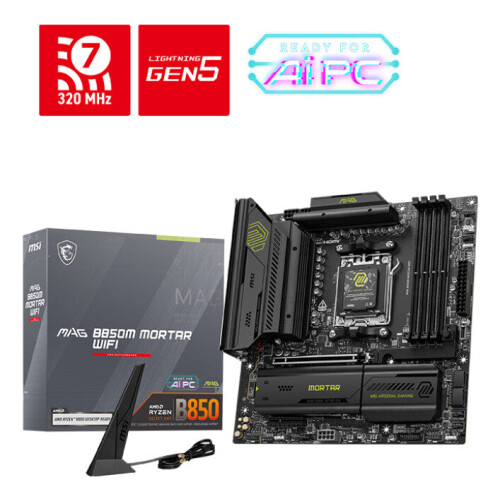

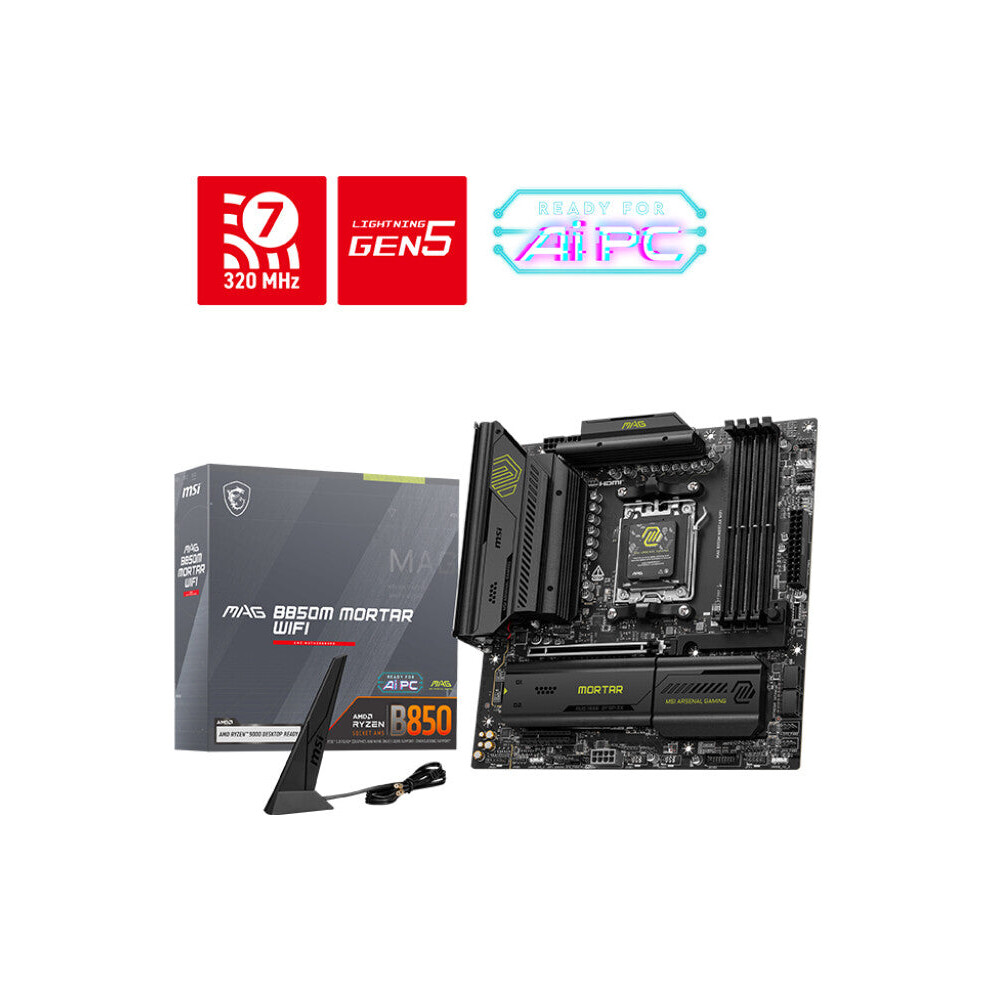

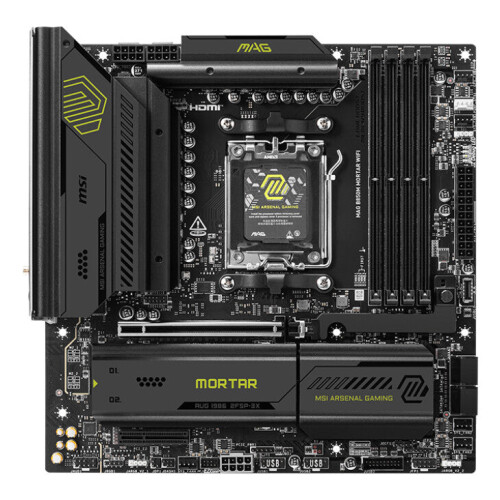

MSI MAG B850M MORTAR WIFI motherboard AMD B850 Socket AM5 micro ATX

• Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
• Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
• 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
• Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

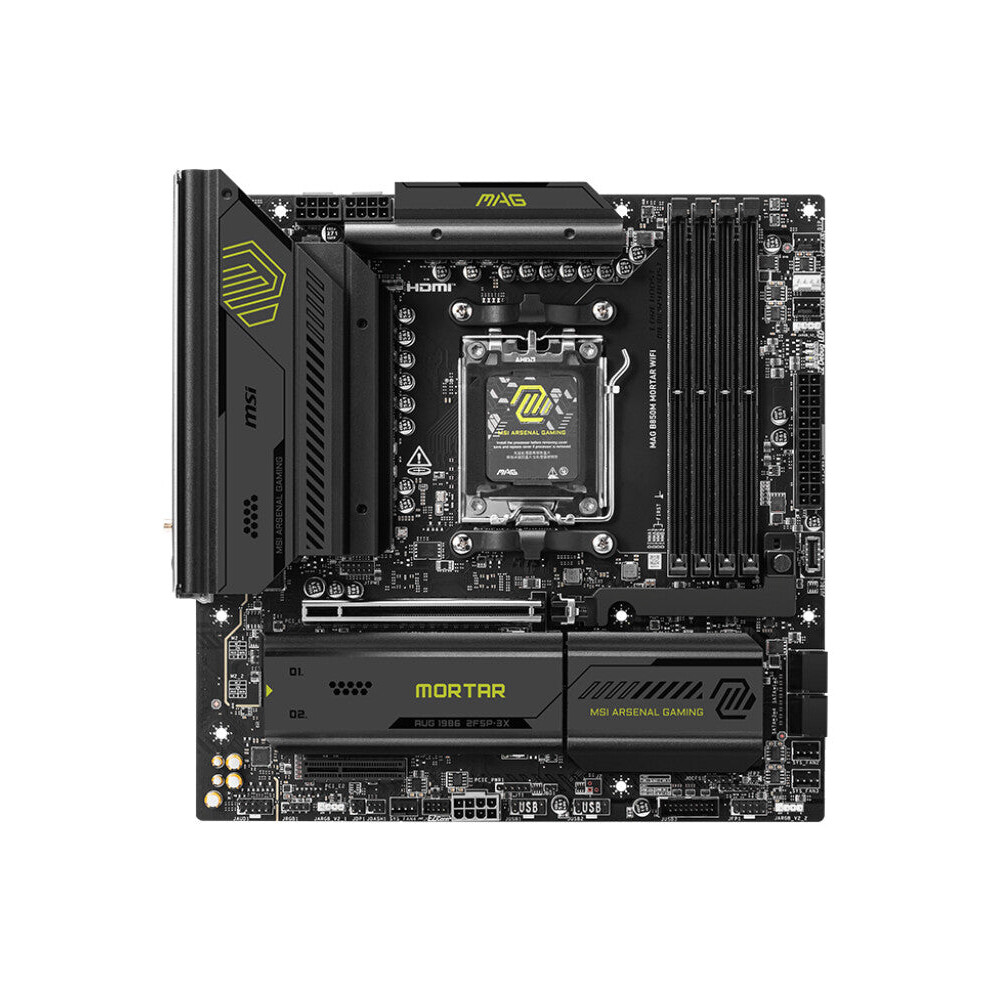

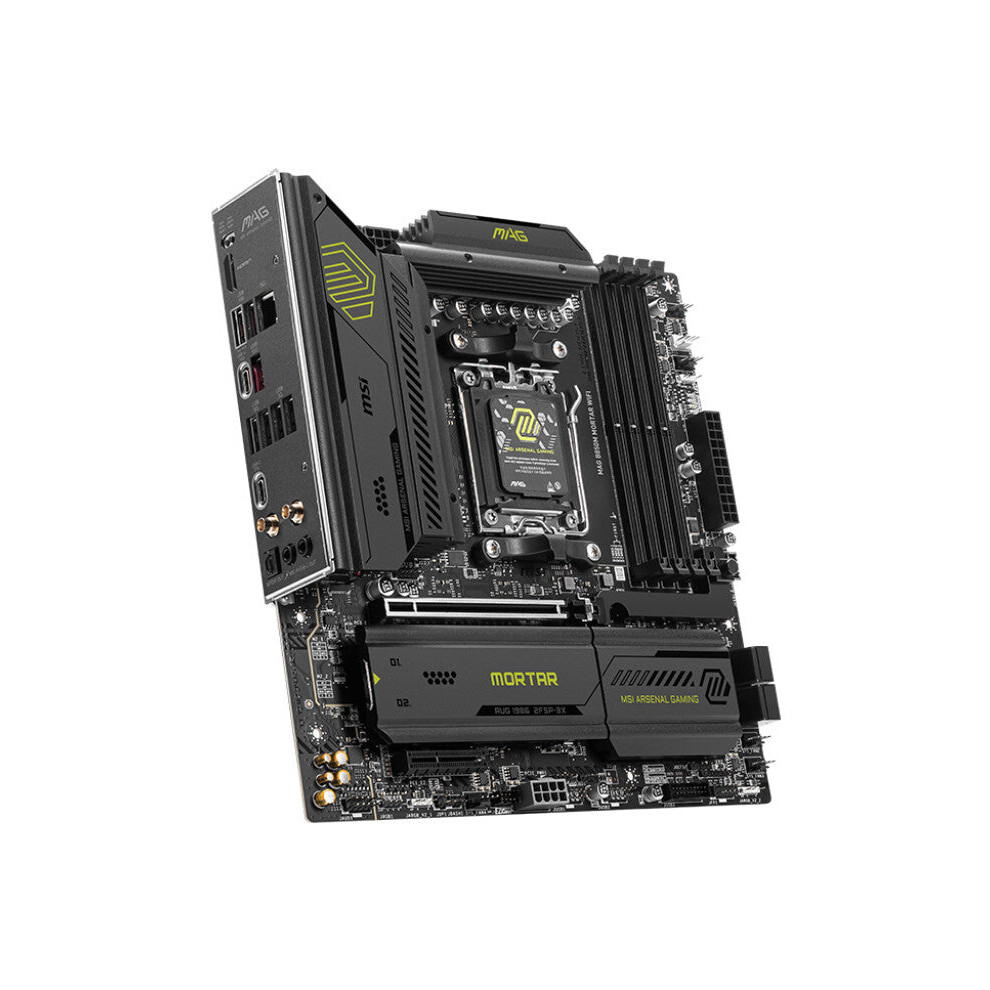

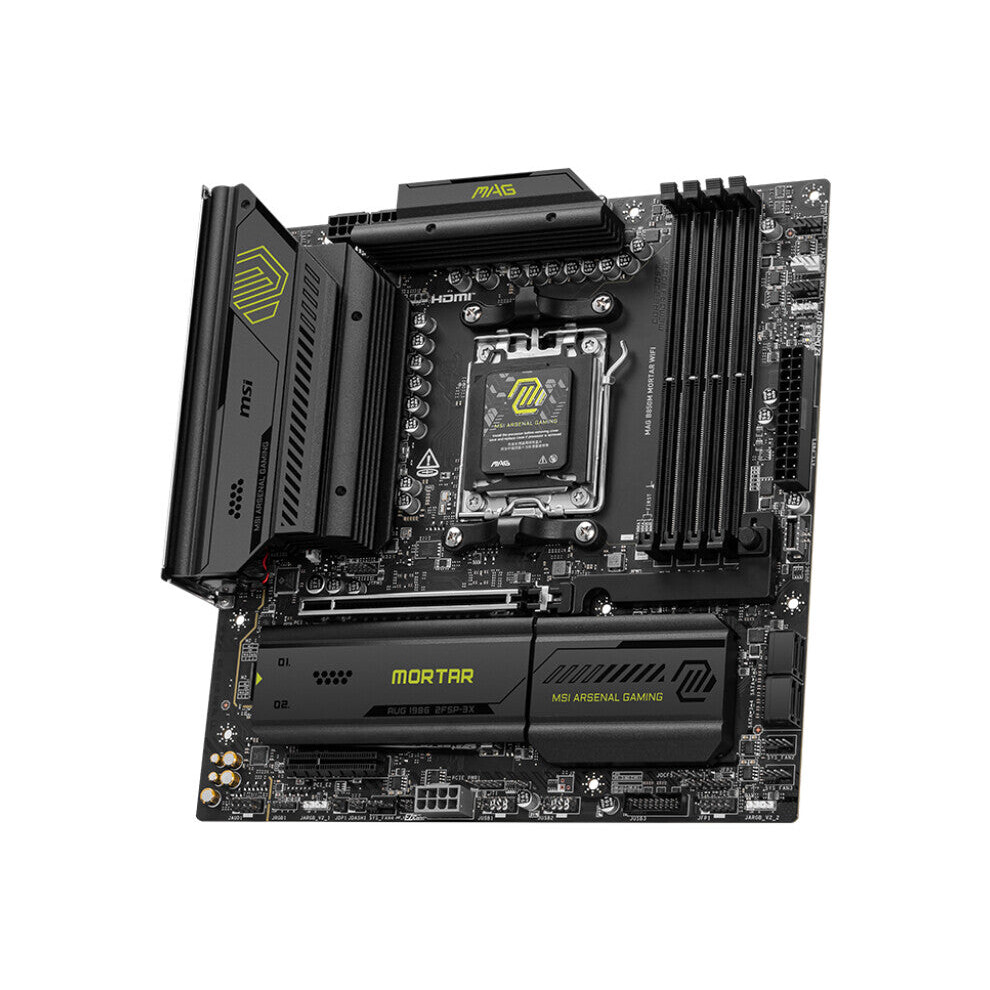

MSI MAG B850M MORTAR WIFI
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen 9000 series processors.

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

ProcessorSupported processor socketsSocket AM5Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 SeriesProcessor socketSocket AM5Processor manufacturerAMDMemoryMaximum internal memory256 GBSupported memory clock speed (max)8200 MHzSupported memory clock speeds4800,5600,8200 MHzECC ompatibilityNon-ECCMemory channelsDual-channelMemory slots typeDIMMNumber of memory slots4Supported memory typesDDR5-SDRAMStorage controllersRAID levels0, 1, 10RAID supportYesNumber of storage drives supported7Number of HDDs supported4Supported storage drive interfacesM.2, Micro SATA IIISupported storage drive typesHDD & SSDGraphicsOn-board graphics cardNoInternal I/ONumber of RGB LED pin headers3RGB LED pin headerYesNumber of water pump connectors1Number of CPU fan connectors2CPU fan connectorYesTotal number of SATA connectors4Number of SATA III connectors4USB 3.2 Gen 2 (3.1 Gen 2) connectors1USB 3.2 Gen 1 (3.1 Gen 1) connectors2USB 2.0 connectors4Rear panel I/O portsHDMI version2.1HDMI ports quantity1Ethernet LAN (RJ-45) ports1USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4NetworkBluetooth version5.4BluetoothYesWi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)Top Wi-Fi standardWi-Fi 7 (802.11be)Wi-FiYesEthernet interface type5 Gigabit EthernetEthernet LANYesFeaturesWindows operating systems supportedWindows 11 x64Product colourBlackAudio output channels7.1 channelsAudio chipRealtek ALC4080Motherboard chipsetAMD B850Motherboard chipset familyAMDMotherboard form factormicro ATXComponent forPCExpansion slots3rd M.2 highest PCI Express generation4.03rd M.2 largest key size22802nd M.2 highest PCI Express generation5.02nd M.2 largest key size22801st M.2 highest PCI Express generation5.01st M.2 largest key size2280Number of M.2 (M) slots3PCI Express x16 (Gen 5.x) slots1PCI Express x16 (Gen 3.x) slots1PCI Express x16 (Gen 4.x) slots1BIOSSystem Management BIOS (SMBIOS) version3.7ACPI version6.5BIOS memory size256 MbitBIOS typeUEFI AMIWeight & dimensionsDepth243.8 mmWidth243.8 mm
