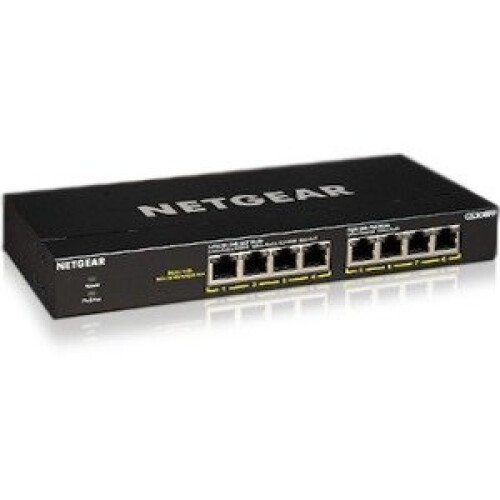

Netgear Gs308Pp. Switch Type: Unmanaged. Basic Switching Rj-45 Ethernet Por GS308PP-100EUS

Netgear Gs308Pp. Switch Type: Unmanaged. Basic Switching Rj-45 Ethernet Por GS308PP-100EUS Description

Netgear GS308PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE) NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. nn The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.nn NETGEAR's unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level
Performance

Mean time between failures (MTBF)2752476 h

Design

Housing materialMetal
Product colourBlack

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportY

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power connectorDC-in jack

Power

DC input voltage54 V
Input current1.66 A
Power consumption (max)87.9 W

Data transmission

Switching capacity16 Gbit/s
Jumbo frames9216
Jumbo frames supportY
Latency (1 Gbps)3 -s
MAC address table4000 entries
Packet buffer memory0.192 MB
Packet forwarding rate (1 Gbps)1448000 pps


Power over Ethernet (PoE)

Power over Ethernet (PoE)Y
Total Power over Ethernet (PoE) budget130 W
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE) power per port30 W

Weight & dimensions

Weight600 g
Height27 mm
Depth102 mm
Width236 mm

Networking

Flow control supportY
Auto MDI/MDI-XY G supportN
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Full duplexY

Operational conditions

Operating temperature (T-T)0 - 40 -C
Heat dissipation300.6 BTU/h
Operating relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 70 -C
Storage relative humidity (H-H)0 - 3000%
