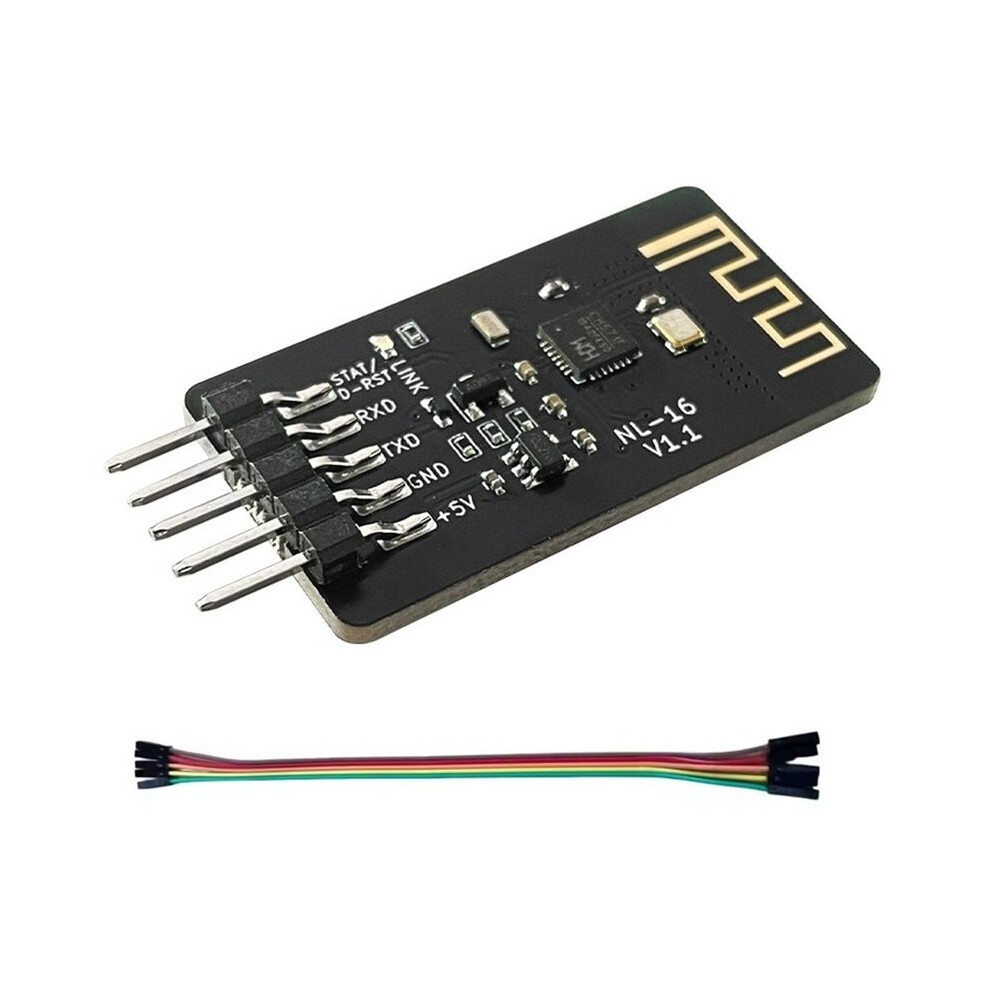

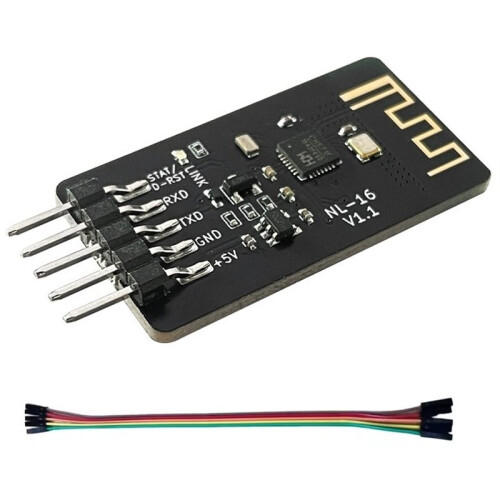

NL-16 BLE 4.2 Module Wireless Serial Transparent Transceiver CH571F Chip RISC-V Core Programmable Module

NL-16 BLE 4.2 Module Wireless Serial Transparent Transceiver CH571F Chip RISC-V Core Programmable Module Description

The NL-16 module is based the 4.2 protocol standard. It operates in the 2.4GHz frequency band using GFSK modulation, with a maximum transmit power of 0dB and a maximum transmission range of 60 meters. It is designed using the CH571F chip.
It supports user configuration via AT commands-allowing for the modification of parameters such as device name, service UUID, transmit power, and pairing password-offering convenience, speed, and flexibility in use.
The NL-16 module enables data transmission between the module and a smartphone or between modules. It defaults to UART communication and allows for rapid implementation of BLE applications through simple AT command configuration.

Specifications
Chipset: CH571F (RISC-V Architecture)
Version: BLE 4.2
Frequency: 2.4GHz ISM Band
Power Consumption: Ultra-low 6mA during transmission (0dBm)
Receiver sensitivity: -96dBm; programmable transmit power: +5dBm.
Transmission range (open field): Approx. 170m at 0dBm transmit power; approx. 240m at 3dBm transmit power.
Supports both serial port and communication; configured via AT commands; supports switching between master and slave modes.
Supports automatic connection to the slave device when in master mode.
Supports wireless uploading of for programs via
MTU Size: to 256 Bytes for high-speed data throughput

Pinout Guide
STAT/D-RST: Status indicator and Reset (Default: Wireless Reset)
RXD: Serial Receive Pin
TXD: Serial Transmit Pin
GND: Ground
+5V: Power Input

Perfect For
Wireless for programming and debugging.
home automation and IoT sensor nodes.
Remote controlled robots and drones.
Industrial data acquisition and wireless monitoring.
