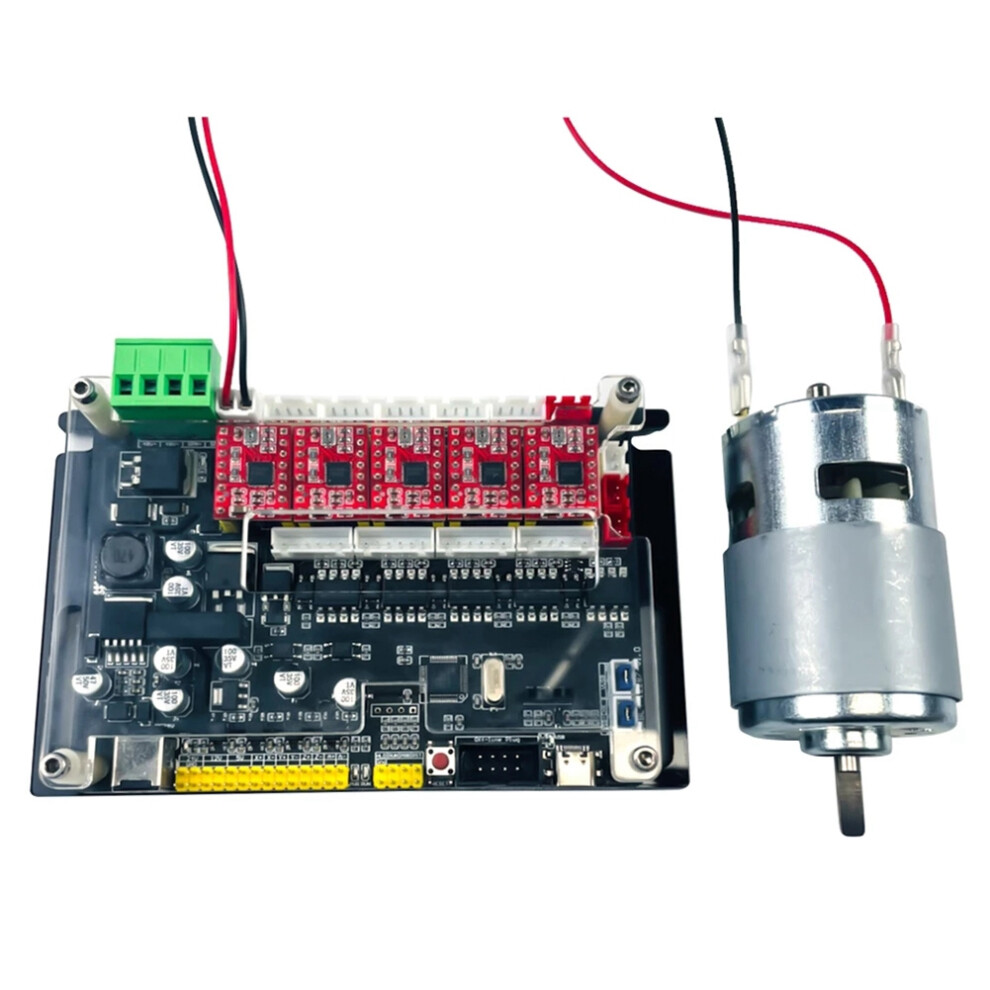

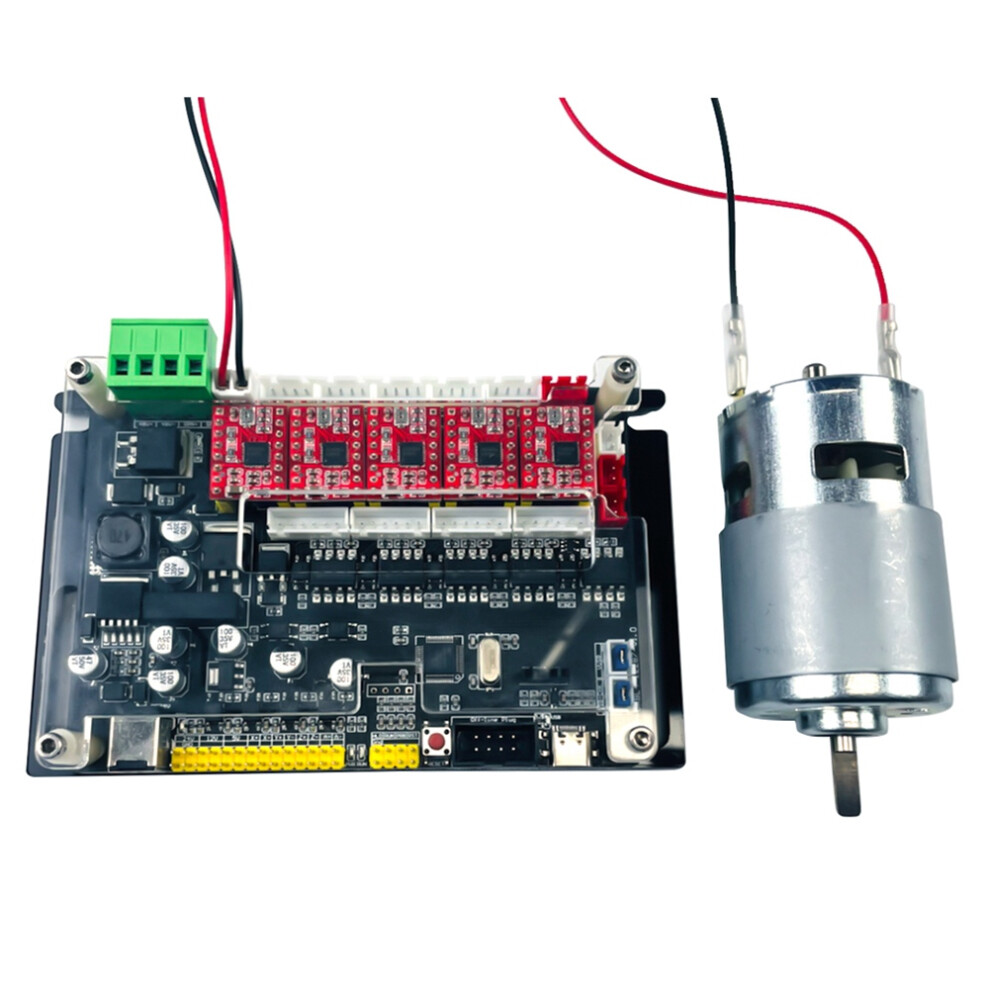

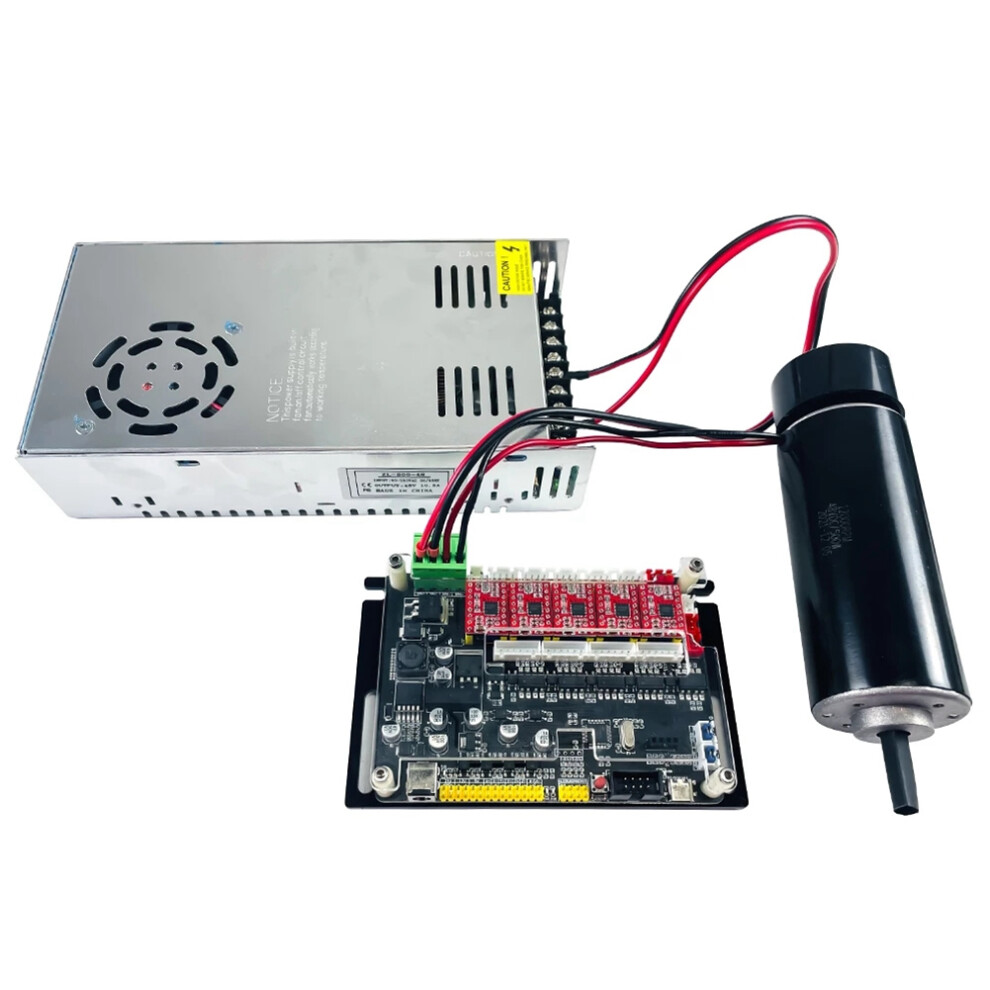

Offline Controller 32-Bit 4 Axis Control Board, GRBL Control, Optical Coupling,with 300W/500W Spindle for CNC Engraver B
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£37.07
£46.58
20% off!
+£1.50 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£1.50) | Mon 20th - Sat 25th Jul
Sold by: YPDblue
Returns: 30 days
180-day payment protection
Most Popular in Ride-on Mower Attachments
Description & Details
Summary
- This control board is a 32-bit MCU control board, which runs faster, the maximum no-load speed reaches 40000mm/min, the algorithm is optimized better, the vibration of the machine is smaller when the machine moves at high speed, and the performance is more stable;
- Using the Type-C USB interface, it is more convenient to use and the data transmission is more stable;

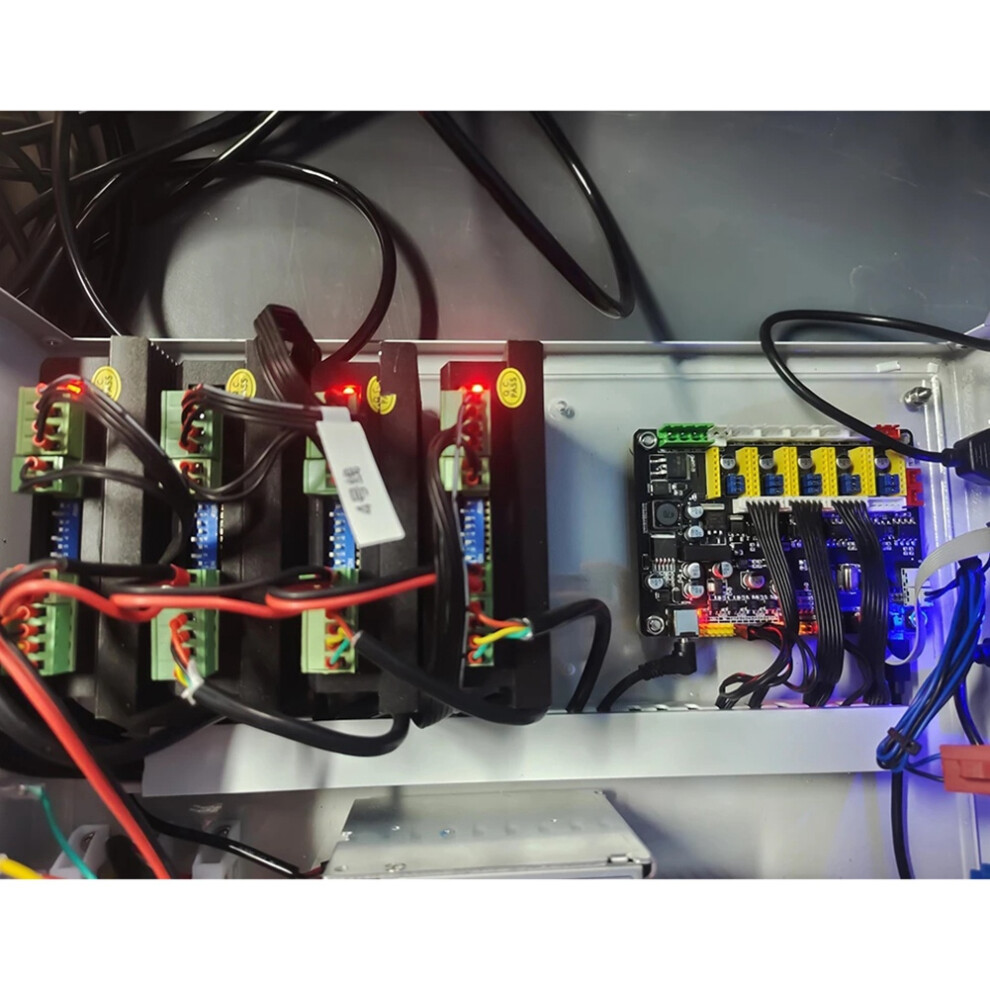

- Support external drive, the reserved interface for external drive is consistent with the high-power drives on the market, which is convenient for wiring;
- The control board power supply and line number circuit are isolated by optocoupler, the whole control board is safer and more stable;
- Y-axis dual drive, stronger drive capability;Support USB automatic identification. When plugged in USB and connected to the computer, it will automatically shield the offline interface to avoid offline interference with data. At the same time, it supports external buttons, which can switch offline/USB control with one key;
Offline Controller 32-Bit 4 Axis Control Board, GRBL Control, Optical Coupling,with 300W/500W Spindle for CNC Engraver B Description

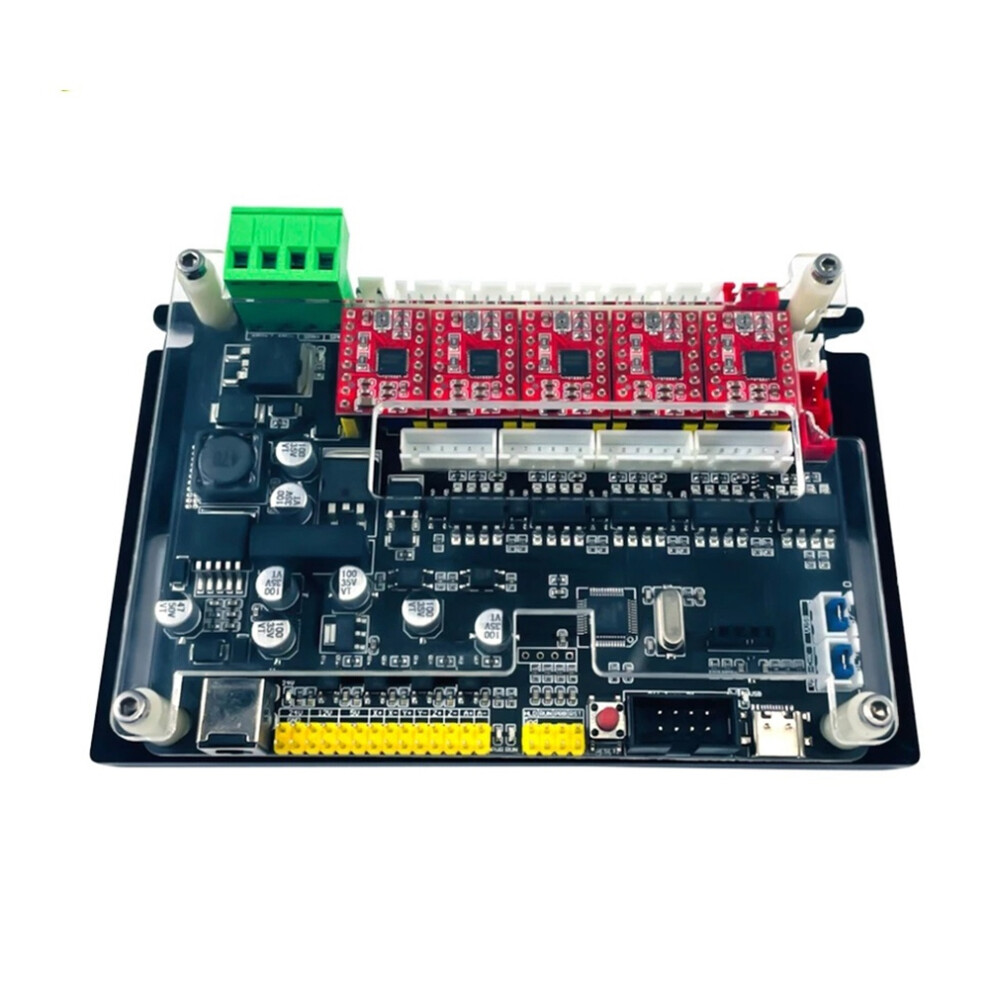

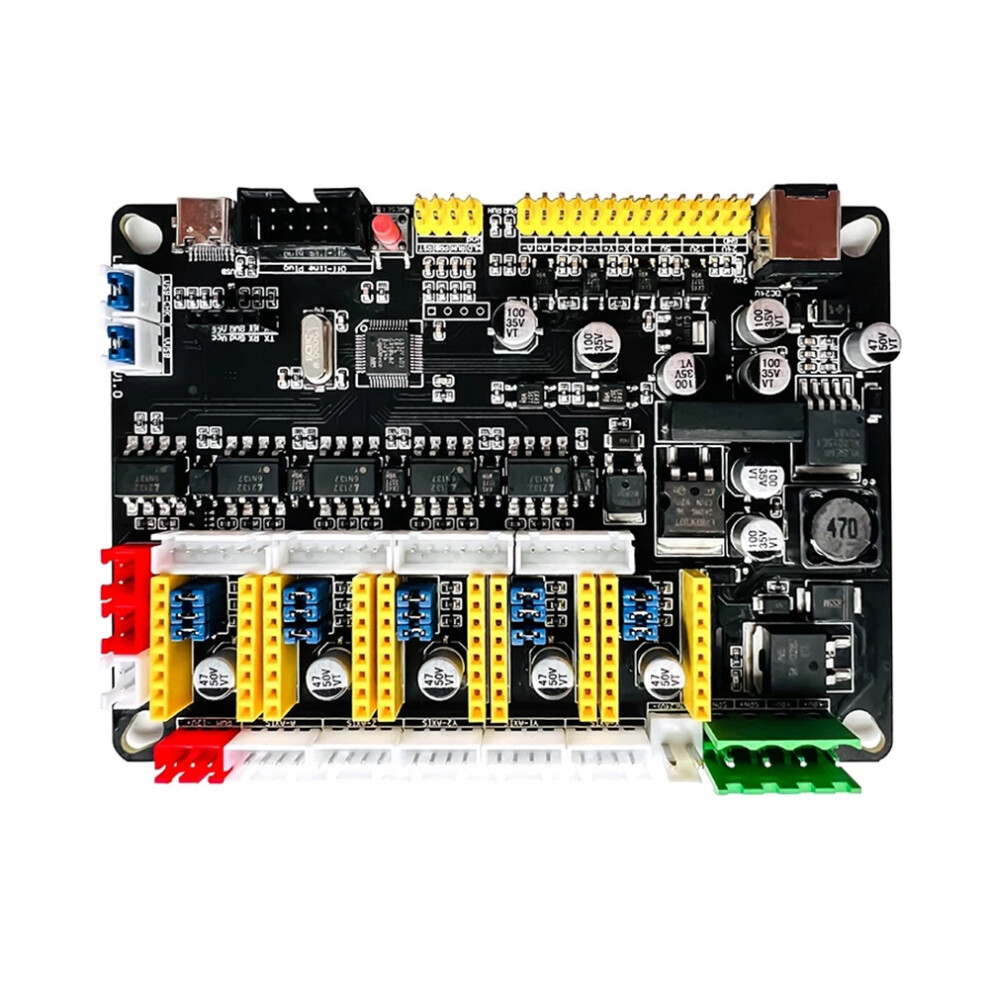

This control board is a 32-bit MCU control board, which runs faster, the maximum no-load speed reaches 40000mm/min, the algorithm is optimized better, the vibration of the machine is smaller when the machine moves at high speed, and the performance is more stable;
Using the Type-C USB interface, it is more convenient to use and the data transmission is more stable;
Support external drive, the reserved interface for external drive is consistent with the high-power drives the market, which is convenient for wiring;
The control board power supply and number circuit are isolated by optocoupler, the whole control board is safer and more stable;
Y-axis dual drive, stronger drive capability;Support USB automatic identification. When plugged in USB and connected to the computer, it will automatically shield the offline interface to avoid offline interference with data. At the same , it supports external buttons, which can offline/USB control with one key;
There are long strip-shaped mounting holes the shell, which is convenient for the installation of various devices;Reserve 24V, 12V, 5V power output to facilitate the expansion of various functions;
Support USB flash firmware, firmware upgrade is more convenient
Product Parameters:
Product Name:4 Axis 3.0
Product Specifications:4 Axis

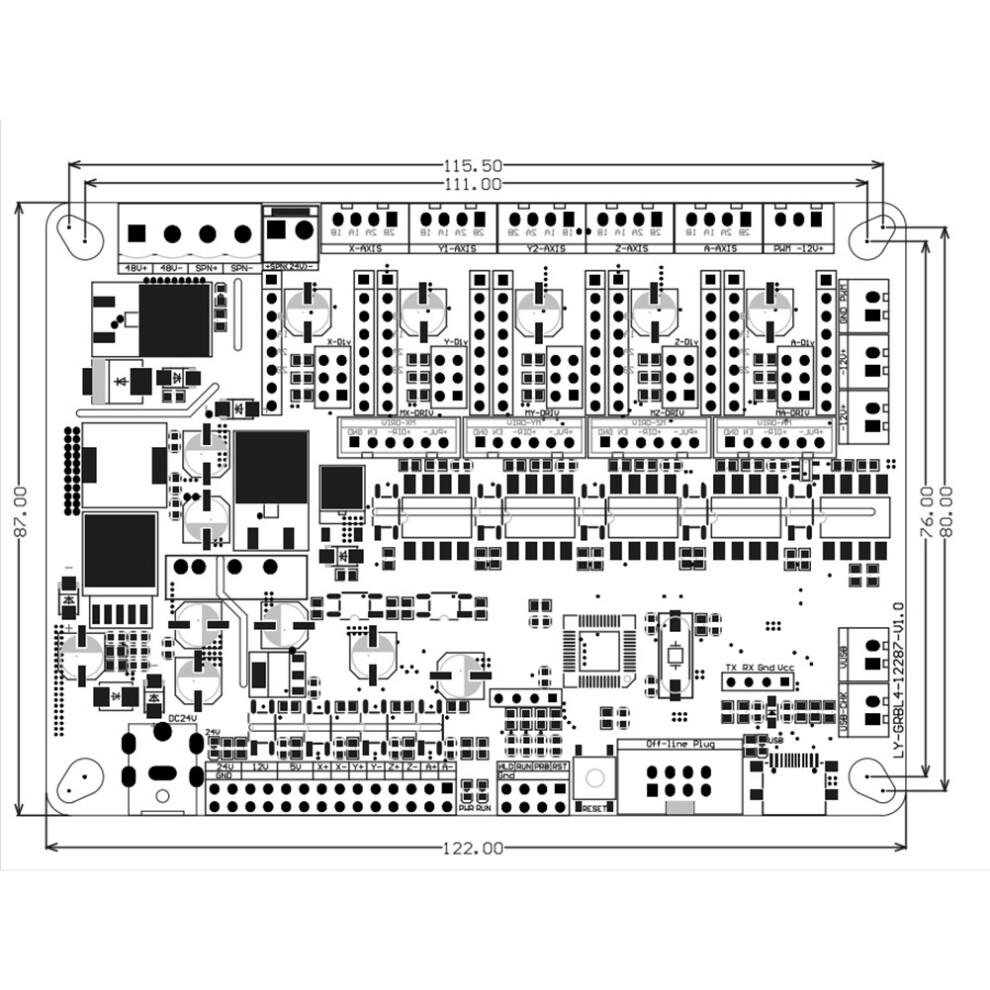

Product Size:122mm x 87mm
Product Weight:150g
Operating System:Window/Linux/
Interface Type:TypeC
Supply Voltage:DC24V- 5A
Style:B
Colour:As shown
Material:Metal
Package Contents:
1 * 4 Axis 3.0 Control Board
Details
| OPC | PRSHRGN |
|---|---|
| Codes | 4713955639060 (EAN) |
Product Data
| Height | 6cm |
|---|---|
| Width | 13cm |
| Length | 21cm |
| Weight | 0.262kg |
| Colour | As shown |
| Size | 1 Pcs |
| Material | Metal |
