Optical Fiber Power Meter Digital Display Optic Cable Tester ?70~+10dbm for Communication 15MW

Optical Fiber Power Meter Digital Display Optic Cable Tester ?70~+10dbm for Communication 15MW Description

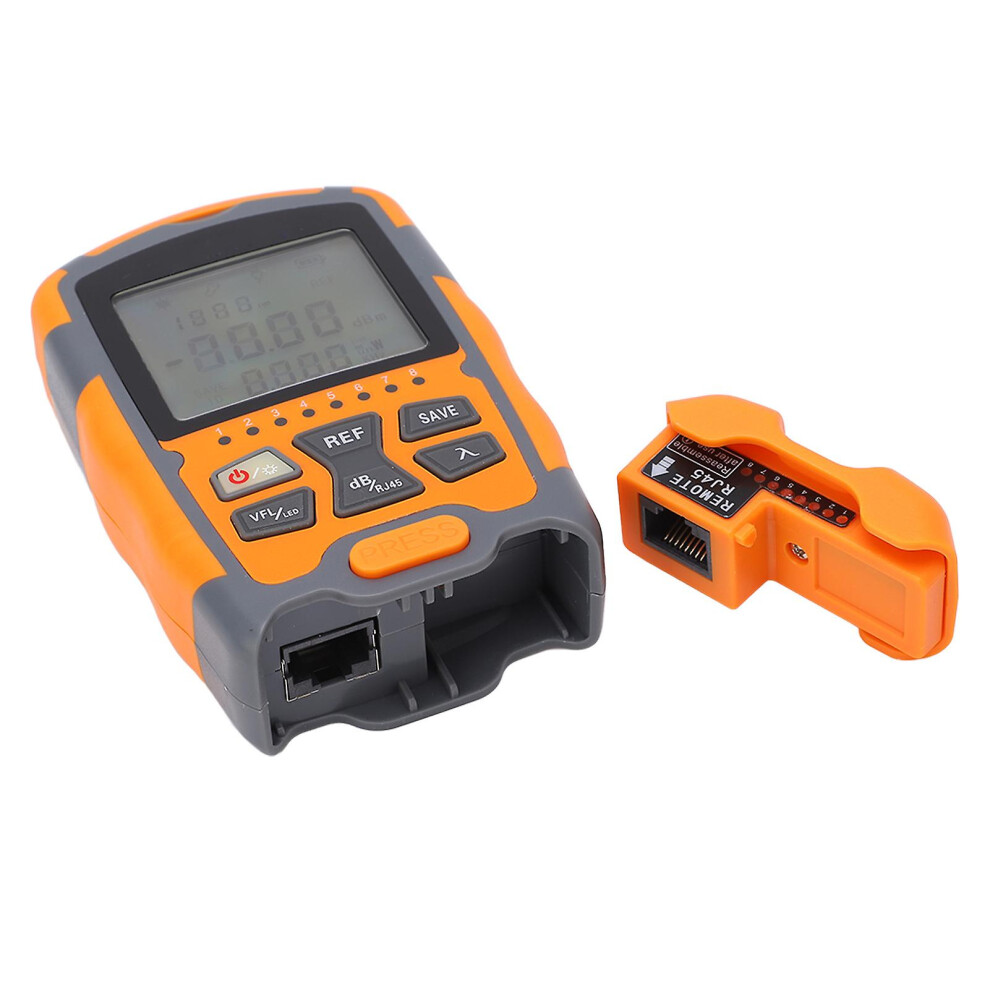

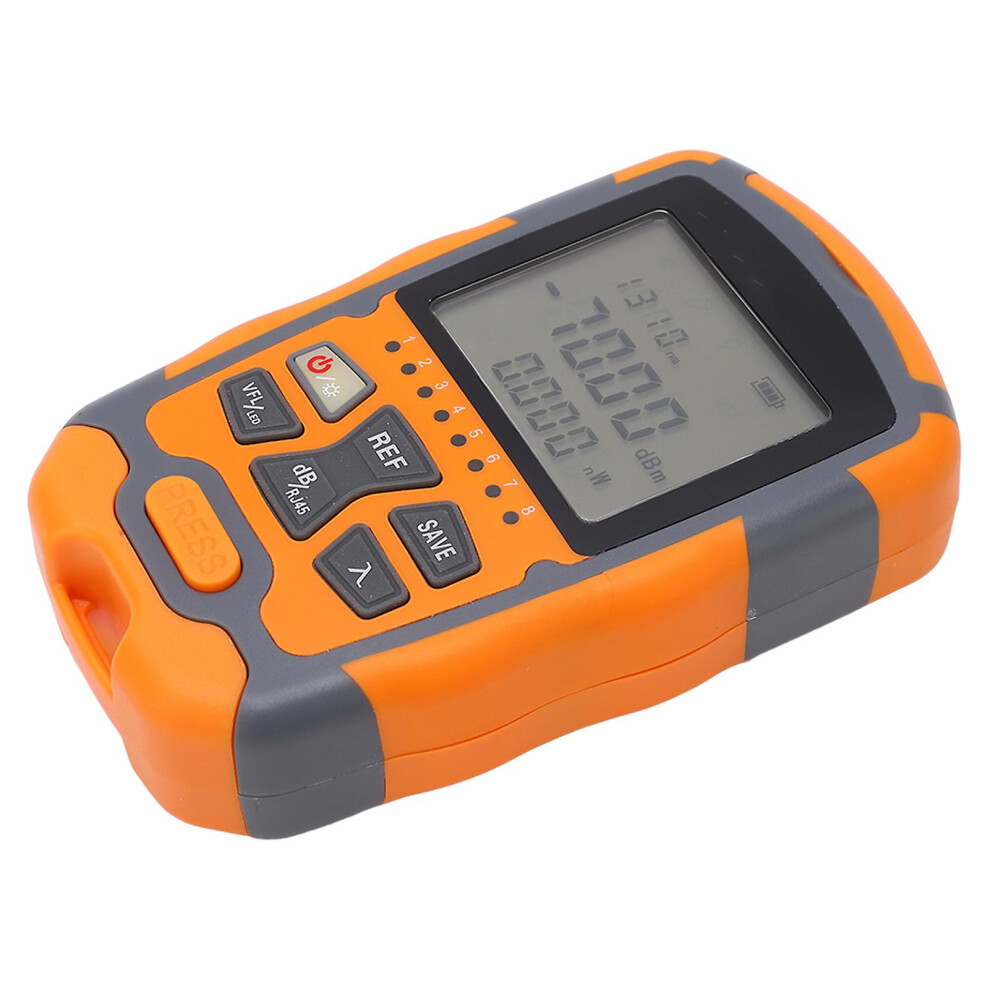

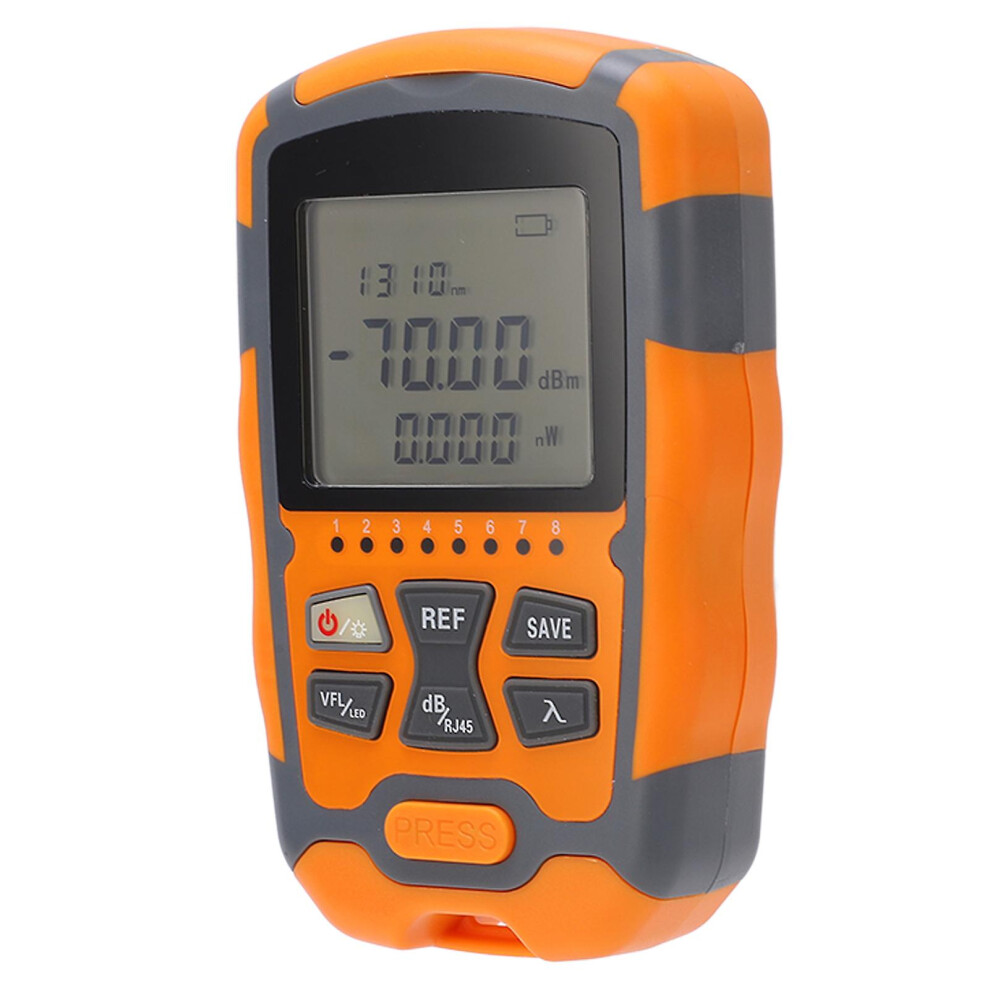

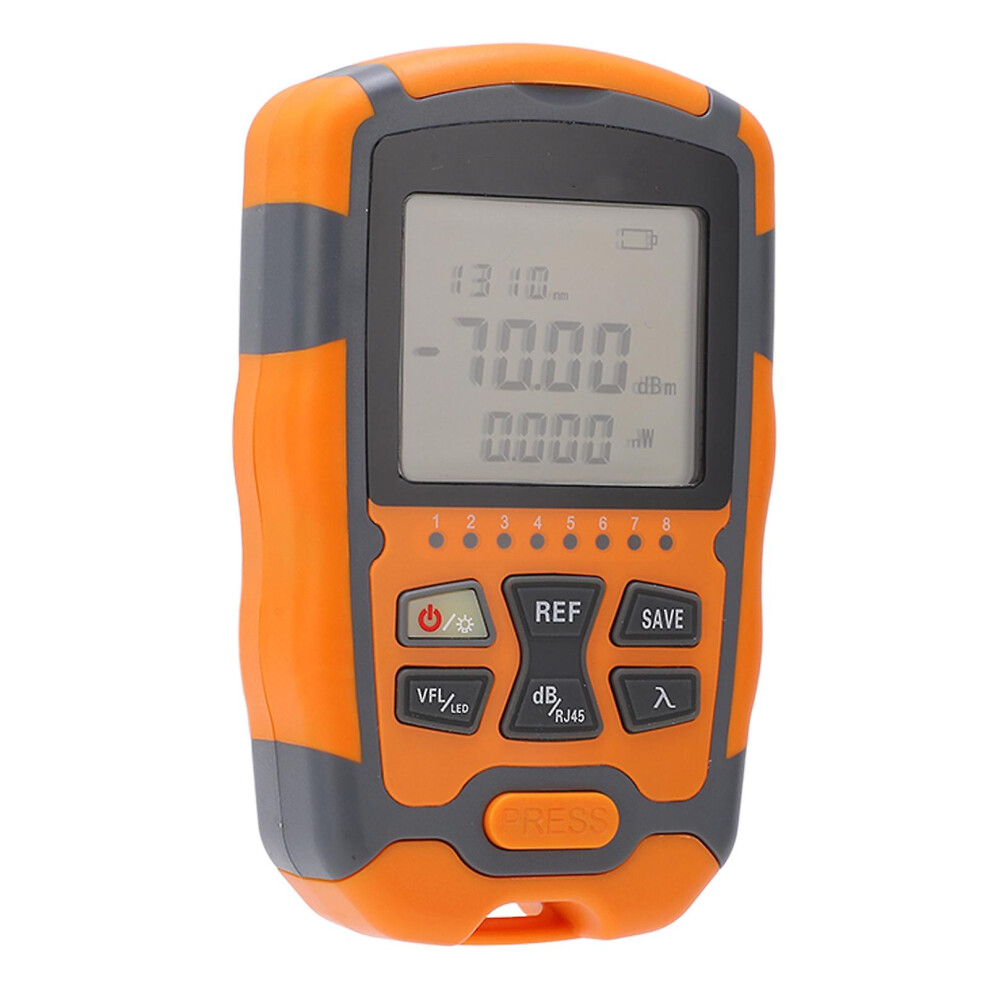

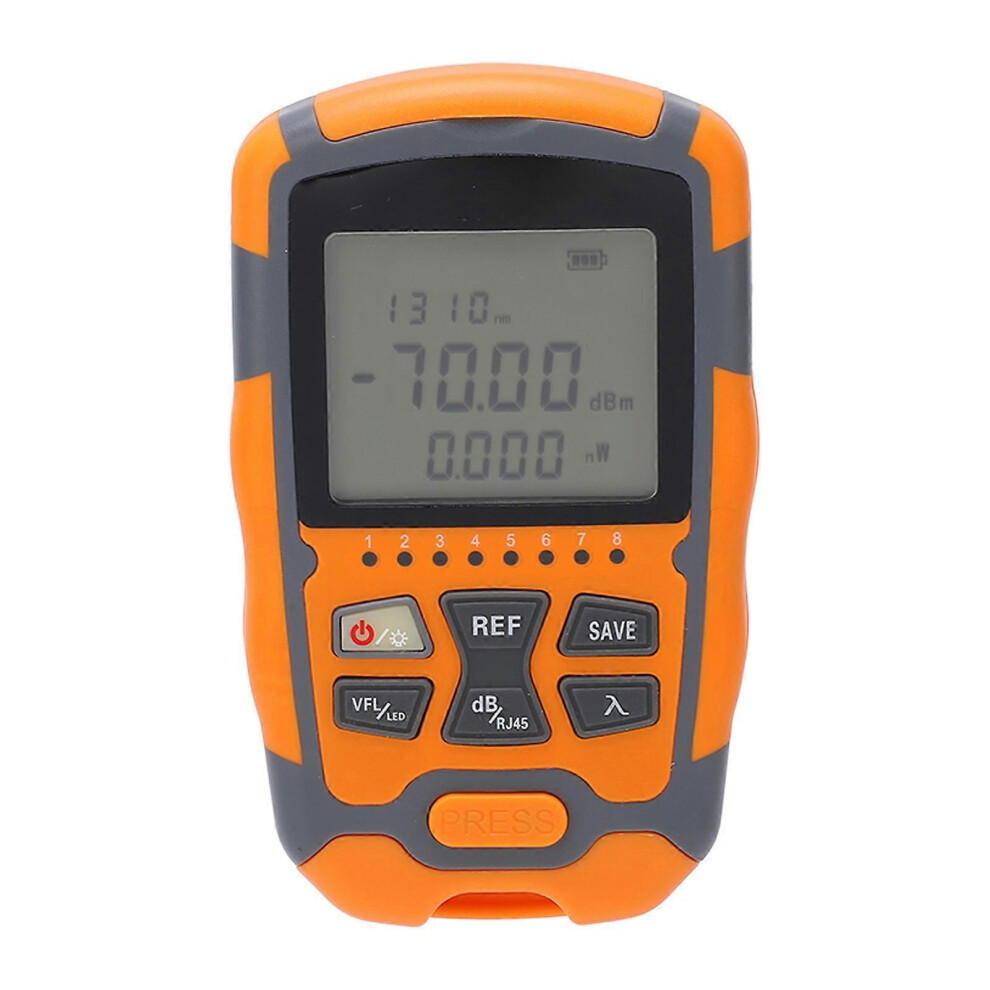

Item Type: Optical Fiber Power Meter
Model: AUA-M70
Material: ABS
Power Supply: 2 x AAA battery, delivered without battery.
Power Measurement Range: -70~+10dbm
Probe Range: InGaAs
Wavelength Range: 850-1650nm
Standard Wavelength (nm): 850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625, 1650
Display Resolution: Linear Display: 0.1%; Logarithmic Display: 0.01dBm.
Working Temperature: -10~+60
Storage Temperature: -25~+70
Automatic Shutdown Time: 10 Minutes
Battery Continuous Working Time: No less than 40 hours.
1、Better Testing: The optic fiber power meter has a wide testing range of -70~+10dbm, which also ensures high accuracy.
2、Reliable Using: Comes with calibration and relative power calculation function, the digital optic cable is easy to use.
3、The Wavelength: 10 kinds of wavelength, 850nm, 980nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm, 1650 nm.
4、Simple Working: Thanks to the sensitive chip and sturdy internal structure, the optic tester is quick in response.
5、Easy Carrying: Designed to have a compact size and a light weight as well, very easy to carry for indoor and outdoor.

1 x Optical Fiber Power Meter

1 x Lanyard

1 x User Manual
