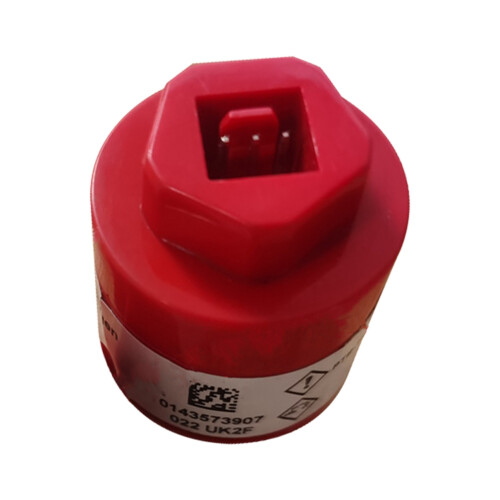

Oxygen Sensor AO-02 Compatible with AO2 AA428-210 AO2PTB-18.10

Oxygen Sensor AO-02 Compatible with AO2 AA428-210 AO2PTB-18.10 Description

The output of the AO2 sensor changes with temperature, but the thermistor is gradually integrated to compensate for these changes. The thermistor is used to give the AO2 a very stable output over a wide temperature range.
The AO2 PTB-18.10 oxygen sensor used in the oxygen index meter is a consumable item. When it comes into contact with air, a chemical reaction begins.

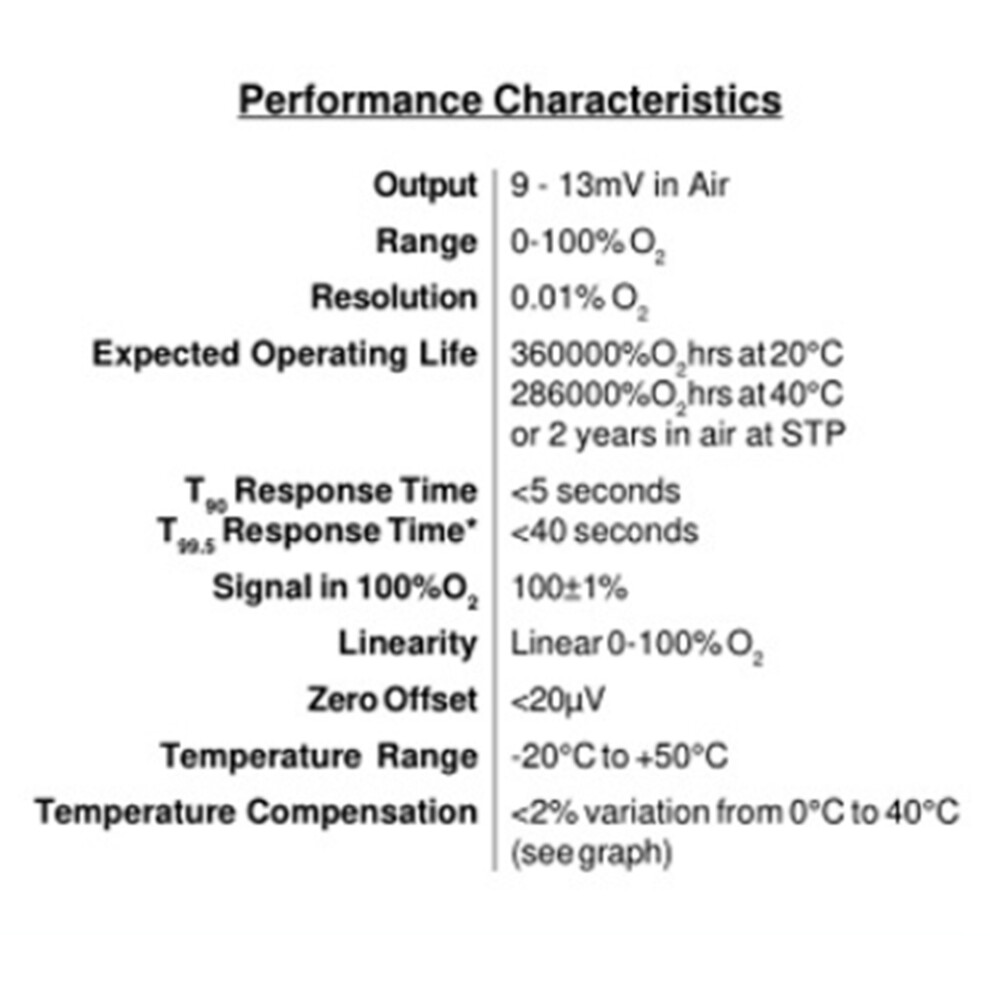

AO2 Product Parameters:
(1) Output:9-13mV in air
(2) Range:0-100%O2
(3) Accuracy:0.01%O2
(4) Expected service life:360,000%O2 hours at 20, 286,000%O2 hours at 40, or two years in air at STP
(5) T90 response time:Less than 5 seconds
(6) T99.5 response time:Less than 40 seconds
(7) 100% oxygen in signal:1001%
(8) Linearity:0-100%O2
(9) Zero offset:Less than 20µV
(10) Temperature range:-20-+50
(11) Temperature compensation:Less than 2% variation 0 to 40(as shown)

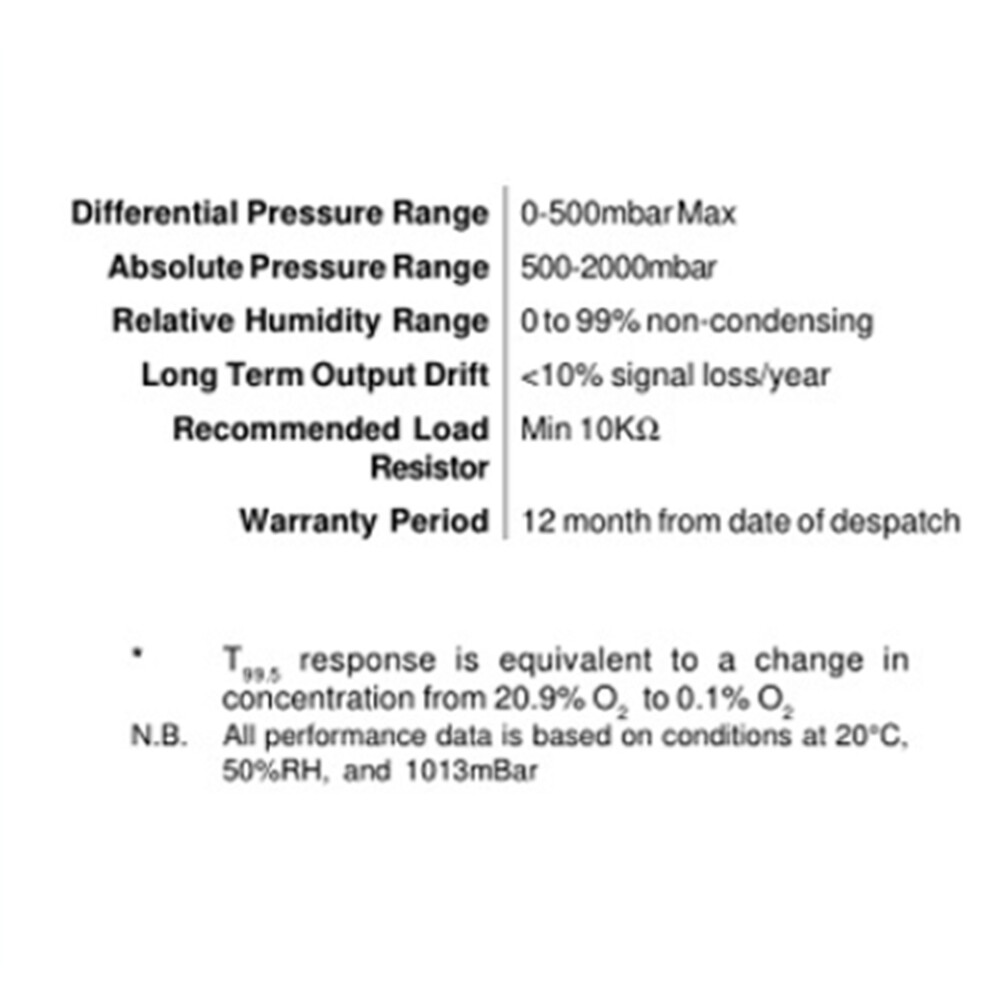

(12) Differential pressure range:0-500mbar Max
(13) Absolute pressure range:500-2000mbar
(14) Relative humidity range:0-99% non-condensing
(15) Long-term output drift:Less than 10% signal loss/year
(16) Recommended load resistance min:10kohm
Note:Due to different production batches, the product appearance slightly, which does not affect the use.
Colour:Red
Material:Plastic

Package Contents:
1 * Oxygen Sensor

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
