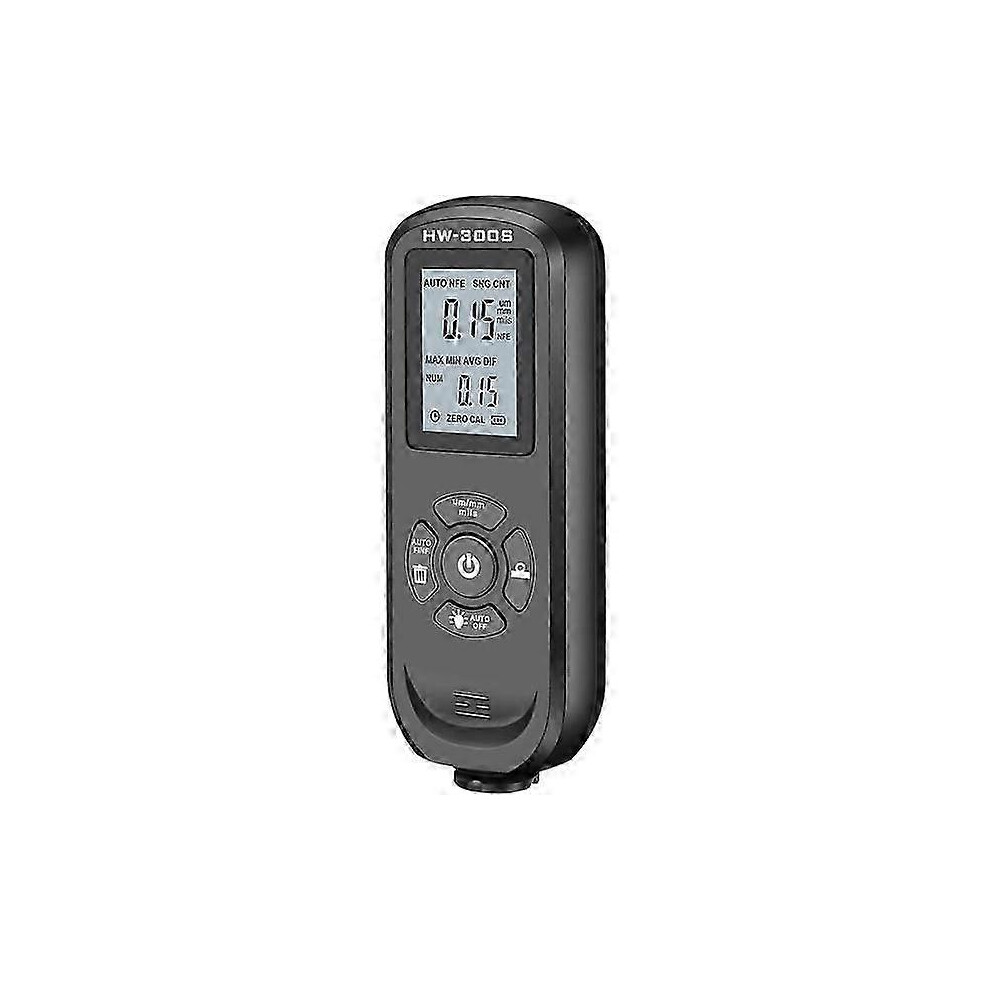

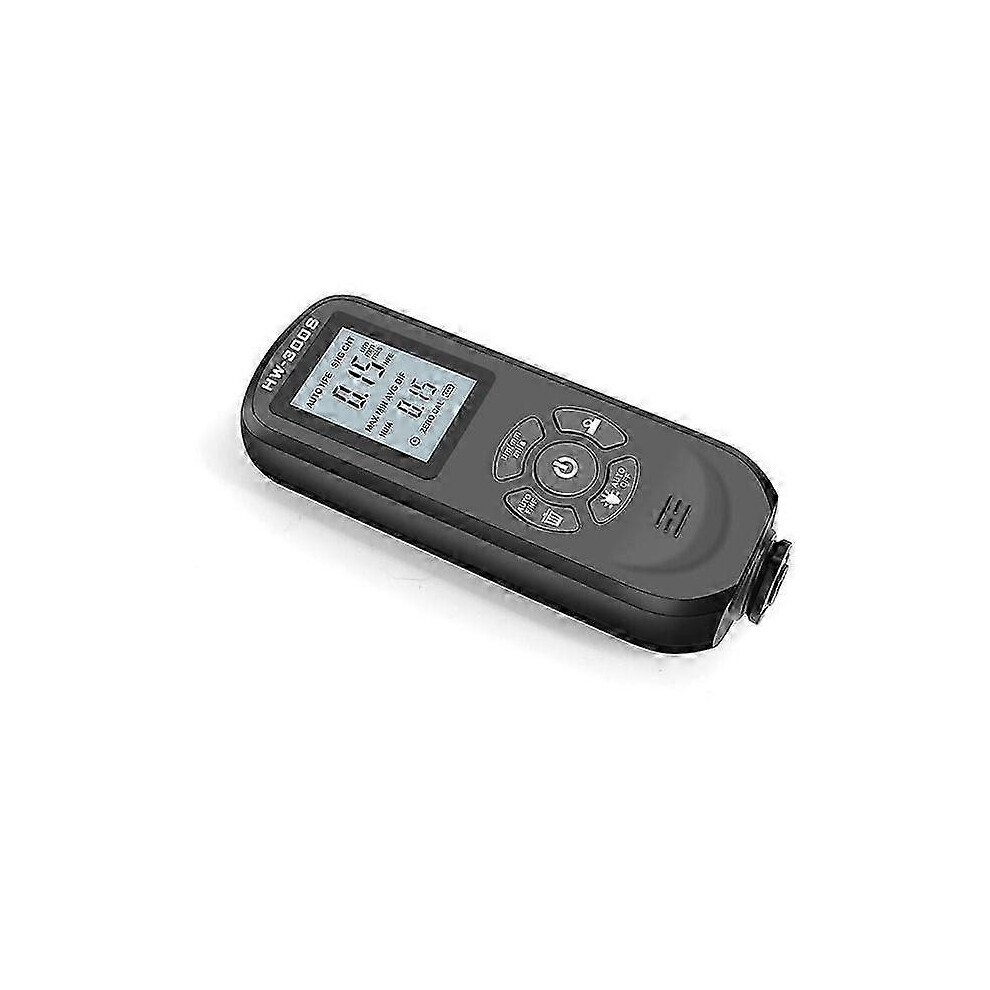

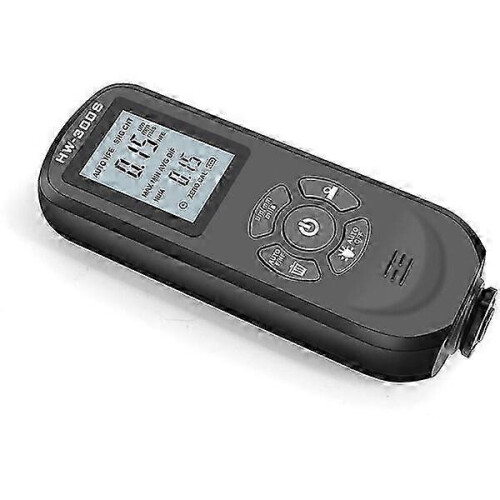

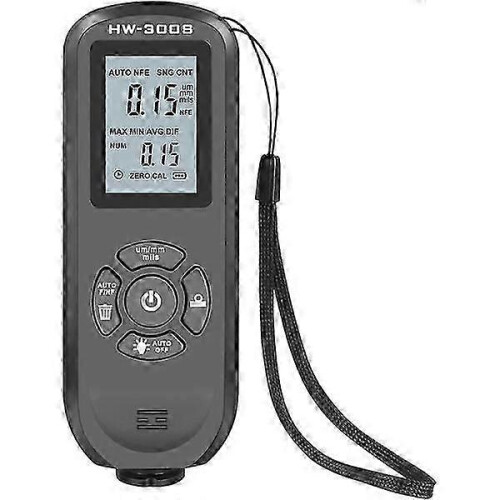

Paint Thickness Gauge, 2 Measurements Per Second, Supports Zero Calibration

Paint Thickness Gauge, 2 Measurements Per Second, Supports Zero Calibration Description

1. Measurement steps:
- Step 1. Prepare the part to be measured.
- Step 2. Keep at least 2 cm away from metal objects and press the switch button to turn on the device. Note: It is recommended to use "zero - point calibration" to zero the device before testing.
- Step 3. Place the probe vertically and quickly on the surface to be measured until you hear a drop sound and the screen displays the measurement value. Then lift the probe at least 2 cm away from the part to be measured, and another measurement can be carried out. Note: If the automatic shutdown function is activated and no operation is performed within 3 minutes, the meter will automatically turn off.
2. Specifications:
- Material: ABS
- Color: Orange, black (optional)
- Display screen: Horizontal, vertical (optional)
- Measurement range: 0 - 2000 µm
- Accuracy: (3% + 1 µm)
- Resolution: 0 µm ~ 99.9 µm (0.1 µm), 100 µm ~ 999 µm (1 µm), > 1000 µm (0.01 mm)
- Zero - point calibration: Supported
- Statistical data: Average value, minimum value, maximum value, count
- Unit: um, mm, mil
- Minimum convex arc: 5 mm
- Minimum concave arc: 25 mm
- Minimum measurement range: Diameter 20 mm
- Minimum support thickness: 0.2 mm
- Maximum measurement speed: 2 measurements per second
- Power supply: 2 x 1.5 V 7 - cell batteries (not included)
- Operating environment temperature: 0 ~ 50 C, 20 ~ 90 % RH (no condensation)
- Storage environment temperature: - 10 ~ 60 C, 20 ~ 90% RH (no condensation)
- Dimensions: 113 mm x 53 mm x 24 mm
- Weight: 80 grams
3. Package list: 1 x Sensor, 1 x Calibration part, 1 x Instruction manual.
