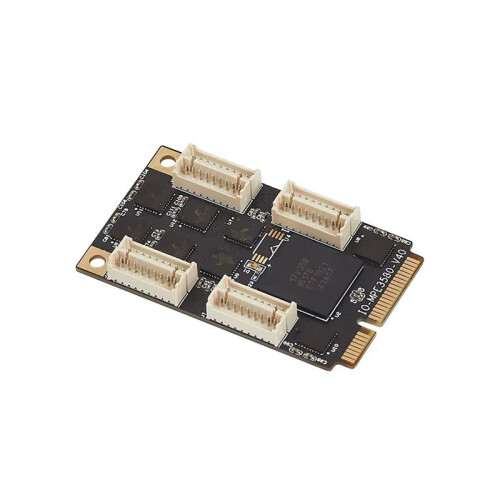

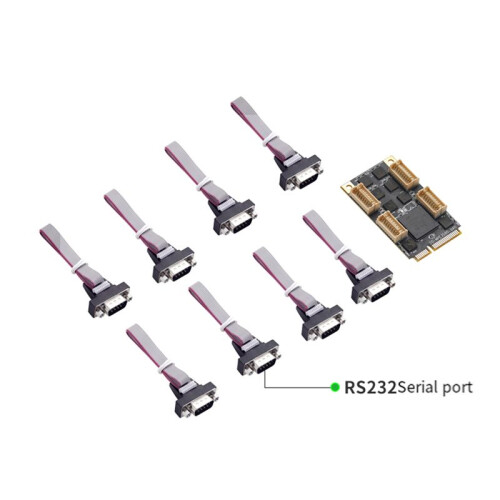

PCIE Express 8 Serial Controller Card PCIe DB9 RS232 Adapter PCI-E COM Card 15 KV ESD Protection
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 132,000 Trustpilot reviews and an 'Excellent' rating
£67.71
£92.09
26% off!
+£2.75 Delivery
1%
Earn £0.68 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£2.75) | Wed 9th - Tue 15th Sep
Sold by: GSbuy
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- PCIe 2.0 Gen 1 compliant. x1 Link, dual simplex, 2.5 Gbps in each direction 15 KV ESD protection for all serial ports. Sleep mode with wake-up Indicator
- Transmission media: twisted-pair cable or shielded cable
- Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;
- Eight independent UART channels controlled with 16550 compatible register Set
- 256-byte TX and RX FIFOs Programmable TX and RX Trigger Levels
PCIE Express 8 Serial Controller Card PCIe DB9 RS232 Adapter PCI-E COM Card 15 KV ESD Protection Description
PCIe 2.0 Gen 1 compliant. x1 Link, dual simplex, 2.5 Gbps in each direction 15 KV ESD protection for all serial . Sleep mode with wake- Indicator
Transmission media: twisted-pair cable or shielded cable
Direction control: Adopt the technology which automatically controls the data-flow direction,automatically distinguish and control the data-transmission direction;
Eight independent UART channels controlled with 16550 compatible register Set
256-byte TX and RX FIFOs Programmable TX and RX Trigger Levels
TX/RX FIFO Level Counters
Fractional baud rate generator
Automatic RTS/CTS or DTR/DSR hardware flow control with programmable hysteresis
Automatic Xon/Xoff software flow control
UART interface support for 7 or 8 data bits,1 or 2 stop bits and even/odd/mark/space/none
Flow control none,hardware and xon/xoff
Extended operating temperature range; -40 to 85⁰C
System Requirements
Windows OS
Linux 2.6.27, 2.6.31, 2.6.32, 3.x.x and newer
A available PCI Express slot
Applications
Next generation Point-of-Sale Systems
Remote Access Servers
Storage Network Management
Factory Automation and Process Control
Colour: As Shown
Material: PCB
Package Contents:
1 x Serial Port Module
8 x Serial Lines
Details
| OPC | PRZRQN2 |
|---|---|
| Codes | 6032157630940 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 10cm |
| Length | 11cm |
| Weight | 0.1295kg |
| Colour | As Shown |
| Material | PCB |
