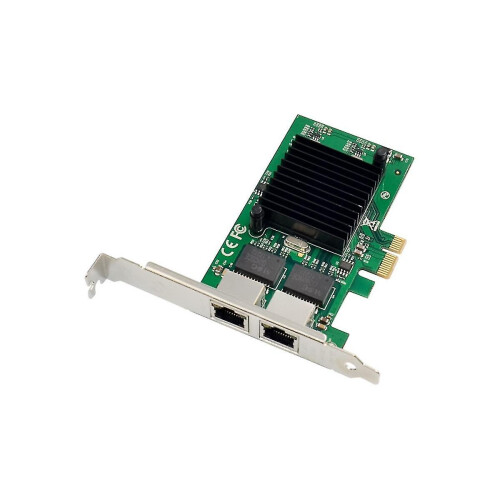

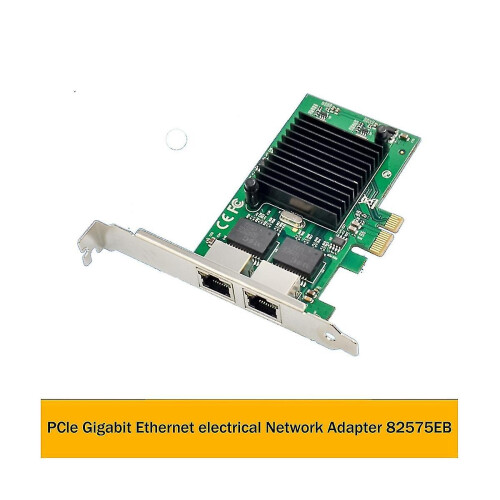

PCIe Network Adapter compatible with Intel 82575EB Controller, Dual Port with AVB Support for Professional Media Synchronisation

PCIe Network Adapter compatible with Intel 82575EB Controller, Dual Port with AVB Support for Professional Media Synchronisation Description

Product Details ①. Dual-port Gigabit Ethernet connectivity for stable 1000Mbps data transmission, ideal for high-bandwidth network environments ②. Supports IEEE 802.1Qav AVB for precise media synchronization, buffering and reservation control ③. Energy-efficient design with EEE and DMA coalescing to reduce power consumption during operation ④. PCI Gen 2.1 (2.5GT/s) bus interface ensures high-performance data transfer between network card and motherboard Specification ①. Main controller: 82575EB ②. Bus type: PCI X1, 2.5GT/s ③. Media interface: RJ45 ④. Transmission rate: 1000Mbps ⑤. Network topology: 10BASE-T/100BASE-TX/1000BASE-T, IEEE 802.1Q VLANs ⑥. Supported standards: IEEE 802.3z, IEEE 802.3, IEEE 802.3x, IEEE 1588, IEEE 802.3az ⑦. Management functions: IPMI pass-through, iSCSI boot, PXE remote boot, VLAN filtering via SMBus or NC-SI ⑧. Operating system support: FreeBSD, Linux, ESXi, Windows 7/Server 2012/Server 2008/Windows 8/Windows 8.1/Server 2016/Windows 10 ⑨. Color: Green ⑩. Material: Printed Circuit Board (PCB) Package Contents ①. 1 network card ②. 1 CD Warm Tips ①. Light reflection and different monitors may cause slight color differences between product images and actual items ②. Allowable measurement error is approximately 1-3 cm
