Phase Rotation Monitor Phase Sequence Meter ETCR1000C Non Contact Phase Sequence Detector Magnetic Base Phase Meter Description

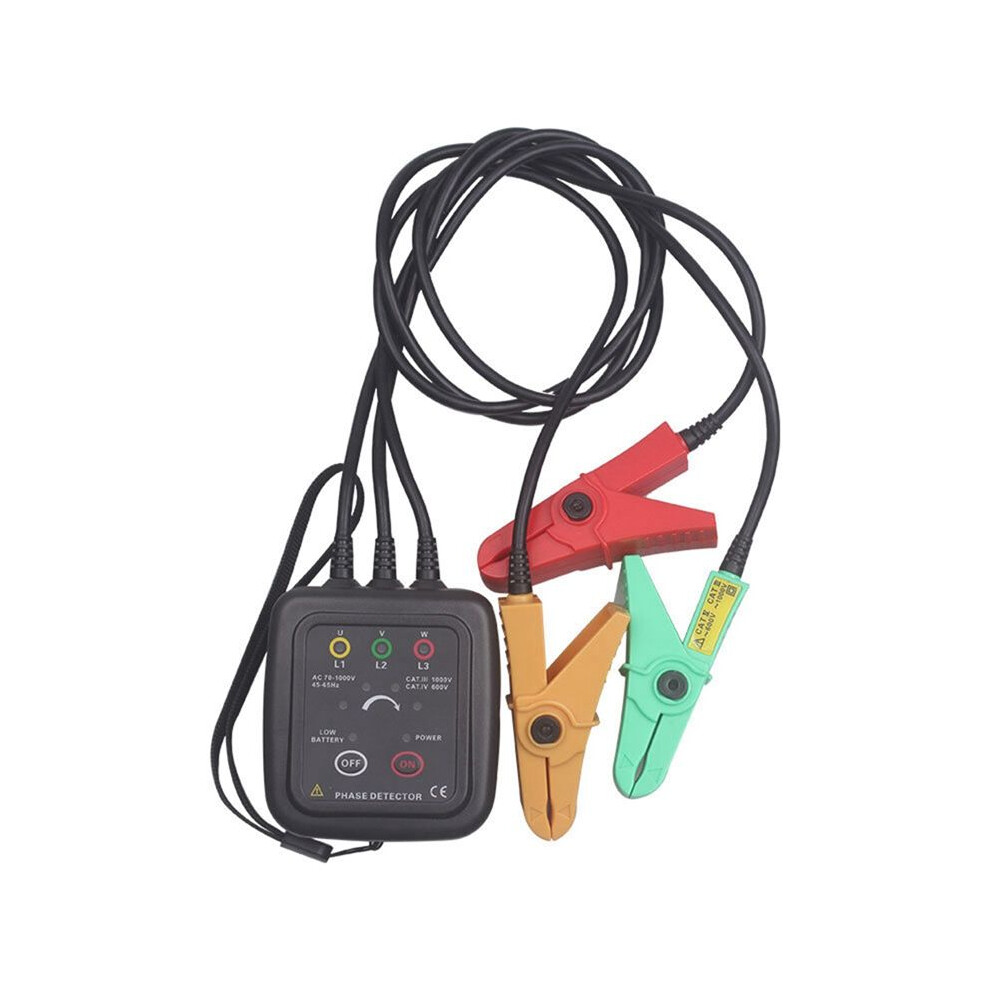

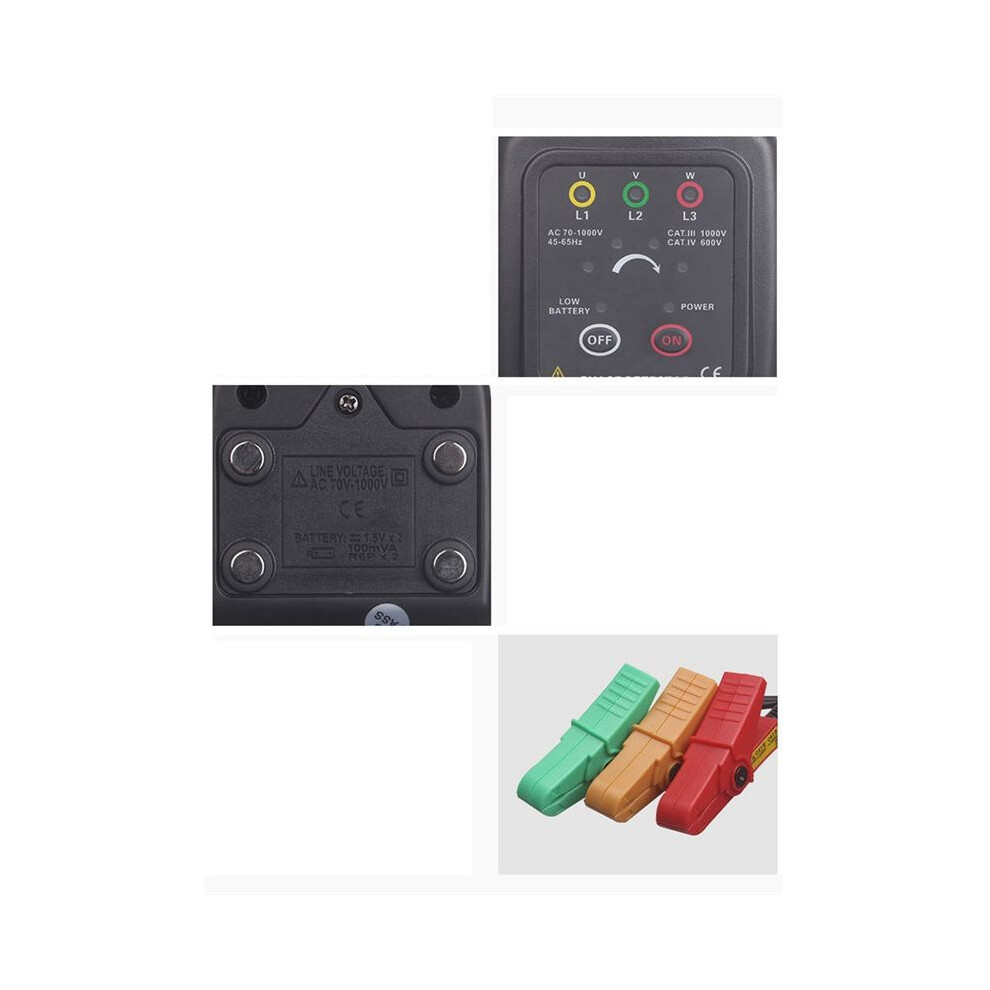

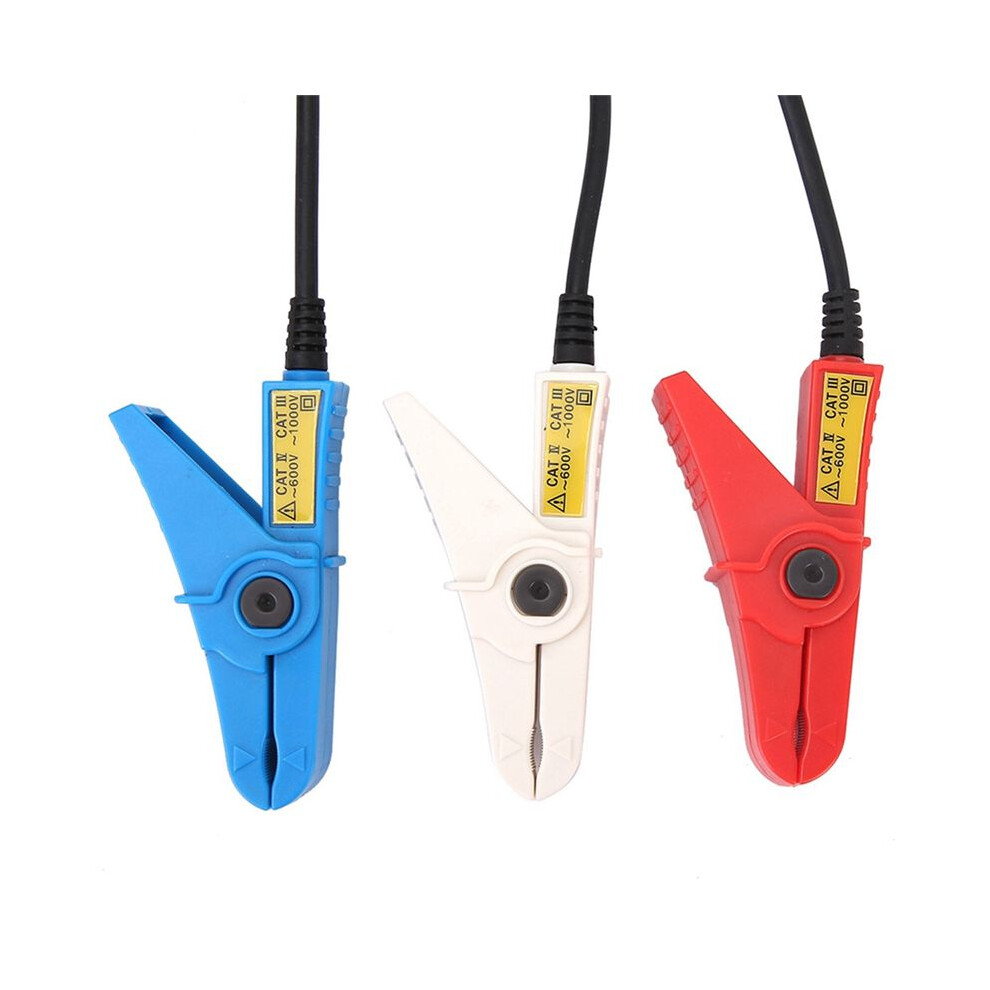

Clamp-type non-contact inductive measurement, no need to open the wire, no need to touch the high-voltage exposed fire wire, directly sandwich the three super-inductive high-insulation clamps to the insulation skin of the three-phase live wire to detect the phase sequence.

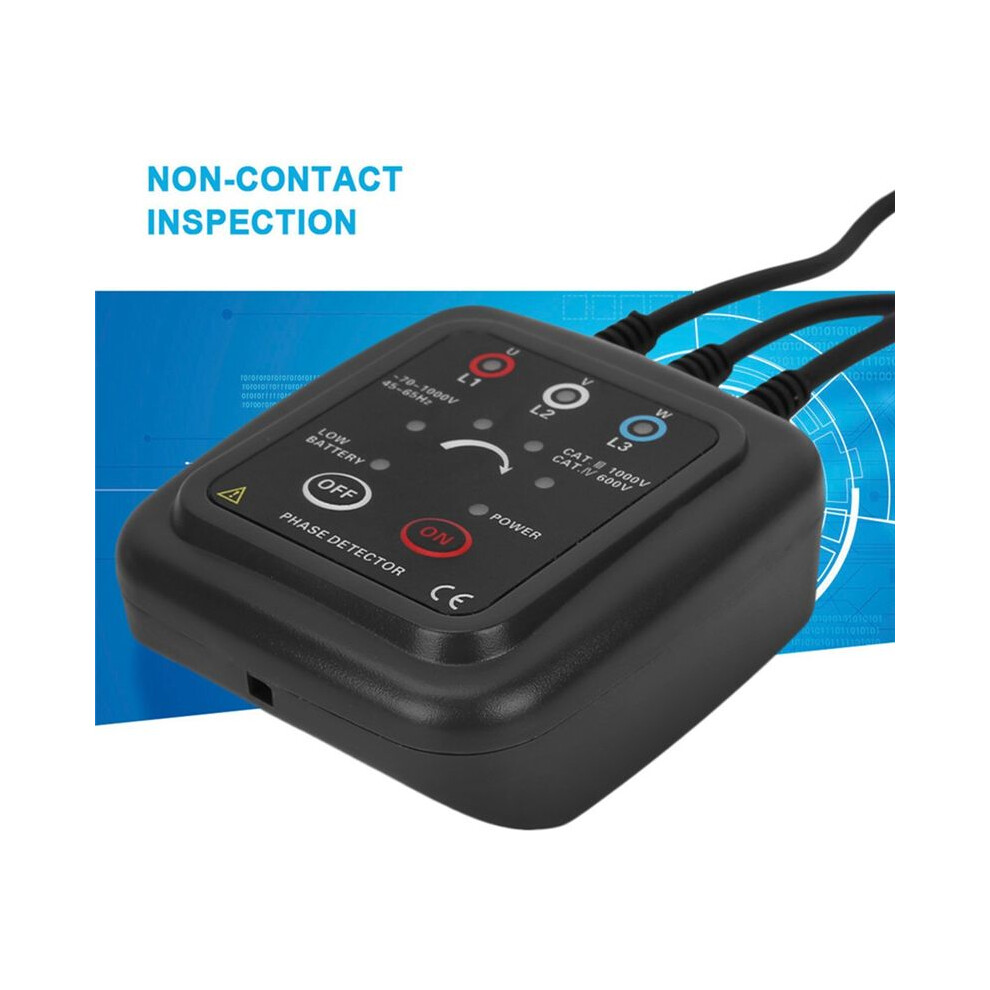

Non-contact inspection for safe and fast productivity.
The dynamic sound and light indicates the positive or negative phase of the phase sequence of the three-phase power supply, which is clear at a glance.
Product model: non-contact phase detector
Model: ETCR1000C

Function: phase detection (positive phase, reverse phase, missing phase), live check, recommended power detection, phase detection (positive phase, reverse phase, missing phase), live check, recommended power detection,
Power supply: DC3V 2 No. 5 alkaline batteries (LR6)
Live power range: AC70-1000V, 45-65Hz

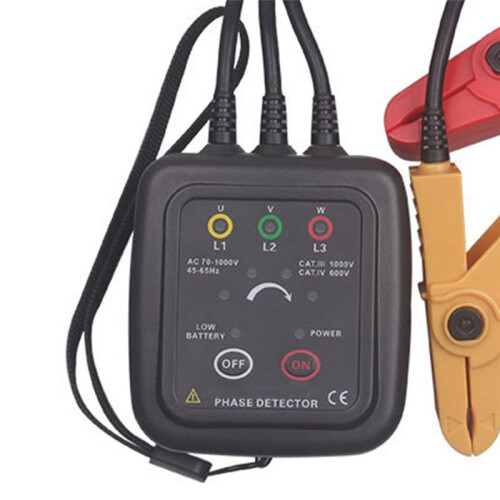

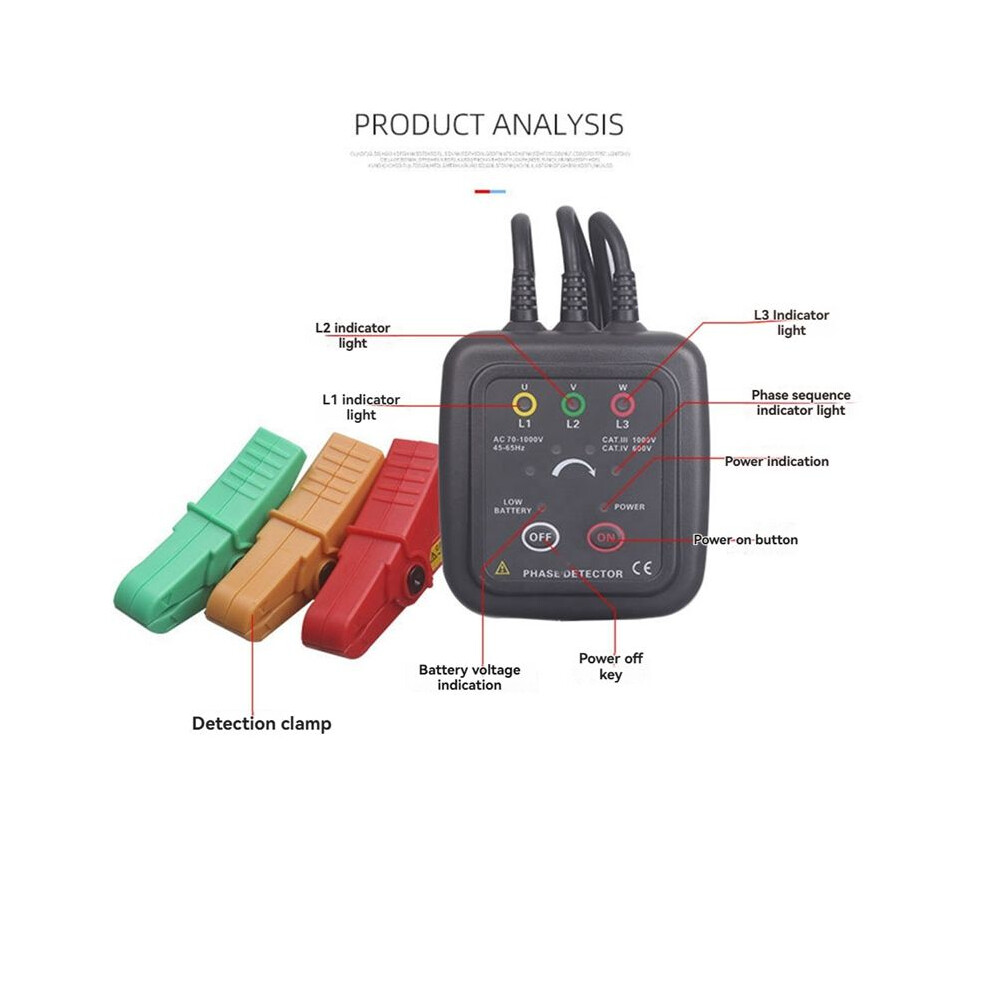

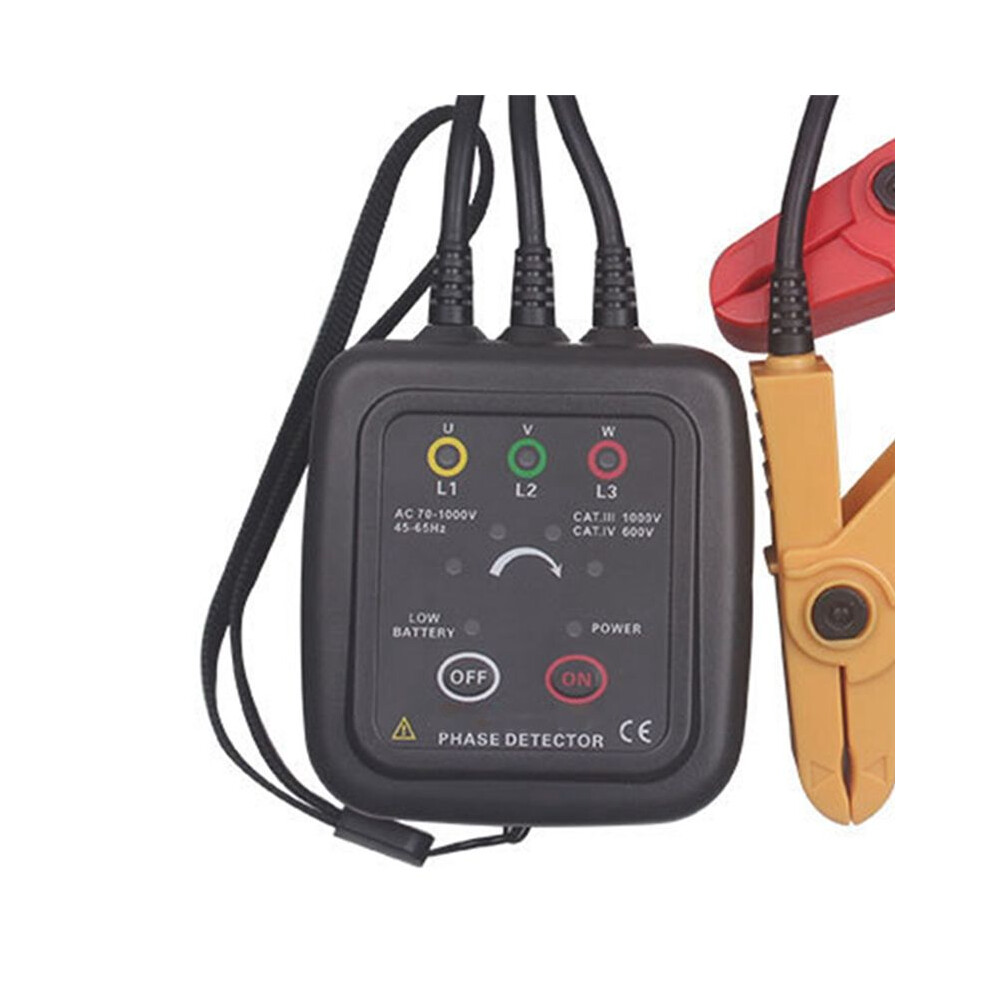

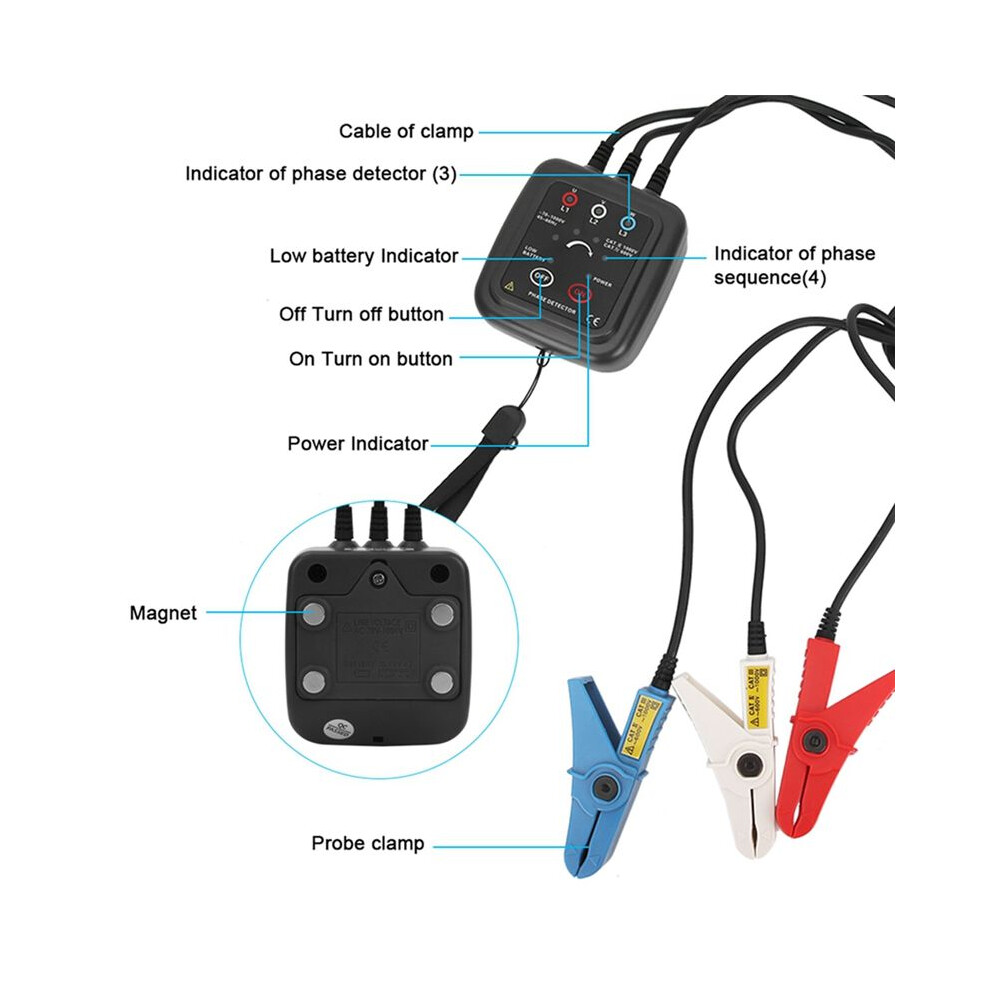

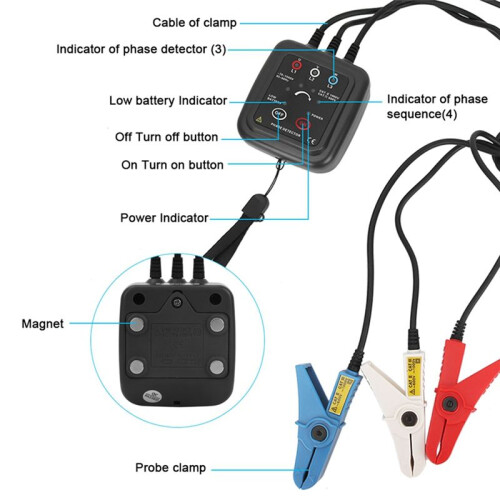

LED display: [positive phase] 4 phase detection lights light in clockwise direction
[reverse phase] 4 phase detection lights light in counterclockwise direction
[Live power] L1, L2, lights light within the voltage setting range
[missing phase] L1 or L2 or lights are off
[open circuit] L1 or L2 or lights are off
Buzzer: [positive phase] The instrument emits intermittent short beeps
[reverse phase] The instrument emits continuous long beeps
Battery check: After turning the power, the POWER indicator light is : low battery LOW BATTER light
Automatic shutdown: The meter automatically shuts down after about 5 minutes of power
Working temperature and humidity: -10C-55; below 80%RH
Storage temperature and humidity: -20C-60; below 90%RH
Measurement maximum voltage AC 1000V
Insulation strength 5.4KV/rms
Maximum rated power 300mVA
Color: As Shown
Material: plastic
