QLS325S 2.4 Inch DDS Function/Arbitrary Waveform Signal Generator/Frequency Meter 30MHz 0-10V High-Precision Generator

QLS325S 2.4 Inch DDS Function/Arbitrary Waveform Signal Generator/Frequency Meter 30MHz 0-10V High-Precision Generator Description

1. The display interface adopts 2.4-inch TFT LCD with 320 x 240 high resolution, which can display all the parameters of the channel.
2. Language switching function: support the free switching of Chinese and English languages, which can meet the needs of different users.
3. Trigger output function: with manual trigger, external trigger two trigger modes, can be the machine output 1 ~ 999999 any pulse string.
4. Function buttons and rotary encoder: with variable function buttons and rotary encoder greatly enhances the ease of use of the machine.
5. With the end of the frequency scanning, frequency measurement, duty cycle measurement, pulse width, cycle measurement, counting function.

QLS3600S 2.4-inch TFT Arbitrary Wave DDS Function Signal Generator 5V 0-5MHz 0-10MHz 0-30MHz signal source/frequency/pulse/sweep counter
Apply to electronic engineers, electronic laboratories, production lines and teaching, scientific research, the ideal test, measurement equipment and other fields.

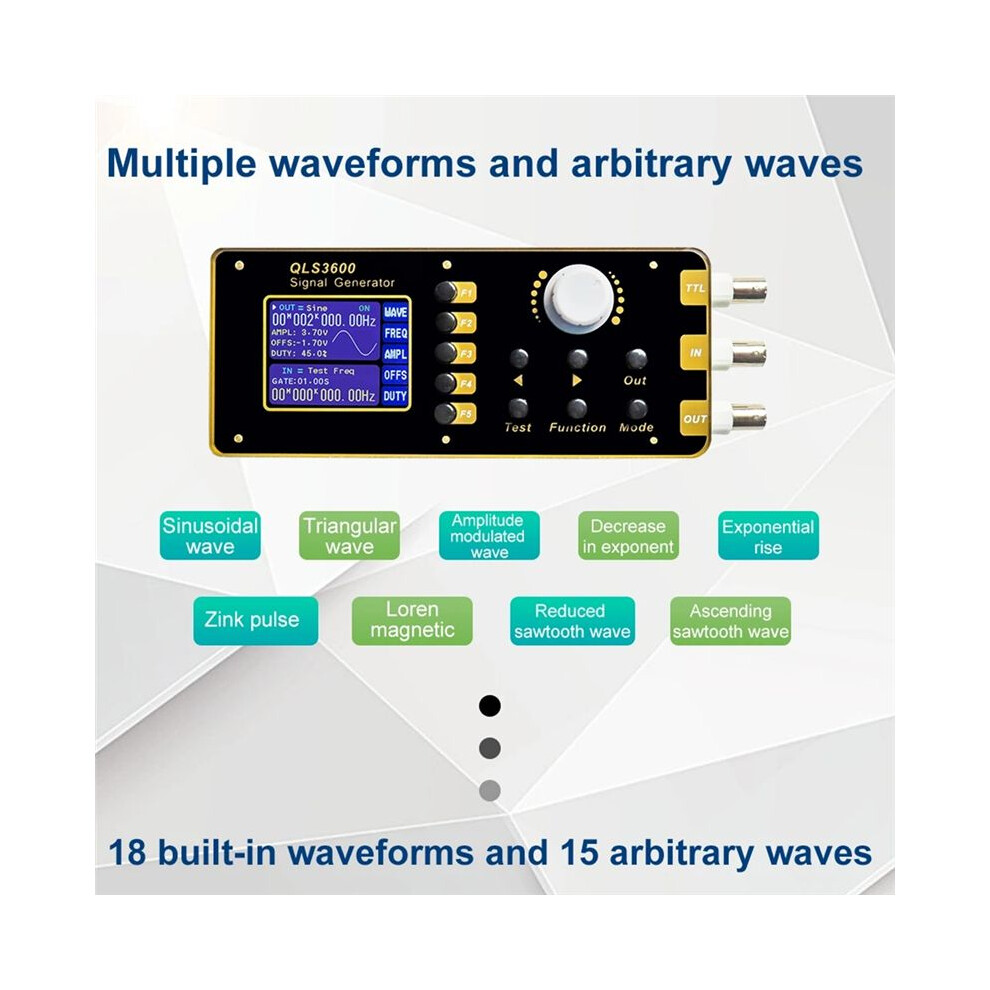

A variety of waveforms and arbitrary waveforms: 18 built-in waveforms and 15 arbitrary waveforms, such as sine, triangle, square, ascending sawtooth, descending sawtooth, Lorentz magnetism, Sink pulse, amplitude-modulated waveforms, exponential rise/fall and so .
Power supply: 5V (with overvoltage protection)
Frequency measurement range: 0.01Hz~100MHz
Period measurement: Maximum measurement 20S, resolution .0.01uS
Pulse width measurement: Maximum measurement 20S, resolution .0.01uS
Minimum input voltage: 0.5Vp-p
Maximum allowable input voltage: 10Vp-p
Counting range: 0~4294967295
Counting mode: Manual
Source selection: Ext.IN (analog signal)

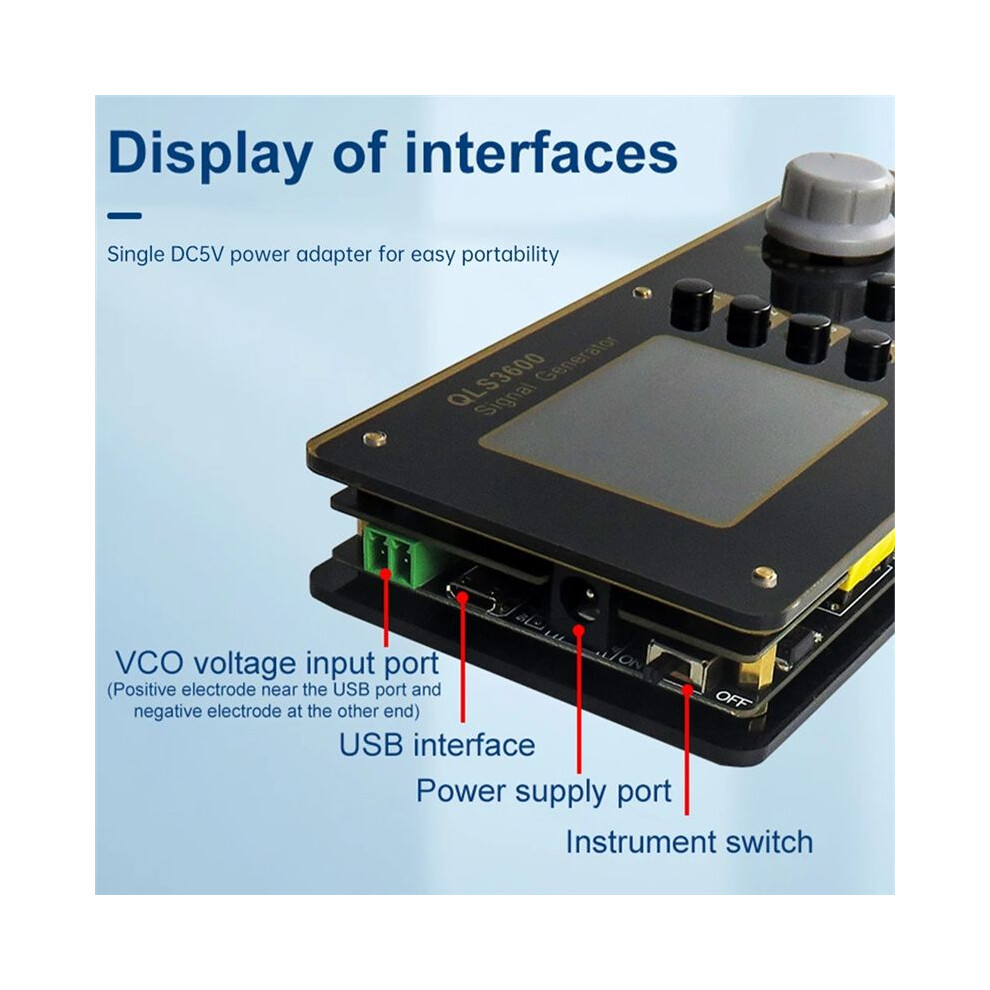

Interface: Using USB to serial interface
Communication rate: 57600 bps
Communication protocol: Command mode, open protocol
VOC voltage inp
