Quartz Clock Movement Kit with Hands

Quartz Clock Movement Kit with Hands Description

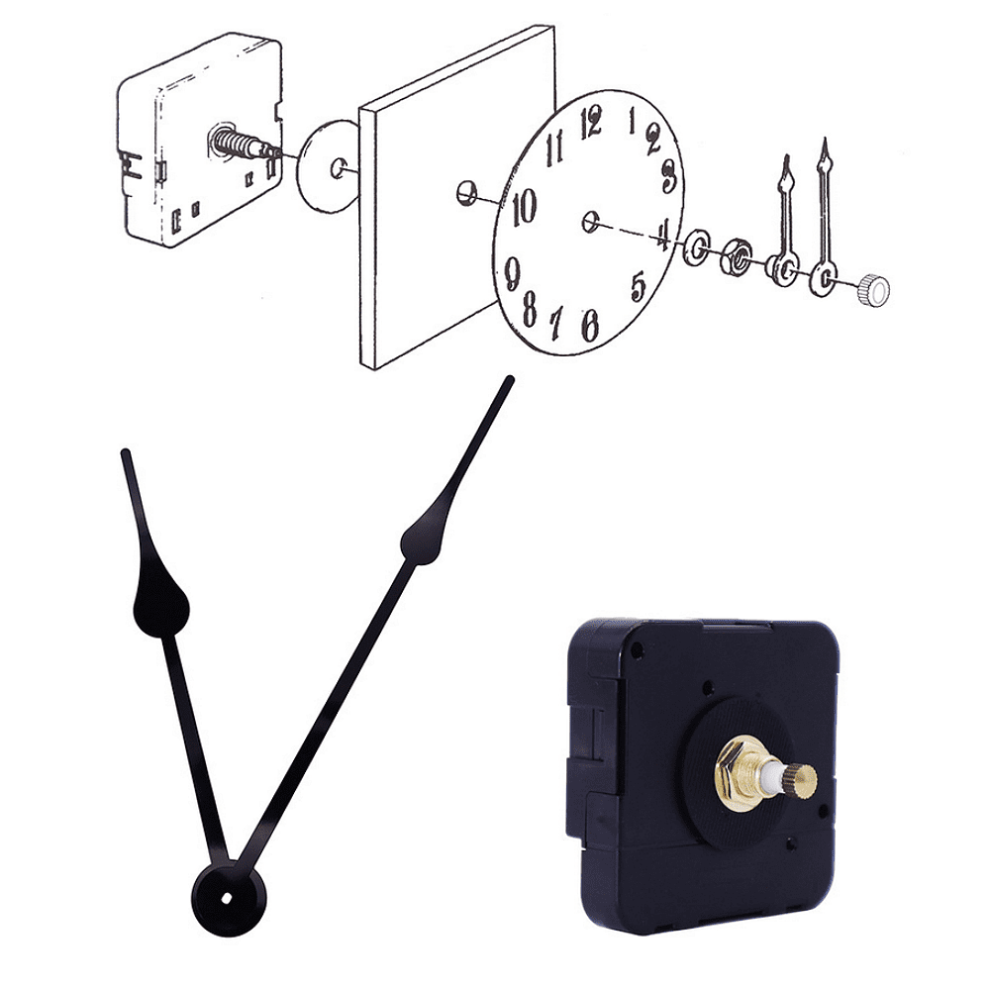

Quartz Clock Kit Movement Mechanism High Torque Quartz Motor HR2067 Long Hands~ movements are all one-second movements, all of which have passed ROHS certification. Crystal frequency: 32.768KHz Travel time accuracy: 30Sec/Month at 1.5V DC. 25 Crrent consumption: Less than 190μA at 1.5V DC. Operating voltage: 1.3V to 1.7V Rated voltage: 1.5V Working temperature: -10 to 50 Second hand output torque: 0.6gf-cm (1.5V) Minute hand output torque: 40gf-cm (1.5V) Pointer specification requirements: Second hand length/weight: 130mm, 2g Minute hand length/weight: 280mm, 6g Second hand unbalanced moment: 0.15gf-cm Minute hand unbalanced moment: 6gf-cm Package Includes: 1 x Clock Movement Mechanism 1 x Hour Hand 1 x Minute Hand Notification: 1.The pointers are made of thin aluminum or iron plate after one time punch, although the packaging is good, but still can not avoid being bent during long-distance transportation. If it occurs the situation, please slightly smooth it straight by fingers. It doesn't affect usage. 2.The installation of pointers is skillful.Two needles should be installed separately and do not overlap as much as possible. Otherwise it will affect the performance that these pointers may not walk. Please read the notes carefully before your purchase.
