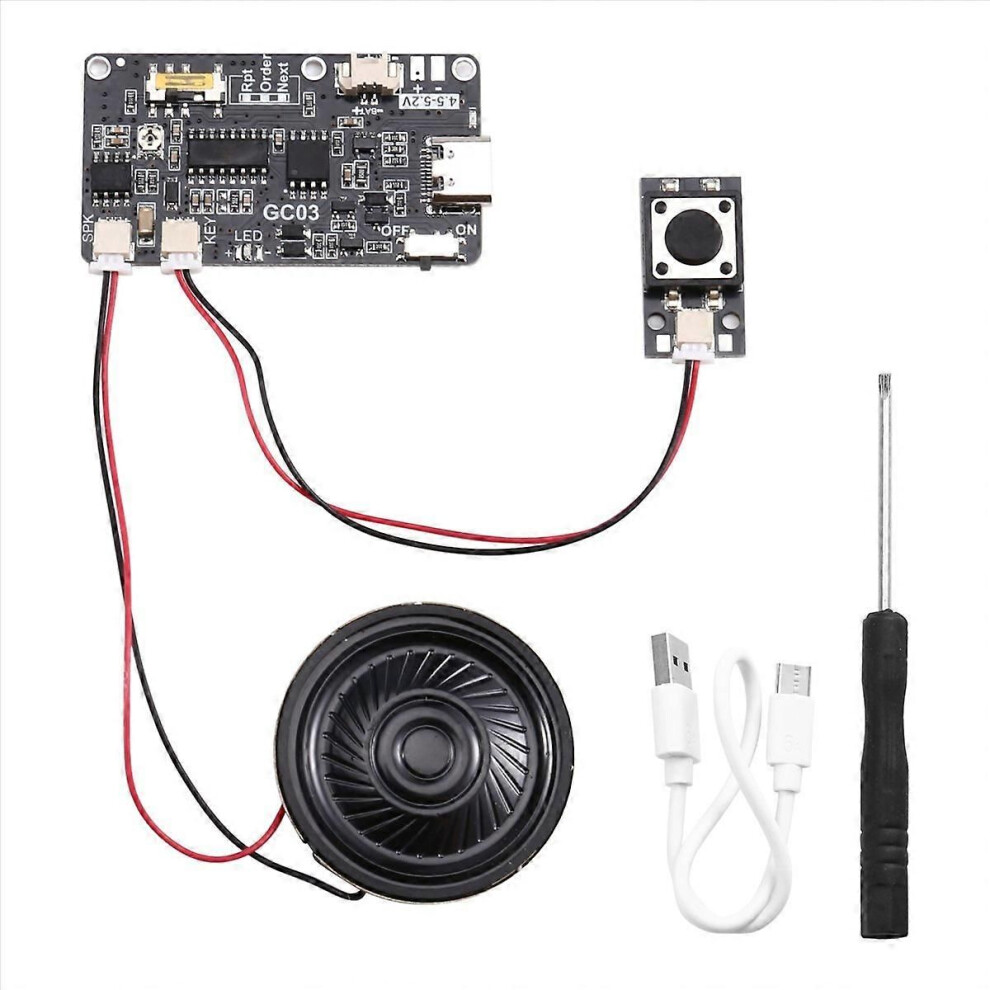

Recordable Sound Module MP3 Button Control Music Voice Player Board

Recordable Sound Module MP3 Button Control Music Voice Player Board Description

Recordable Sound Module MP3 Button Control Music Voice Player Board
1. Large capacity 8MB memory, supports USB music download
2. Supports 3 playback modes, key controlled playback
3. Can be equipped with ambient lighting, high-quality speakers, and adjustable volume
4. Rechargeable, customizable music
5. Wide applicability, suitable for music cover walls, greeting cards, gift boxes, photo albums, toys, etc
Power supply voltage: 4.2-5.2V power supply
Interface: TYPE-C (5V power supply/audio download interface)
Motherboard size: 49mm x 27mm
Speaker size: 36mm diameter
Button size: 23mm x 13mm
Note: Atmosphere lights can be added, and welding should be done according to the silk screen solder pads on the board, paying attention to the positive and negative poles.
Play mode: Loop playback: the button once to start looping the stored music from scratch, and the button again to stop playback.
Non loop playback: the button once to start playing the stored music from scratch and then stop. the button again during the playback process to stop playing.
Next song playback: the button once to play music, stop after playing the music; Pressing the button during playback switch to track.
Color: As Shown
Material: Plastic+Metal
Package Contents:
1 set * Voice module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
