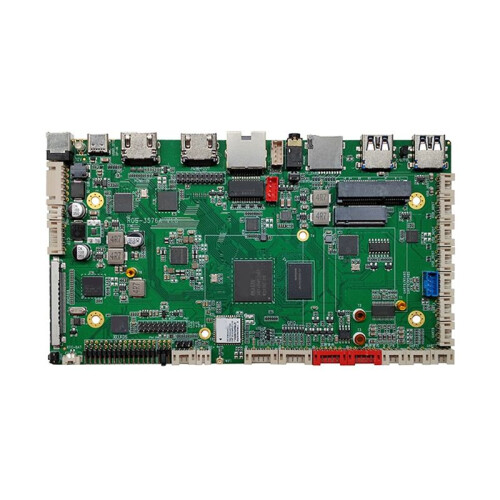

Rk3576 Android14 Motherboard Face Recognition Video Encoder Solution Development Board Industrial Control Motherboard

Rk3576 Android14 Motherboard Face Recognition Video Encoder Solution Development Board Industrial Control Motherboard Description

Uses Rockchip RK3576 (quad-core Cortex-A72 + quad-core Cortex-A53) octa-core 64-bit processor. The chip has its own 6T computing power NPU, with a main frequency of to 2.2GHz, and is equipped with Android 14.0 system (the kernel is Linux 5.10), with strong performance and ultra-low power consumption.
Rich output interfaces support multi-screen display,Supports to 8K decoding and various LCD displays, including: dual-channel LVDS/EDP/2*MIPI/HD/Vbyone (optional)/HD IN (optional)/DPIN (optional) input and output.

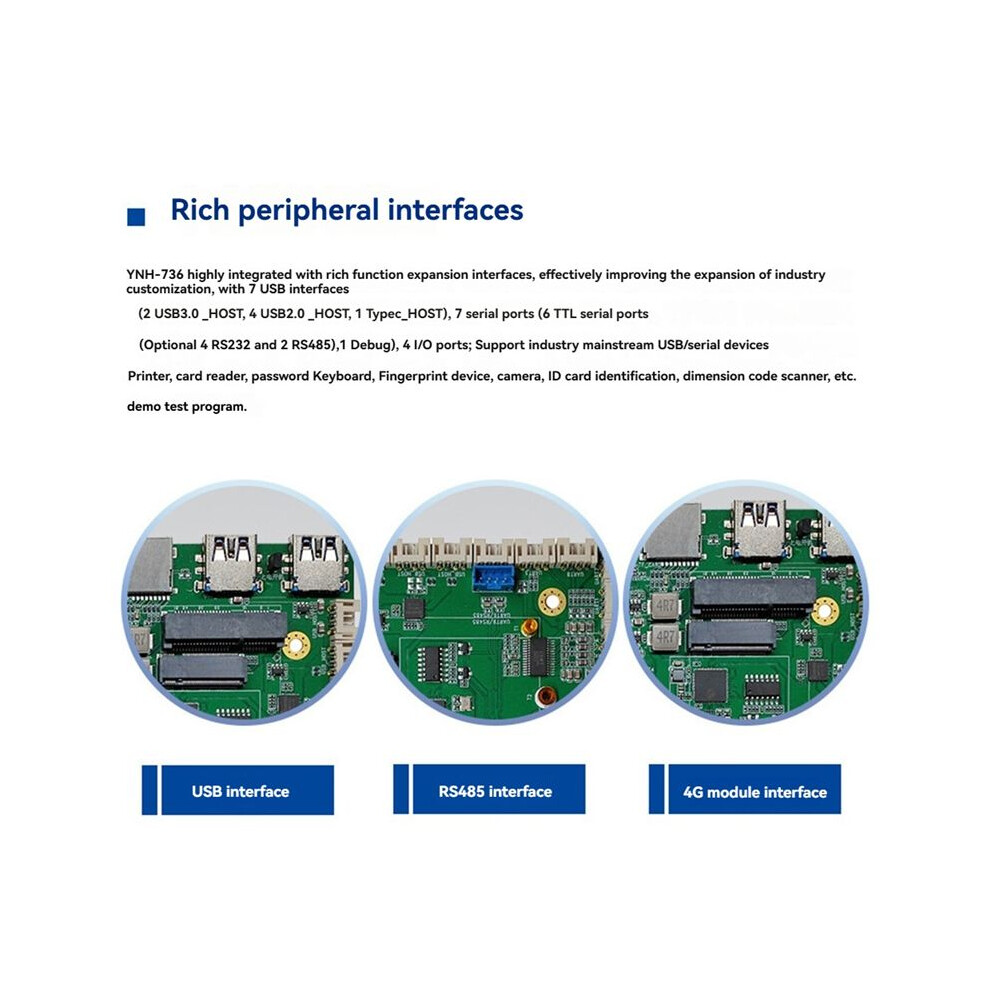

Rich peripheral interfaces, highly integrated with rich function expansion interfaces, which effectively improves the expandability of industry customization. It has 7 USB interfaces (2 USB3.0_HOST, 4 USB2.0_HOST, 1 Typec_HOST), 7 serial (6 TTL serial (optional 4 RS232 and 2 RS485), 1 Debug), 4 I/O
It supports mainstream USB/serial devices in the industry, printers, card readers, password keyboards, fingerprint scanners, cameras, ID card recognition, QR code scanners, etc., and provides demo test programs.
Rich network communication methods, 1000M Ethernet, support POE network port; 2.4G+5G dual-band WiFi 6 module, supports ; Support 4G/5G, connect to PCI-E 4G/5G module.

It is widely used in iFPD, industrial control and gateway, cloud terminal, face recognition equipment, vehicle-mounted central control, commercial display and other fields.

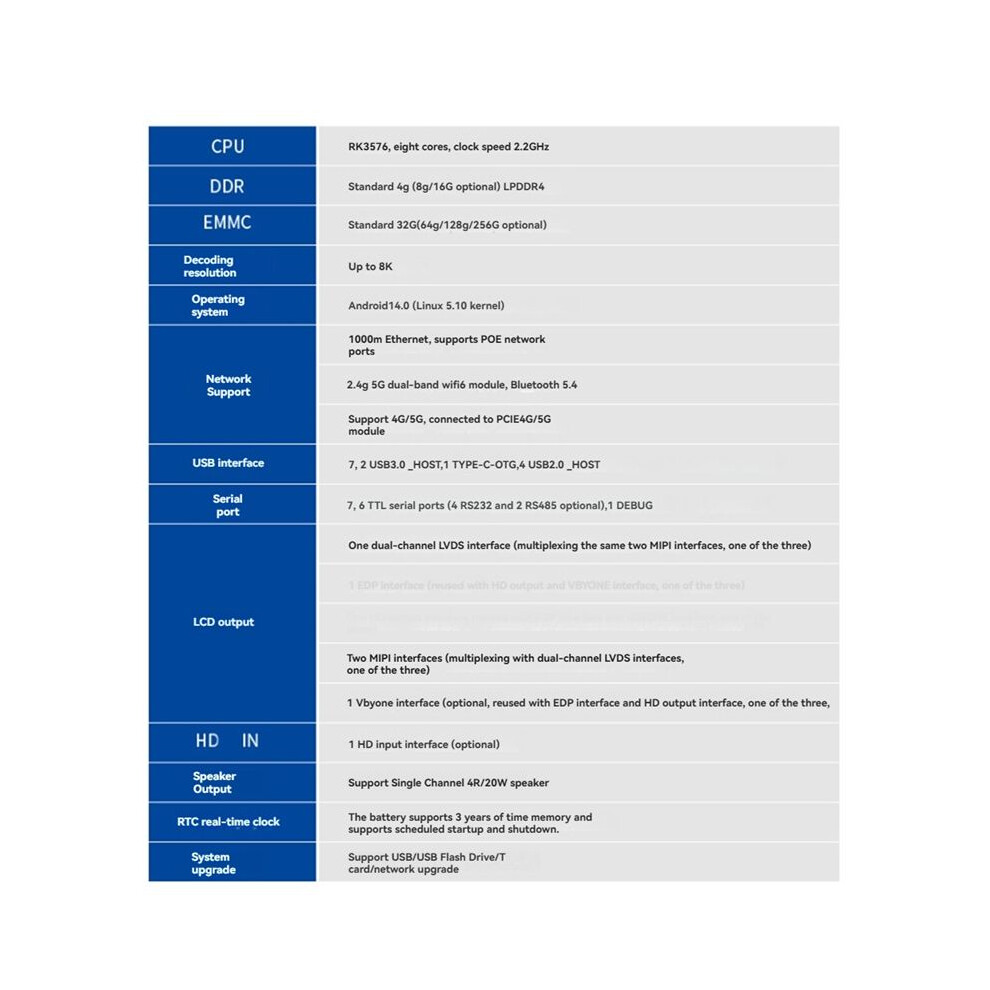

CPU:RK3576, eight cores, main frequency 2.2 GHZ
DDR:Standard 4G LPDDR4
EMMC:Standard 32G
Decoding resolution:Supports to 8K
operating system:Android14.0 (kernel is Linux5.10)

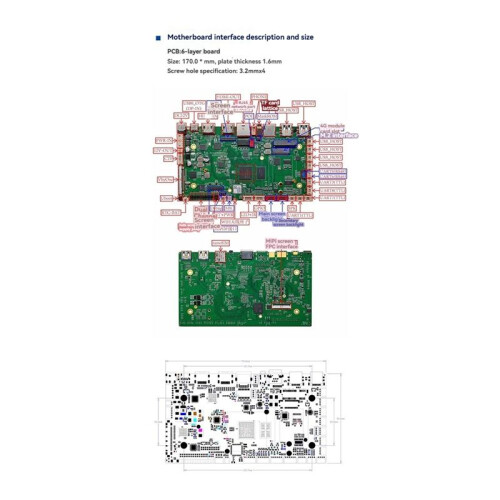

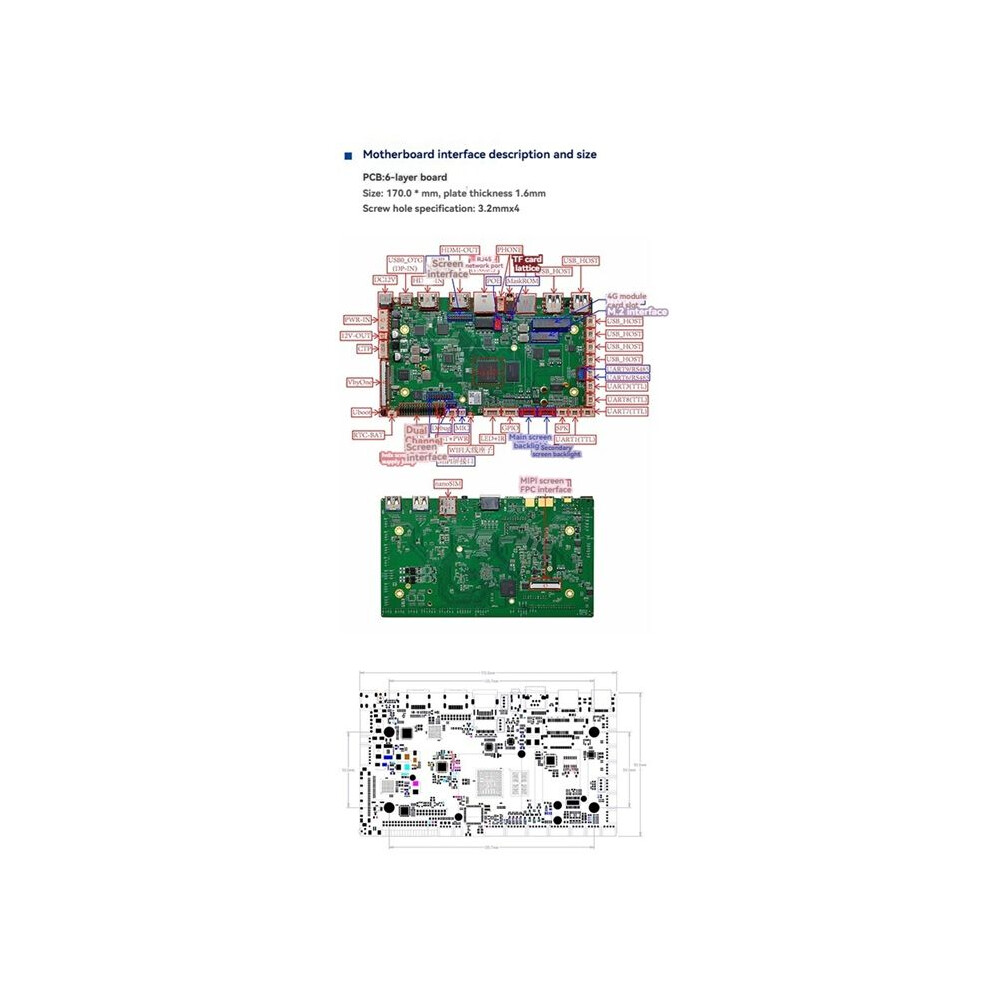

PCB:6-layer board
Size:170.0x95.0mm, thickness 1.6mm
The product appearance and printed words may vary depending the batch, but this does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Motherboard
