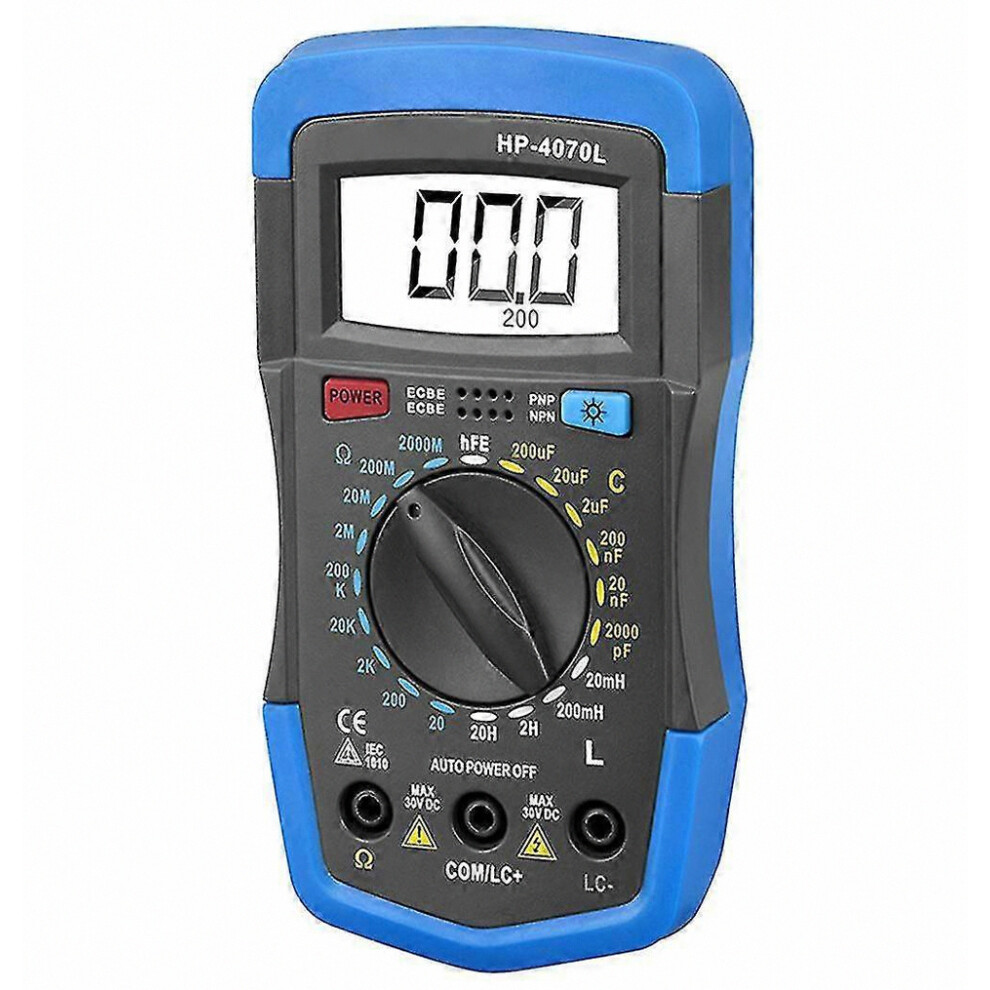

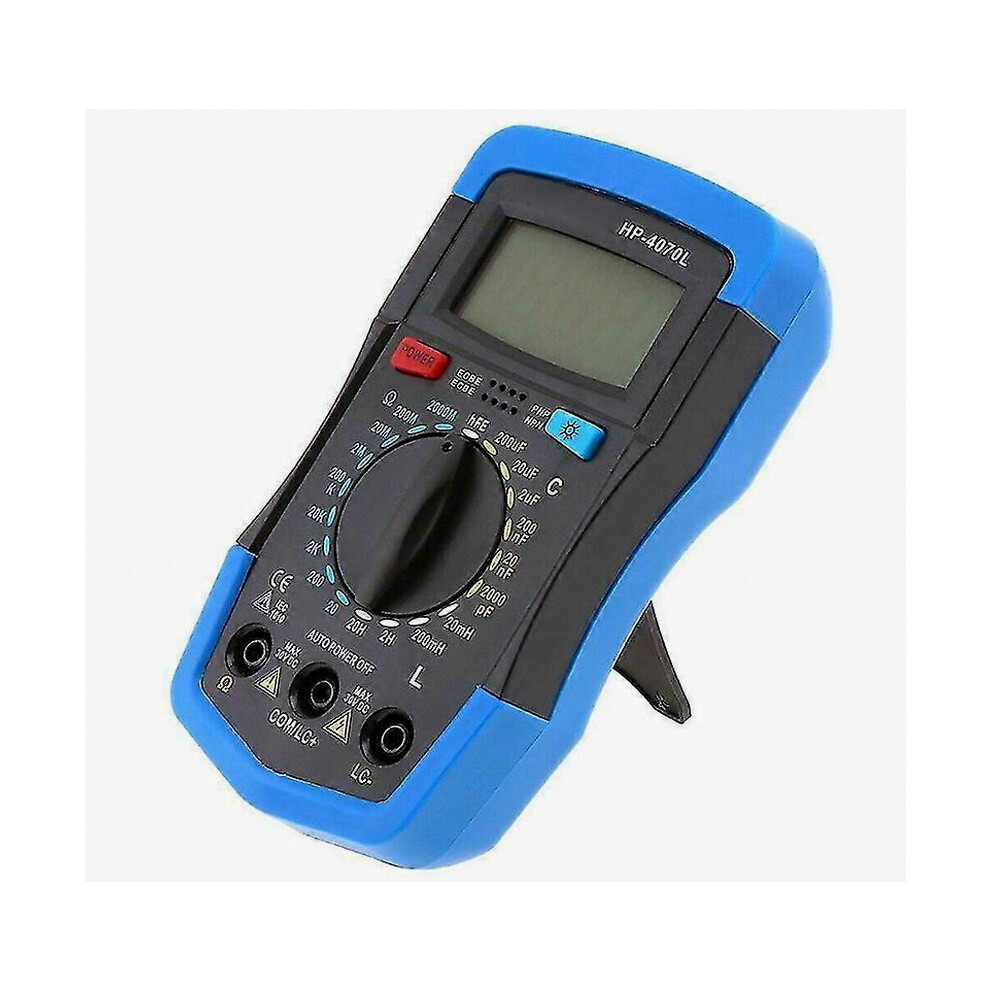

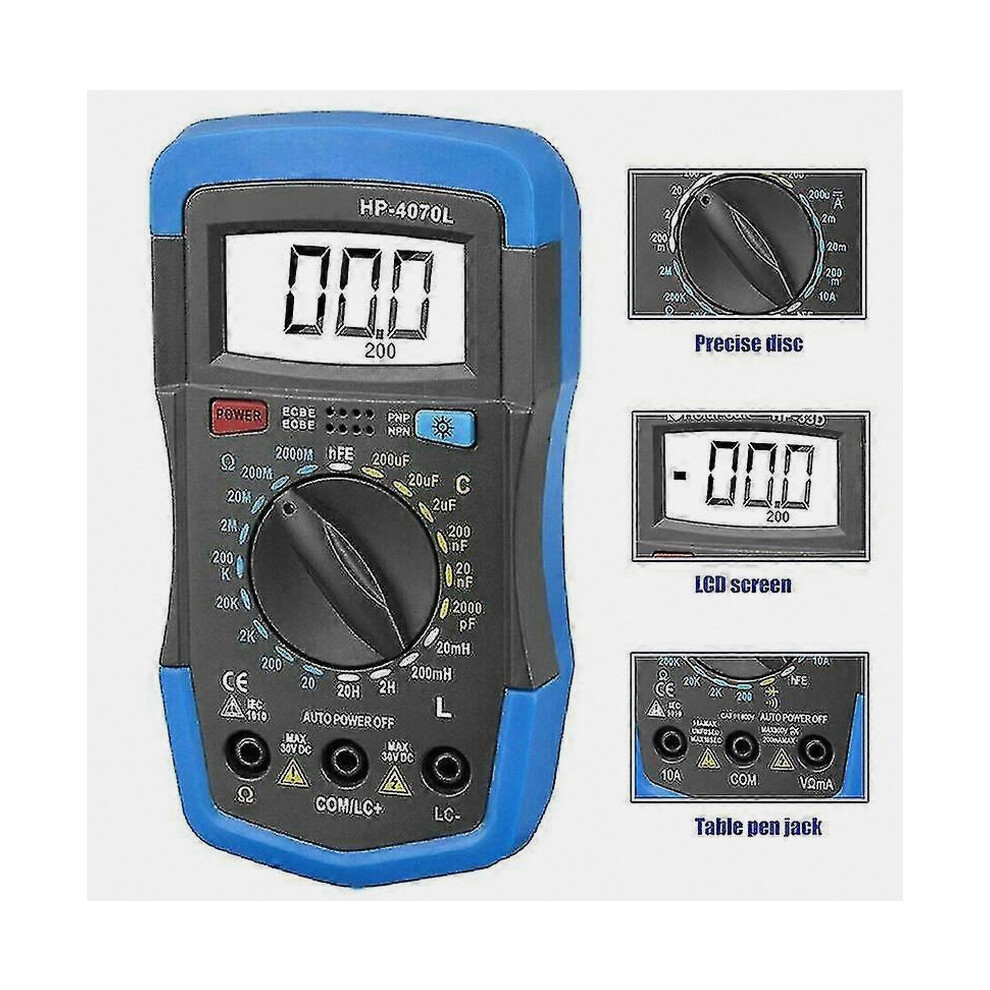

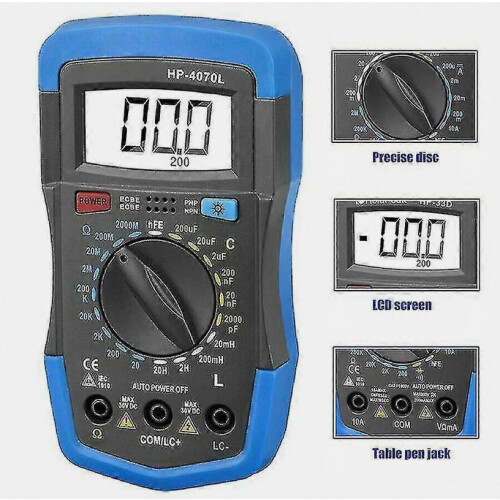

RLC Meter for Inductance, Capacitance, Resistance, Ohm Measurement, Multimeter and Electronic Component Tester for Circu

RLC Meter for Inductance, Capacitance, Resistance, Ohm Measurement, Multimeter and Electronic Component Tester for Circu Description

Specification:

Capacitance measurement ranges cover 1pF to 200uF, with Range 1 to 5 at 2000pF, 20nF, 200nF, 2uF, and 20uF at 2.5%, and Range 6 at 200uF at 7%.

Inductance measurement includes 4 ranges: 20mH, 200mH, 2H, and 20H, with 2.5% accuracy and 5 digits.

Resistance measurement supports 9 ranges: 20, 200, 2K, 20K, 200K, 2M, 20M, 200M, and 2000M Ohms, with accuracy from 1.2% to 5%.

Transistor hFE measurement is supported for both NPN and PNP types, with a reading range of 10 to 1000. The display shows up to 1999 counts with a 3 1/2-digit LCD and backlight control, and includes auto zero adjustment.

Powered by a 9V DC battery type 6F22, battery not included, with low battery and overflow indication on the display. Operating temperature and humidity are 0 to 40C and RH less than 75%. Included in the package: 1 x inductance capacitance resistance meter and 1 x test leads.
