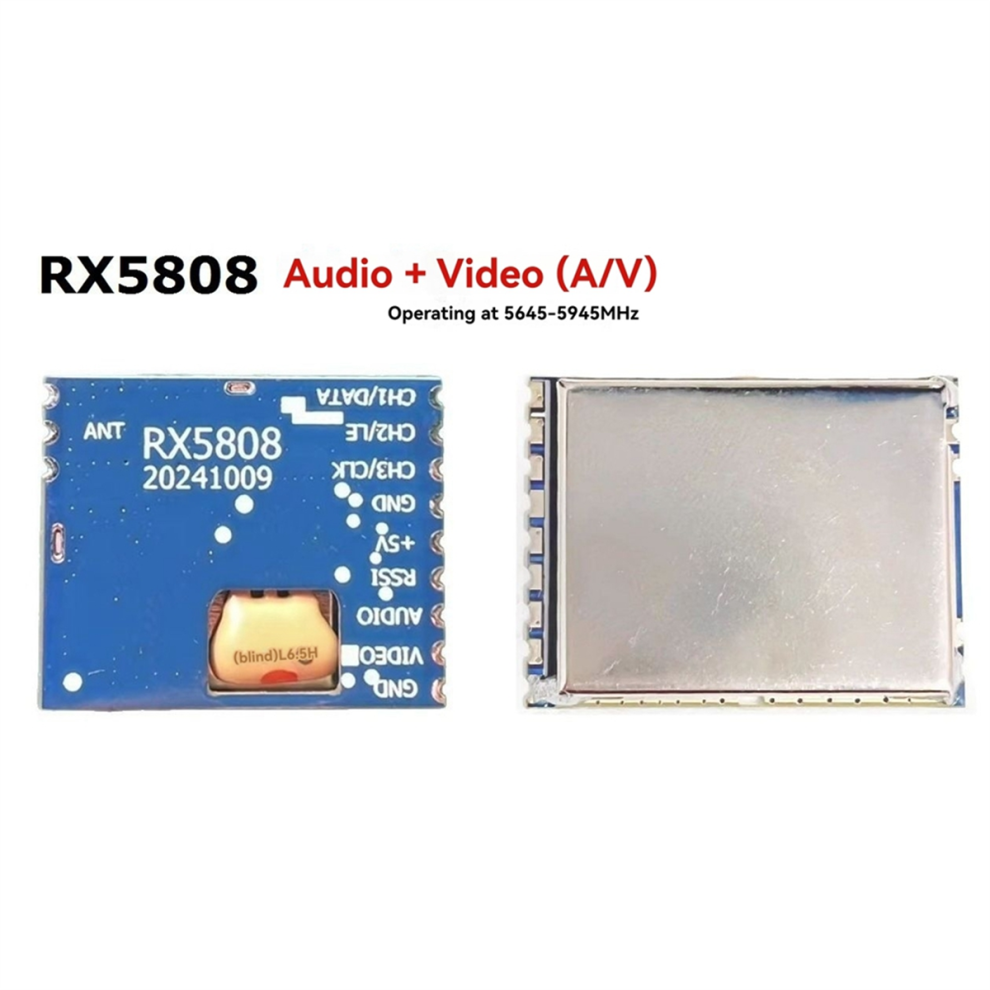

RX5808 Wireless Audio Video Receiver Module with Audio SPI Mode

RX5808 Wireless Audio Video Receiver Module with Audio SPI Mode Description

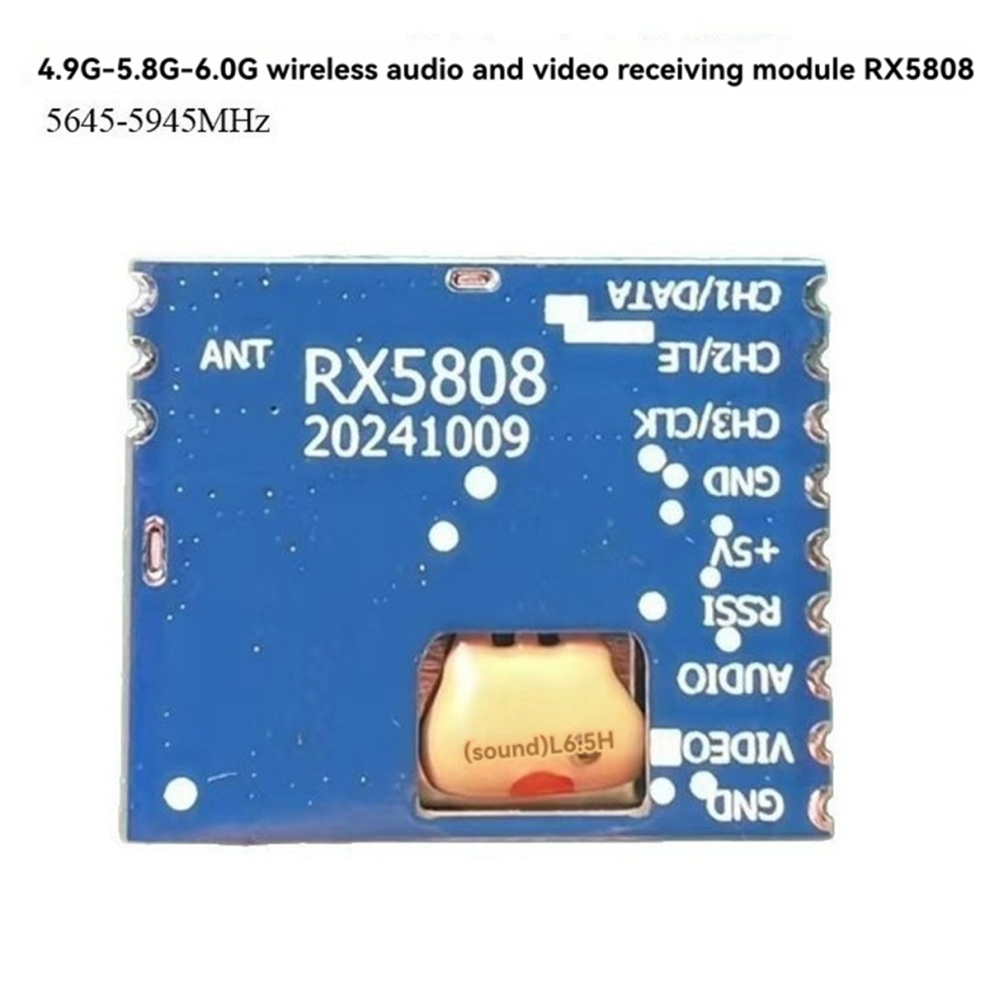

RX5808 is an FM audio and video receiving and demodulating module that works in the 5645-5945MHz ISM frequency band (or uses SPI mode to control the frequency band through an external microcontroller)
Using a single-chip design, the chip integrates VCO, PLL, broadband FM video demodulation, and FM audio demodulation, making the module small in size, low in power consumption, and high in sensitivity
Adopting a patch package, it occupies a very small space of the whole machine
Just simply connect the power supply, audio cable, video cable, and connect the antenna to receive sound and image signals
High receiving sensitivity: 5dBm to -91dBm, built-in frequency phase-locked loop with high stability

Receiving frequency: 5625-5945MHz; 8 channels
Receiving sensitivity: 5dBm to -91dBm
Specification:RX5808+with audio+SPI mode
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Colour:Random Color(The color is random, and the designation is not accepted)
Material:PCB
Size:28x23x3.5mm

Package Contents:
1 * Receiver Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
