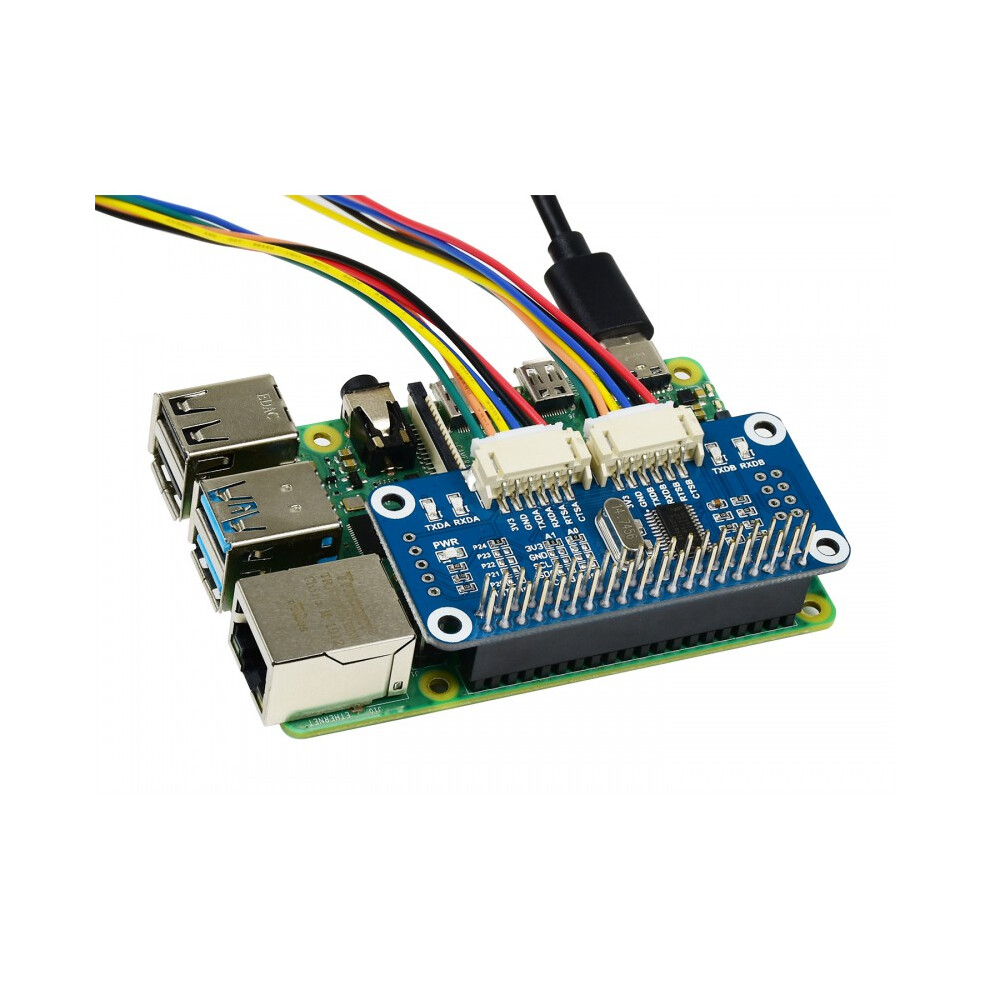

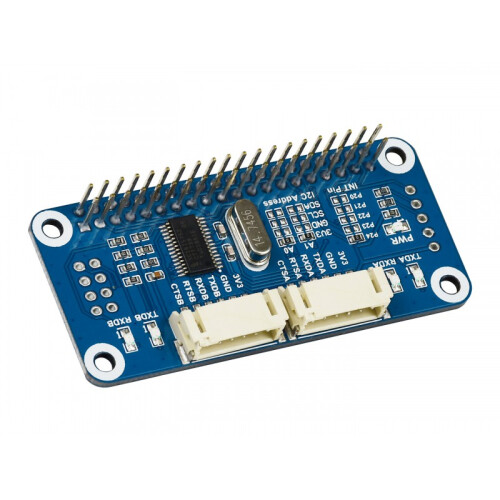

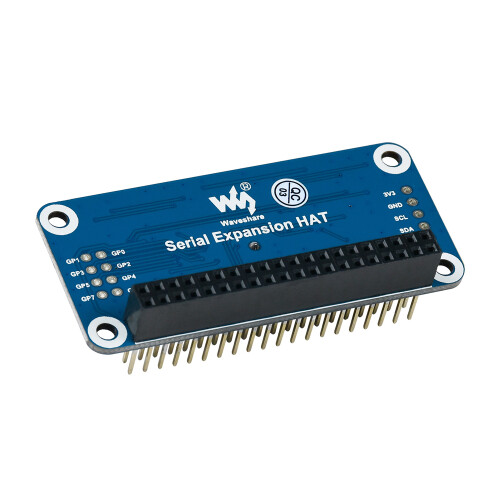

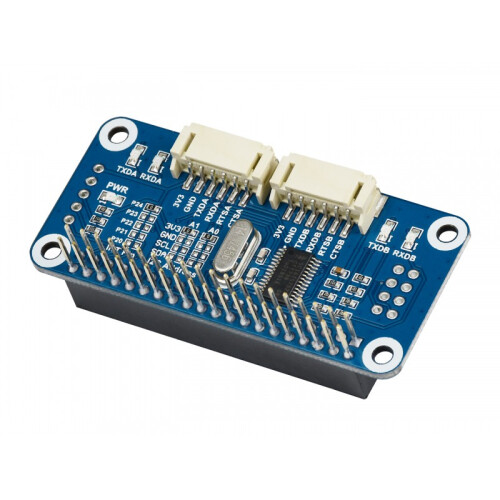

Serial Expansion HAT for Raspberry Pi I2C Interface External Expansion 2-ch UART 8 GPIOs

Serial Expansion HAT for Raspberry Pi I2C Interface External Expansion 2-ch UART 8 GPIOs Description

Size Conversion Inches Centimeters Please according to your own measurements to choose your suitable size. The tags inside the items will show in our Asian (Type) size. Overview: There is only 1-ch UART port on the original Raspberry Pi, once it is used for terminal debugging, no more other serial device is allowed. What a poor situation. Now you have 2-ch extra UART, plus 8 programmable GPIOs, just bring this Serial Expansion HAT. Features: Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Onboard SC16IS752, expands 2-ch UART and 8 programmable GPIO through I2C, no extra pin required It is stackable up to 16 this modules by setting the address jumper, that means up to 32-ch UART Onboard multi LEDs for indicating the UART working status Reserved I2C control pins, allows to work with other control boards Comes with development resources and manual (examples in C and python) Documents: User Manual Schematic Datasheets Demo Codes Specifications: Operating voltage: 3.3V Expansion chip: SC16IS752 Control interface: I2C Dimension: 65mm x 30mm Mounting hole size: 3.0mm Package Included: Raspberry Pi in the photos is NOT included. Serial Expansion HAT x1 RPi screws pack (2pcs) x1 PH2.0 6PIN wire x2
